Control integral de edificio de enseñanzas universitarias, CEVUG.
Educational in Granada
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Educational |
| Project Type | Commercial |
| Year of Completion | 2012 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Intrusion Detection / Alarm Systems, Supervision (e.g. Cameras), Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control
Customers Description
El centro de enseñanzas virtuales de la universidad de Granada optó en 2012 por el control integral remoto de las instalaciones para lo cual se implementó:

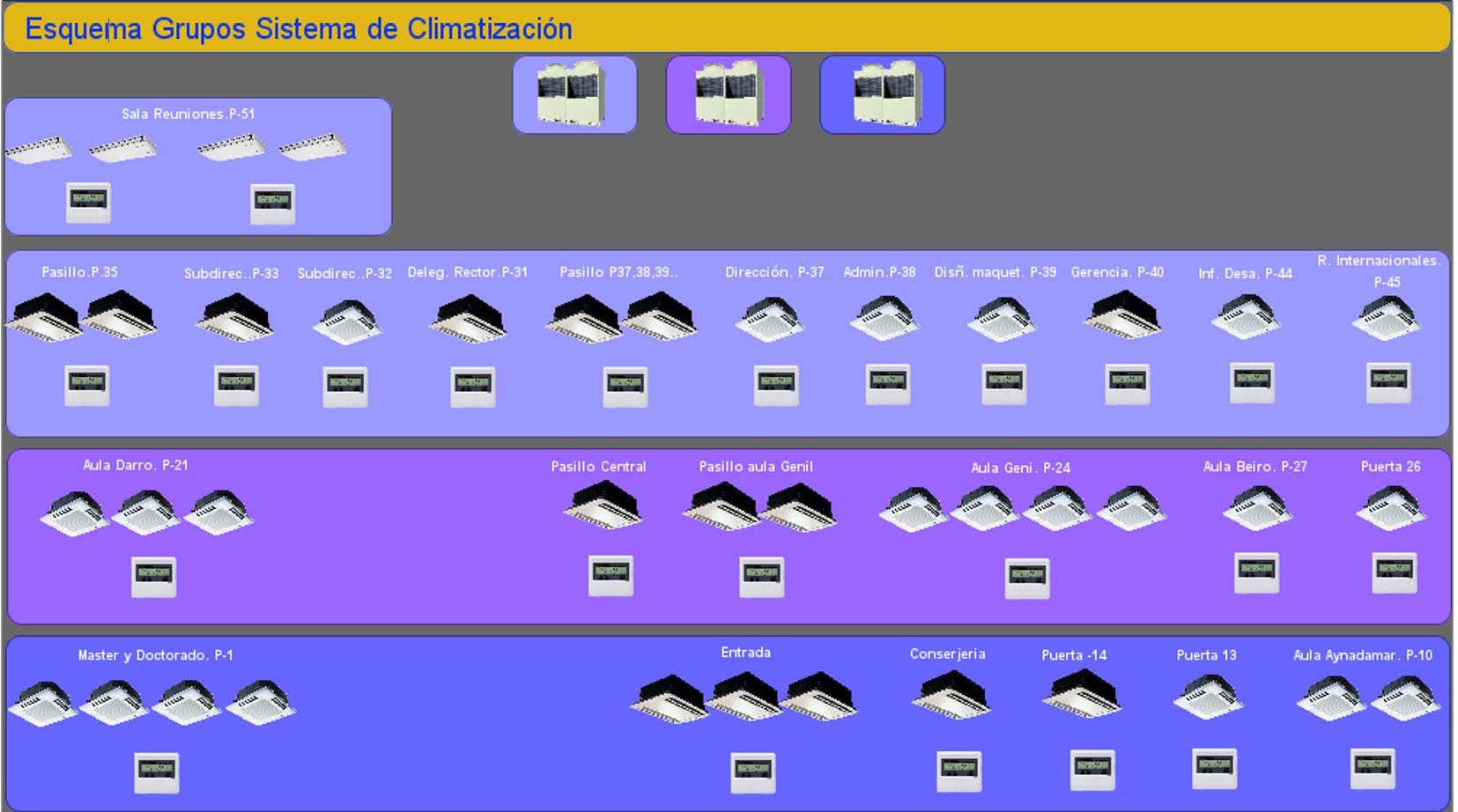

Control de clima.

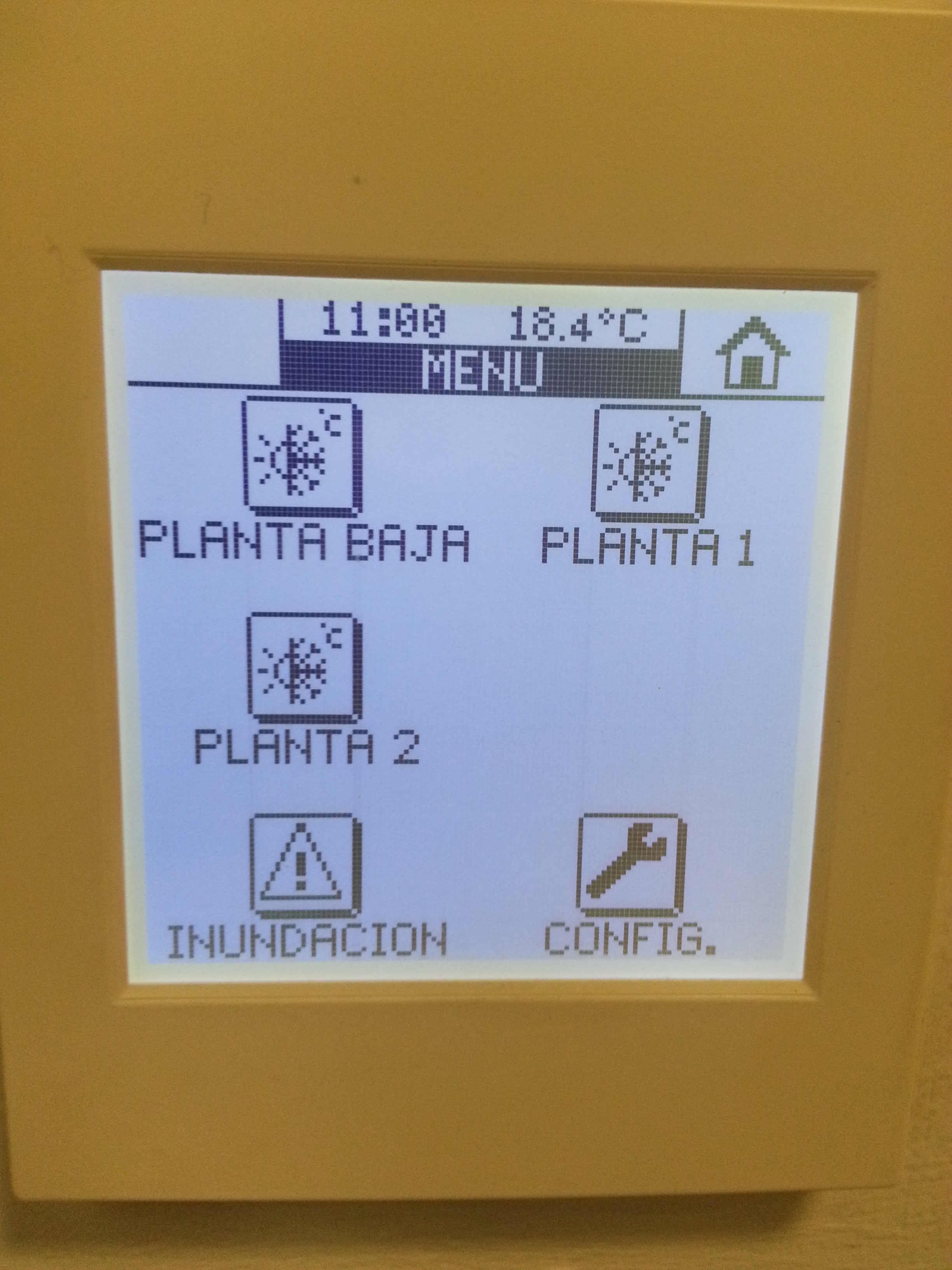

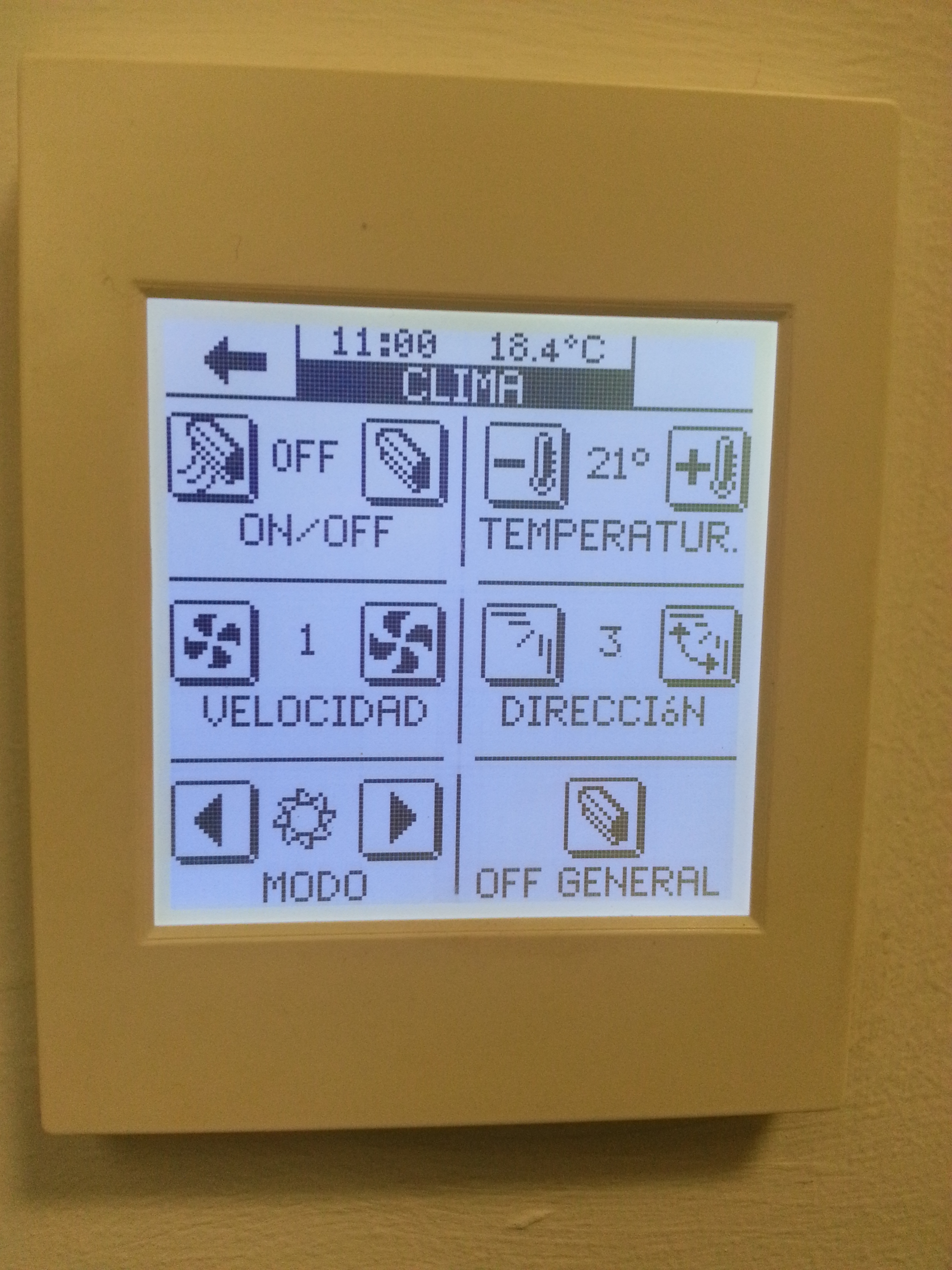

o Control splits interiores mediante pantallas táctiles z38i por estancia.
o Termostatos de zona e interfaz de usuario. Gestión clima sujeta a presencia en las instalaciones mediante detectores.
o Vigilancia y control centralizados del uso de la climatización.
o Sensores de apertura en ventanas para control de clima.

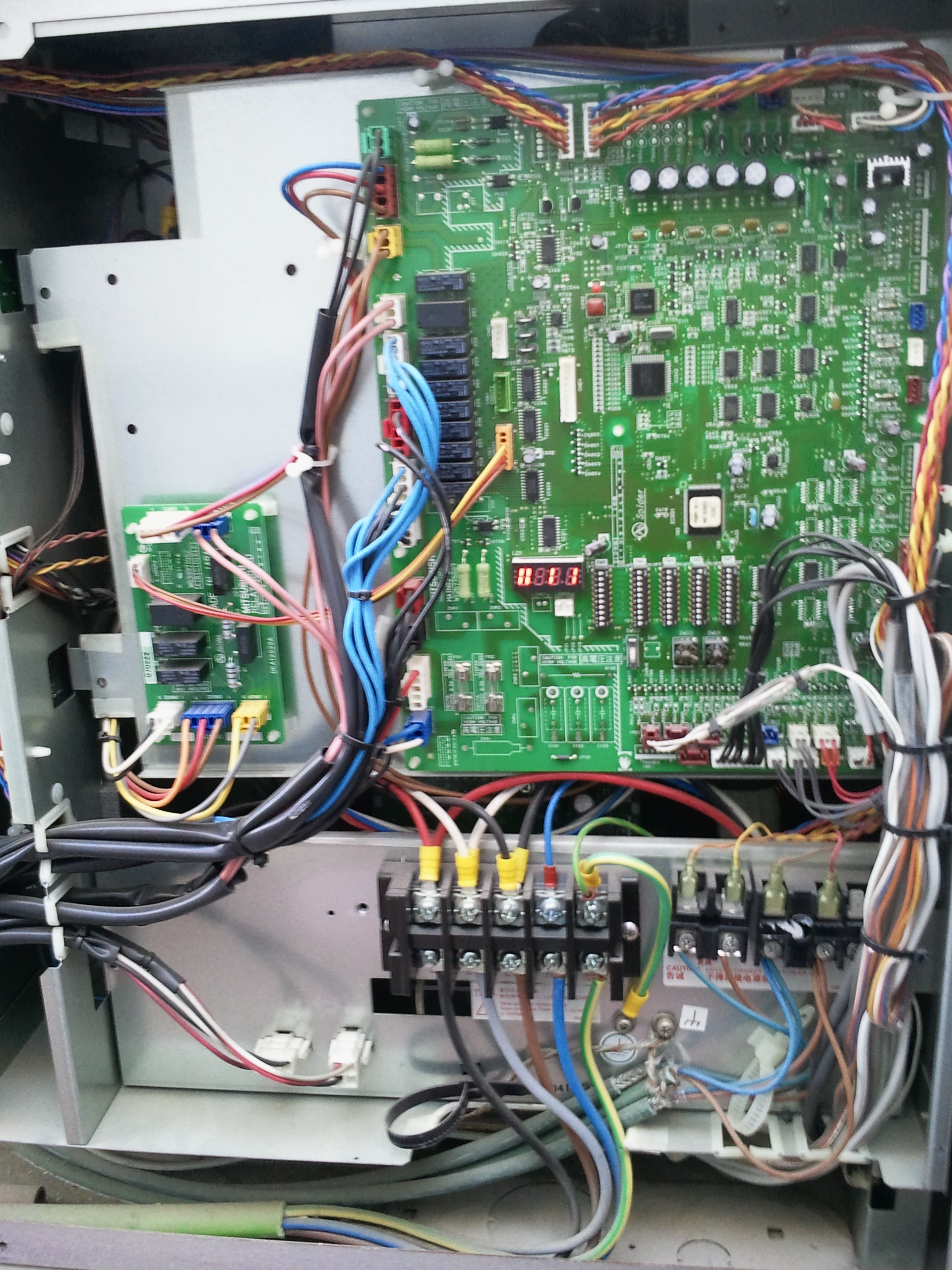

o Control total de climatizadoras de forma remota.
Control de iluminación.
o Actuadores para cargas capacitivas y reactivas
o Pantallas táctiles como interfaz de usuario. Gestión de la iluminación sujeta a presencia.
o Integración en el sistema de monitorización y control de luz natural.
.... ver descripción adjunta..
Contact Information
| Company Name | ATISoluciones Seguridad S.L |
| Company Email | rserrano@atisoluciones.com |
| Company Website | https://www.atisoluciones.com |
| Contact Name | Raúl Serrano Espejo |
| Contact Function | System Integrator |
