SBT357 – BNZ Theatre Hamilton NZ
Entertainment in Hamilton
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Entertainment |
| Project Type | Commercial |
| Year of Completion | 2026 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety - Intrusion Detection / Alarm Systems, Presence Simulation

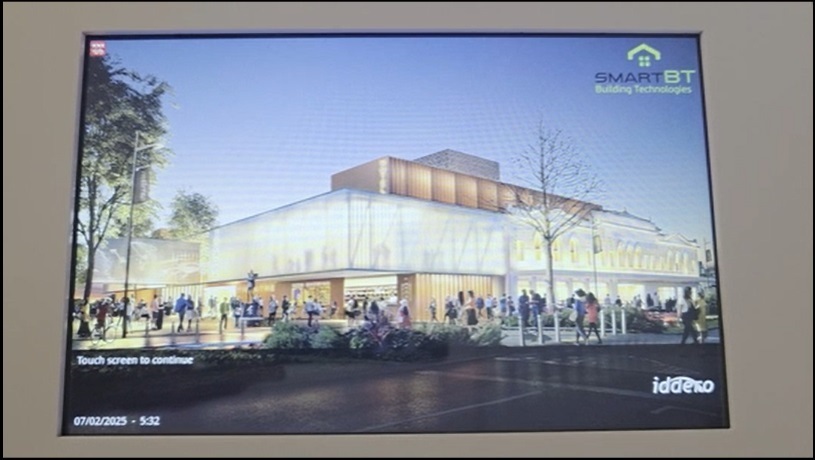

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision
- Blind and Shutter Control
Customers Description

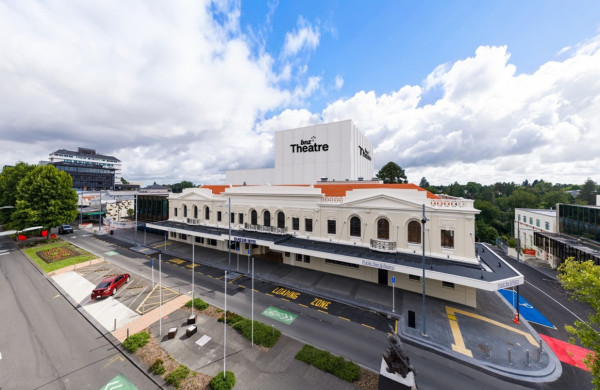

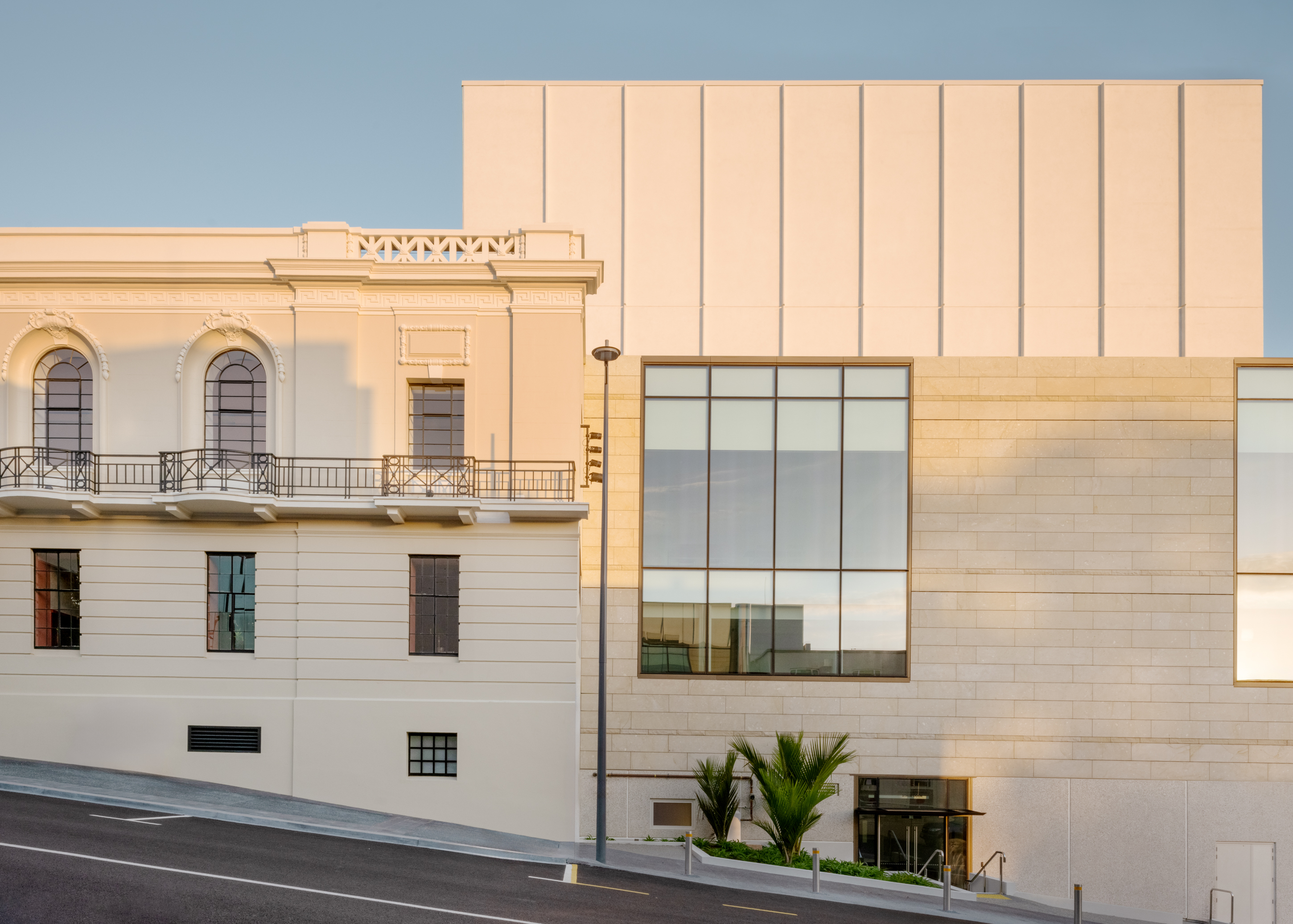

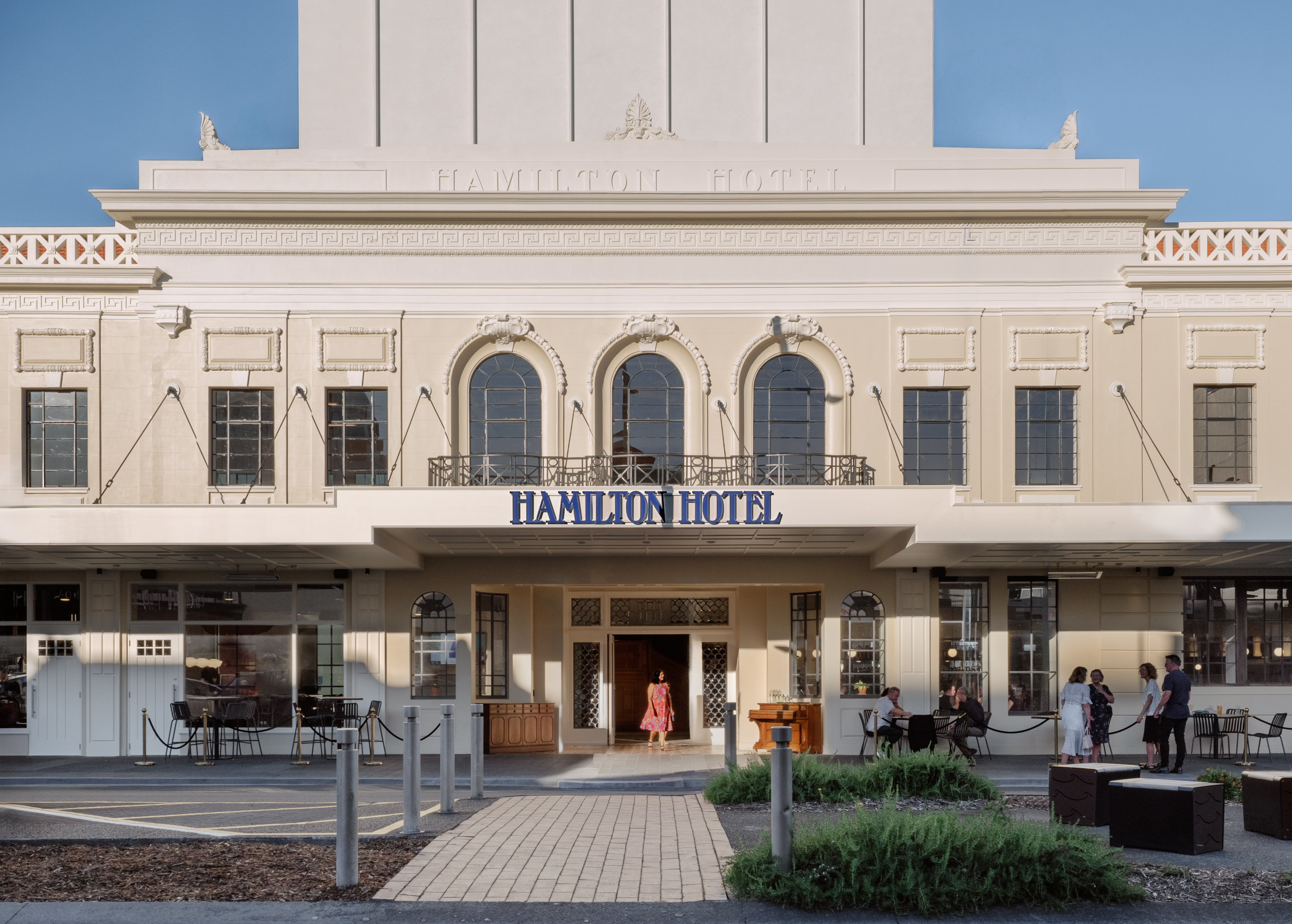

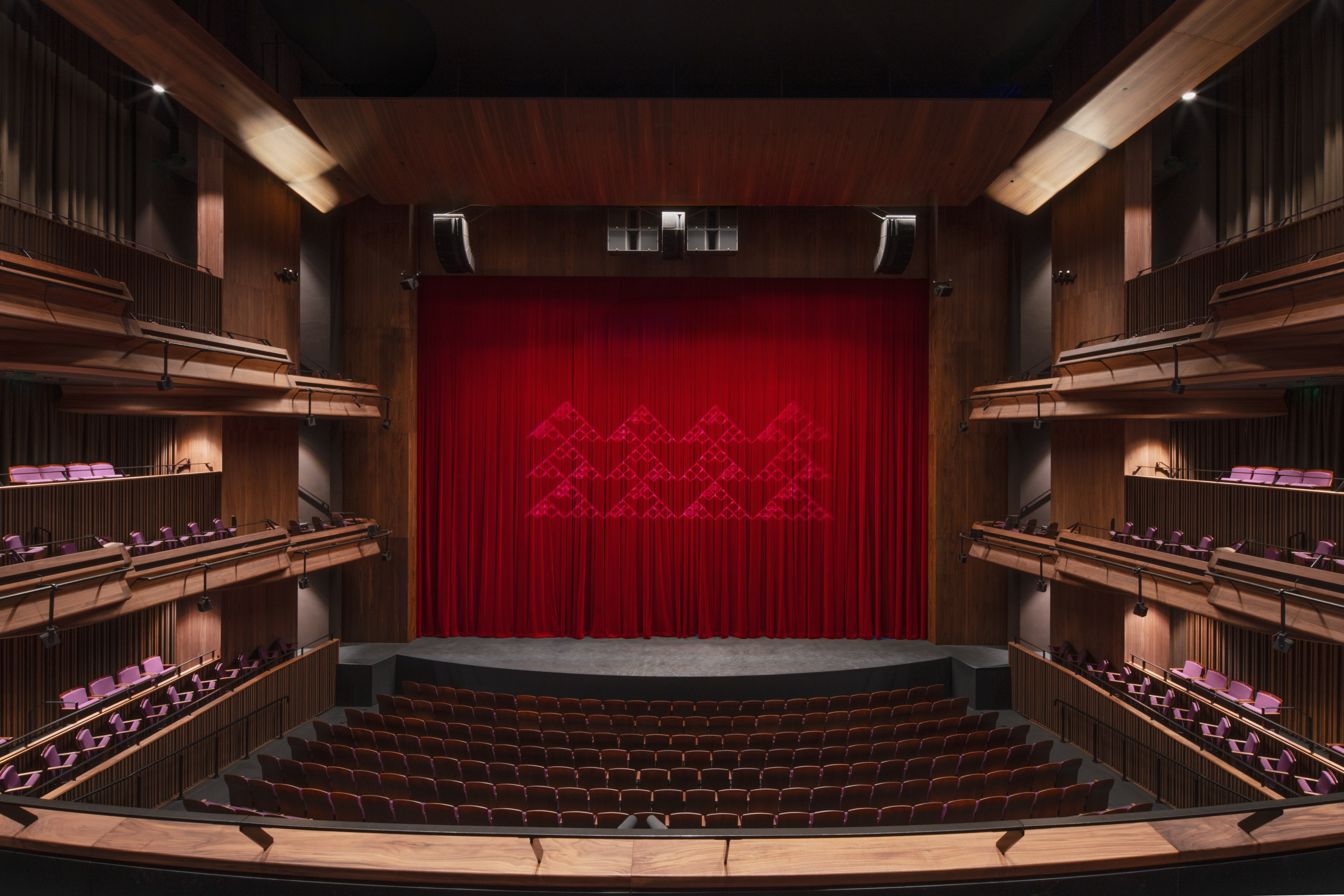

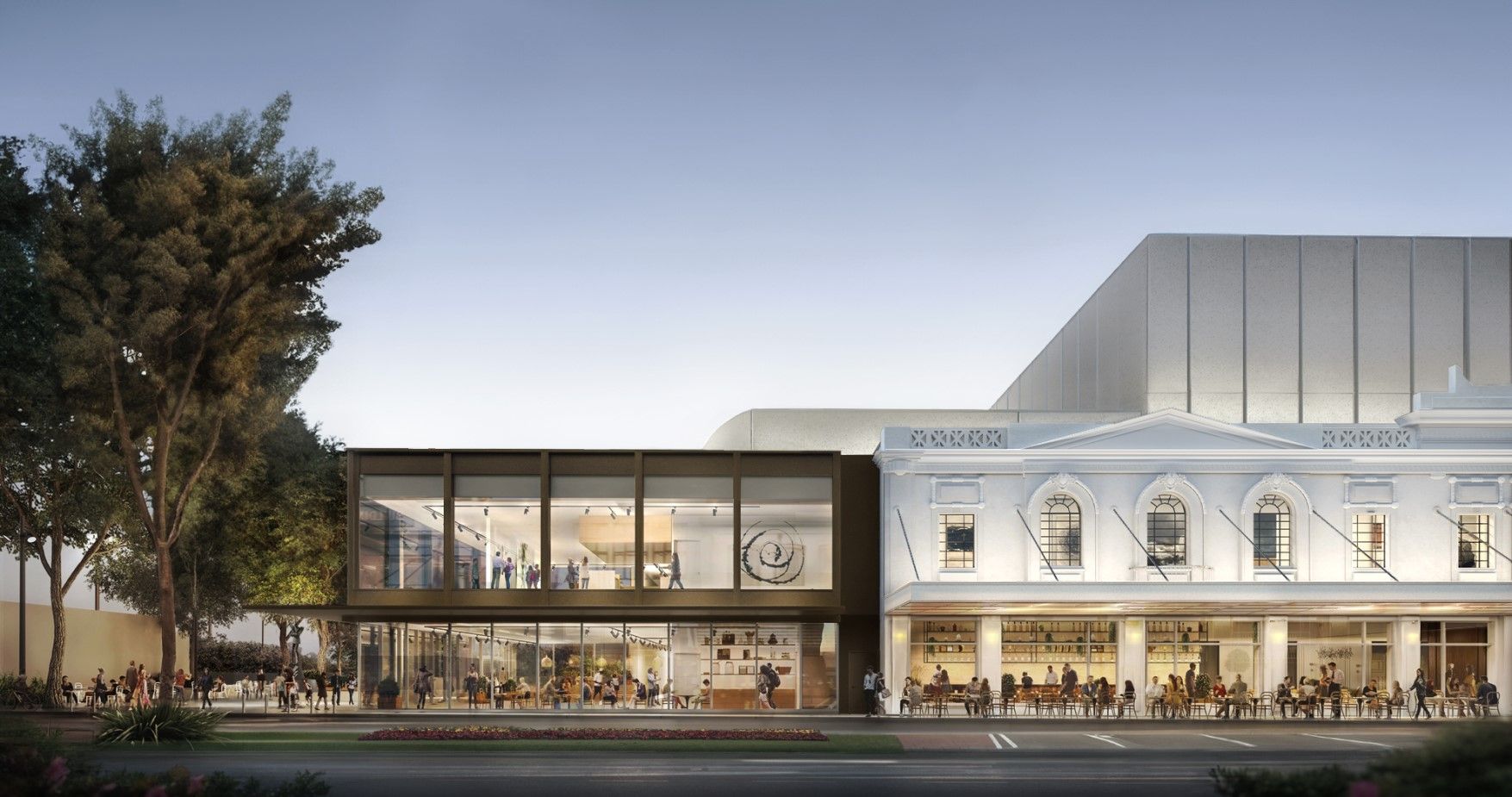

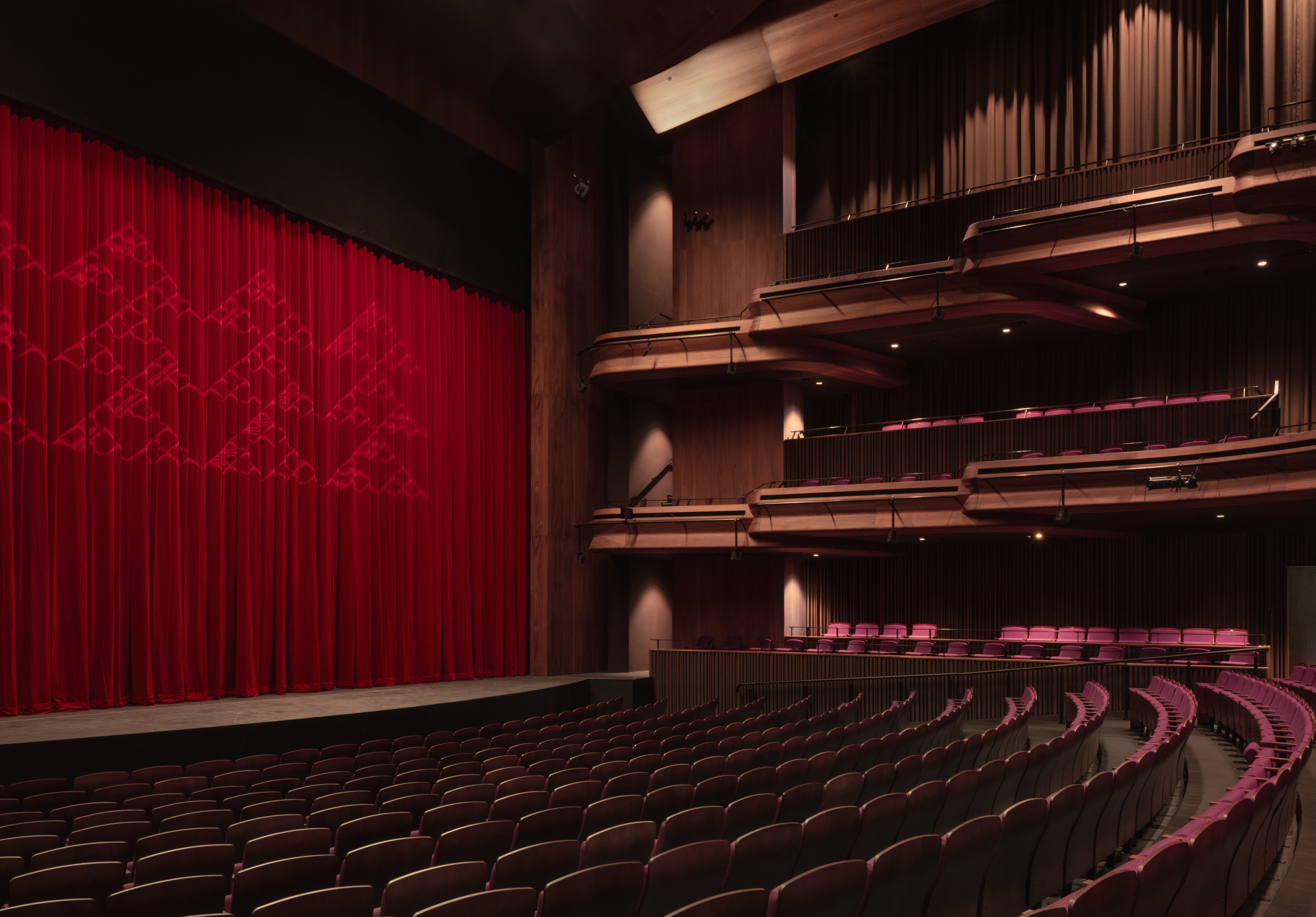

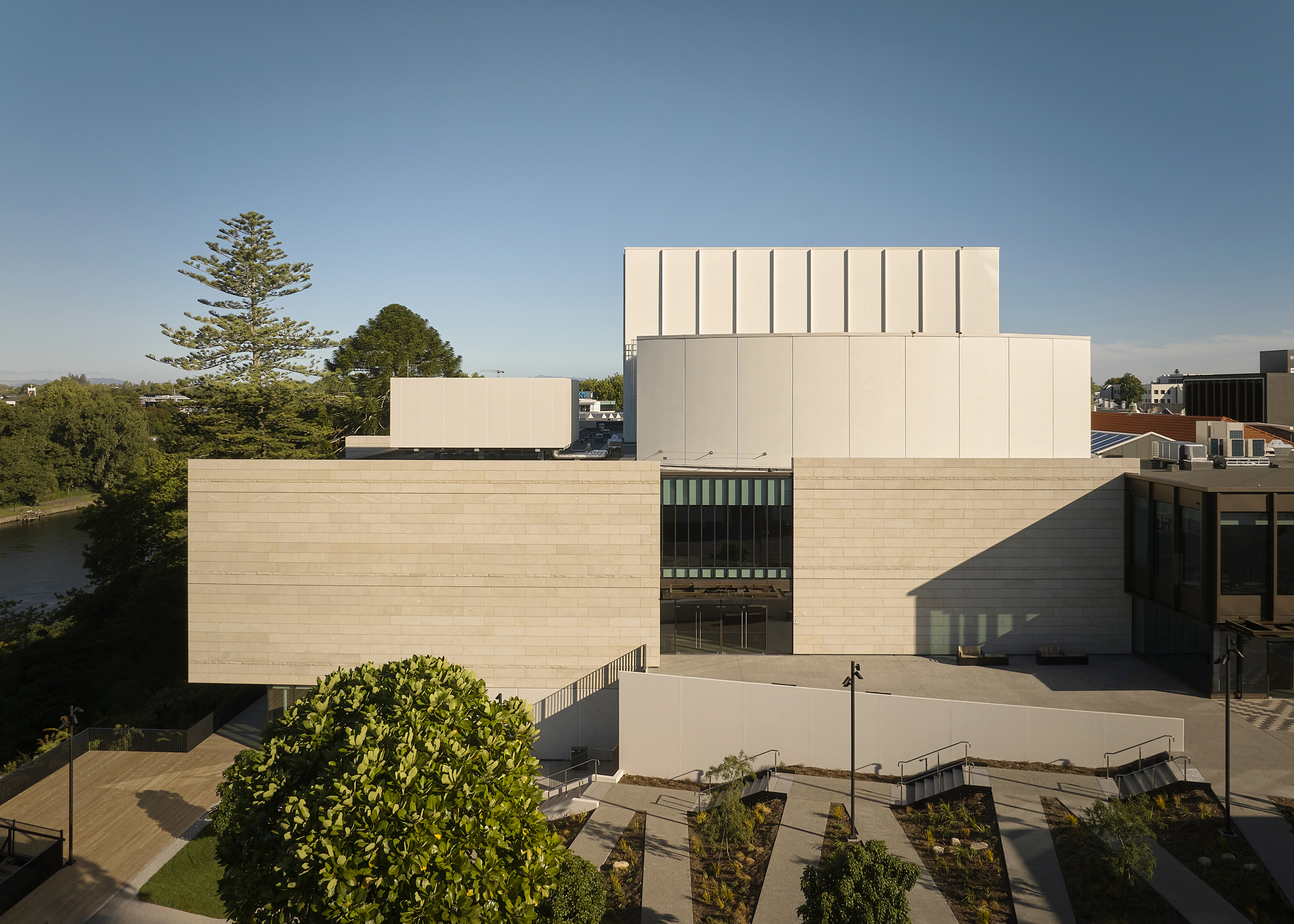

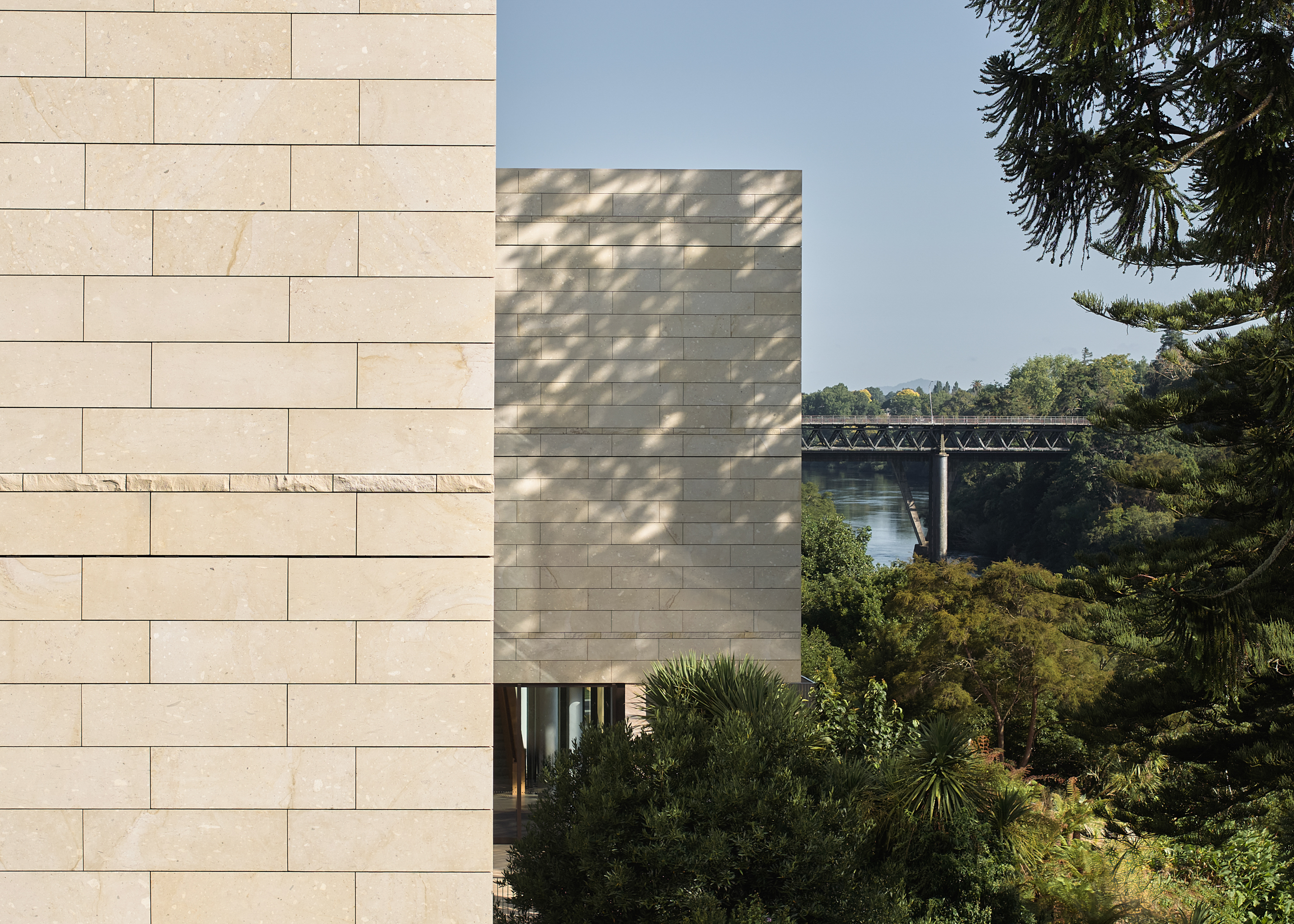

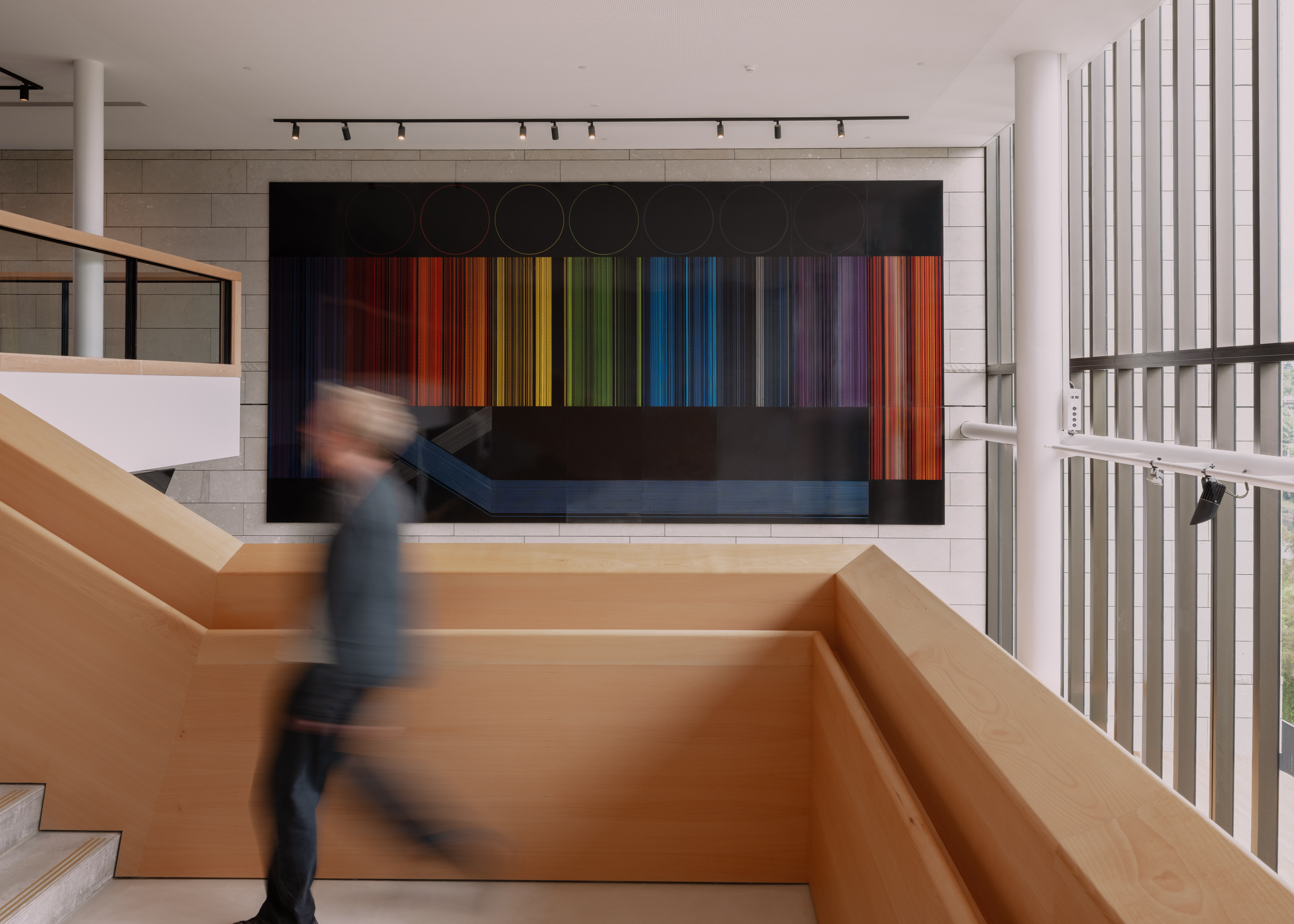

SBT357 is the BNZ Theatre, a premier 8,500m² performing arts facility in Hamilton integrating a modern auditorium with an 1865 heritage façade. KNX was deployed to unify all front-of-house, backstage, and heritage lighting into a single network. High-speed KNX/IP routing connects to the main IT infrastructure, while physical line couplers segment isolated lighting zones. High-level integration links the lighting control natively to the central BMS via an ABB BACnet interface. Crucially, the primary integration bridges architectural lighting with the theater's specialized stage production DMX infrastructure. By deploying decentralized KNX-to-DMX512 gateways, operators can trigger architectural lighting scenes directly from the main DMX show console. This establishes a true bidirectional, parallel control architecture, enabling the DMX console to drive KNX lighting circuits seamlessly alongside native KNX keypads during live performance environments..
Contact Information
| Company Name | Smart Building Technologies Ltd |
| Company Email | Aleksandar@SmartBT.co.nz |
| Company Website | https://www.smartbt.co.nz/ |
| Contact Name | Aleksandar Soldatovic |
| Contact Function | System Integrator |
