Shanghai Metro Line 18
City project in Shanghai
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | City project |
| Project Type | Other |
| Year of Completion | 2025 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Touch Panels & Display Panels
- Energy Management/Smart Metering - Data Logging, Visualisation
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control
Customers Description

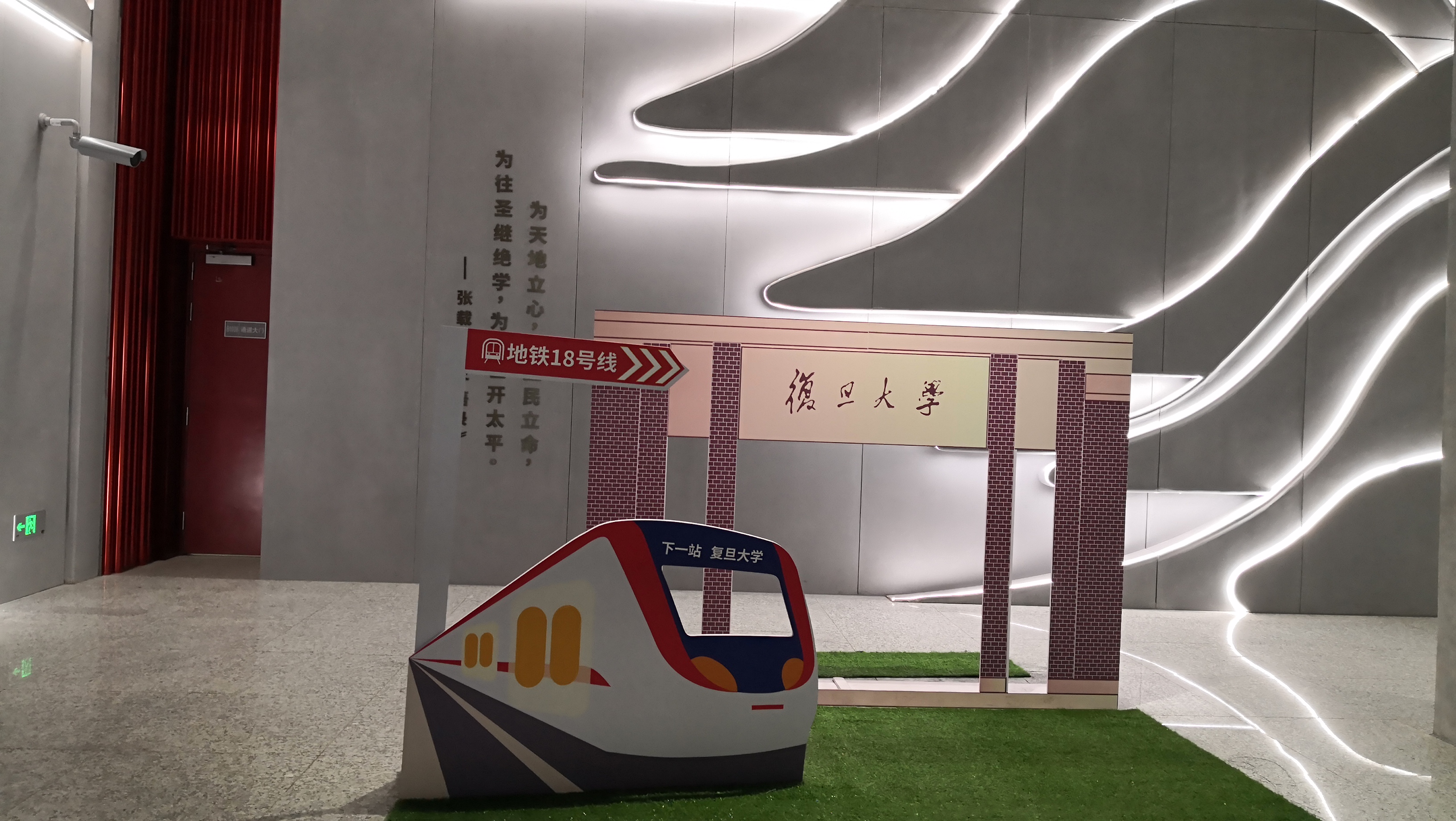

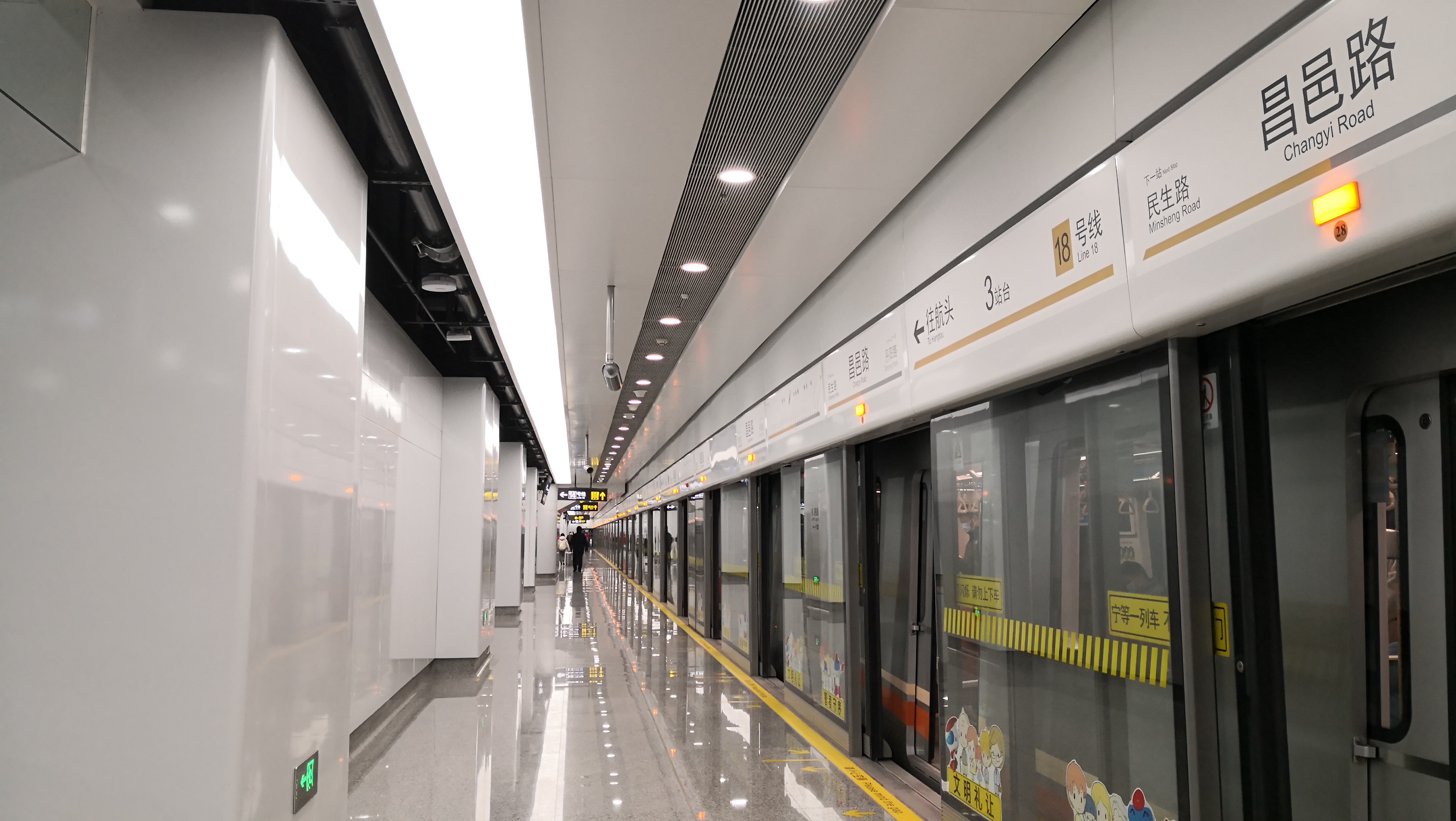

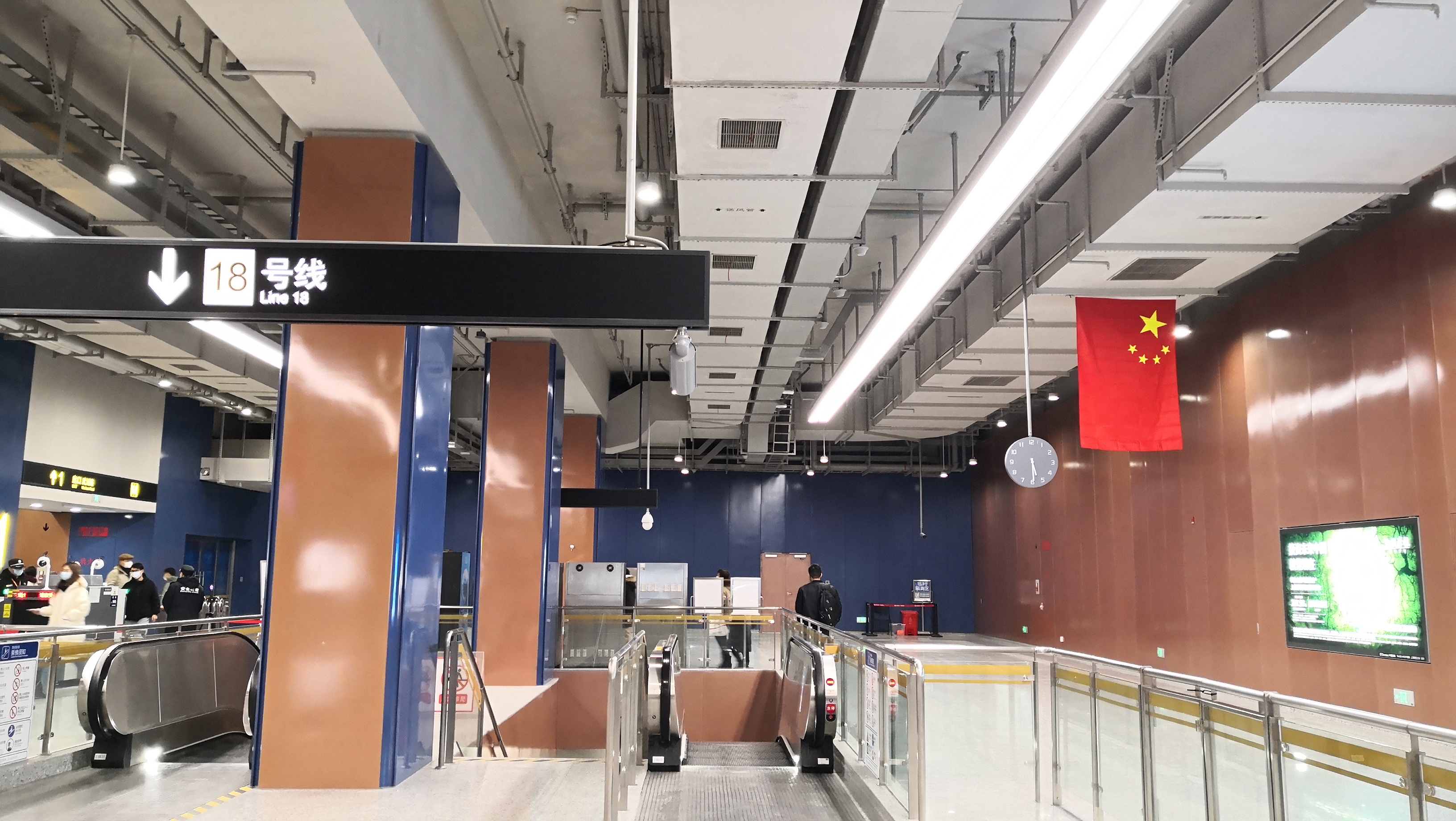

Shanghai Metro Line 18 (Phase 1 & 2) comprises 32 stations equipped with B.E.G.’s KNX intelligent lighting control system for public areas, platforms, entrances, service counters and other zones. The project deploys around 3,700 KNX devices including switching modules, power supplies, constant illumination sensors, control panels, KNX/DALI gateways and central monitoring software. Compliant with KNX/IEC and GB/Z 20965-2013 standards, the system adopts a fully distributed bus architecture and supports time-scheduled, zoned, scene, dimming and daylight-linked automatic control. It features self-diagnosis, central monitoring, fire linkage and high scalability, ensuring stable 24/7 online operation to support both daily service and night maintenance. It delivers a highly reliable, energy-efficient and maintainable solution for smart rail transit buildings.
