Quadra 500 - BMS
City project in Brasília
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | City project |
| Project Type | Other |
| Year of Completion | 2026 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Timed Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Intrusion Detection / Alarm Systems
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Fuel or Water tank level control
- Other - Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control
Customers Description

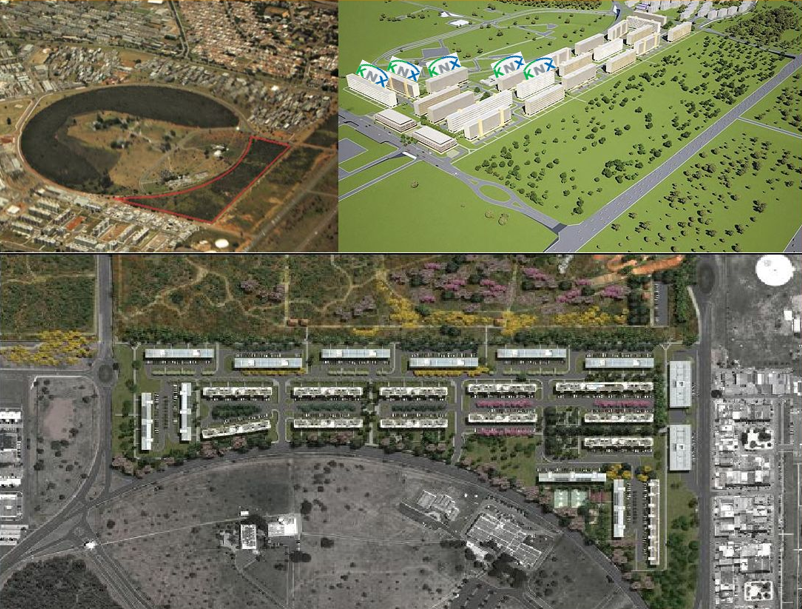

Parque Itamaraty, Parque Esplanada, Parque Alvorada, Parque Cidade and Parque Nacional are residential blocks from Base Incorporações in Quadra 500.
Apartments have its doors and gas leakage monitored by the building system.

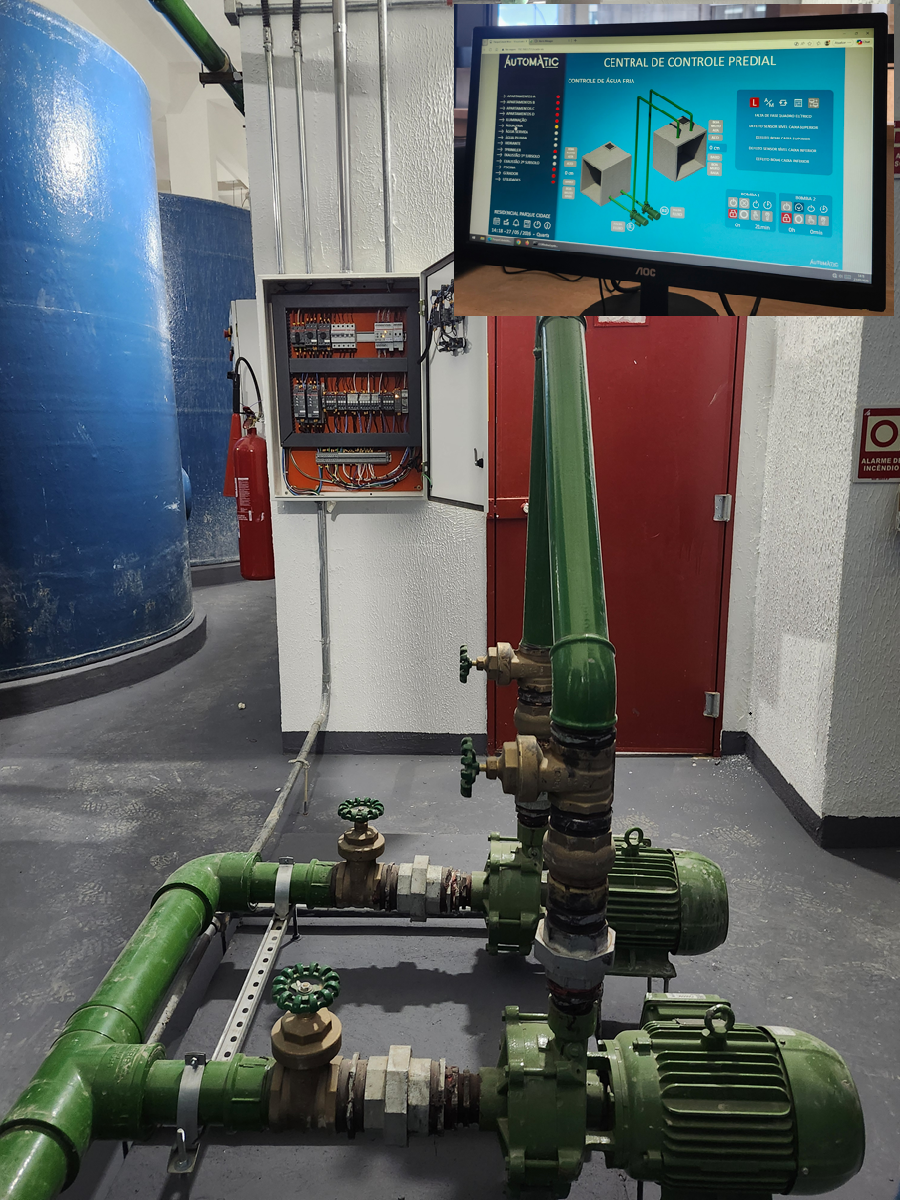

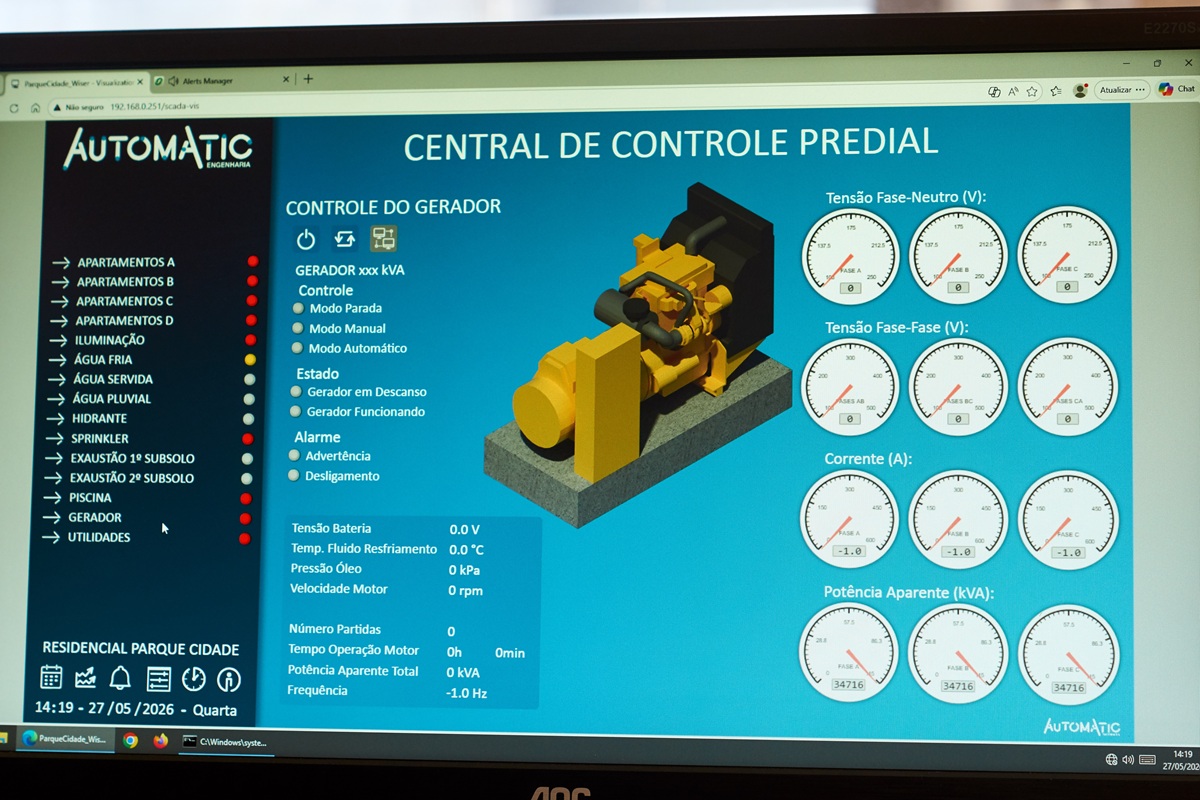

Common area lighting, cold water, waste water and rain water systems are controlled (level and pumps), diesel generator and main electrical board meter are integrated.
Entrance doors, garage gate and common area accessible toilets alarm buttons are supervised.

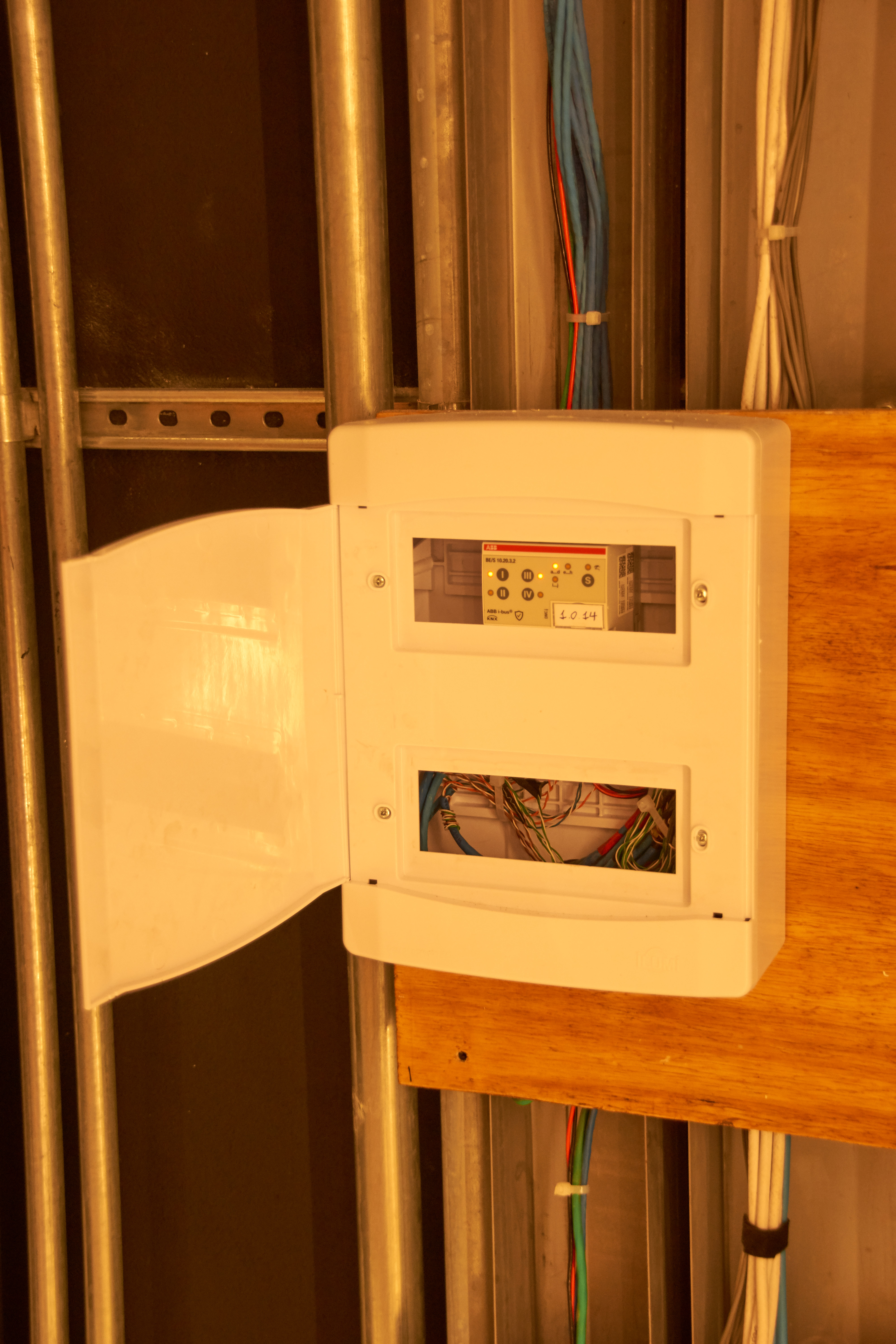

More than 1.400 phisical ponts are monitored via KNX.

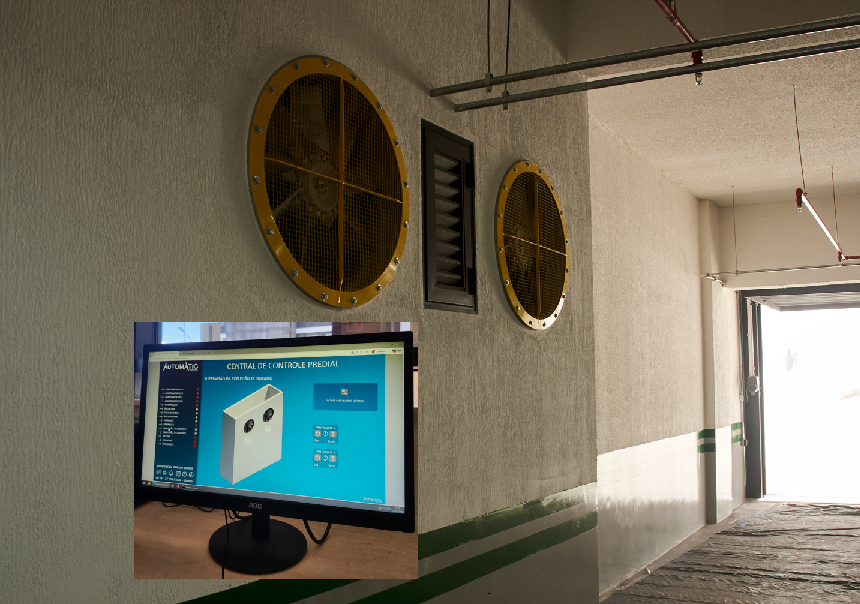

Each building has its own visualization screen for process control, events and alarms monitoring.
Contact Information
| Company Name | Automatic Engenharia |
| Company Email | contato@automatic.eng.br |
| Company Website | http://www.automatic.eng.br |
| Contact Name | Webert Jesus |
| Contact Function | System Integrator |
