Quanta : Smarter Building - Jaguar Network Headquarters

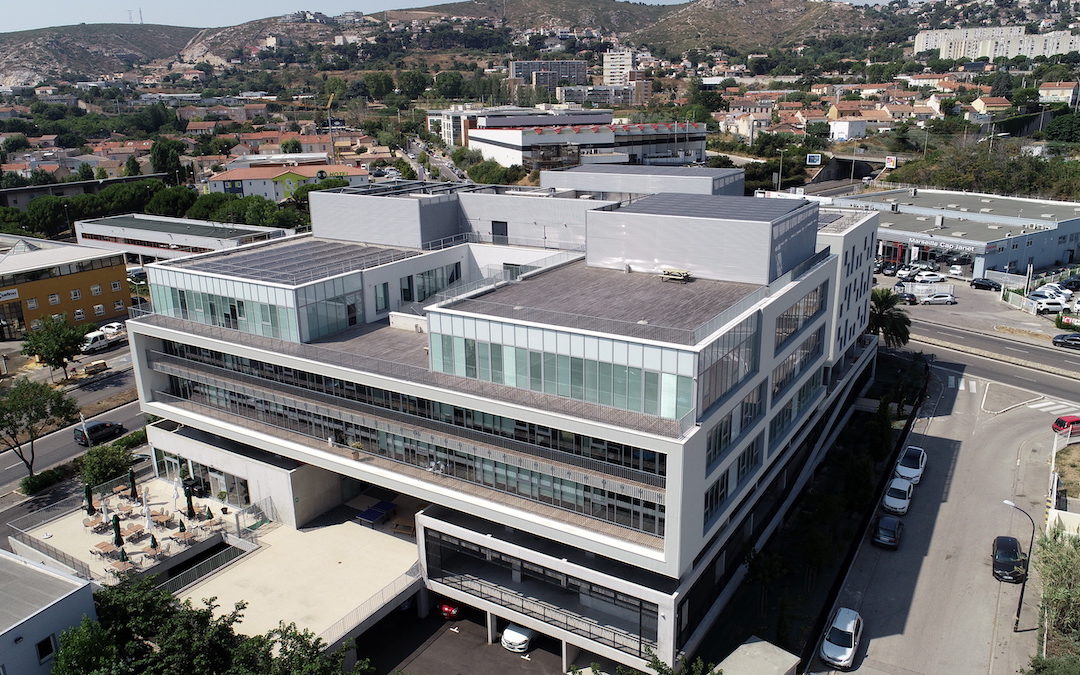

Office building in Marseille

Applications Used

Lighting

Heating, Ventilation & Air conditioning (HVAC)

Security and Safety

Operation and Visualisation

Energy Management/Smart Metering

Other

Automation and Remote Access

Blind and Shutter Control

Project Details

Category	Value
Project Category	Office building
Project Type	Commercial
Year of Completion	2018
Project Size	5.000+
Number of KNX Devices Used	501 – 1.000
KNX Transmission Media	Twisted pair
Man Hours	1.001 – 2.000
Man Power	1 – 5

Featured in this project

Detailed Description

Energy Efficiency

The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation

Innovation

Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.

Applications Used

Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation
Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Intrusion Detection / Alarm Systems, Interaction with HVAC/Lighting
Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Peak Demand Monitoring, Load Shedding , Use of Renewable Energies
Other - Distributed Facilities
Automation and Remote Access - Logical Functions, System Supervision, Internet Access, Remote Programming
Blind and Shutter Control

Customers Description

CUST'HOME designed the cross-building digital infrastructure for all technical batches, IP up to 15 divisional electrical panels, then fieldbus using flat ceiling cable: one for HVAC with KNX; one for lighting with DALI. This global approach has made it possible to optimize and simplify the deployed cabling and to standardize the protocols by the technical teams. Some figures: 200 DALI; 10 KNX DALI gateways; 130 office areas; 150 presence and brightness detectors; 131 radiant panel regulators; 31 fan coils; 75 electric meters; 40 meters of water and heat. The application on smartphone or tablet, developed by the teams of Jaguar Network, allows the reservation of a meeting room, the control of its office, the management of each zone, the order of its menu in the restaurant, ... as much features that make this building user friendly. Cloud monitoring, also developed by Jaguar Network, allows you to monitor, store and analyze all building information. Cert.:HQE Excellent;BDM Or;BEPOS.
