KNX-Trainingcenter Luxembourg
Educational in Bettembourg
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Educational |
| Project Type | Commercial |
| Year of Completion | 2024 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Floor Heating Control, Boiler and burner Control
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Emergency Lighting, Presence Simulation, Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Visualisation, Current Detection, Peak Demand Monitoring, Load Shedding
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description
In unserem Schulungskonzept haben wir uns von den klassischen Schulungskoffern entfernt und in Zusammenarbeit mit dem Centres de Compétences in Bettembourg, Luxembourg eine neue Möglichkeit geschaffen KNX praxisnah zu vermitteln.

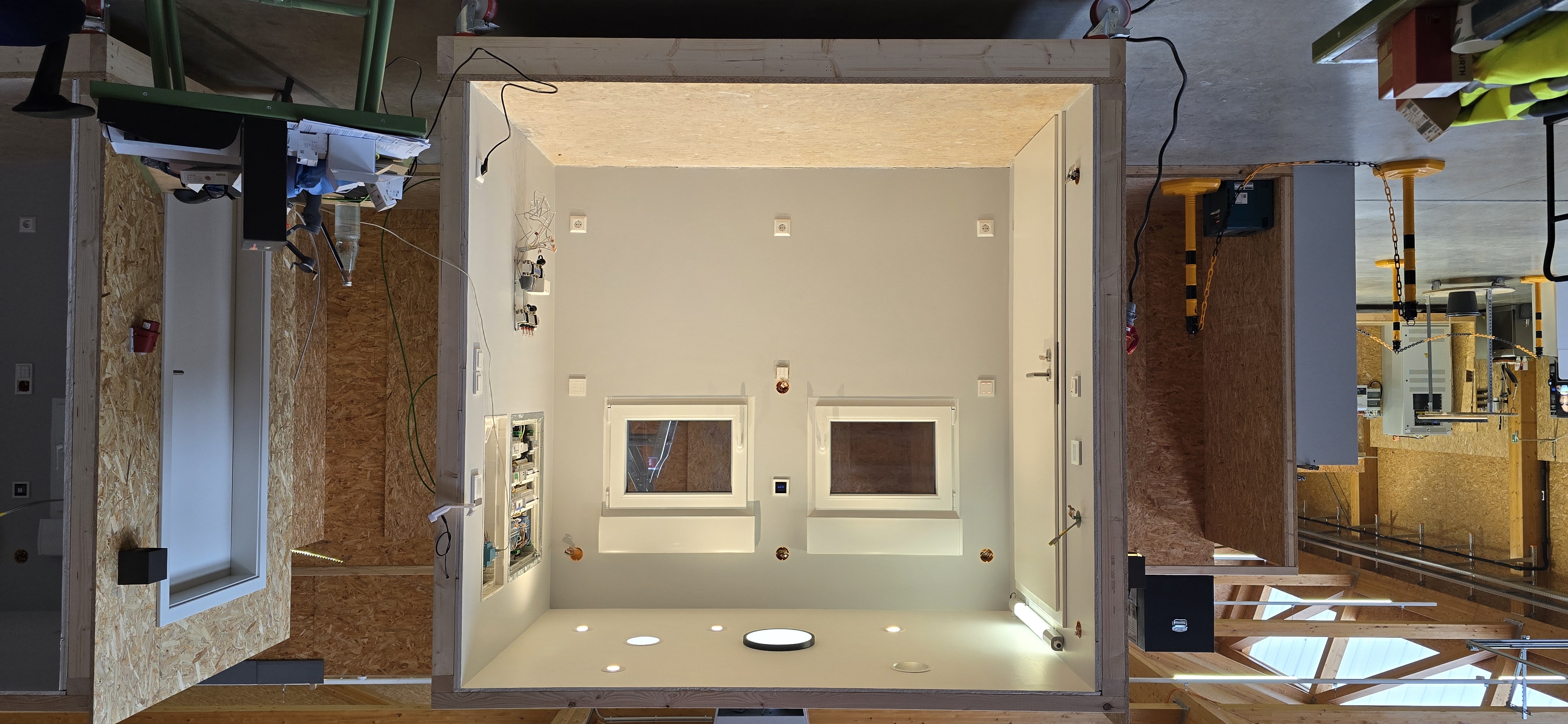

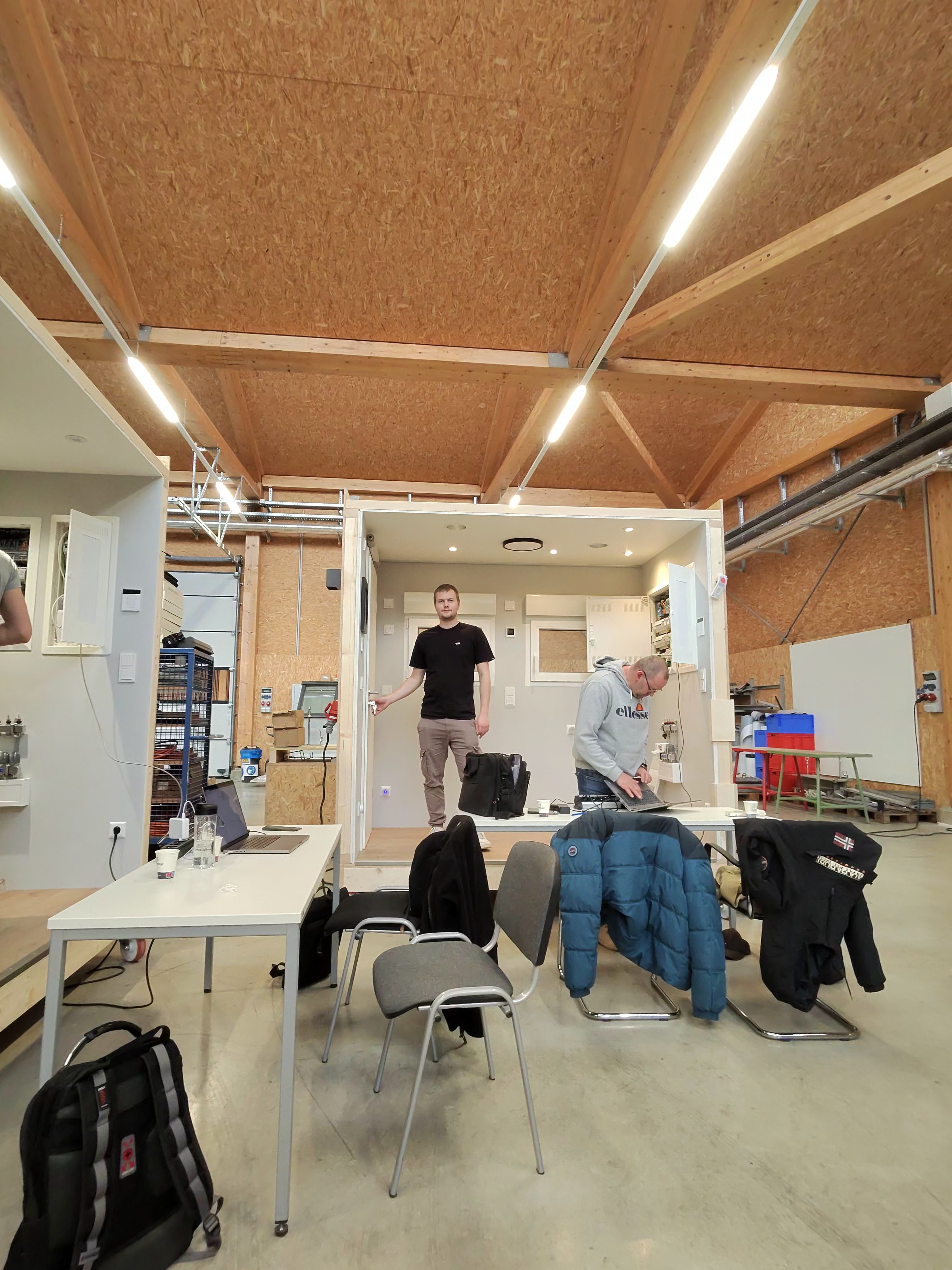

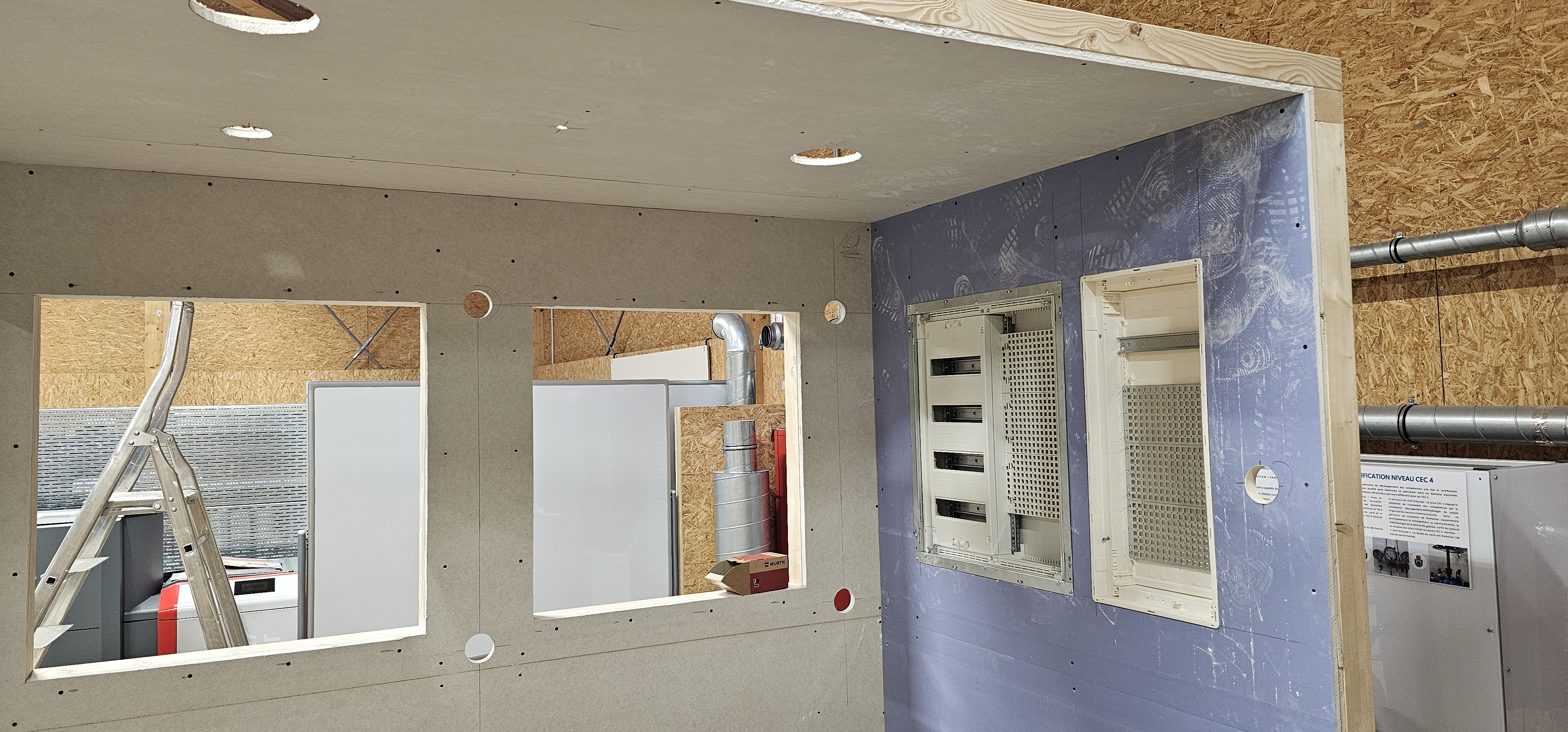

Durch Lebensgroße Schulungsplätze haben unsere Teilnehmer die einzigartige Chance KNX von Anfang an zu lernen und zu erleben.

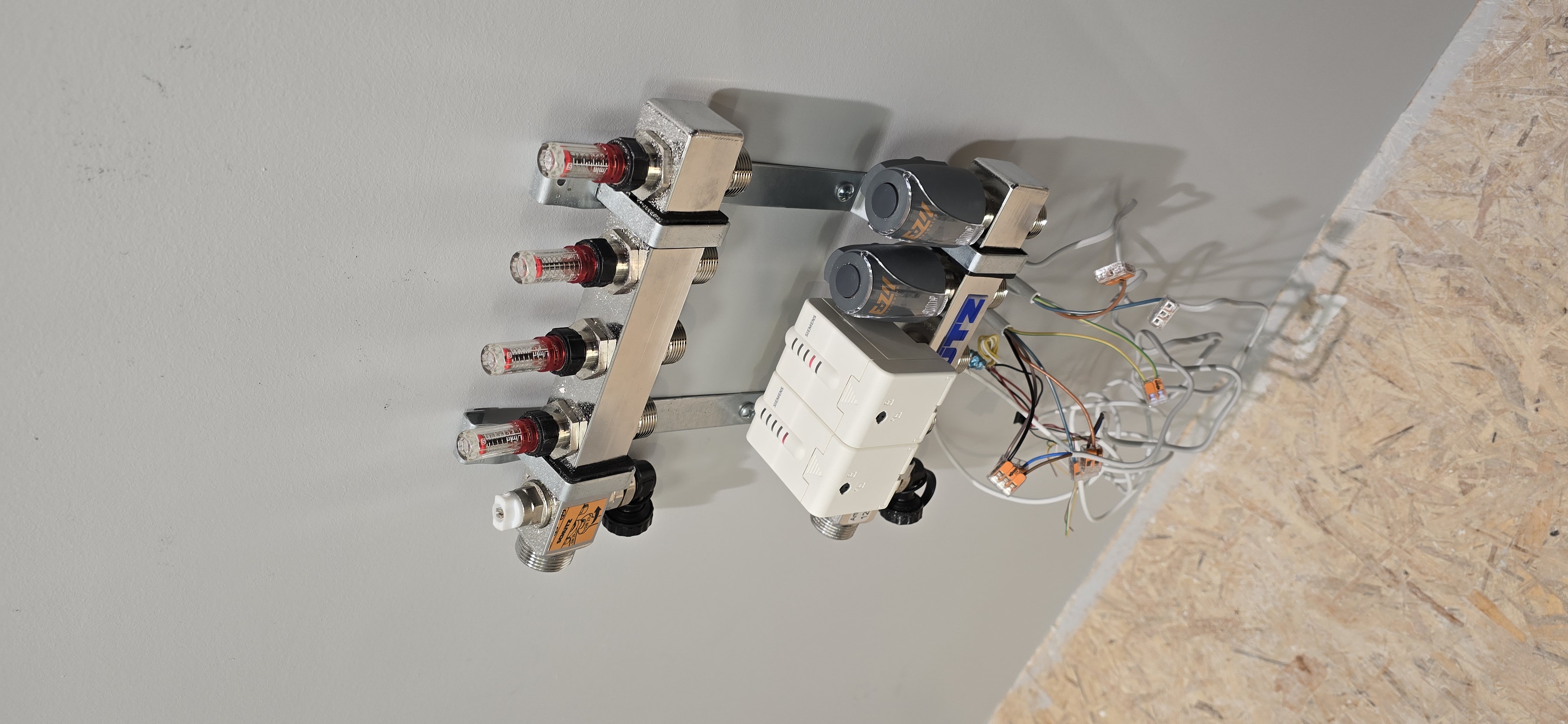

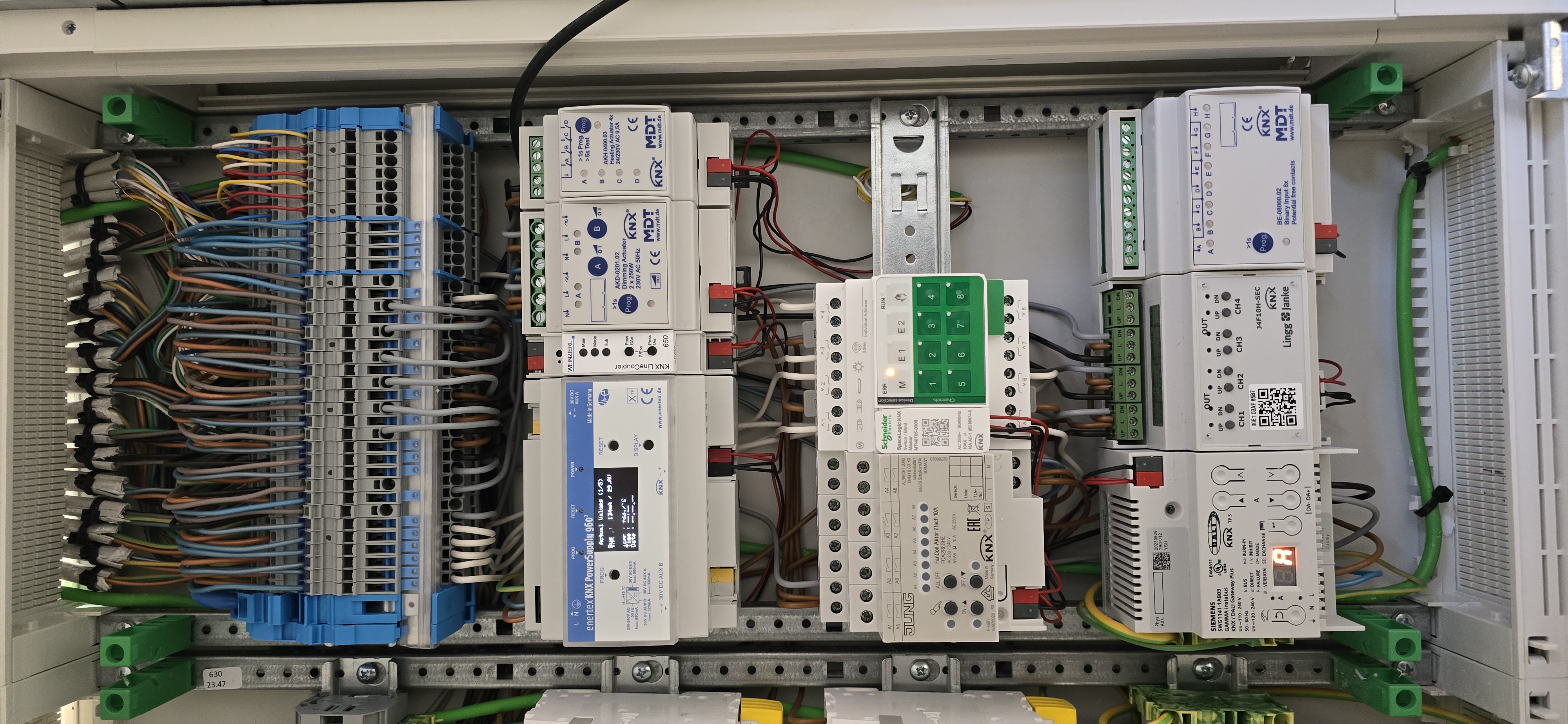

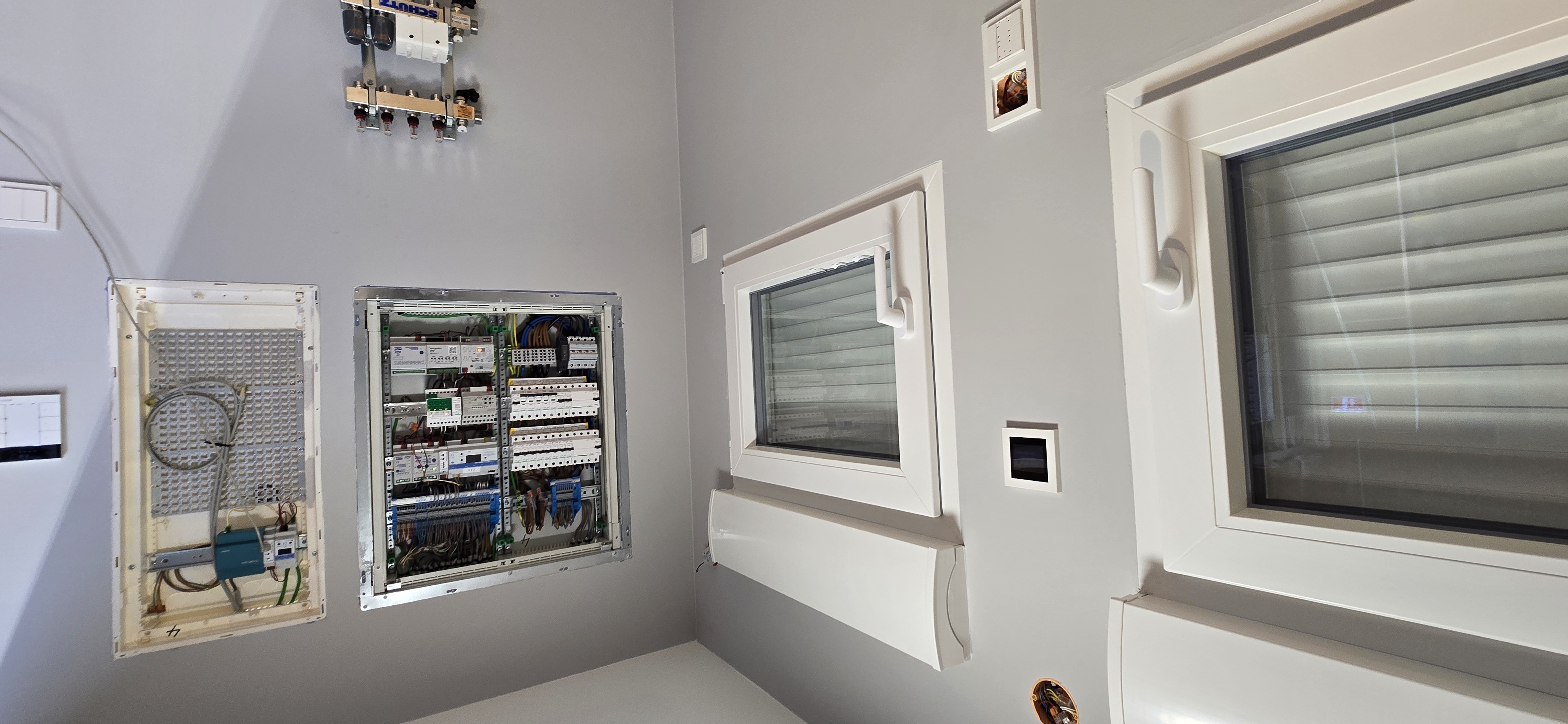

Bei uns lernen die Teilnehmer auf 3qm an echten Unterverteilungen, Heizkreisverteilern, Zählerverteilungen nicht nur die Programmierung, sondern auch die Verdrahtung.
Wir haben dabei viel Wert darauf gelegt, unterschiedliche Herangehensweisen aufzuzeigen. So haben wir beispielsweise neben der Heizungssteuerung über Aktorik auch motorische Stellantriebe integriert, um den Teilnehmern die diversen Möglichkeiten zu präsentieren.

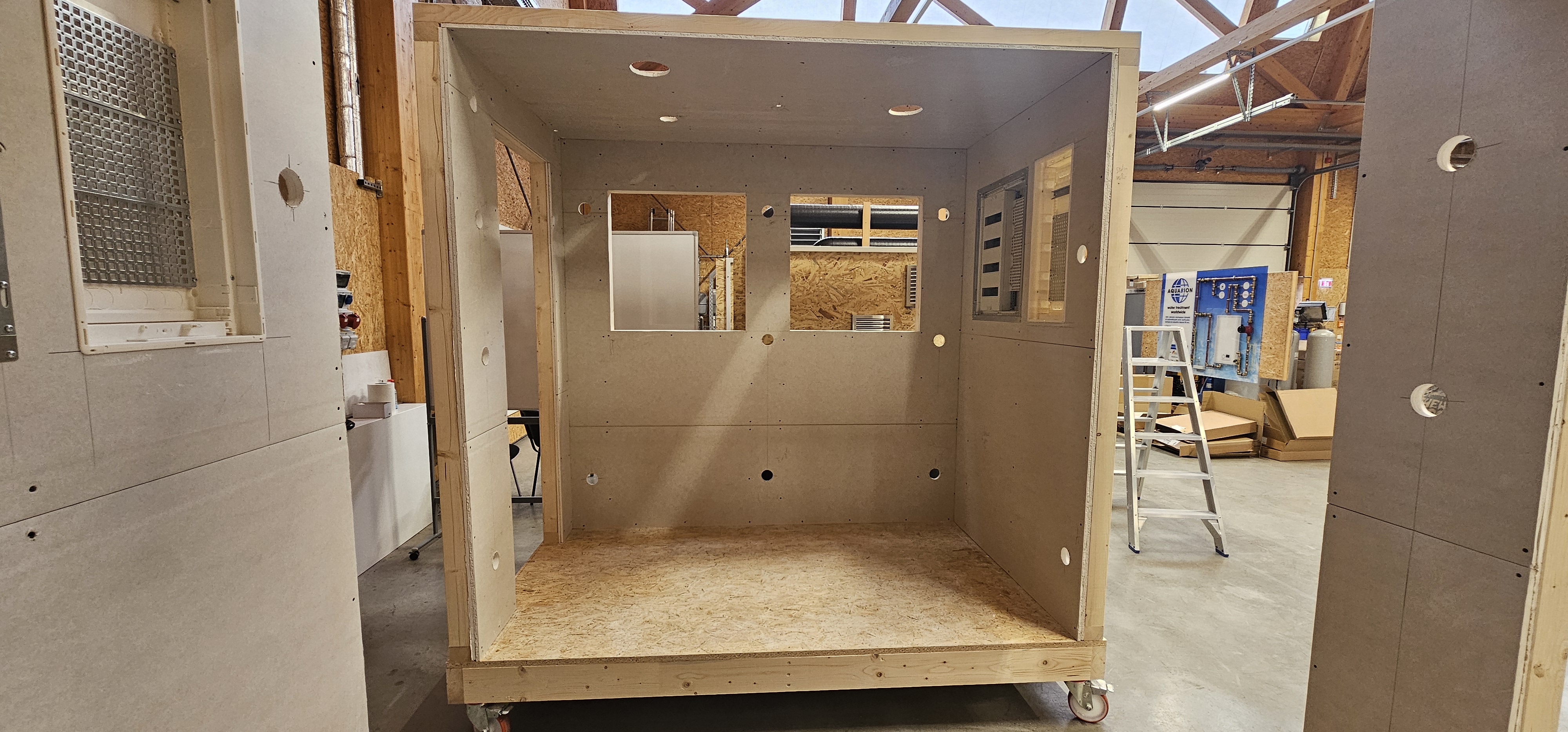

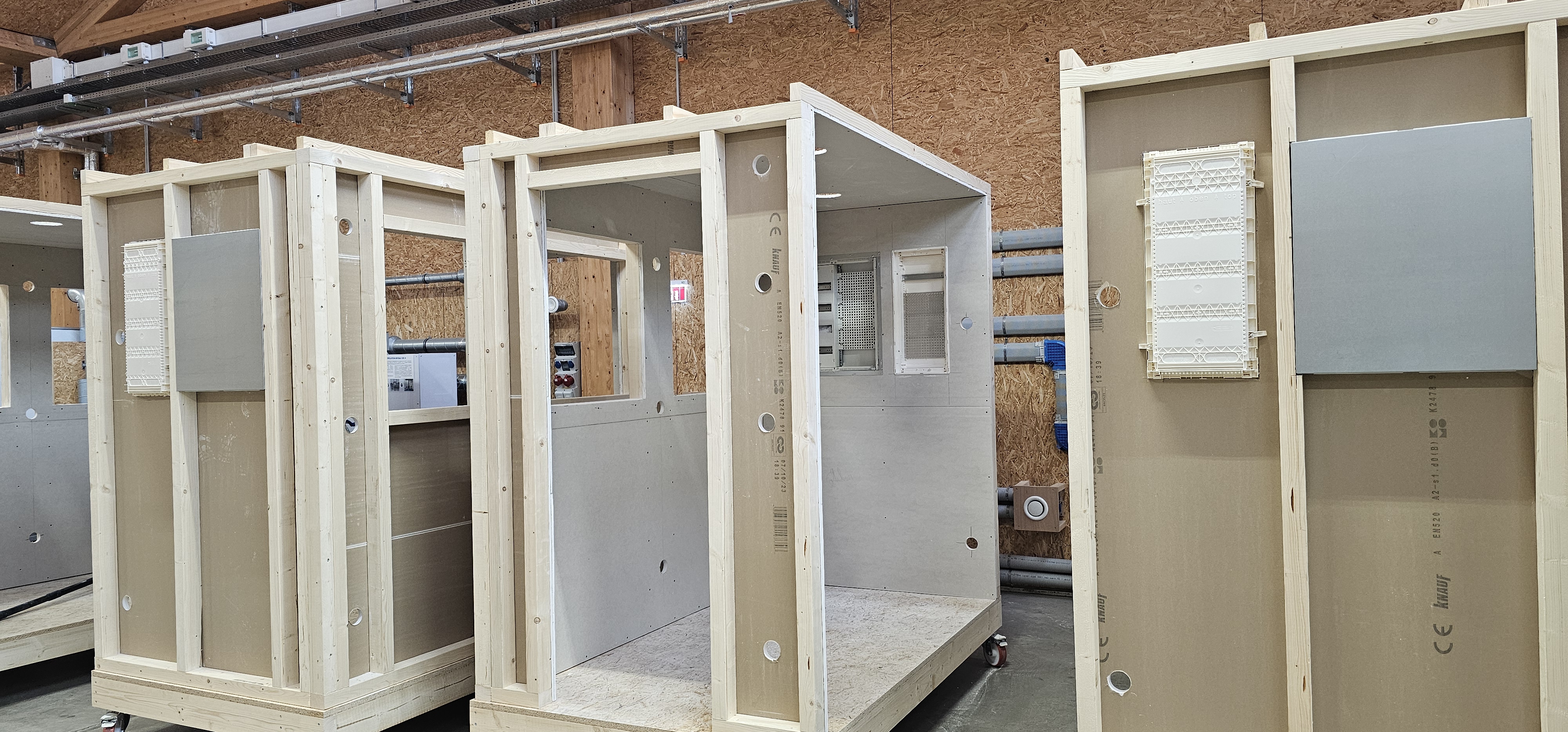

Die Schulungsplätze sind beweglich und können bei Bedarf zu mehreren Linien über TP oder IP zusammengeführt werden.
Contact Information
| Company Name | CA Brachtendorf GmbH & Co KG |
| Company Email | Roeder@cab-ih.com |
| Company Website | https://knx-trainingcenter.com/ |
| Contact Name | Moritz Roeder |
| Contact Function | Planner |
