Edificios Pasarela e Incube, SPEGC - Las Palmas de Gran Canaria.

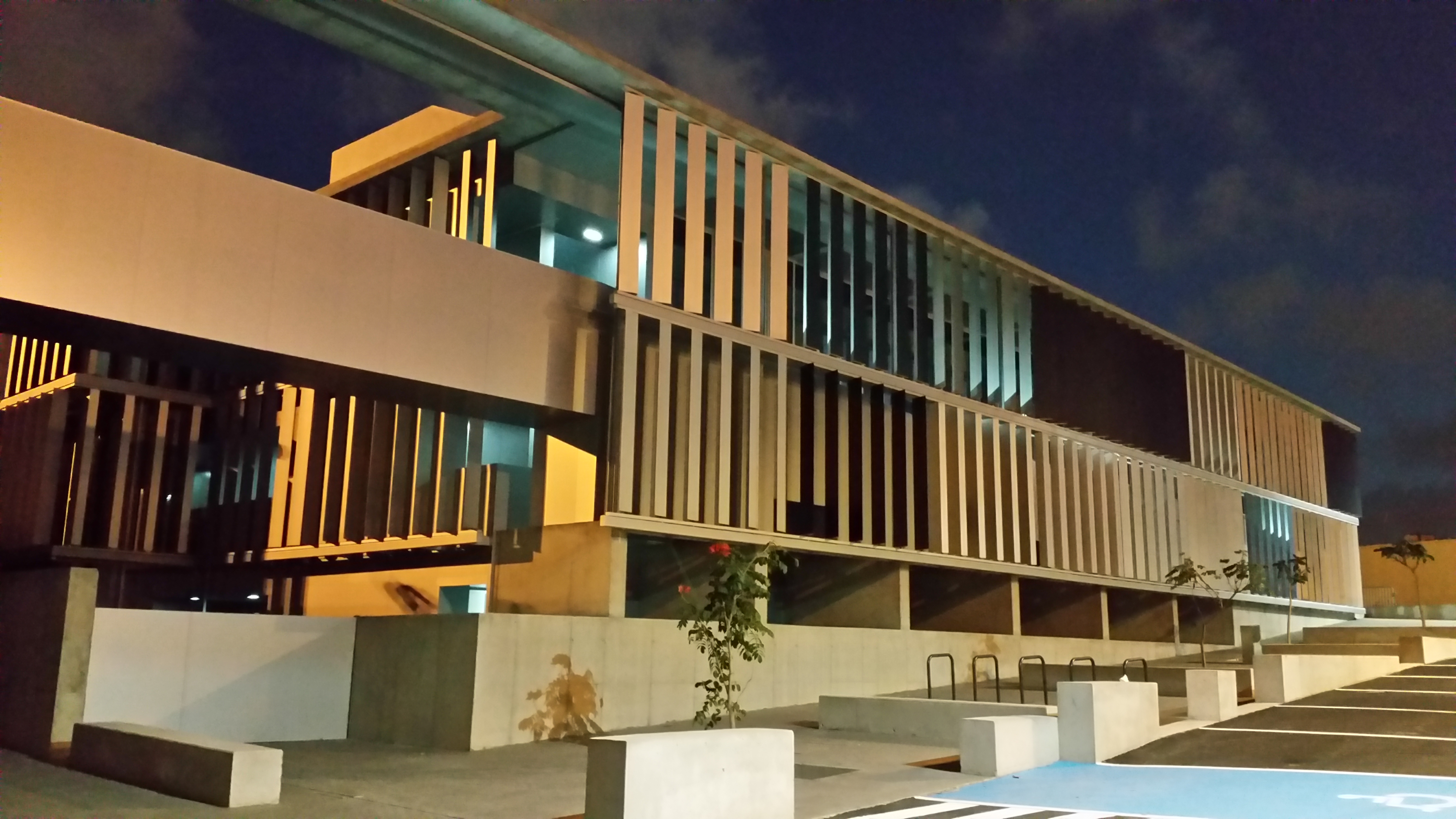

Office building in Las Palmas de Gran Canaria
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2015 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Individual Room Control / Zone Control
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Timed Functions, Logical Functions
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description
Instalación KNX en dos edificios de oficinas, premiada en 2016 con el tercer puesto en los "Premios Mejor Instalación de Eficiencia Energética" en la Feria Internacional MATELEC, en los que se gestiona la iluminación interior y exterior y la climatización de las salas polivalentes. Además, de la automatización de ventanas y lamas motorizadas para el aprovechamiento de la luz natural. Las lamas están coloreadas dependiendo de la posición, pudiendo crear diferentes escenas de la fachada del edificio, consiguiendo un plus de diseño.
Todas las zonas comunes de los edificios cuentan con sensores de movimiento, para el control de la iluminación. Se dispone de una estación meteorológica con la que se han realizado varias funciones de eficiencia, que gestiona iluminación exterior dependiendo de la luminosidad, y con sensores de viento y lluvia, para el cierre de las ventanas cuando se produce alguno de estos fenómenos meteorológicos.
Contact Information
| Company Name | Servicios y Conexiones Inteligentes |
| Company Email | serconint@serconint.com |
| Company Website | http://serconint.com/ |
| Contact Name | |
| Contact Function | System Integrator |
