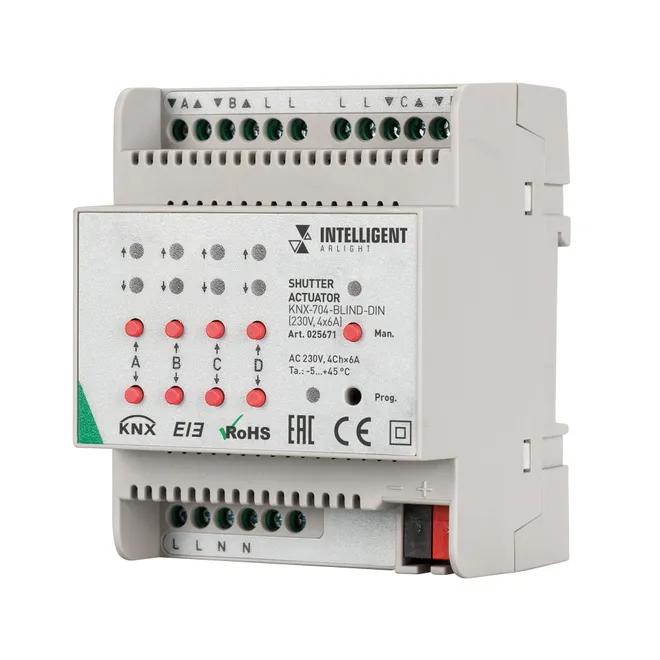

KNX-704-BLIND-DIN
025671
4-channel KNX blind/shutter controller. Manual control capability. Mechanically interlocked contacts. Designed for two-winding drives (direction reversal is achieved by switching windings). Maximum switching current: 6A per channel. Power supply: 230V AC.
| Category | Value |
|---|---|
| Catalog Item Name | KNX-704-BLIND-DIN |
| Application Program Name | KNX Shutter actuator 4ch DIN |
| Order Number | 025671 |
| Rail Mounted | Yes |
| Manufacturer Website | Arlight |
