Vivienda autosuficiente Granada

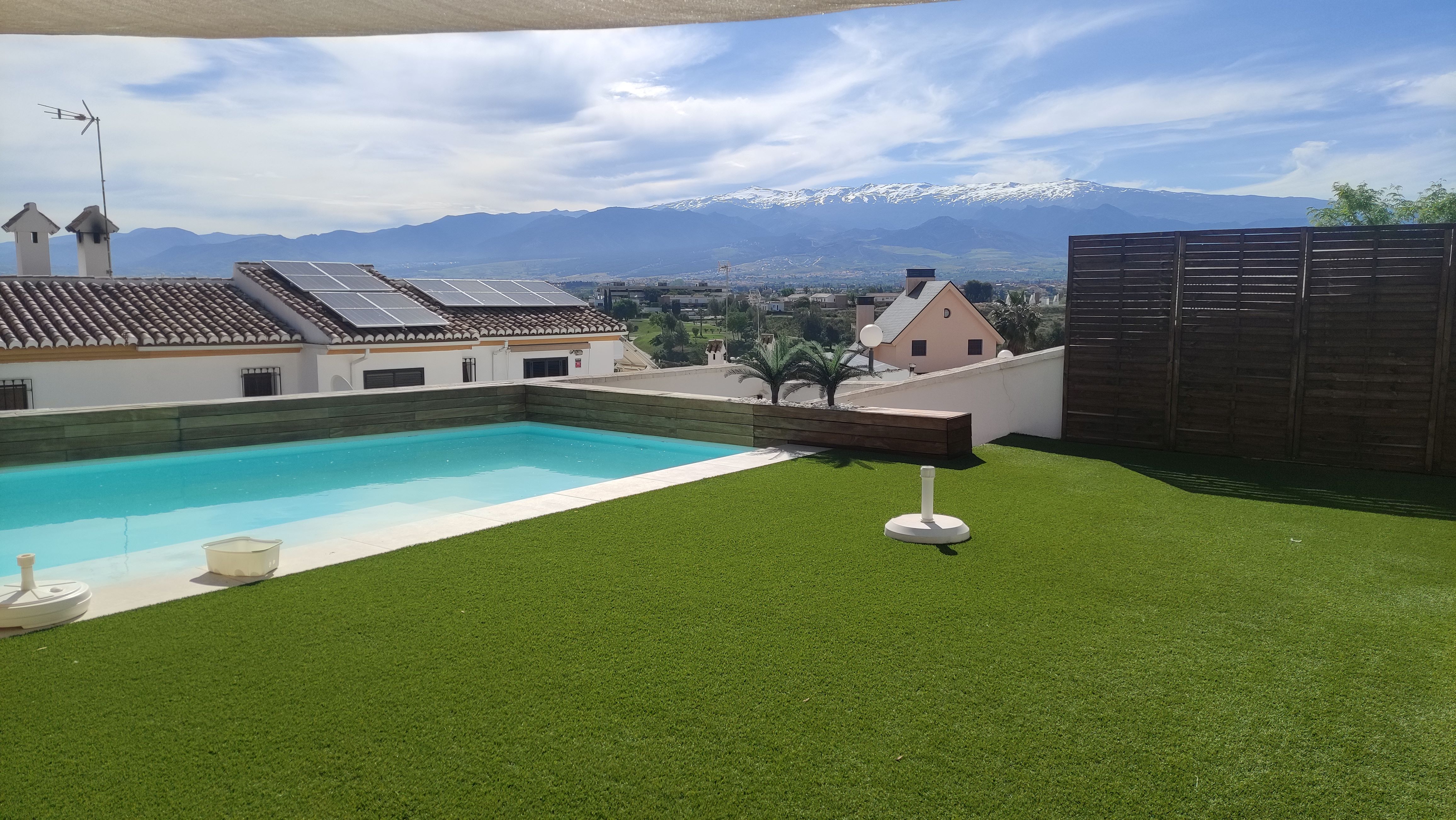

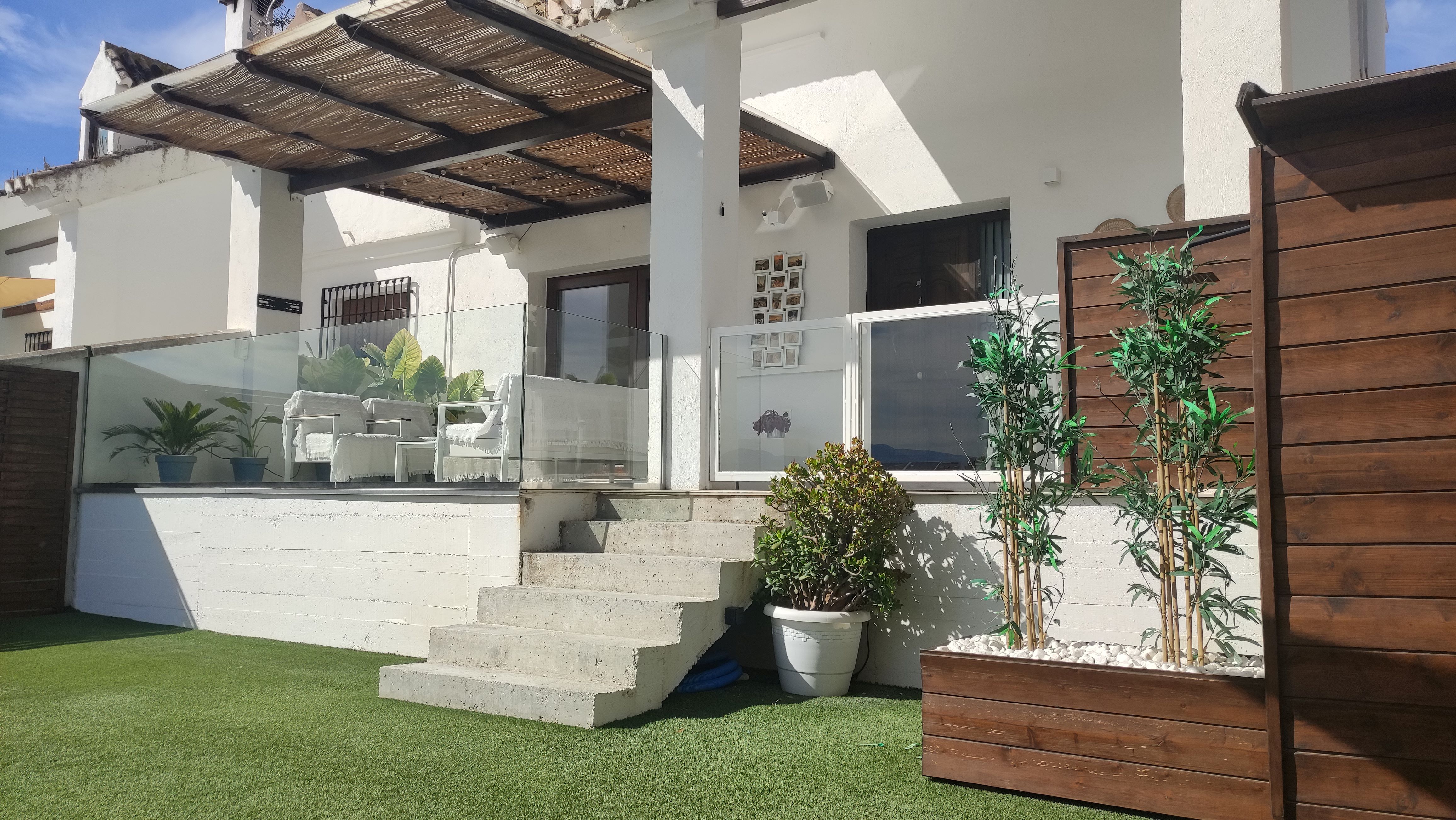

Family house in Granada
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Family house |
| Project Type | Residential |
| Year of Completion | 2023 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Presence Simulation, Supervision (e.g. Cameras), Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Peak Demand Monitoring, Load Shedding , Energy Harvesting (Avoiding use of batteries), Use of Renewable Energies
- Other - Intercom, Audio Control, Video Control, Home Appliances Control, Irrigation Control, Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Sun Tracing (interaction with HVAC / lighting)
Customers Description
El proyecto busca una automatización completa de la vivienda centrándose en las necesidades del cliente: consumo energético cero, aprovechamiento de la energía fotovoltaica e integración de todas las instalaciones de la vivienda.

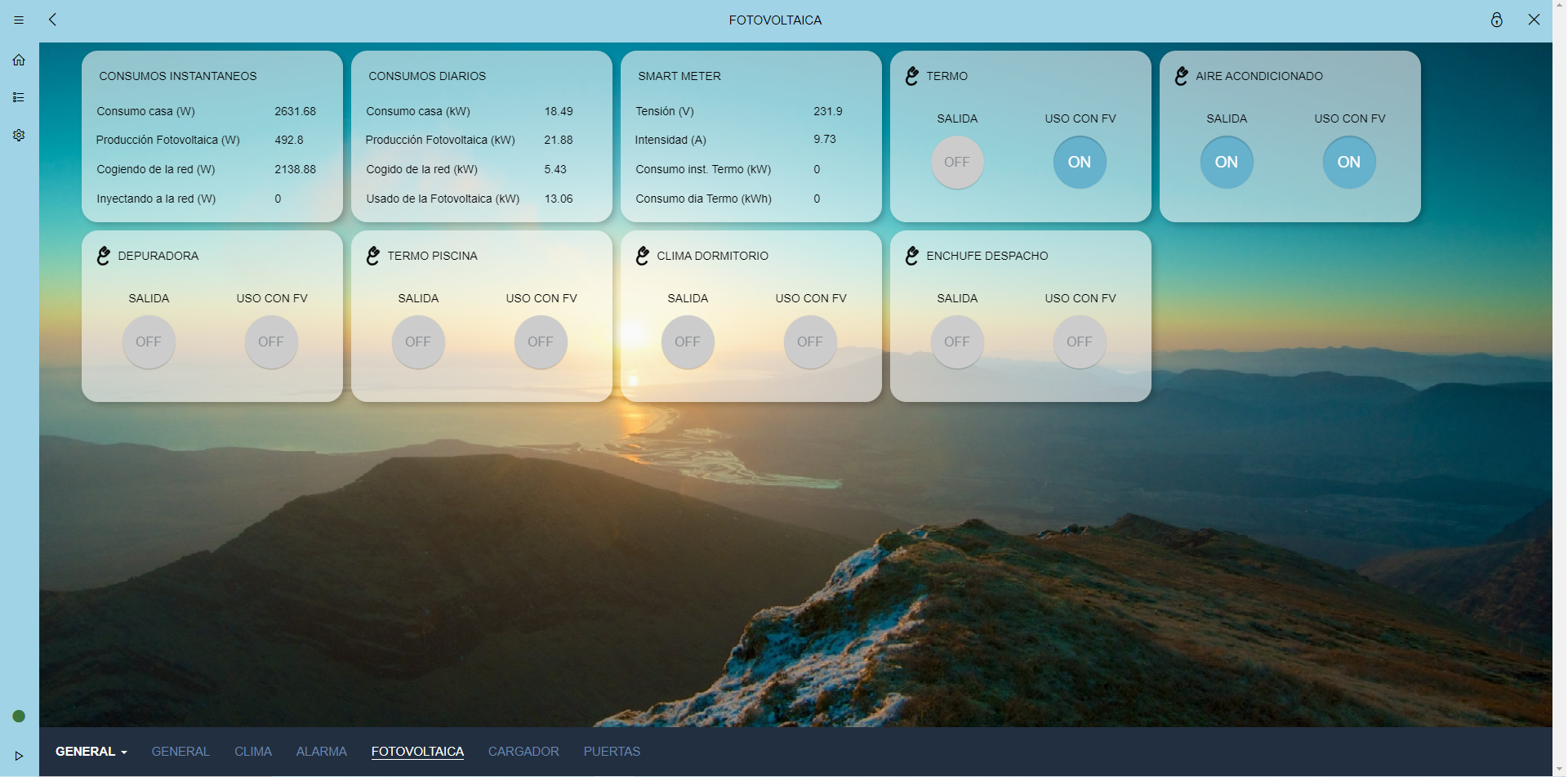

Para ello se controla el cargador Fronius a través de Modbus y la API del fabricante y se monitoriza la energía de la vivienda para activar los diferentes elementos de consumo para aprovechar la energía producida y no verter a red. La energía sobrante se destina al calentamiento de la piscina y a la carga del vehículo eléctrico.
Se gestiona la iluminación y las persianas según posición solar.
Se integra central meteorológica Netatmo a través de API.
Se integra sistema de climatización por conductos, split y chimenea.
Se integra el sistema de alarma AJAX con detectores de inundación, apertura y humo. Se añade simulación de presencia.
Se integra el sistema de sonido Sonos en diferentes estancias y control de TV Samsung.
Contact Information
| Company Name | IRIDIUM AVANZA S.L. |
| Company Email | alfaro@ingenieriairidium.es |
| Company Website | http://www.ingenieriairidium.es |
| Contact Name | JOSE LUIS ALFARO PEREZ |
| Contact Function | System Integrator |
