Smart Passive House
Family house in Pravets
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Family house |
| Project Type | Residential |
| Year of Completion | 2017 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Weather Dependent Control, Individual Room Control / Zone Control, Floor Heating Control
- Security and Safety - Access Control

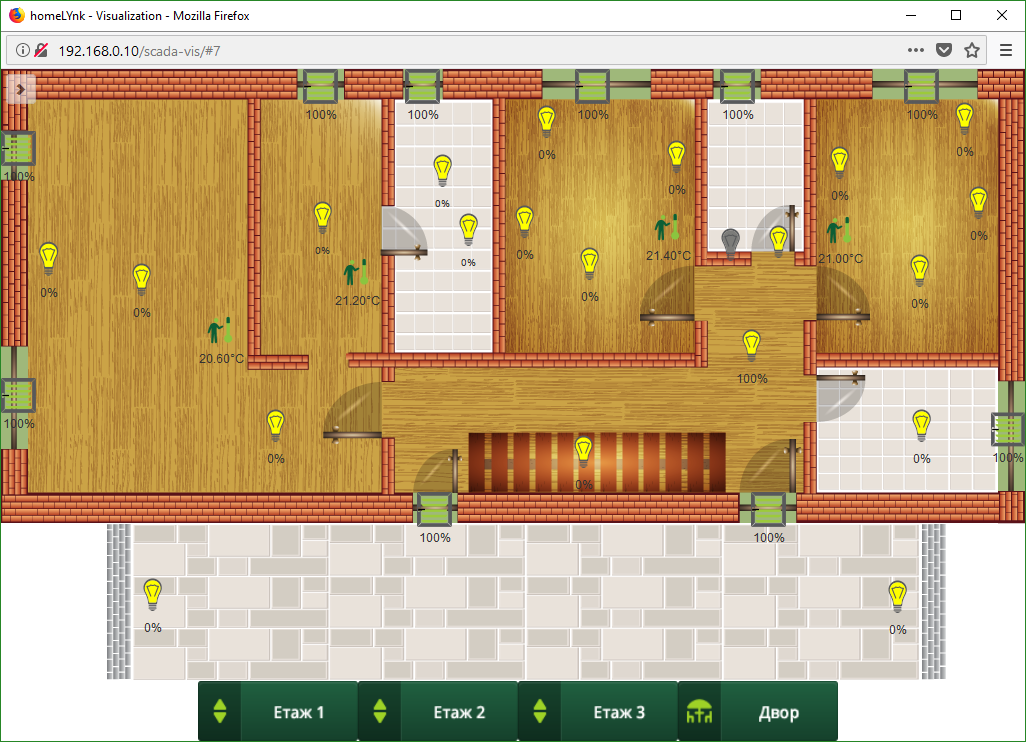

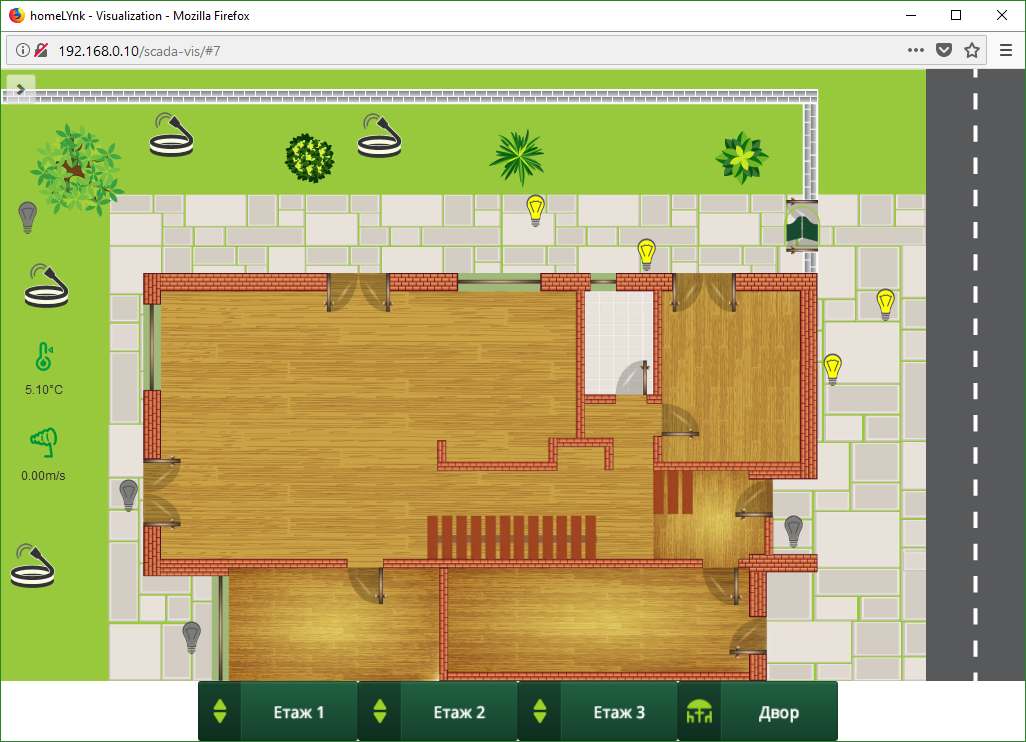

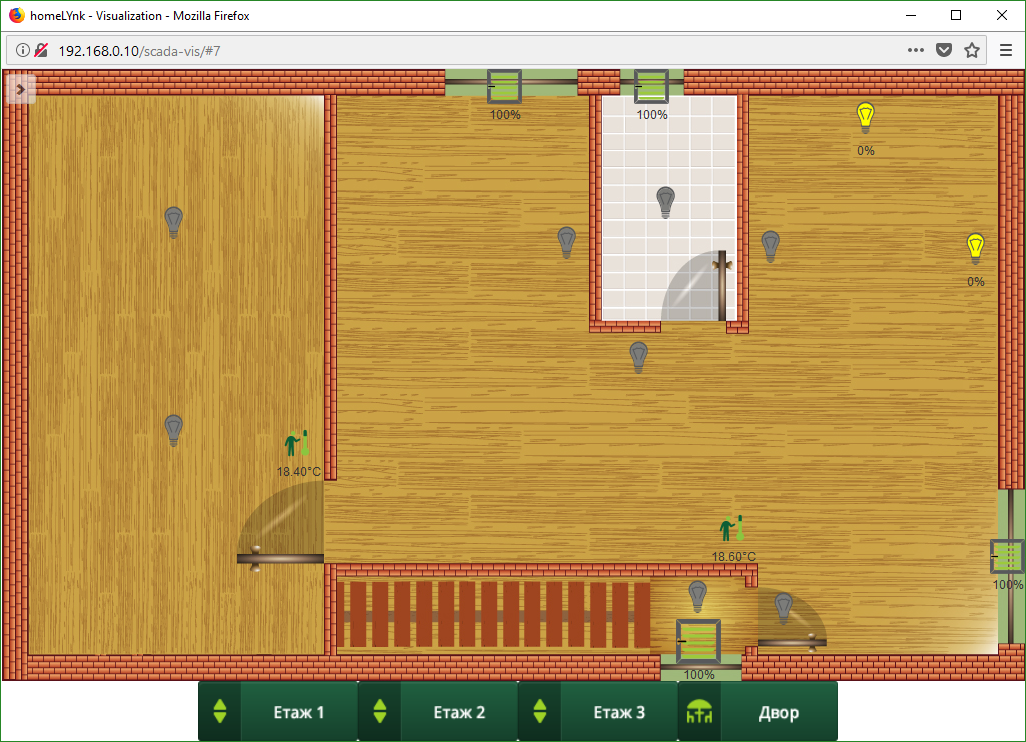

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Tablets and smart phones

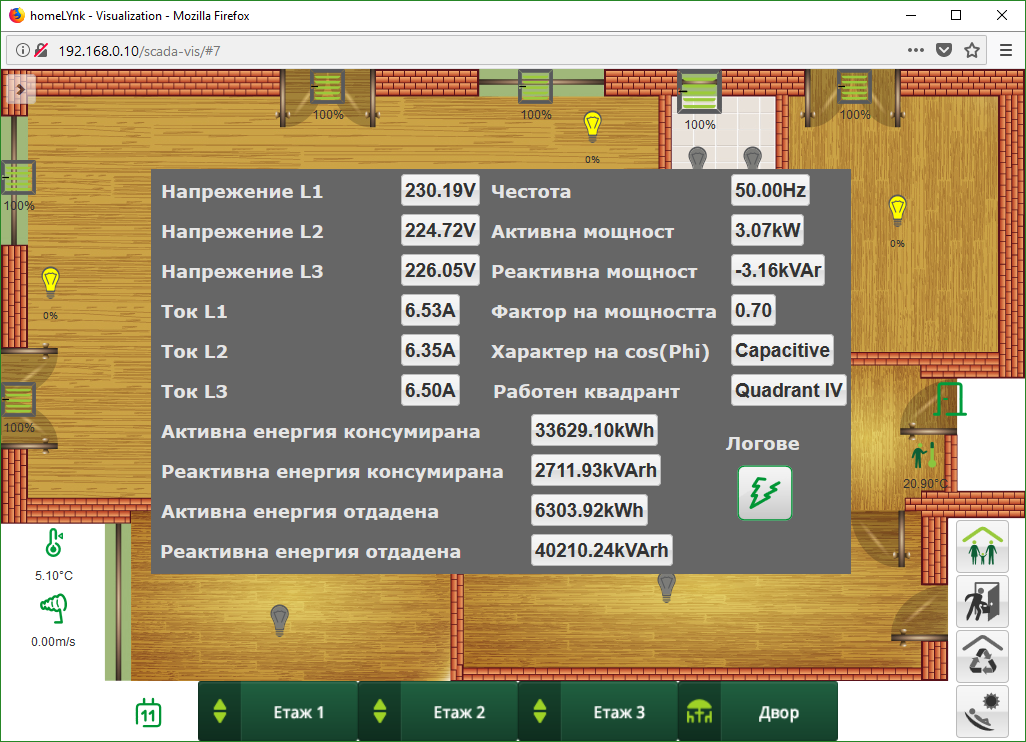

- Energy Management/Smart Metering - Metering, Data Logging, Visualisation
- Other - Irrigation Control
- Automation and Remote Access - Timed Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Wind and Rain Protection
Customers Description
The family home in Pravets is designed and constructed according to the Passive House Standard. The project will be expanded during 2018 by integrating UPS and Solar Panels. This family house is a great combination of optimal comfort and maximum efficiency.
Contact Information
| Company Name | Intelik ltd. |
| Company Email | yordanov@intelik.eu |
| Company Website | http://www.intelik.eu |
| Contact Name | Stoyan Yordanov |
| Contact Function | System Integrator |
