Smart building in Śliwice, Poland

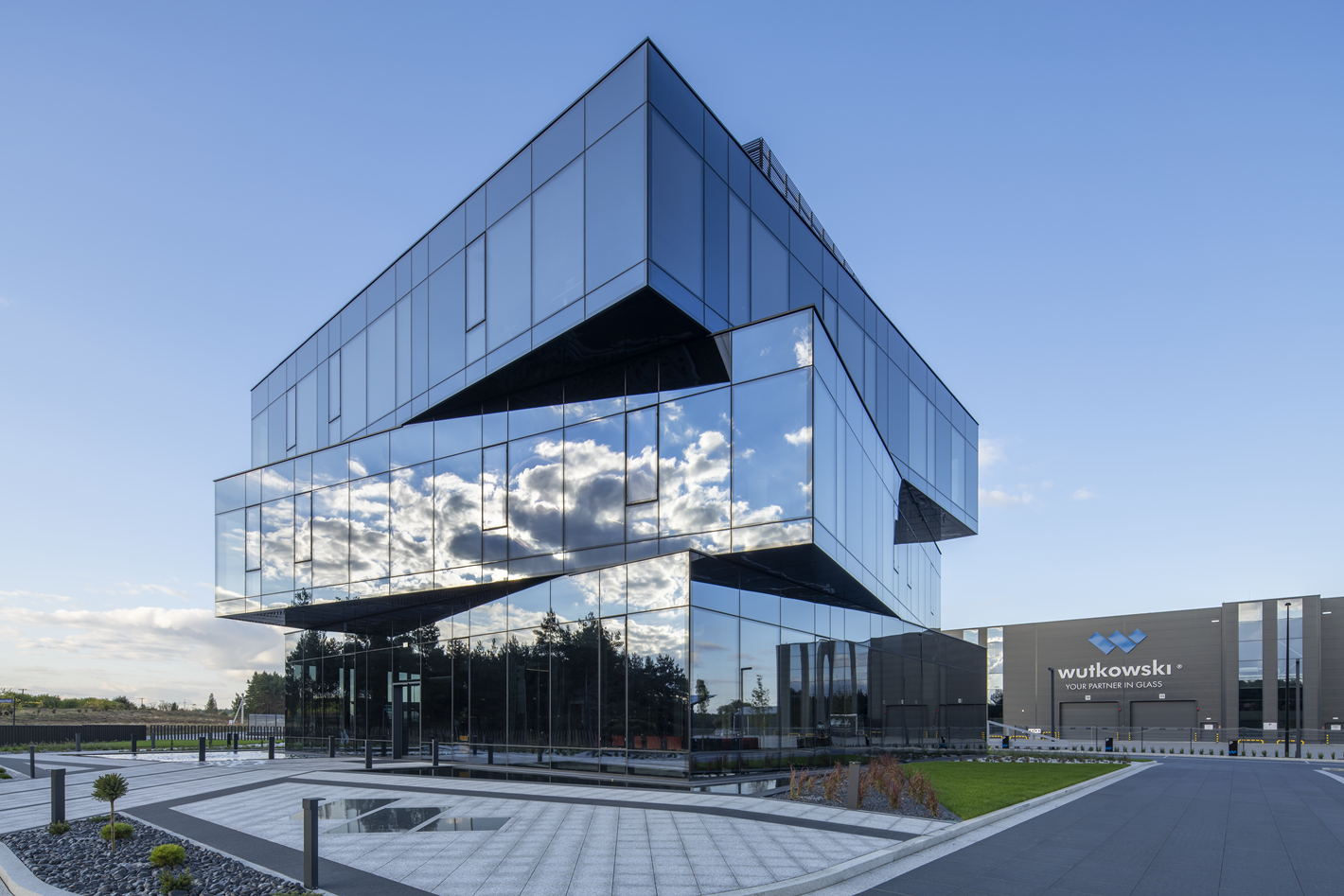

Office building in ŚLIWICE
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2024 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1.001 – 2.000 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation, Floor Heating Control, Boiler and burner Control
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Battery Storage
- Other - Audio Control, Video Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs
Customers Description

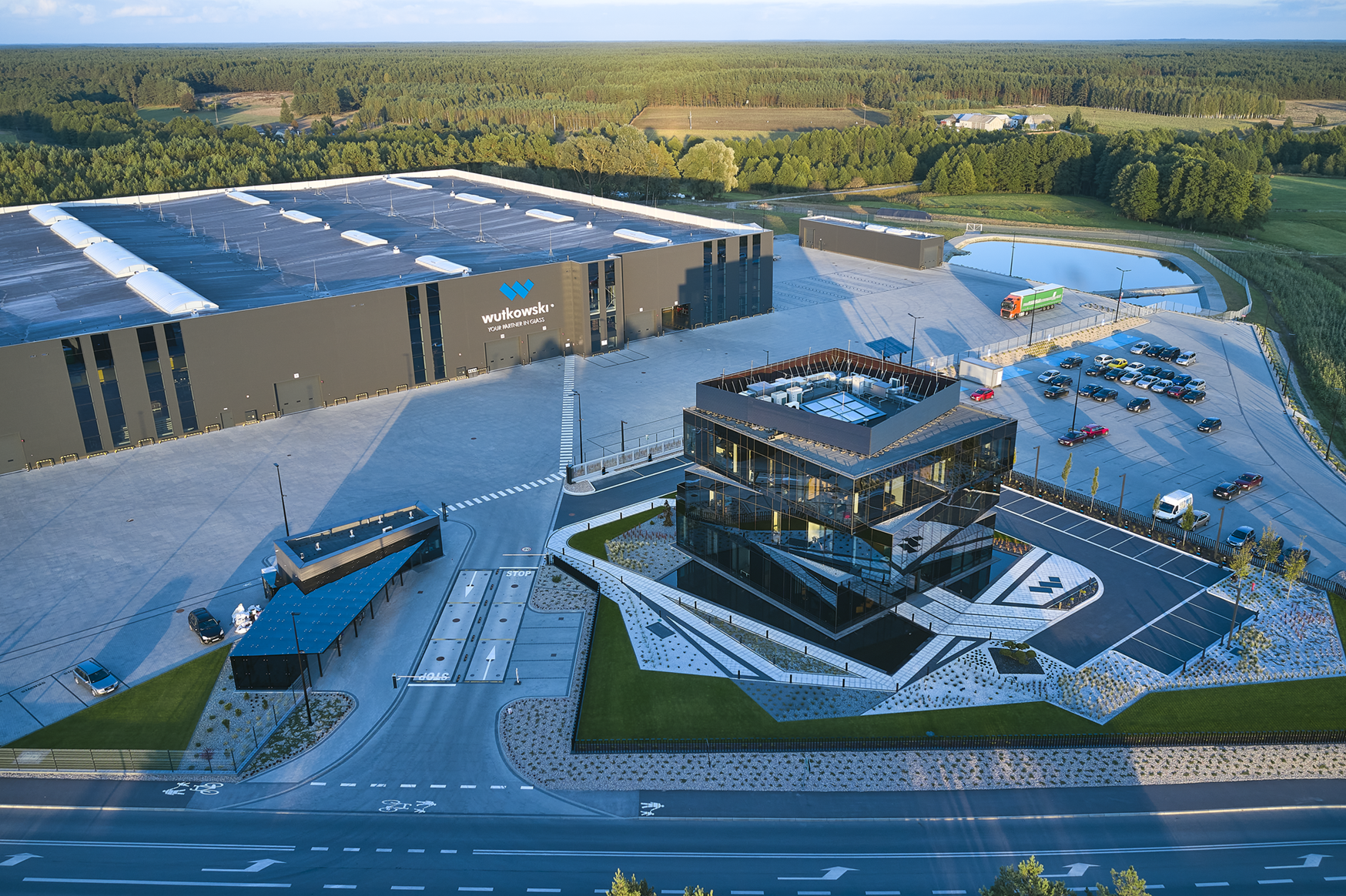

We designed and implemented an advanced smart building management system for the office building and a production & warehouse hall covering more than 20,000 m².
The project included automation solutions for the entire facility, enabling centralized control of key building functions. We also developed a fully customized BMS visualization system, providing intuitive access to all essential operational data and allowing efficient building management from a single interface.
The office building installation included:
- lighting control
- climate control and HVAC management
- audio system control
- automated blind control
- air handling unit (AHU) control
- electrical circuit protection monitoring
- outdoor environmental condition monitoring
The automation system was integrated with:
- air curtain systems
- VAV actuators
- VIESSMANN heating system
Within the production and warehouse facility, we implemented a lighting control system supporting 23 DALI lines.
Contact Information
| Company Name | VBASS AUTOMATYKA BUDYNKOWA TOMASZ GRUDA |
| Company Email | vbass@vbass.pl |
| Company Website | https://vbass.pl/ |
| Contact Name | Tomasz Gruda |
| Contact Function | System Integrator |
