Private Villa - Palm Hills
Villa in Cairo
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Villa |
| Project Type | Residential |
| Year of Completion | 2026 |
| Project Size | 501 – 1.000 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Individual Room Control / Zone Control, Floor Heating Control

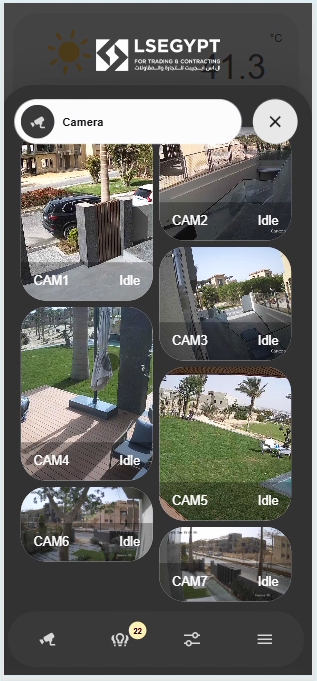

- Security and Safety - Access Control, Supervision (e.g. Cameras)
- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, Web Servers, Touch Panels & Display Panels, Tablets and smart phones

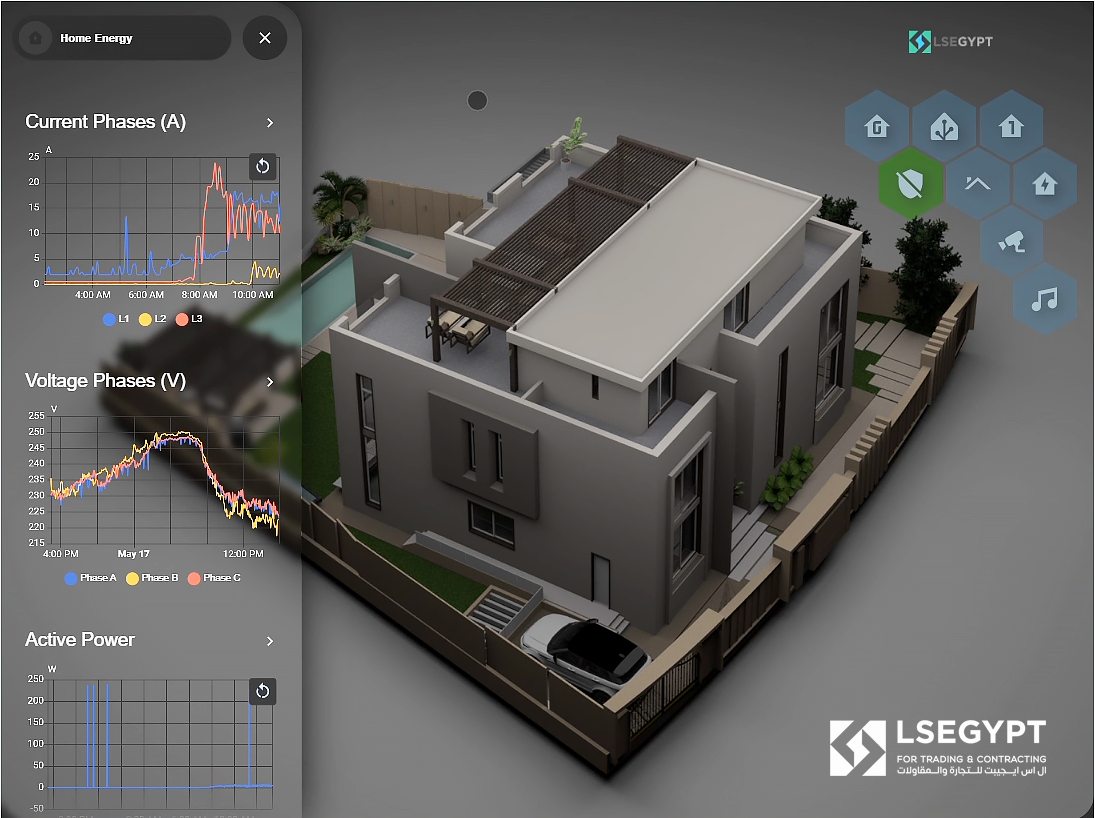

- Energy Management/Smart Metering - Metering, Data Logging, Visualisation
- Other - Intercom
- Automation and Remote Access - Timed Functions, Internet Access
- Blind and Shutter Control - Individual Control, Group & Central Control
Customers Description

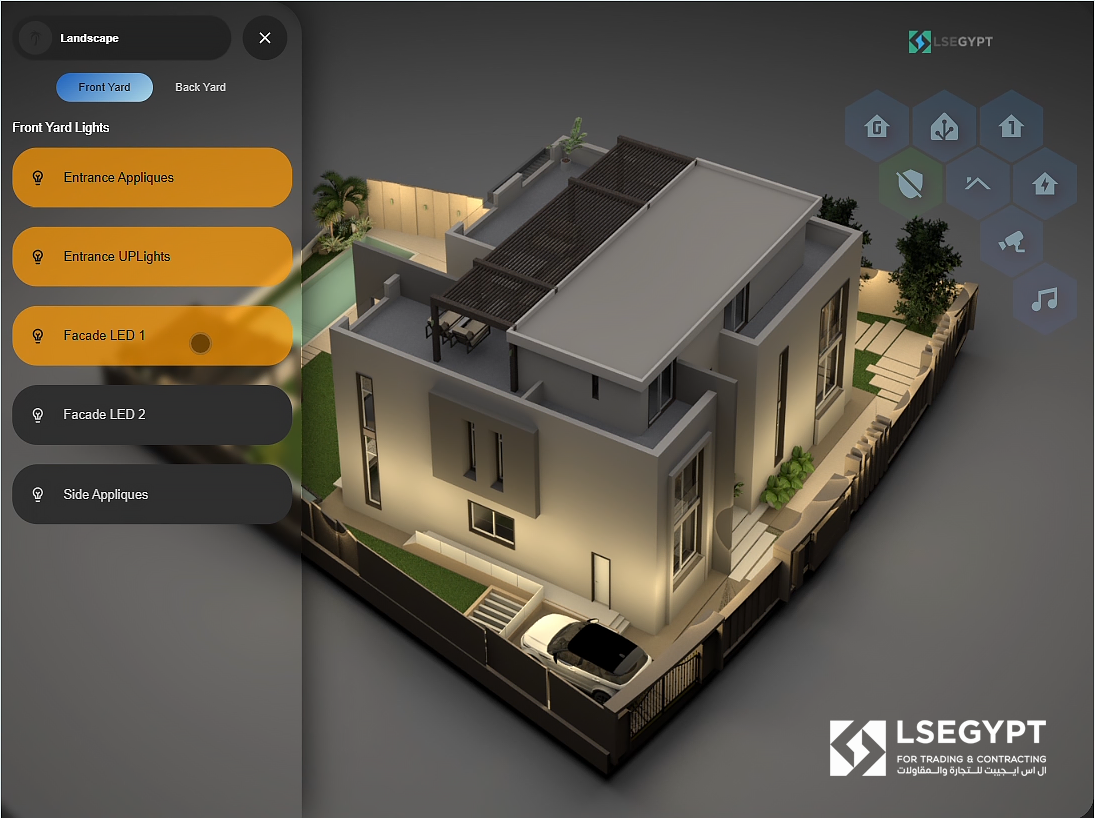

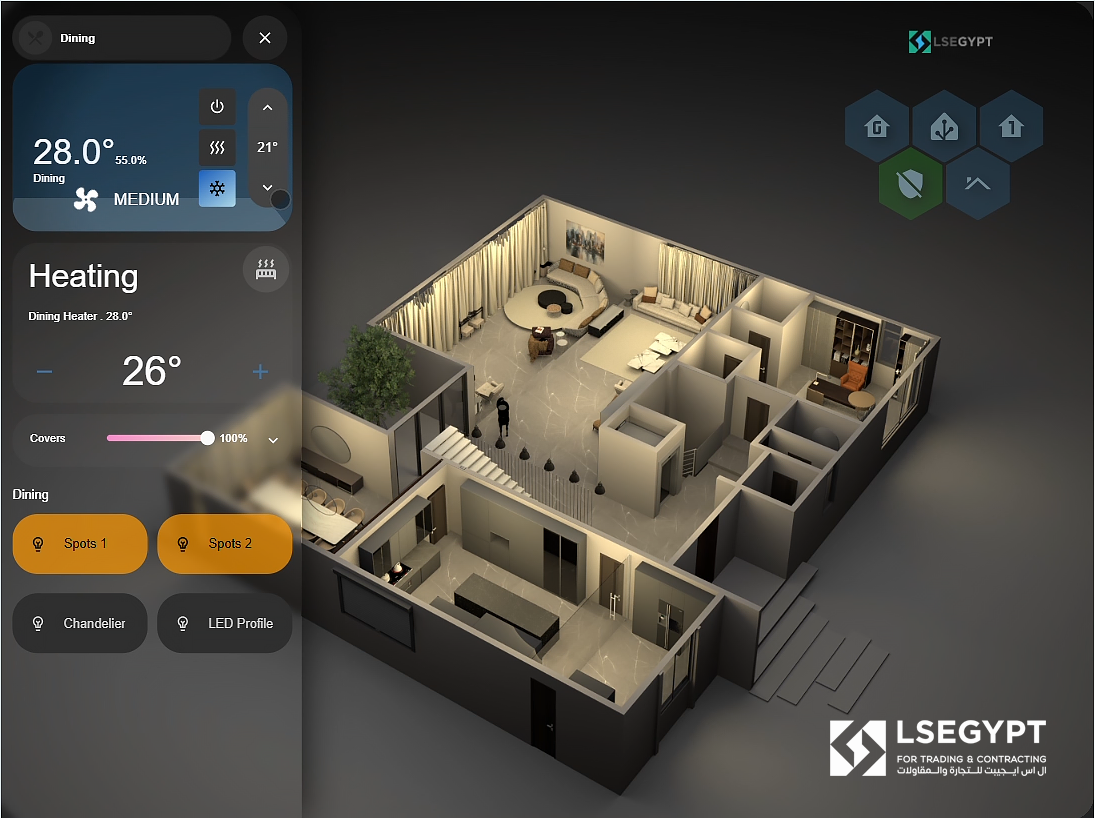

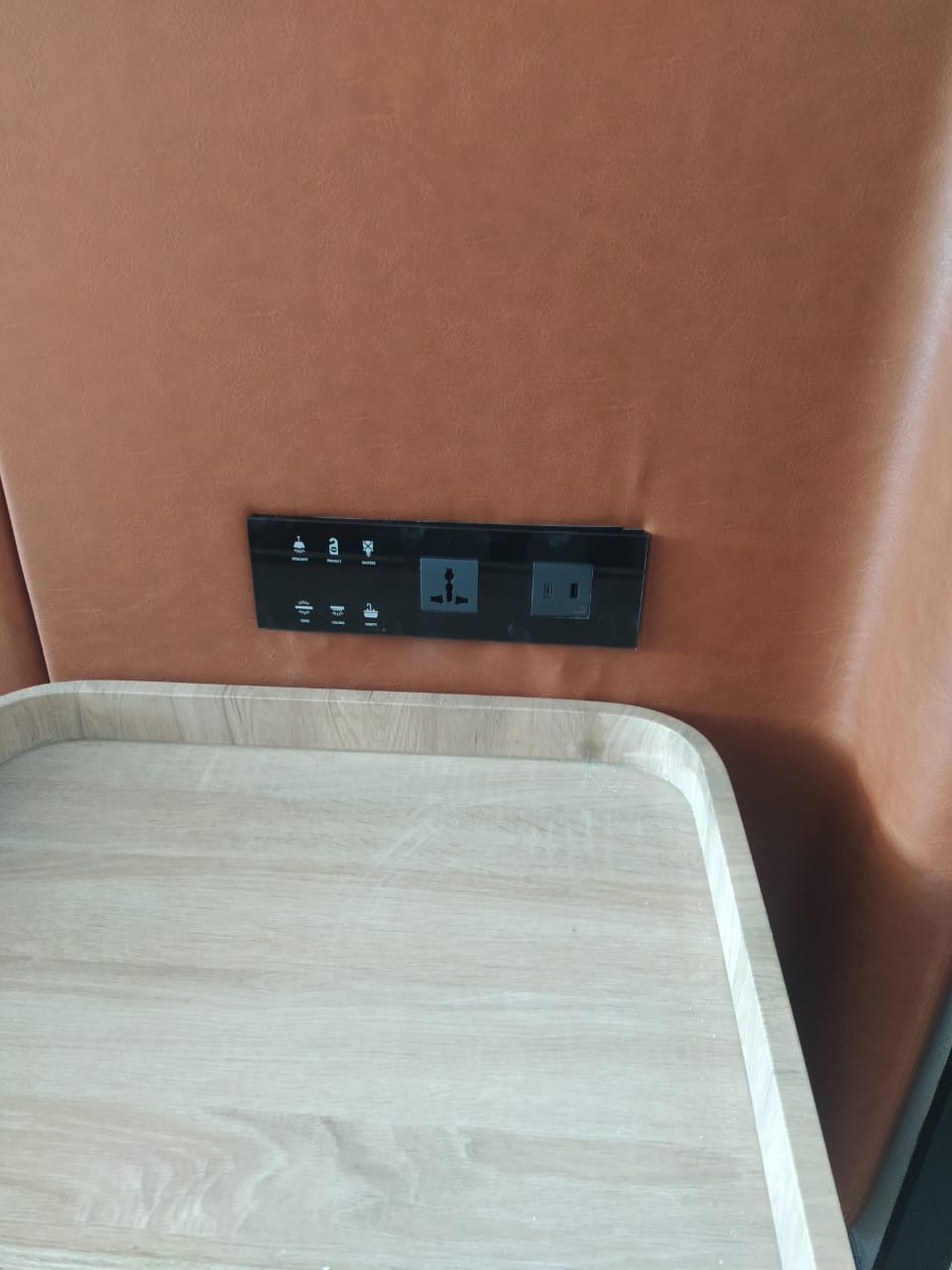

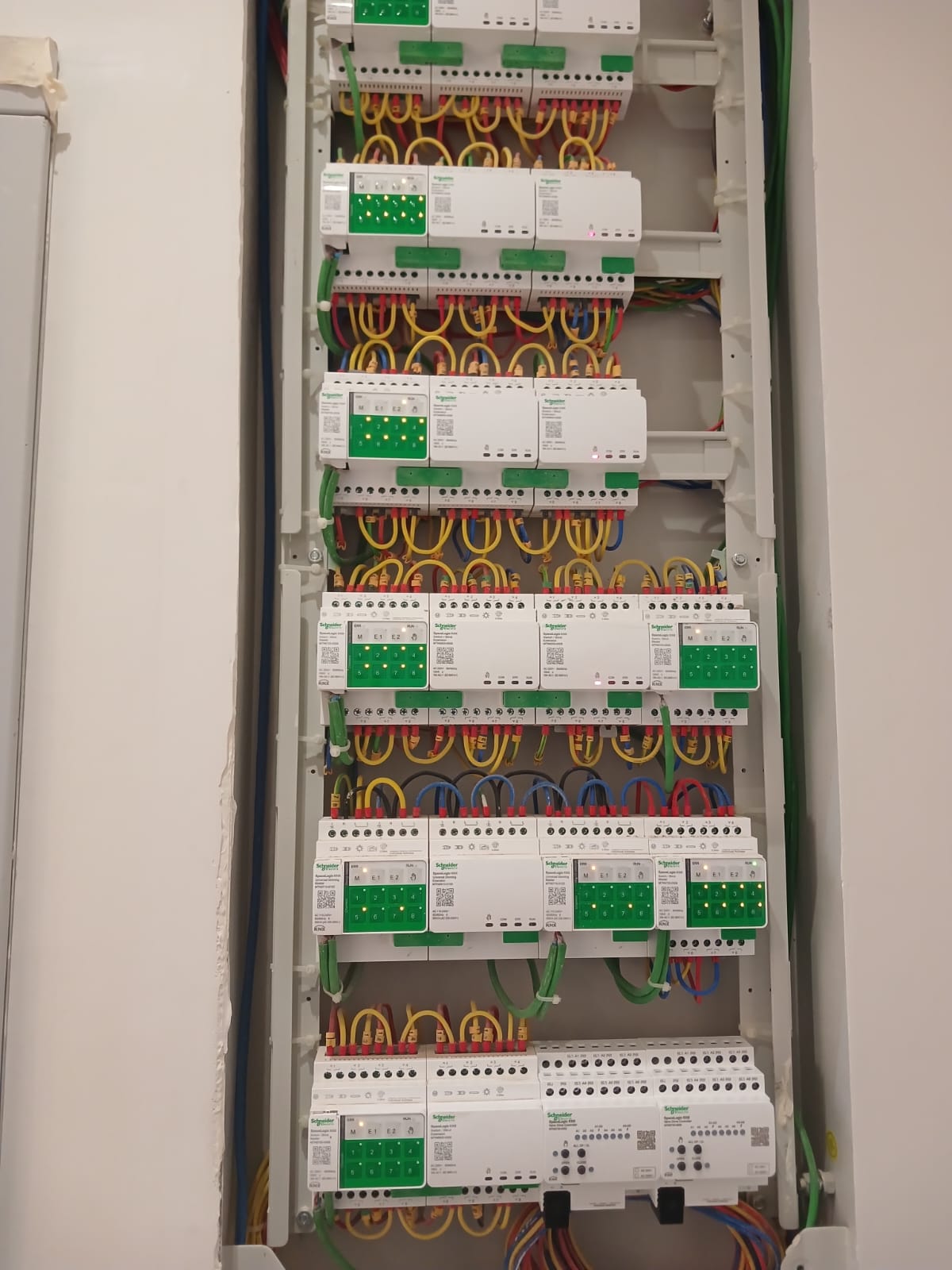

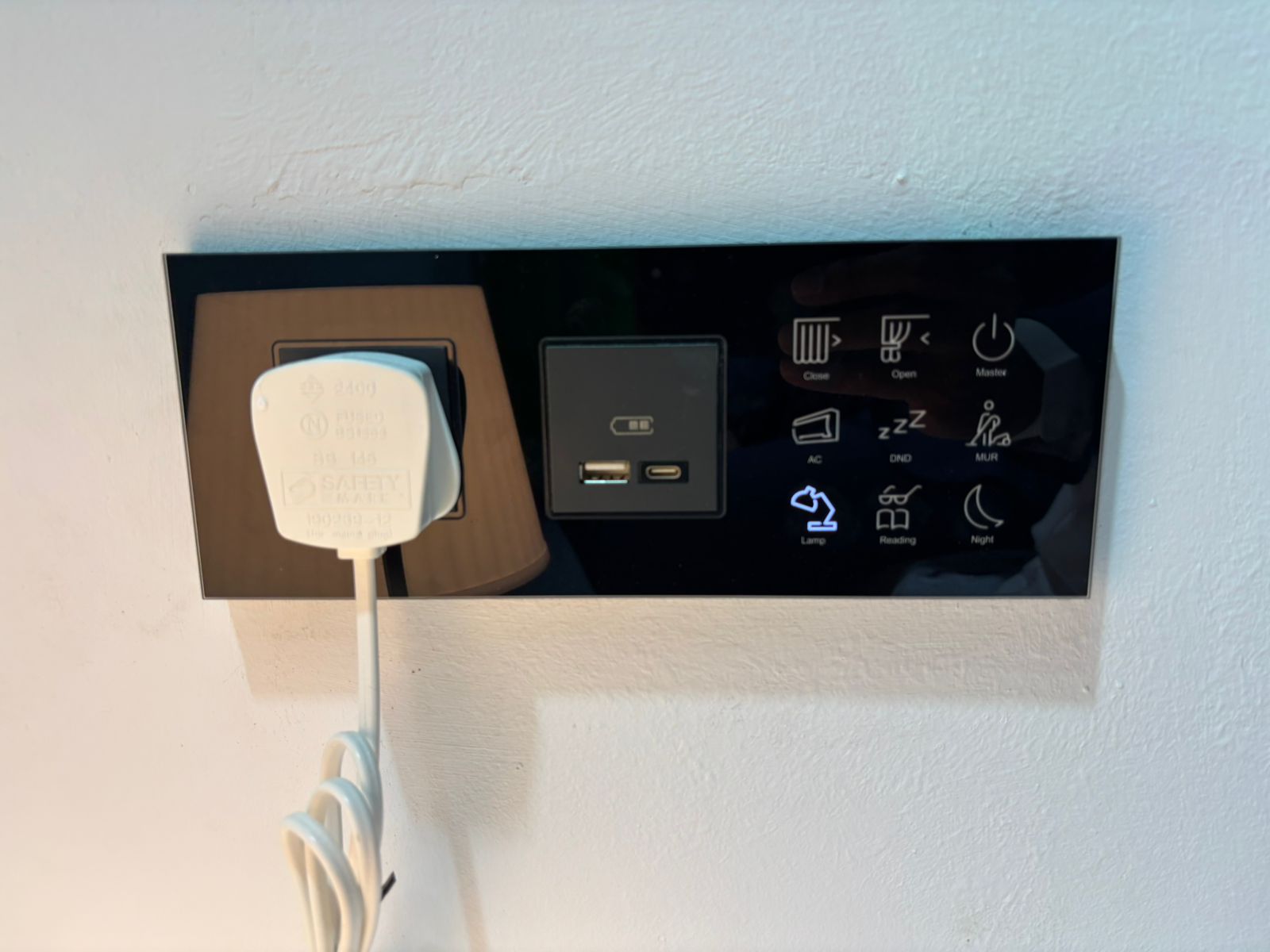

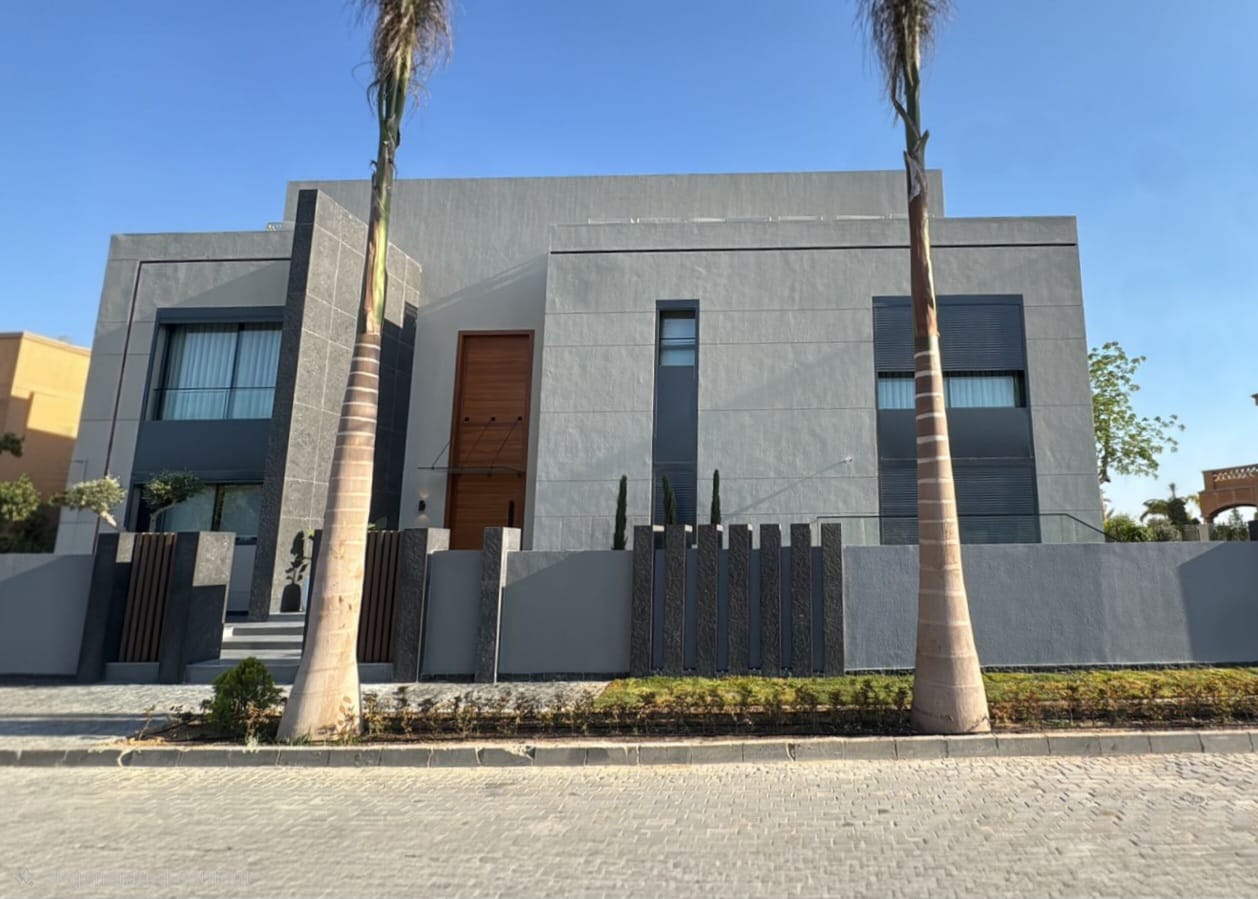

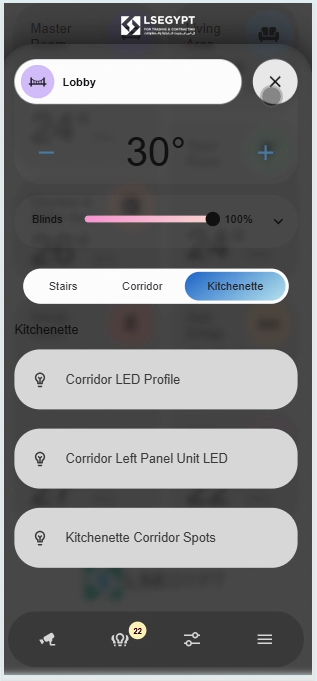

A comprehensive KNX home automation system was deployed across a two-storey private villa including rooftop and outdoor landscape in Palm Hills Compound, 6th of October City, Cairo, Egypt. The installation integrates 82 switching channels, one DALI dimming line, 23 motorised shutters, underfloor heating via KNX valve drive controllers, and split-unit AC managed through IR interfaces. Security is covered by five Yale smart locks and an intercom system, both KNX-integrated. Users interact via 16 wall keypads, 13 Schneider SpaceLogic 4-inch touch panels, EAE smart panels, and an Akubela 10-inch HyPanel, complemented by a 3D iPad application on a Home Assistant server. Four KNX motion sensors automate scenes by occupancy, schedule, or manual recall. Five manufacturers — Schneider Electric, EAE, GVS, Akubela, and Yale — contribute KNX-certified products, demonstrating genuine multi-vendor interoperability.
