NAFMII New Headquarters
Office building in Beijing
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2017 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Automatic Occupancy Detection
- Security and Safety

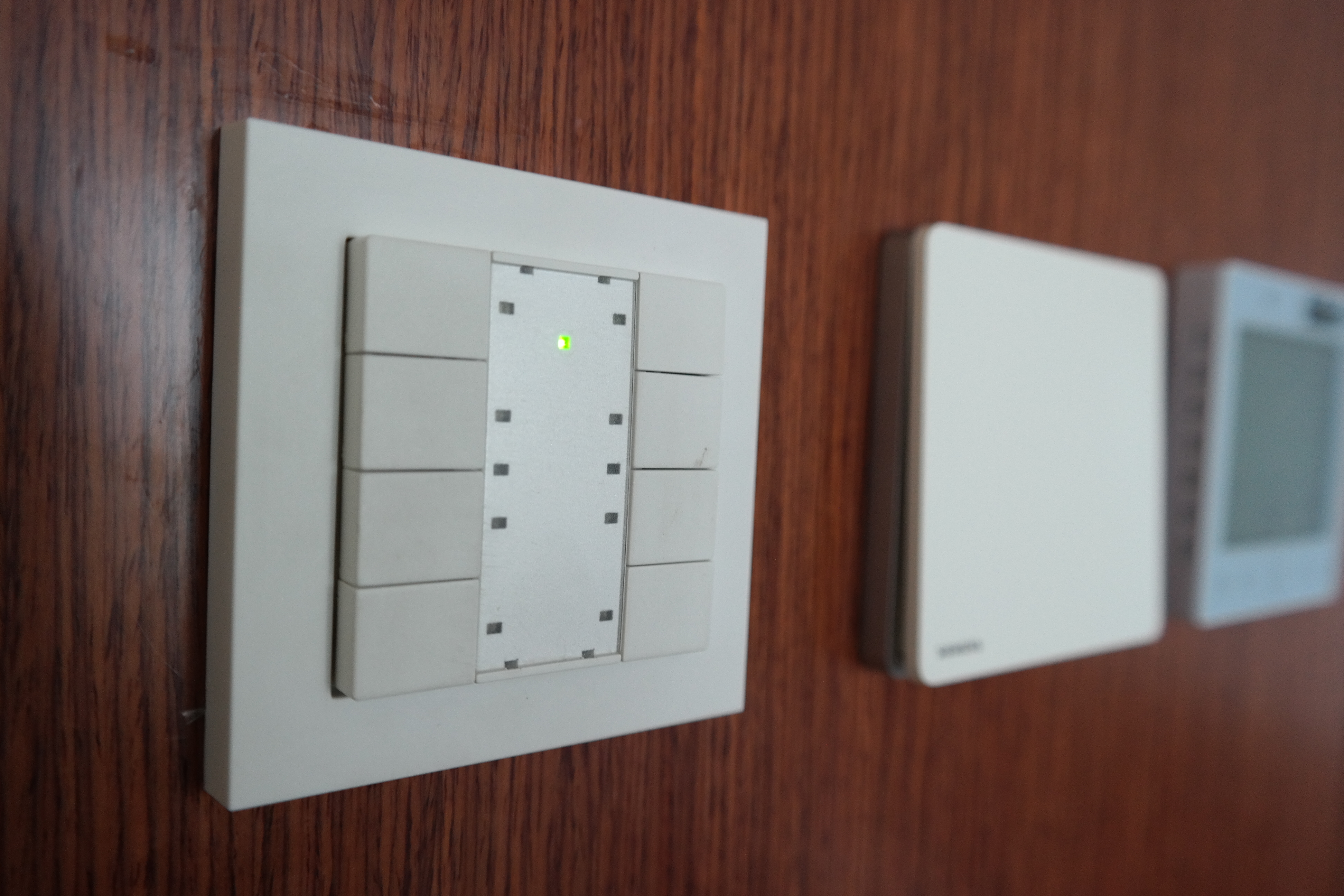

- Operation and Visualisation - Switches / Push Buttons, Web Servers, Touch Panels & Display Panels
- Energy Management/Smart Metering - Current Detection
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Sun Tracing (interaction with HVAC / lighting)
Customers Description

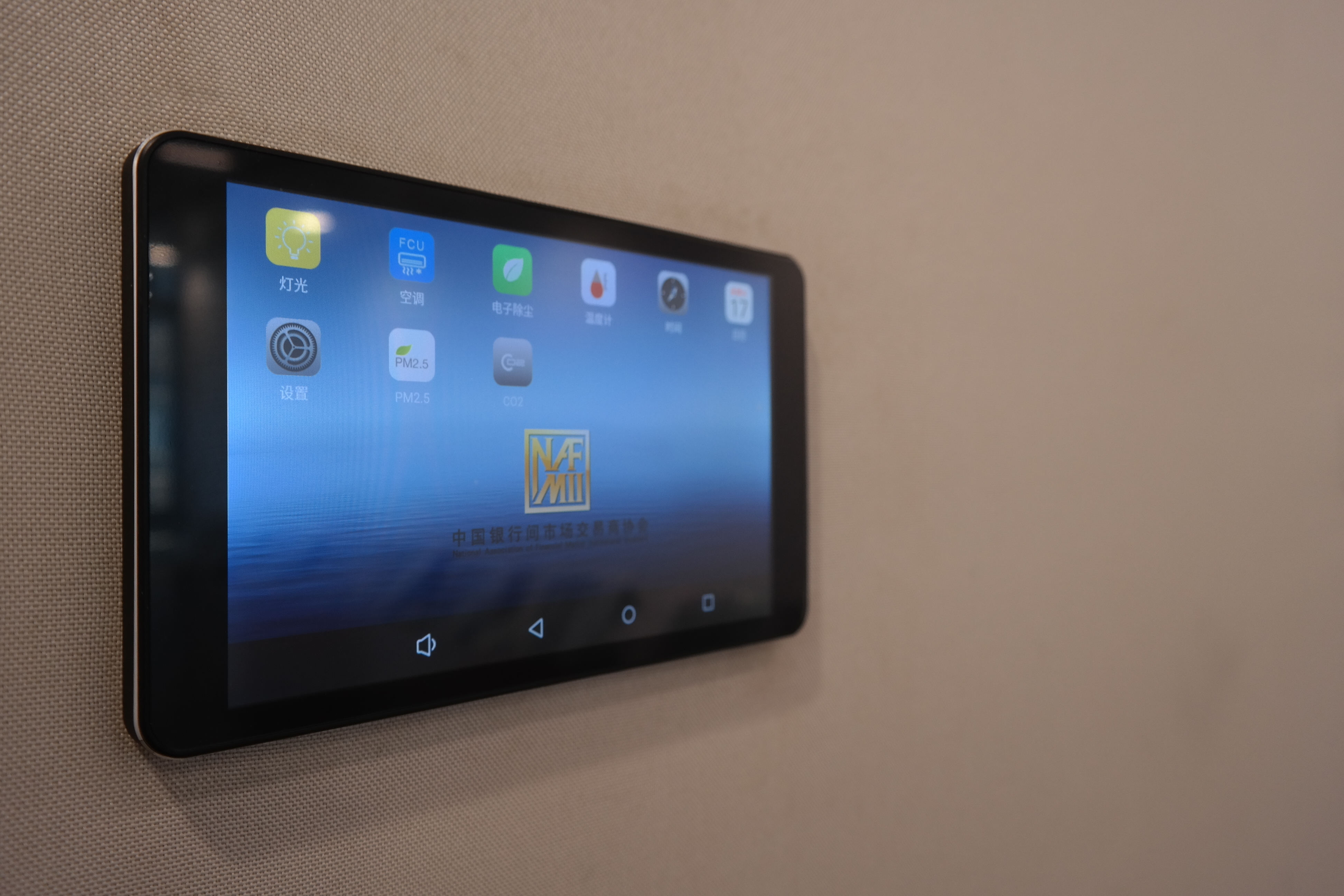

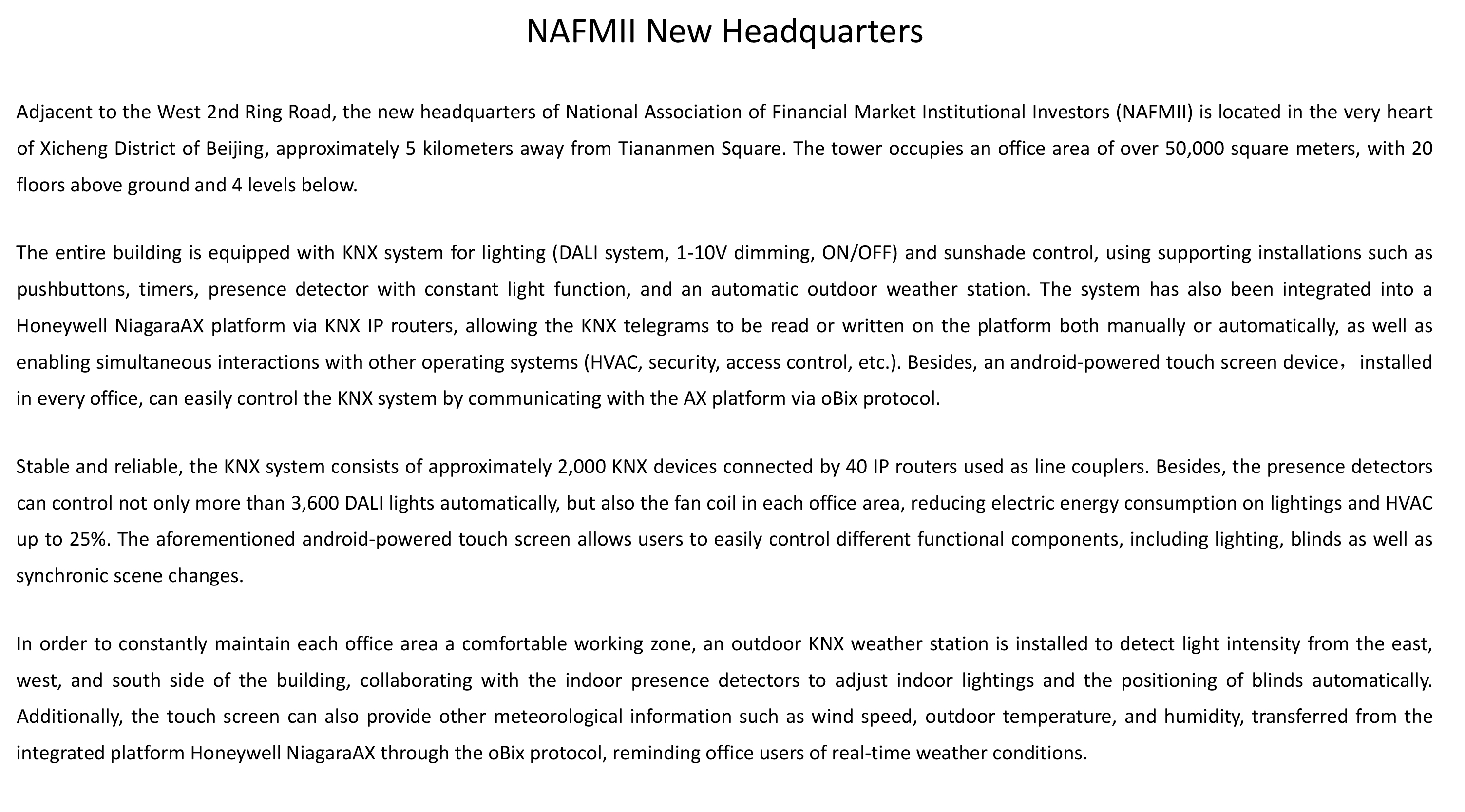

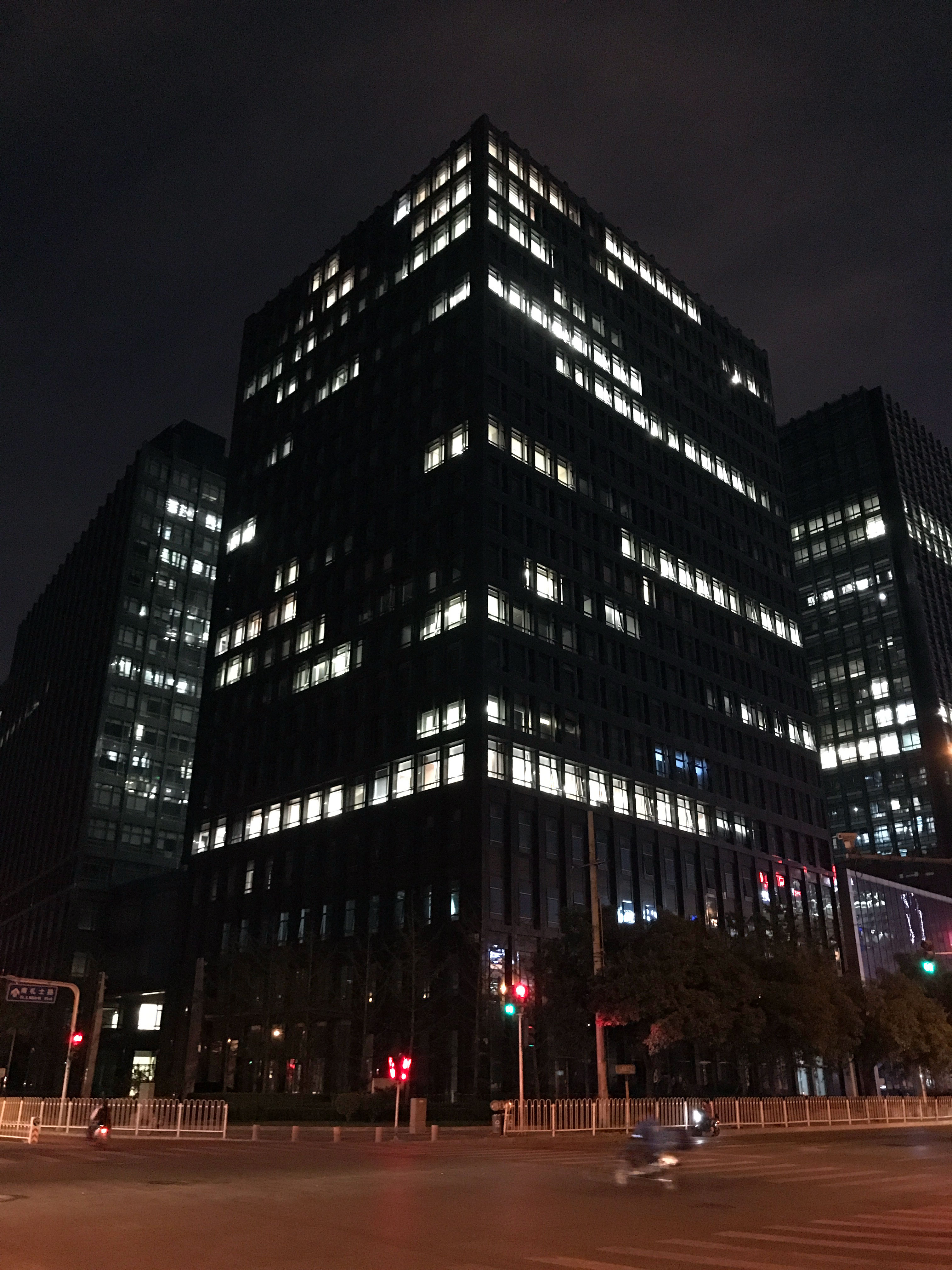

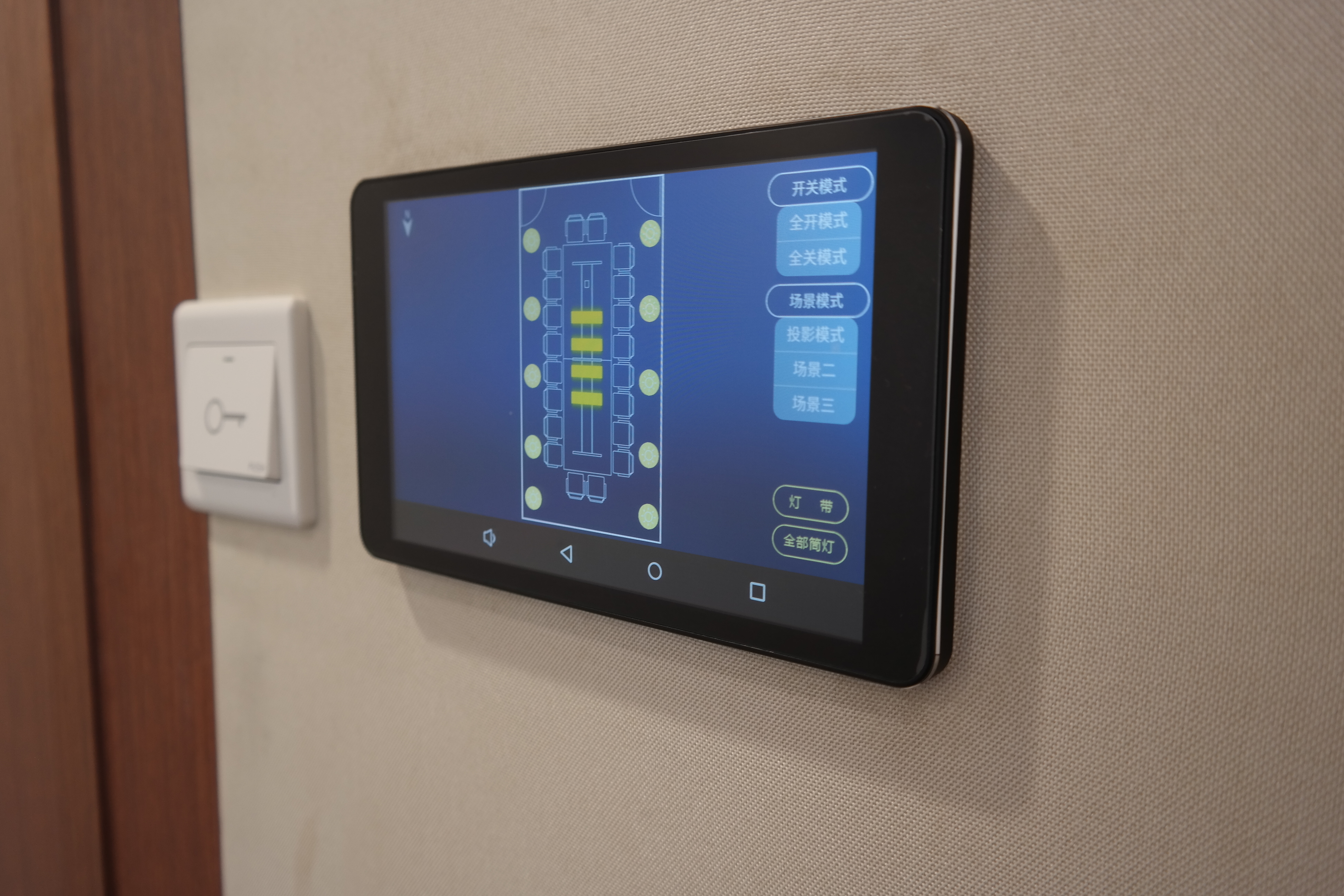

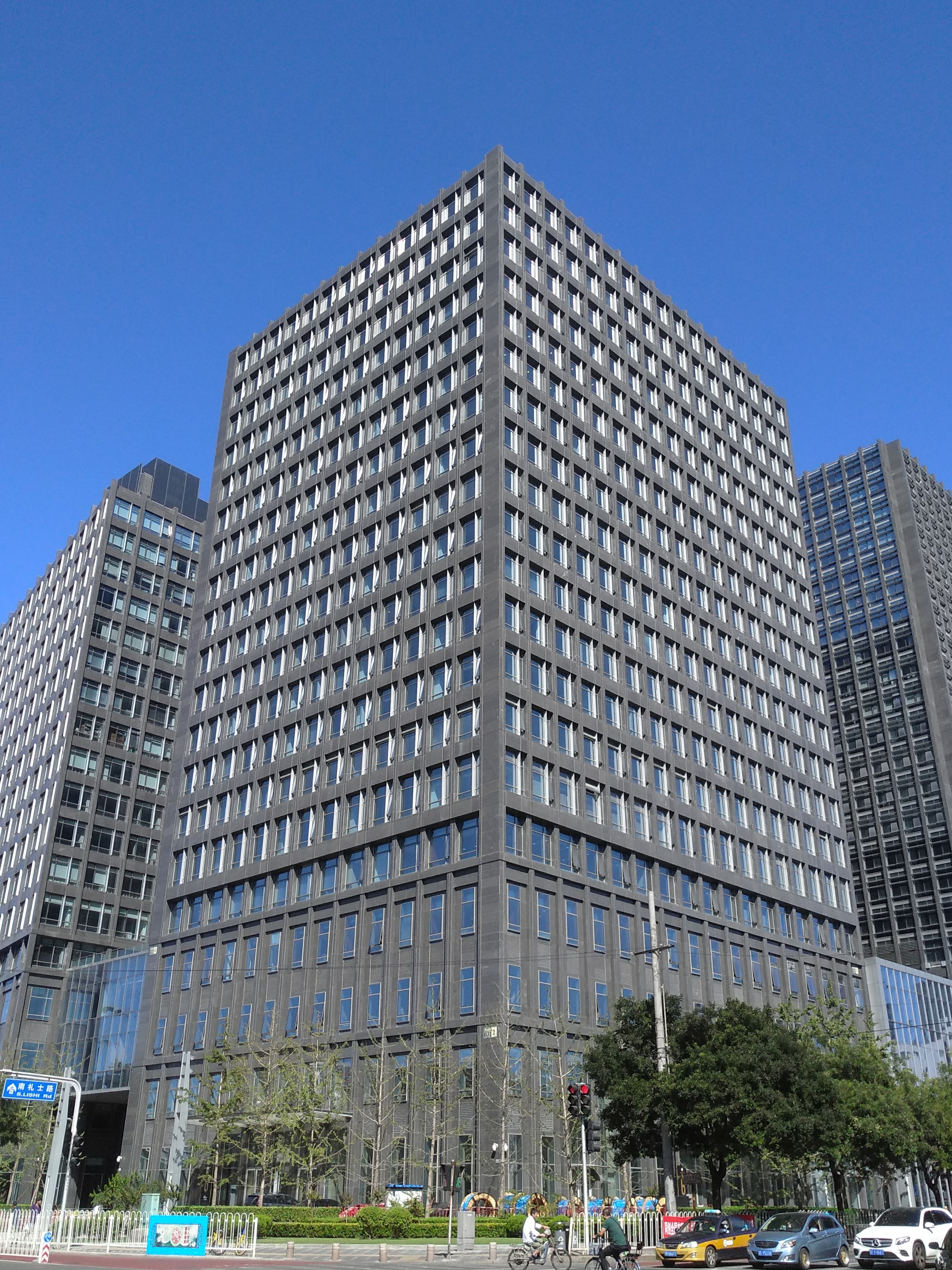

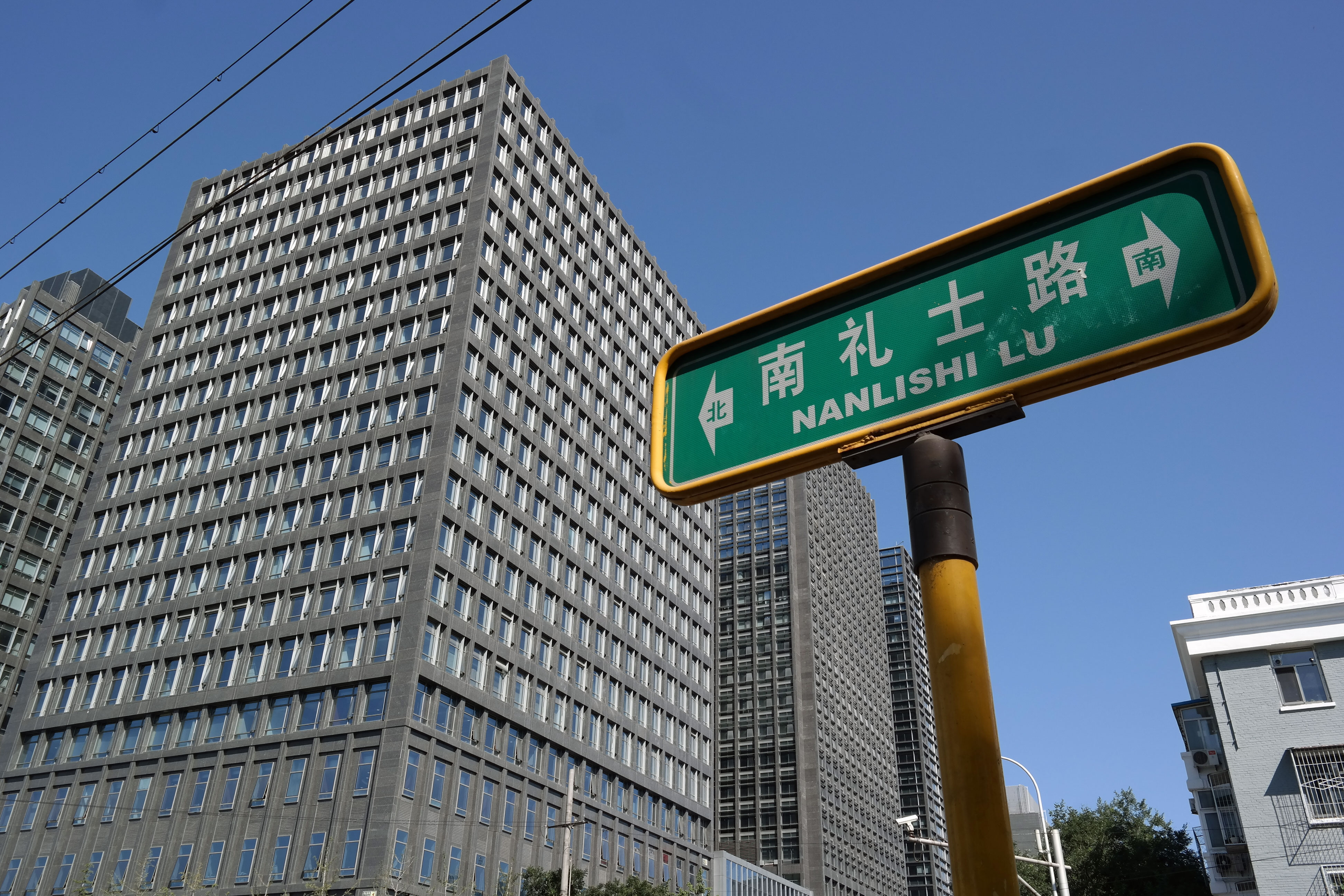

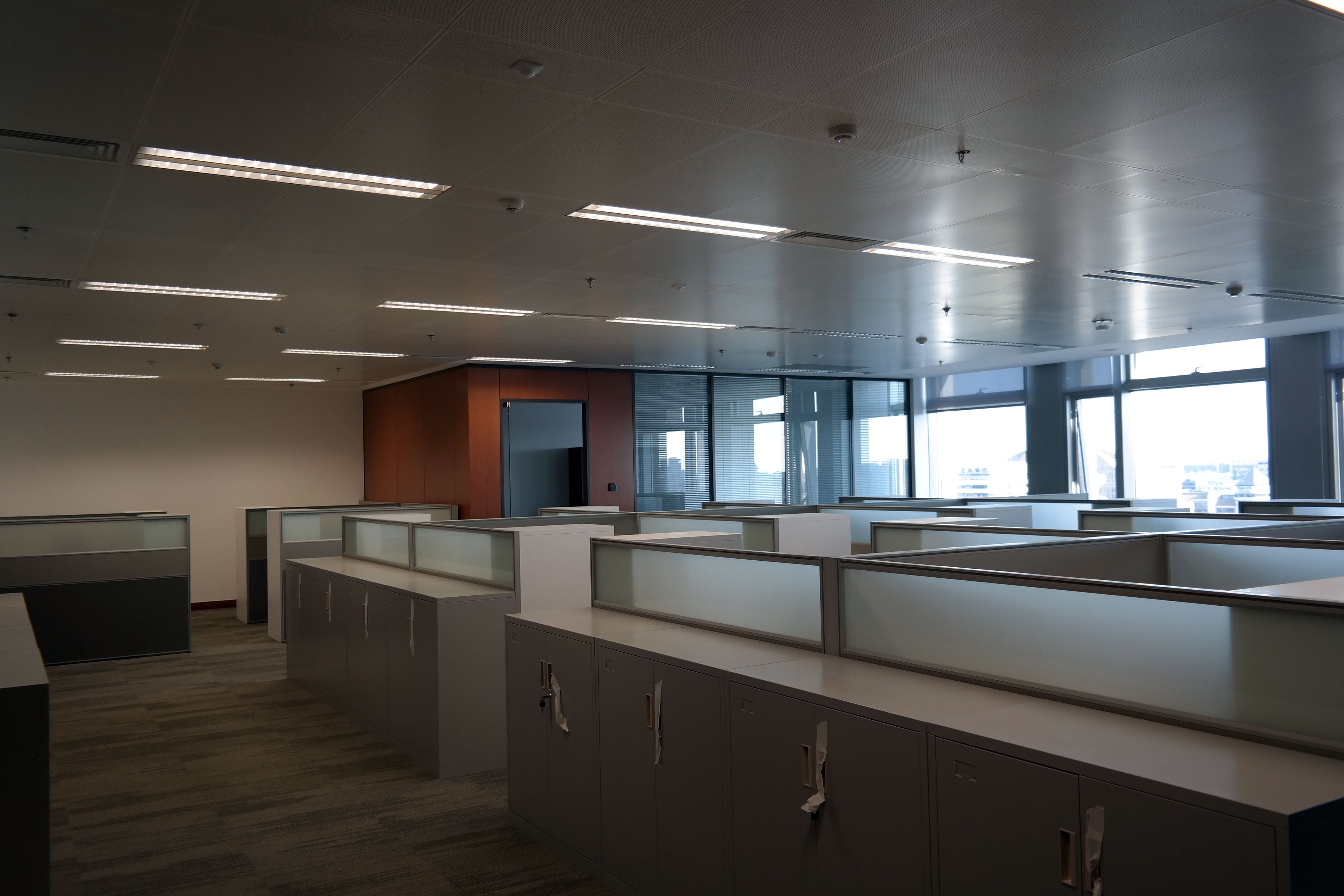

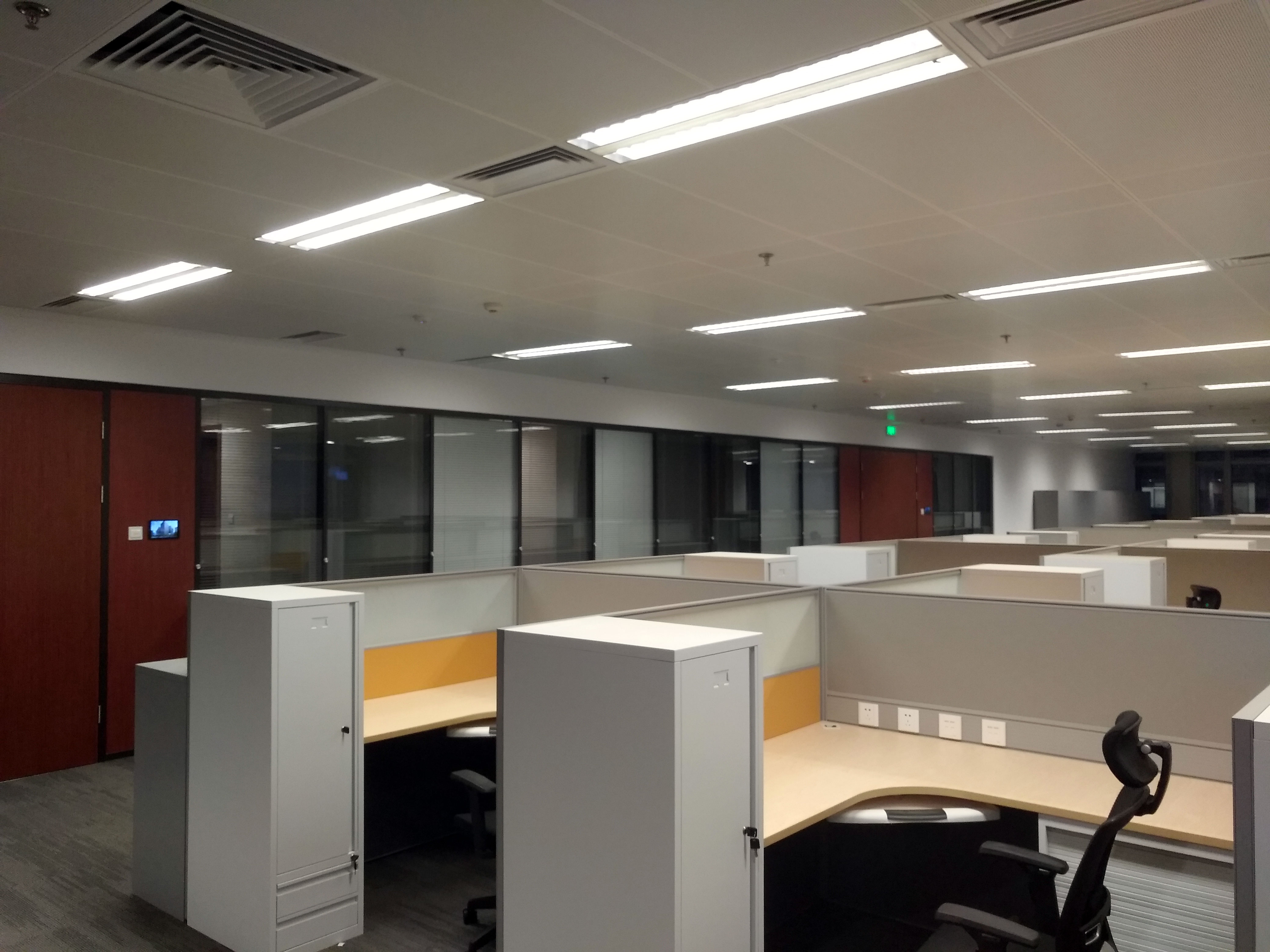

The NAFMII new headquarters occupies an office area of over 50,000 square meters, with 20 floors above ground and 4 levels below. The KNX system installed in the entire building for lighting and sunshade control, which consists of about 2,000 KNX devices connected by 40 IP routers, has also been integrated into Honeywell NiagaraAX platform. The android-powered touch screen communicated with the Honeywell via oBix protocol, which allows users to easily monitor and control KNX system. Because of using KNX system, the building reduced electric energy consumption on lightings and HVAC up to 25%.
Contact Information
| Company Name | Beijing HANDZ Engineering Technical & Service Co.,Ltd. |
| Company Email | hao.li@handz.com.cn |
| Company Website | http://www.handz.com.cn |
| Contact Name | Hao Li |
| Contact Function | System Integrator |
