Murmur Y Mor
Family house in Nefyn
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Family house |
| Project Type | Residential |
| Year of Completion | 2020 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1 – 100 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety - Smoke/Fire Detection, Access Control, Intrusion Detection / Alarm Systems, Presence Simulation, Supervision (e.g. Cameras)
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Peak Demand Monitoring, Load Shedding , Energy Harvesting (Avoiding use of batteries), Use of Renewable Energies
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Sun Tracing (interaction with HVAC / lighting)
Customers Description
Work in progress, completion Q3 2020.
This holiday let property will guide visitors through the building from the second they cross the porch threashold.

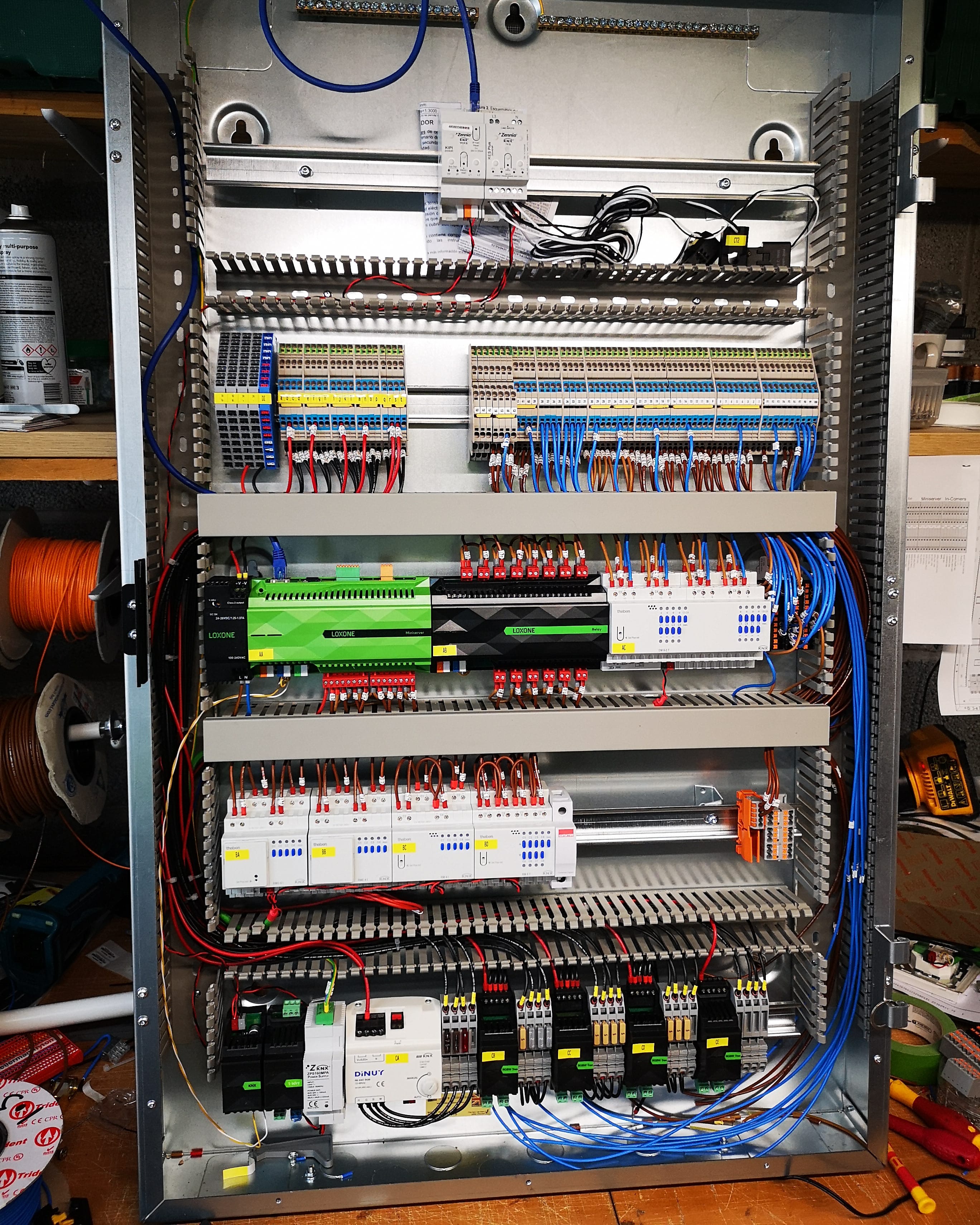

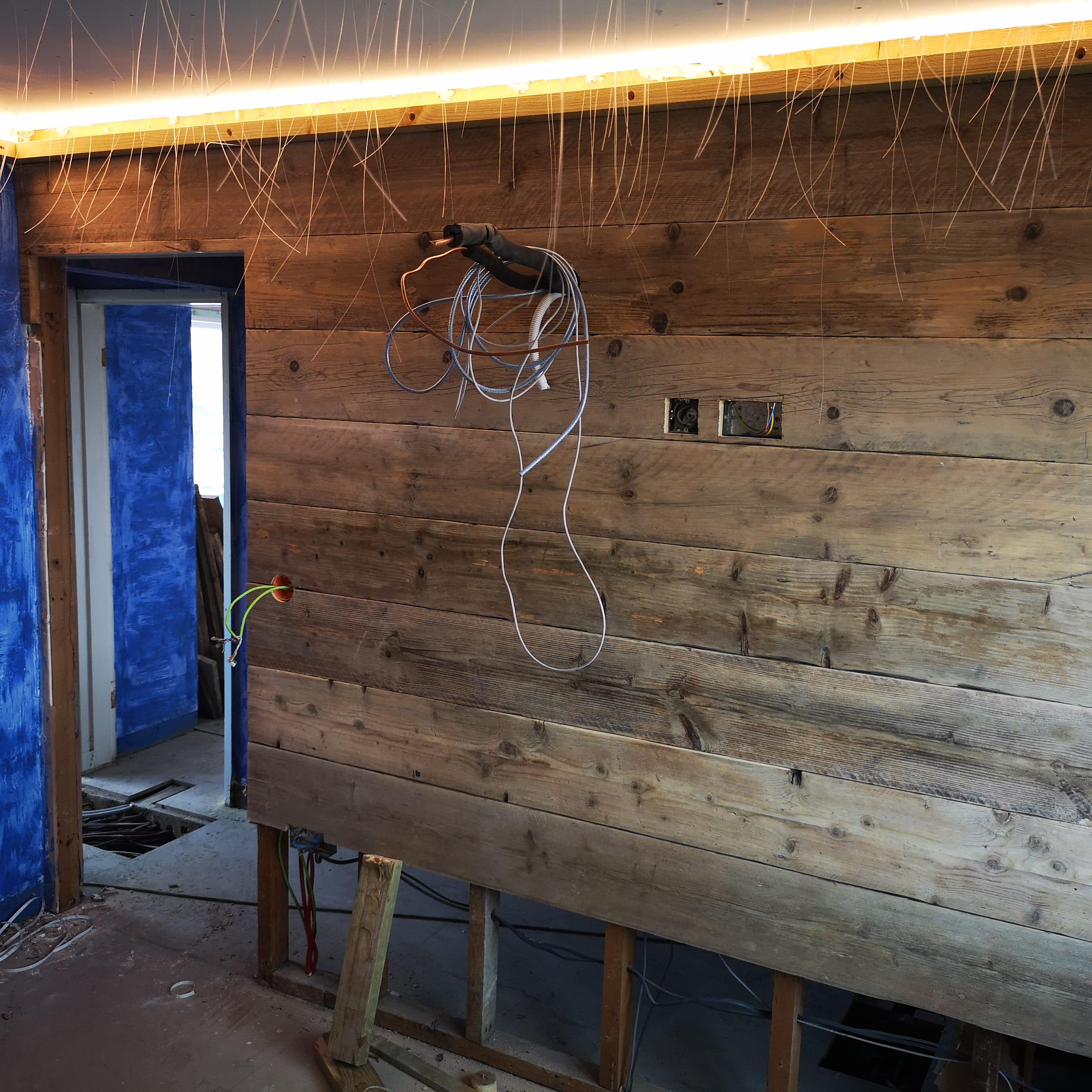

Blinds/curtains, multi-room audio & access control are installed. 150m of dimmable LED strip have been fitted along with WW/CW tunable strip in the kitchen. AC/Heating have been pre-wired, but control is not under the system due to budget constraints. Bathroom & hallways have time dependant automatic dimming to aid navigation without dazzling at night.
Even the bath has a connected temperature sensor for additional safety & fun features...
Contact Information
| Company Name | 3-E Electrical Ltd |
| Company Email | knx@3-e.co.uk |
| Company Website | http://www3-e.co.uk |
| Contact Name | Graeme Harrold |
| Contact Function | System Integrator |
