KNX PV, Battery & EV Charging Optimizer
Other in Wrocław
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Other |
| Project Type | Residential |
| Year of Completion | 2026 |
| Project Size | 1 – 100 |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety
- Operation and Visualisation
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Peak Demand Monitoring, Load Shedding , Use of Renewable Energies, Battery Storage
- Other
- Automation and Remote Access
- Blind and Shutter Control
Customers Description

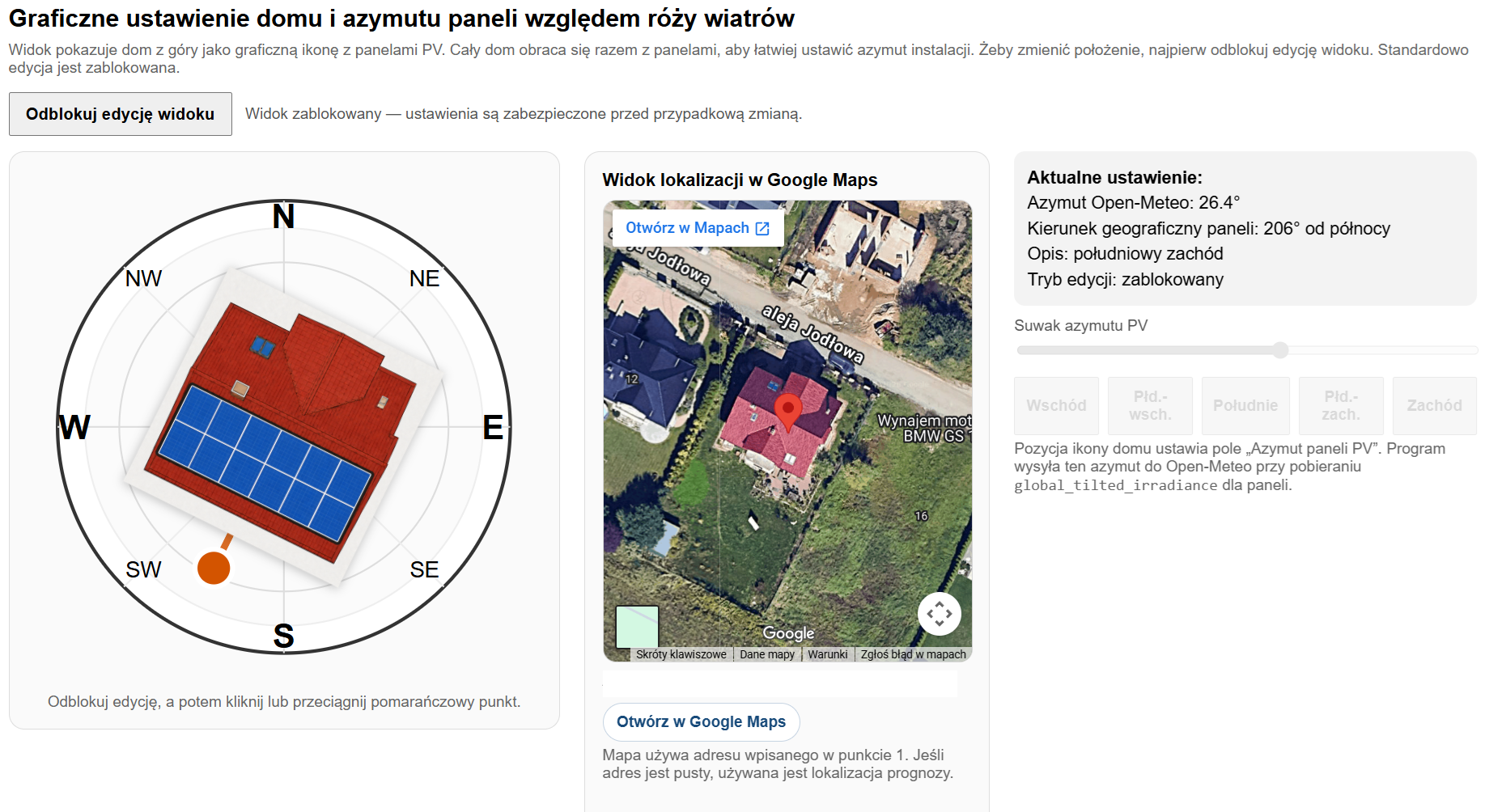

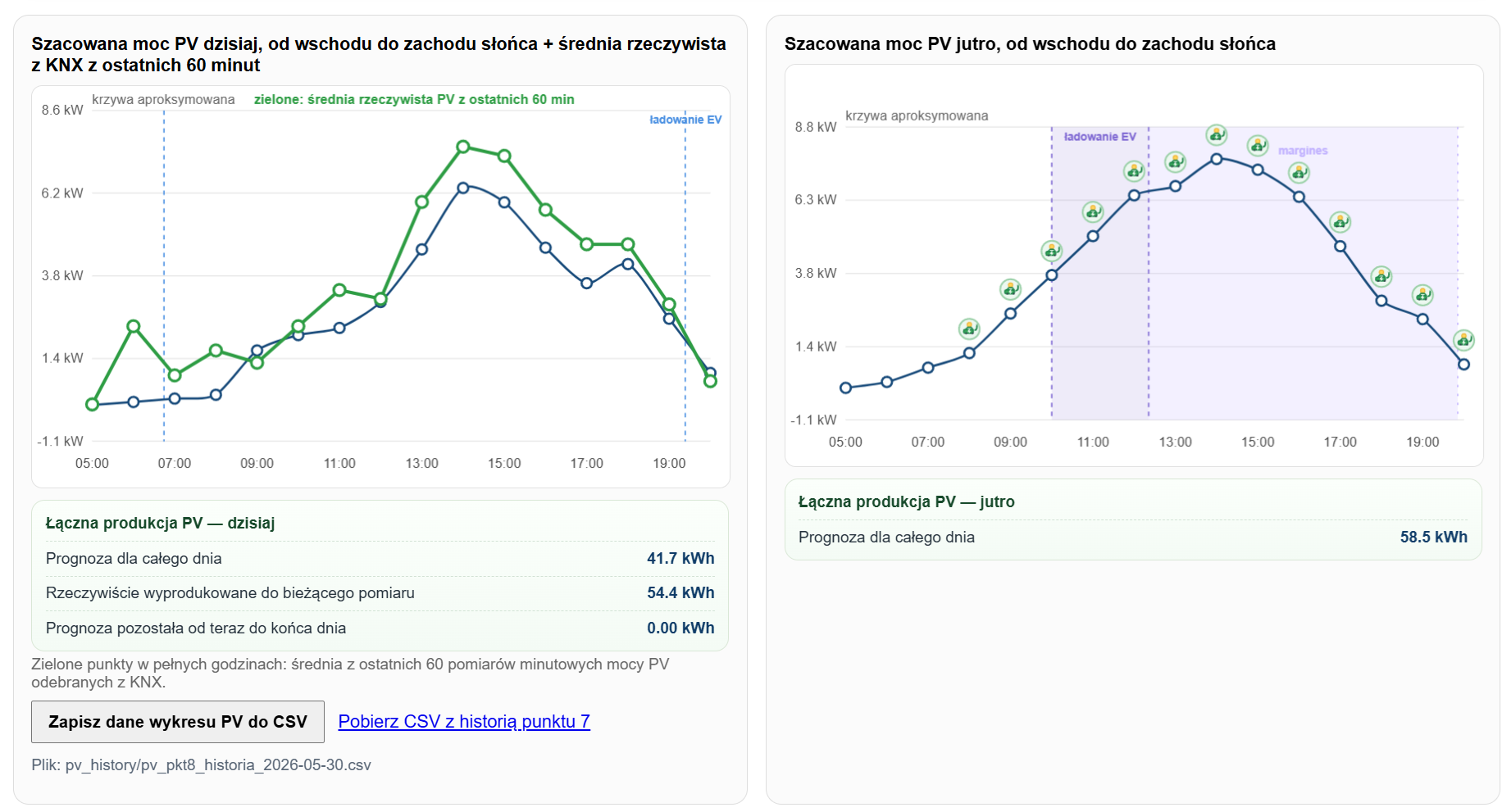

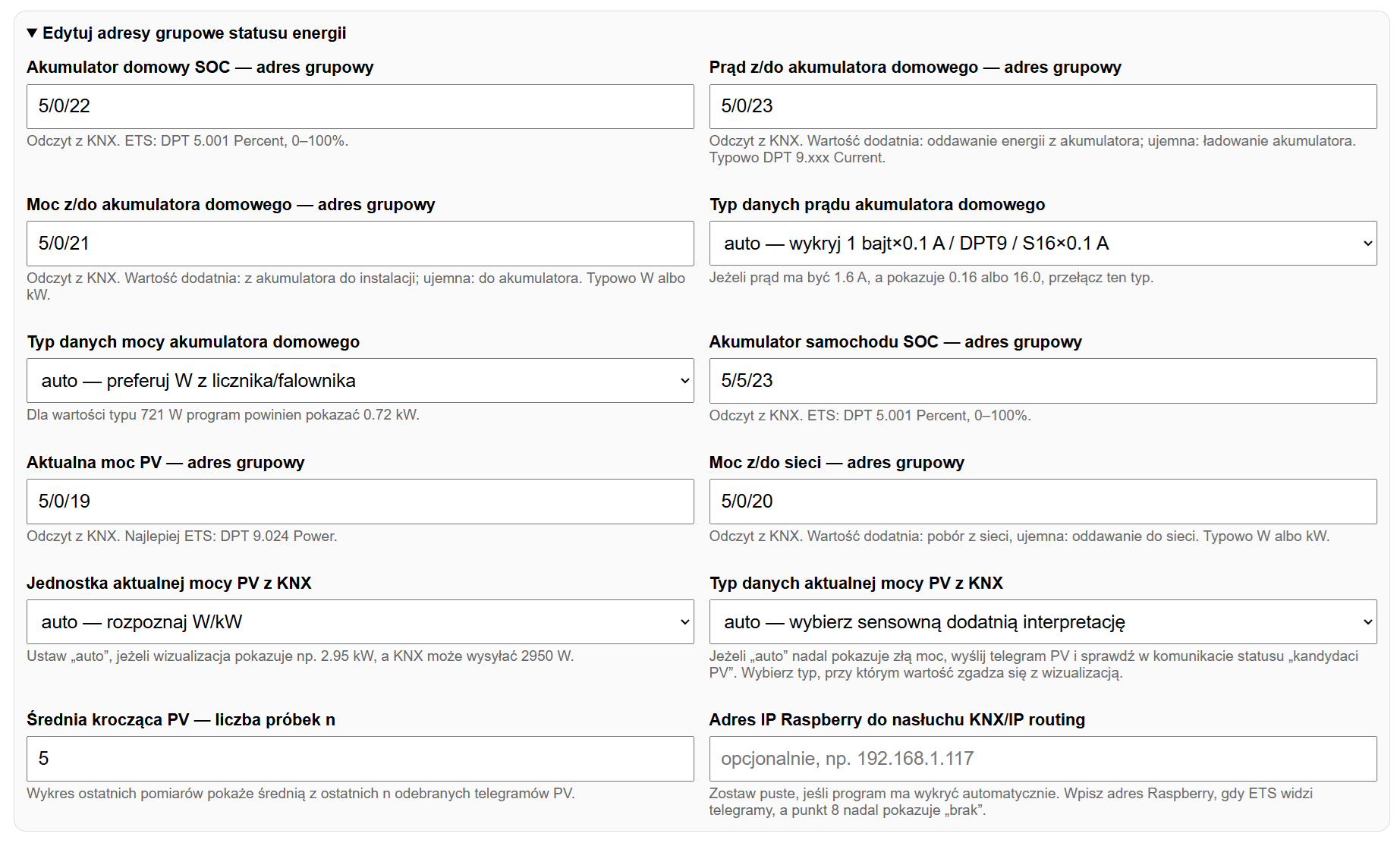

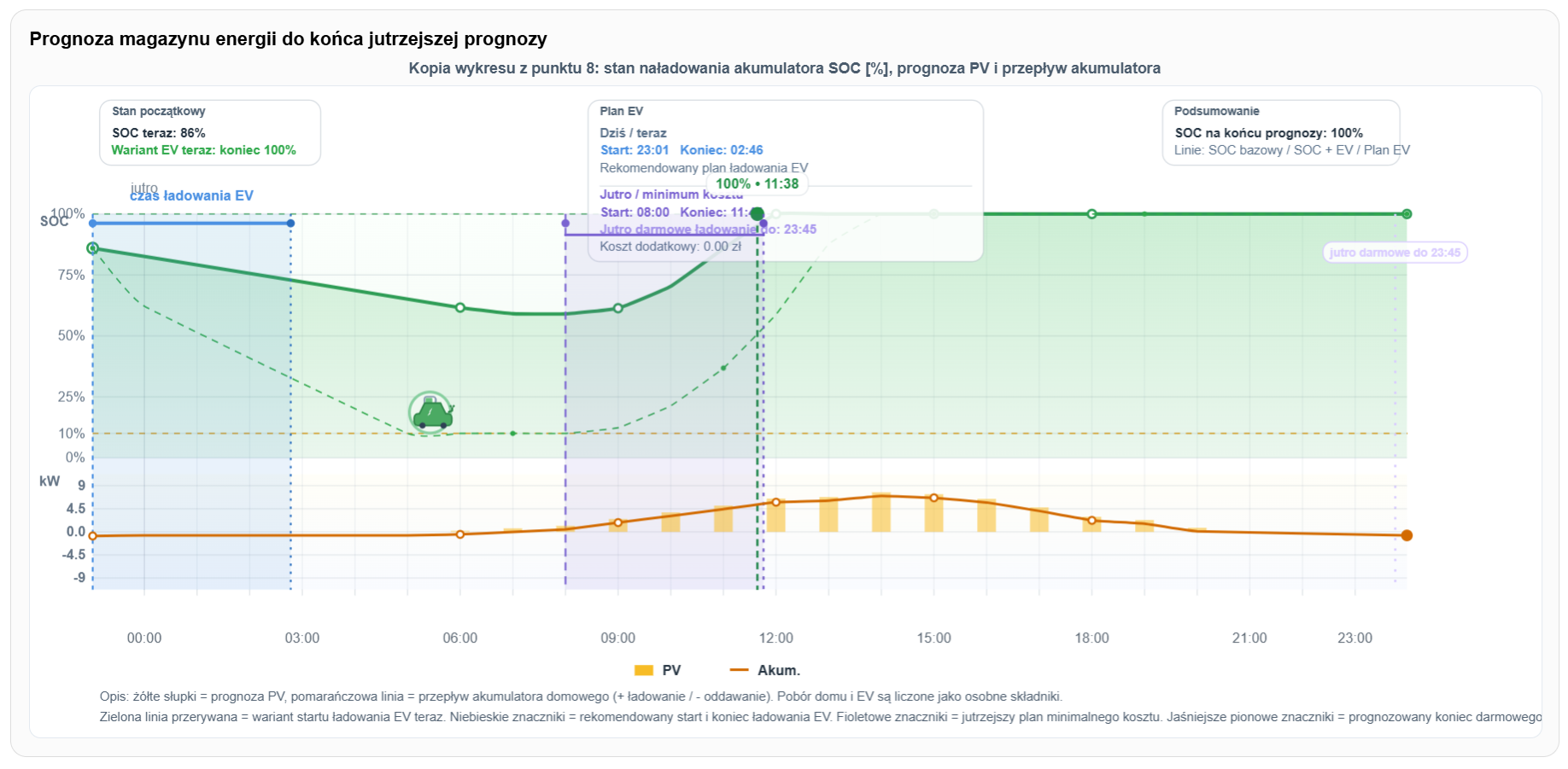

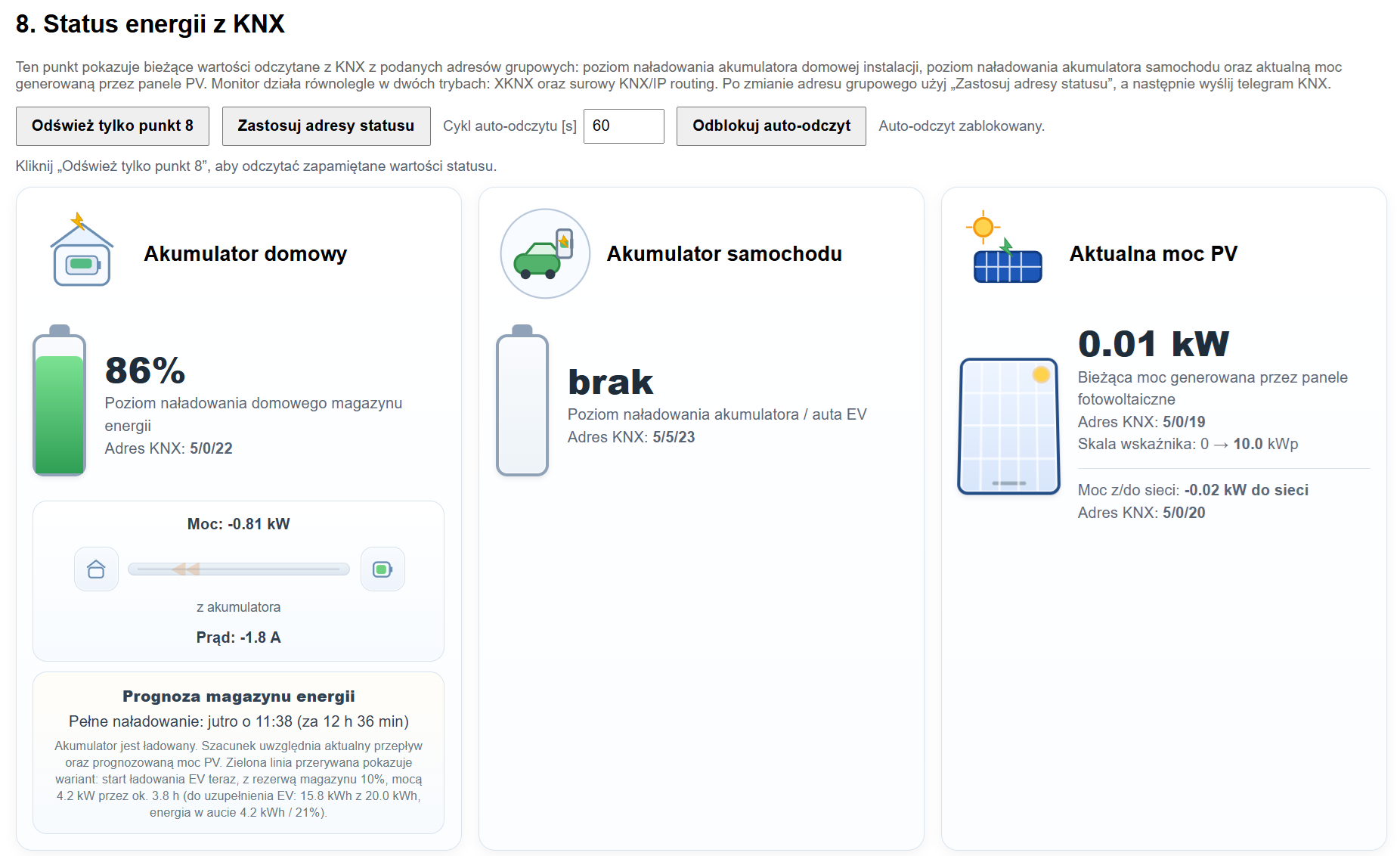

KNX Energy Intelligence Gateway is a predictive energy-management project for a KNX installation with photovoltaic generation, home battery storage and electric-vehicle charging. A local edge gateway reads KNX/IP group addresses, analyses PV power, battery state of charge, grid exchange, home consumption and energy tariffs, and combines them with weather-based PV forecasts. The system calculates the best charging windows for the EV, shows when charging can be free using PV and the home battery, protects a minimum battery reserve and sends charging recommendations back to KNX. The web interface visualises today’s and tomorrow’s PV production, battery forecast, real measurements and charging scenarios, helping the user maximise self-consumption, reduce grid energy and lower charging costs.
Contact Information
| Company Name | AS-TECH Andrzej Stachno |
| Company Email | andrzej@knxpolska.pl |
| Company Website | https://www.knxpolska.pl/ |
| Contact Name | Andrzej Stachno |
| Contact Function | System Integrator |
