Jack Links Guben
Manufacturer in Guben
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Manufacturer |
| Project Type | Other |
| Year of Completion | 2025 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Weather Dependent Control, Individual Room Control / Zone Control, CO2 / Humidity Measuring
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, PC Visualisation, Web Servers, Touch Panels & Display Panels
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Wind and Rain Protection
Customers Description

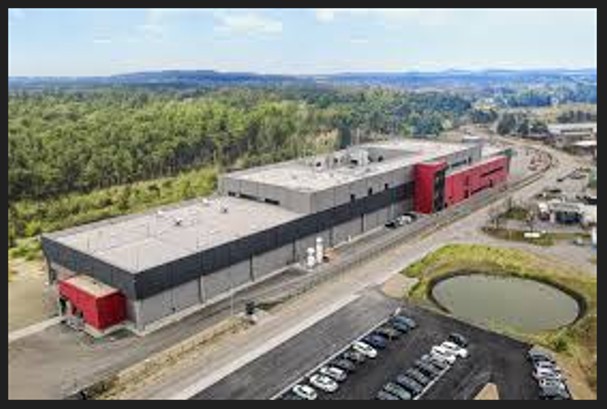

The factory in Guben is controlled via KNX.
Lighting is managed via DALI, with switching handled by KNX on/off actuators.
Visualization is provided by the Gira Home Server.
Motion detectors are from Steinel.
Switches are Gira push-button sensors (Tastsensor).
In the production hall, surface-mounted switches with KNX binary inputs are used.
Each room is equipped with a temperature sensor. All information is sent to the BMS (Building Management System) via a BACnet gateway.
The BACnet gateway also controls KNX heating actuators (ABB).
RTR push-button controllers are used in the offices and directly control the heating actuators.
The blinds are controlled using ABB actuators.
Window opening is handled via a Schüco TipTronic gateway, with communication between both systems taking place via KNX.
Faults in the main distribution board are sent via binary inputs to both the BMS and the KNX visualization system.
