iCASA smarthome - komplett Open-Source

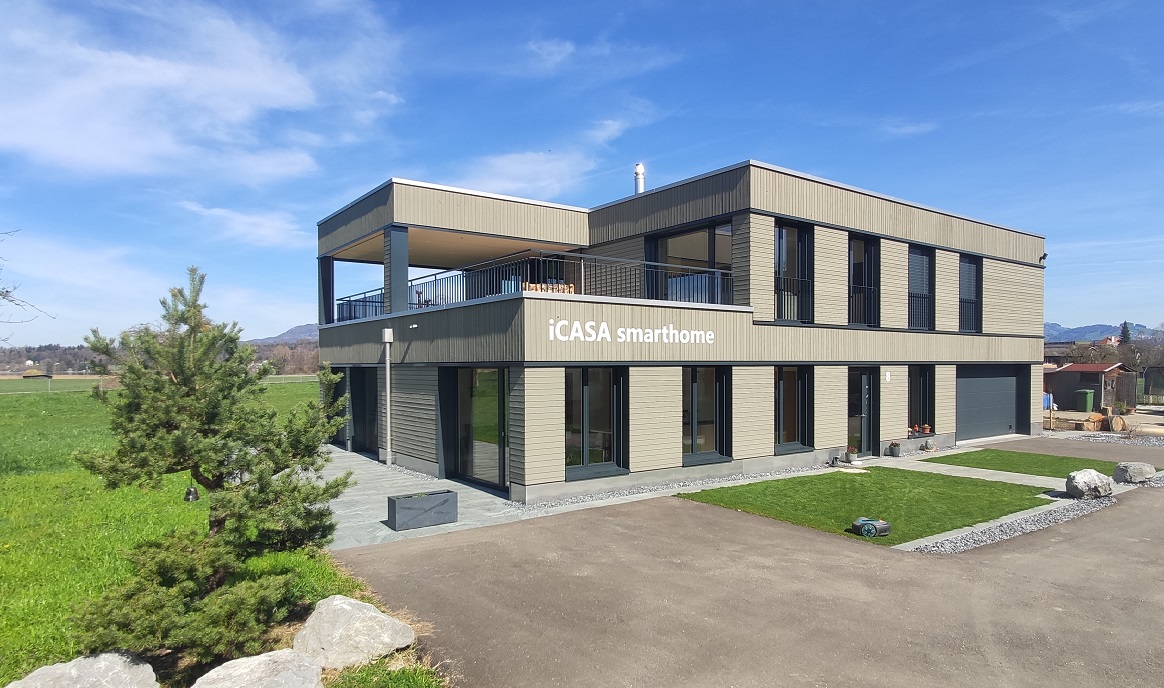

Office building in Nuolen
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2023 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Individual Room Control / Zone Control, CO2 / Humidity Measuring, Floor Heating Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Intrusion Detection / Alarm Systems, Presence Simulation, Supervision (e.g. Cameras), Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Fuel or Water tank level control, Use of Renewable Energies, Battery Storage
- Other - Intercom, Audio Control, Irrigation Control, Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description
Durch die geschickte Verknüpfung der weltweit renommierten Open-Source-Gebäudeautomationssoftware "Home Assistant" mit dem KNX-System haben wir ein Projekt realisiert, das sich vollständig auf offene Standards stützt. Die Vielzahl von Integrationen mit anderen Systemen macht "Home Assistant" zu einer herausragenden Wahl, und mit Matter ist seine Zukunftsfähigkeit gewährleistet.
Den Großteil der Programmierung übernimmt unsere eigens entwickelte Webapplikation "iCASA Assistant" (https://icasa-assistant.ch/). Diese Anwendung erstellt die KNX-Gruppenadressen gemäß den "KNX Swiss Richtlinien" und generiert zudem die entsprechenden Entities, Automationen und Dashboards für den "Home Assistant". So entsteht mit minimalem Aufwand eine vollständige Lösung.
Durch den "Home Assistant" werden auf einfache Weise auch diverse andere Geräte wie Fronius, WLED, Tablets, Mobiles, smartwatches und etliche mehr eingebunden.
Contact Information
| Company Name | Bruhin Engineering GmbH |
| Company Email | heinz@bruhin.biz |
| Company Website | https://icasa.biz |
| Contact Name | Heinz Bruhin |
| Contact Function | System Integrator |
