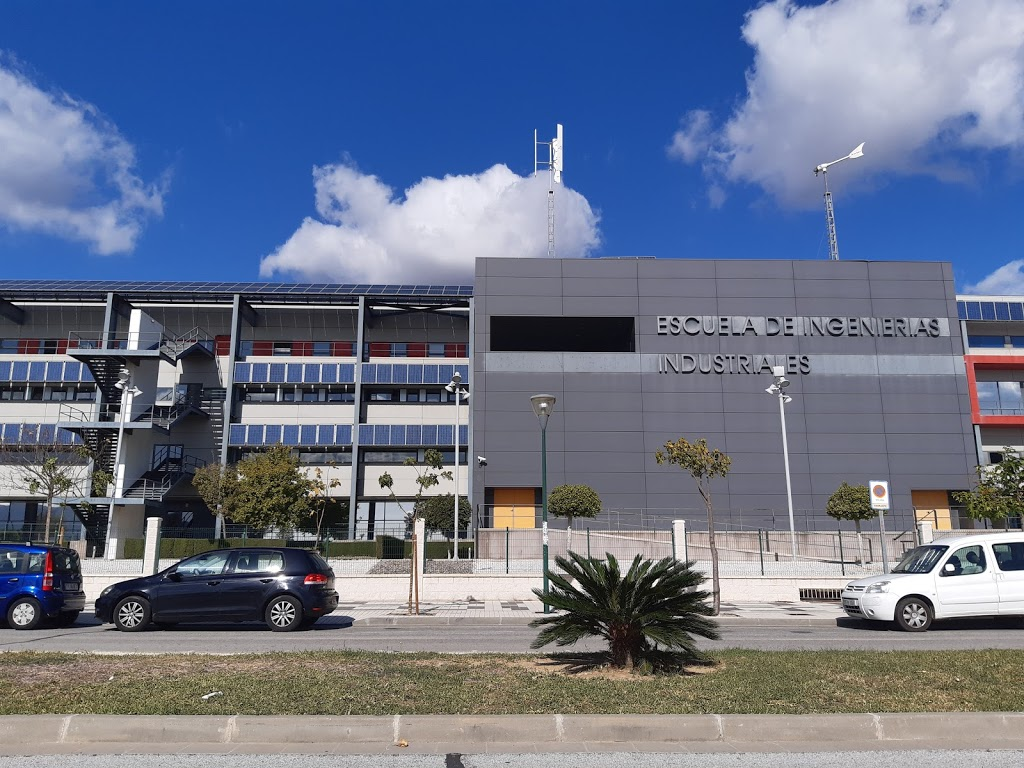

Escuela Ingenierías Universidad de Málaga

Educational in Málaga

Applications Used

Lighting

Heating, Ventilation & Air conditioning (HVAC)

Security and Safety

Operation and Visualisation

Energy Management/Smart Metering

Other

Automation and Remote Access

Blind and Shutter Control

Project Details

Category	Value
Project Category	Educational
Project Type	Commercial
Year of Completion	2019
Project Size	1.001 – 5.000
Number of KNX Devices Used	26 – 100
KNX Transmission Media	Twisted pair
Man Hours	101 – 250
Man Power	1 – 5

Featured in this project

Detailed Description

Energy Efficiency

The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation

Innovation

Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.

Applications Used

Lighting
Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Weather Dependent Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation
Security and Safety
Operation and Visualisation - PC Visualisation, Web Servers, Tablets and smart phones
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control

Customers Description

Control of natural and forced ventilation of common areas, depending on inside and outside temperature and CO2 values measured in 6 different zones on 3 levels each. Temperature, CO2 and humidity are measured with wireless sensors LoraWan and sent to KNX-IP Multicast. Gira-Homeserver converts the received data into opening values of motorized ventilation grills and speed of extractor fans. Depending on weather and outside temperatur , fresh air is taken either from north or south side of the building. The whole process is visualized and values are recorded in graphs. The ventilation system is part of an overall building control which will be entirely done in KNX and will control DALI lighting and A/C in aulas.
