"Downtown apartment"
Apartment in Athens
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Apartment |
| Project Type | Residential |
| Year of Completion | 2022 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control

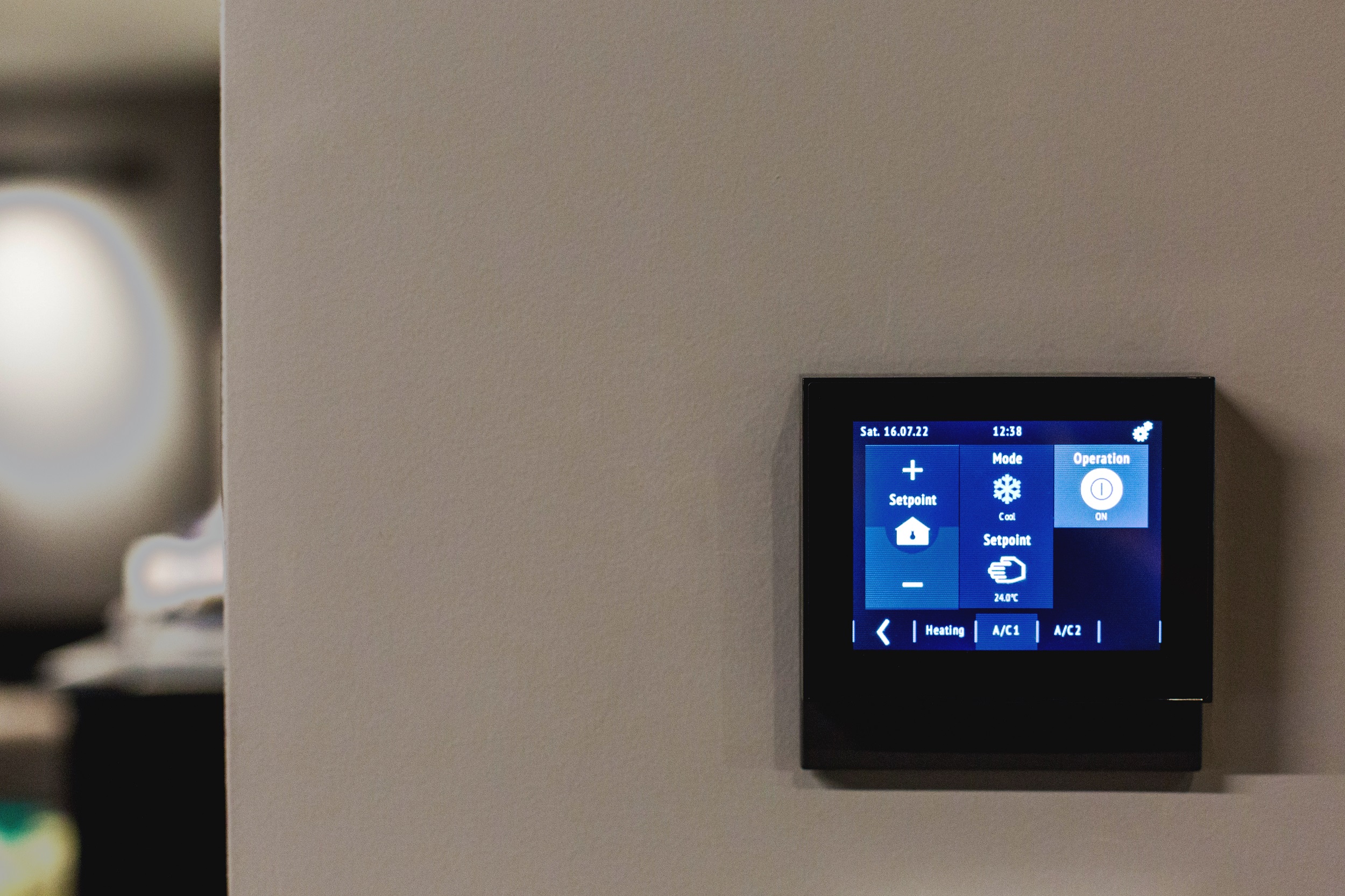

- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Boiler and burner Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Intrusion Detection / Alarm Systems, Emergency Lighting, Presence Simulation, Supervision (e.g. Cameras), Interaction with HVAC/Lighting

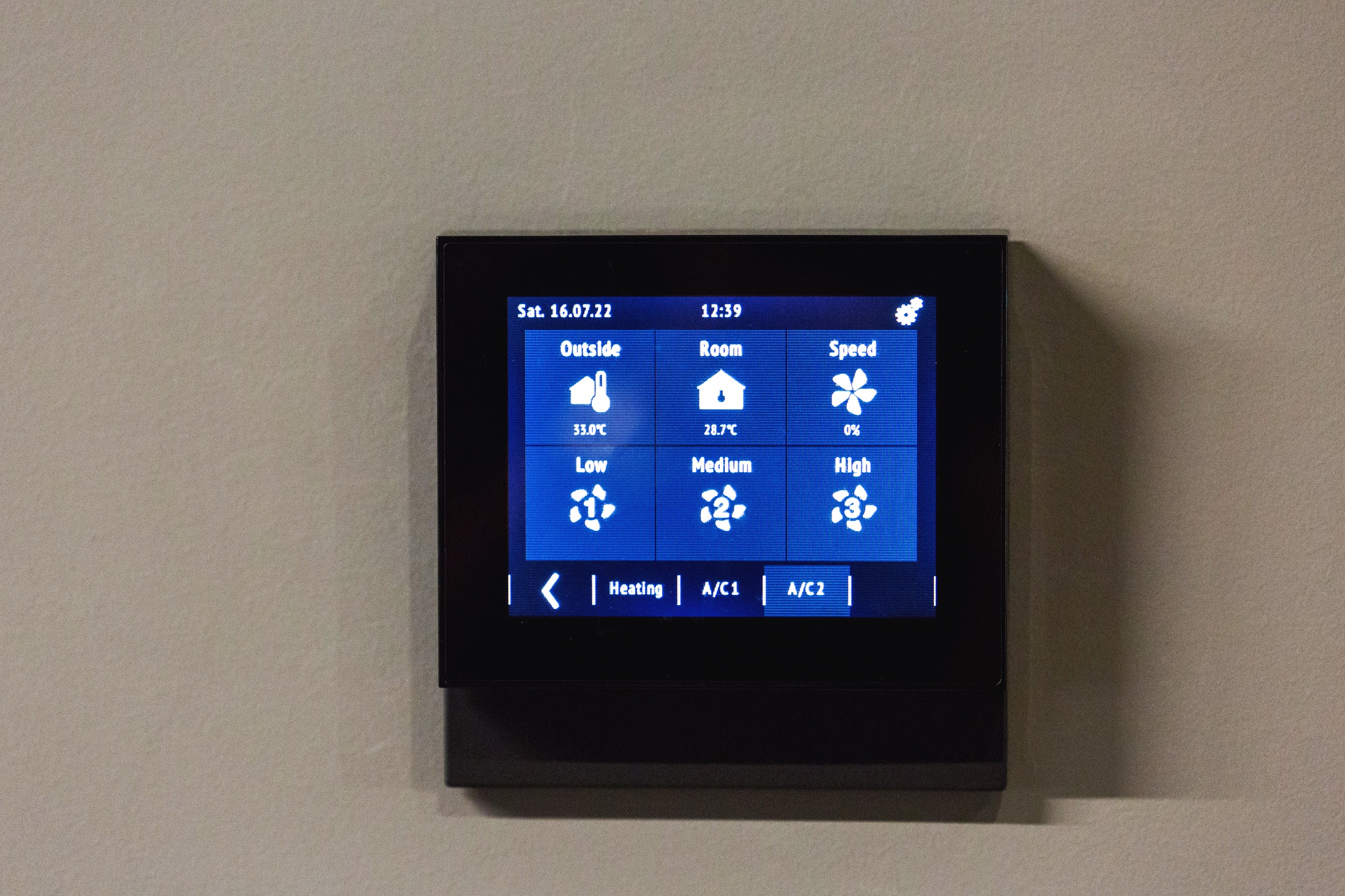

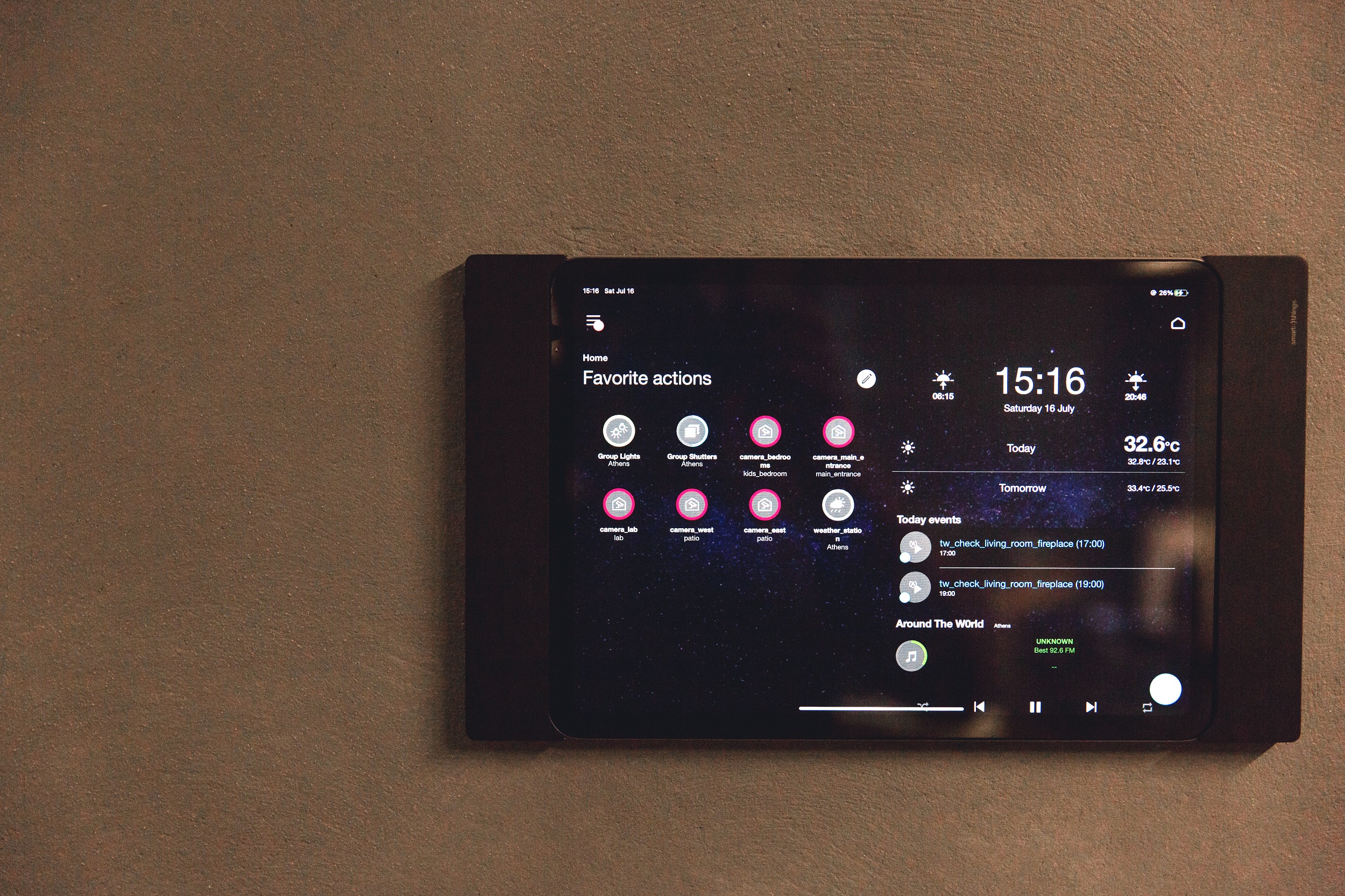

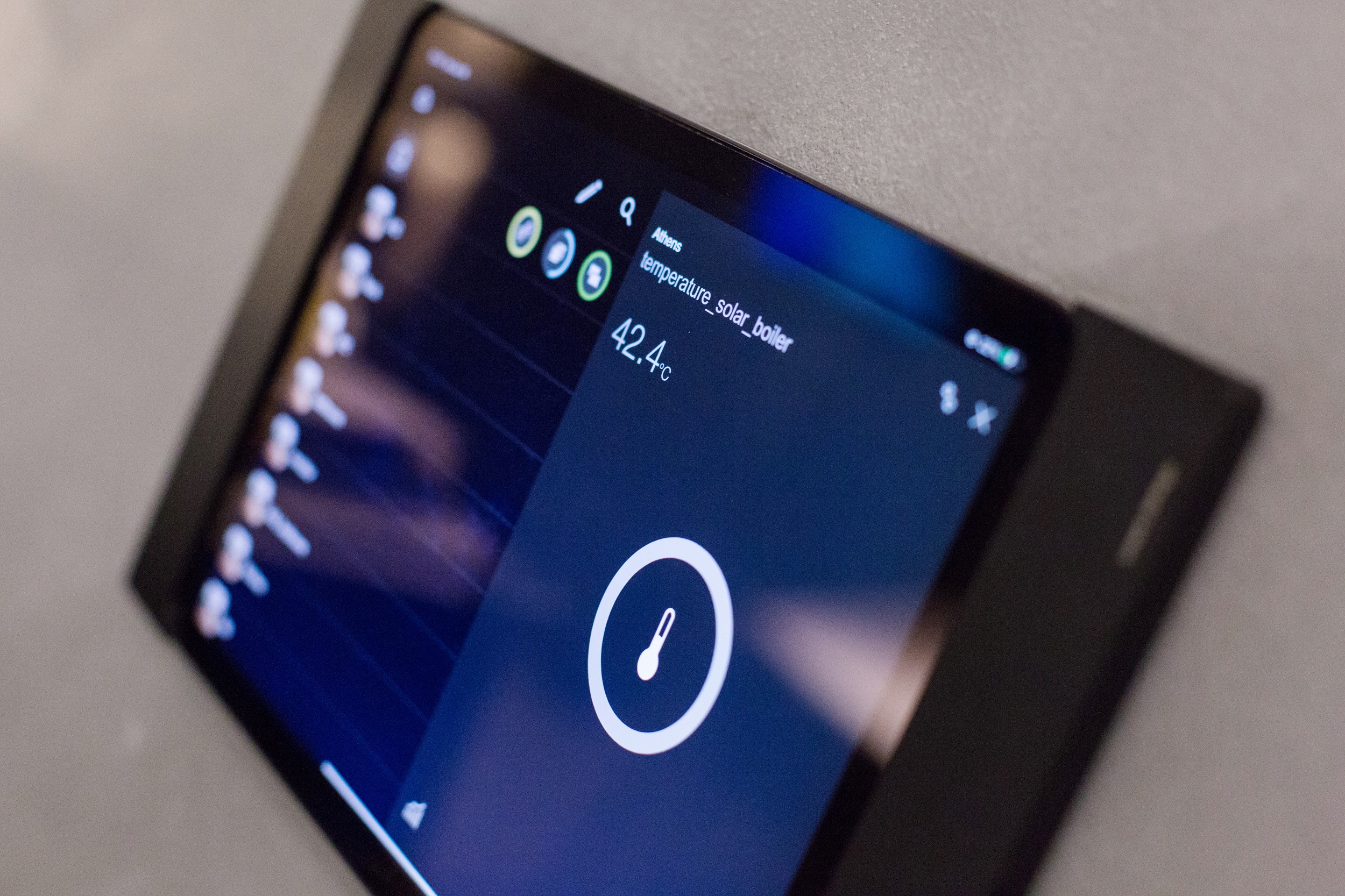

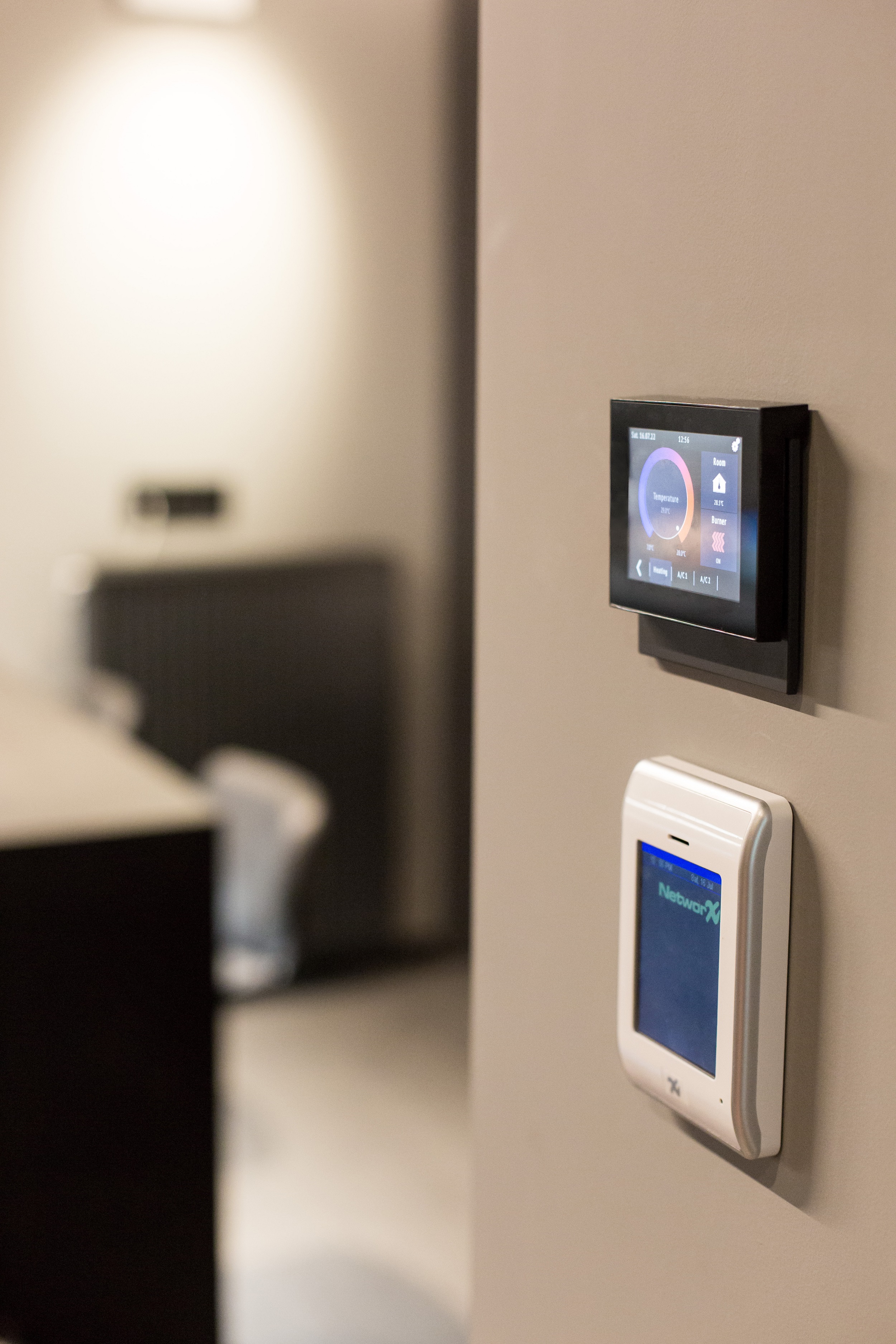

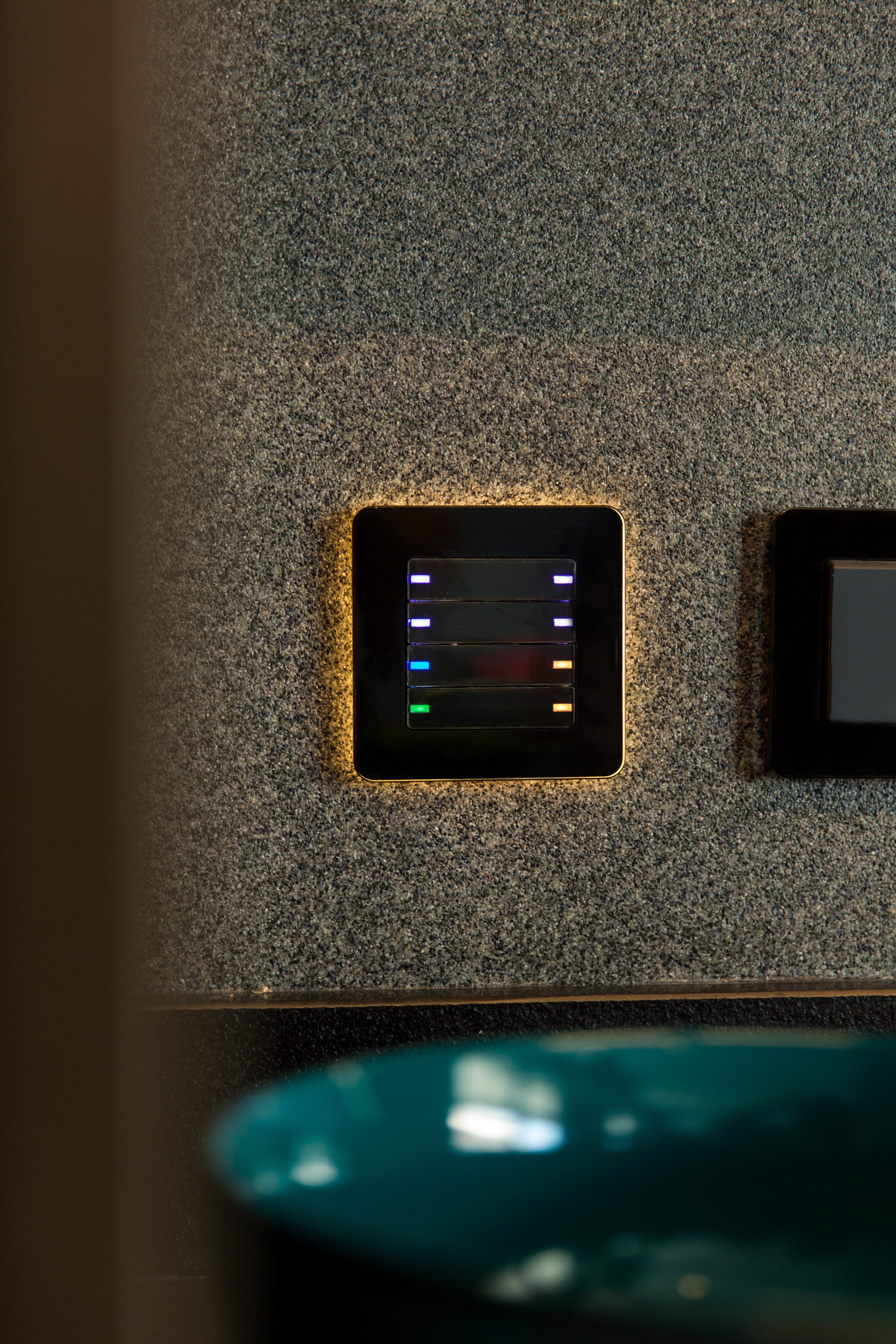

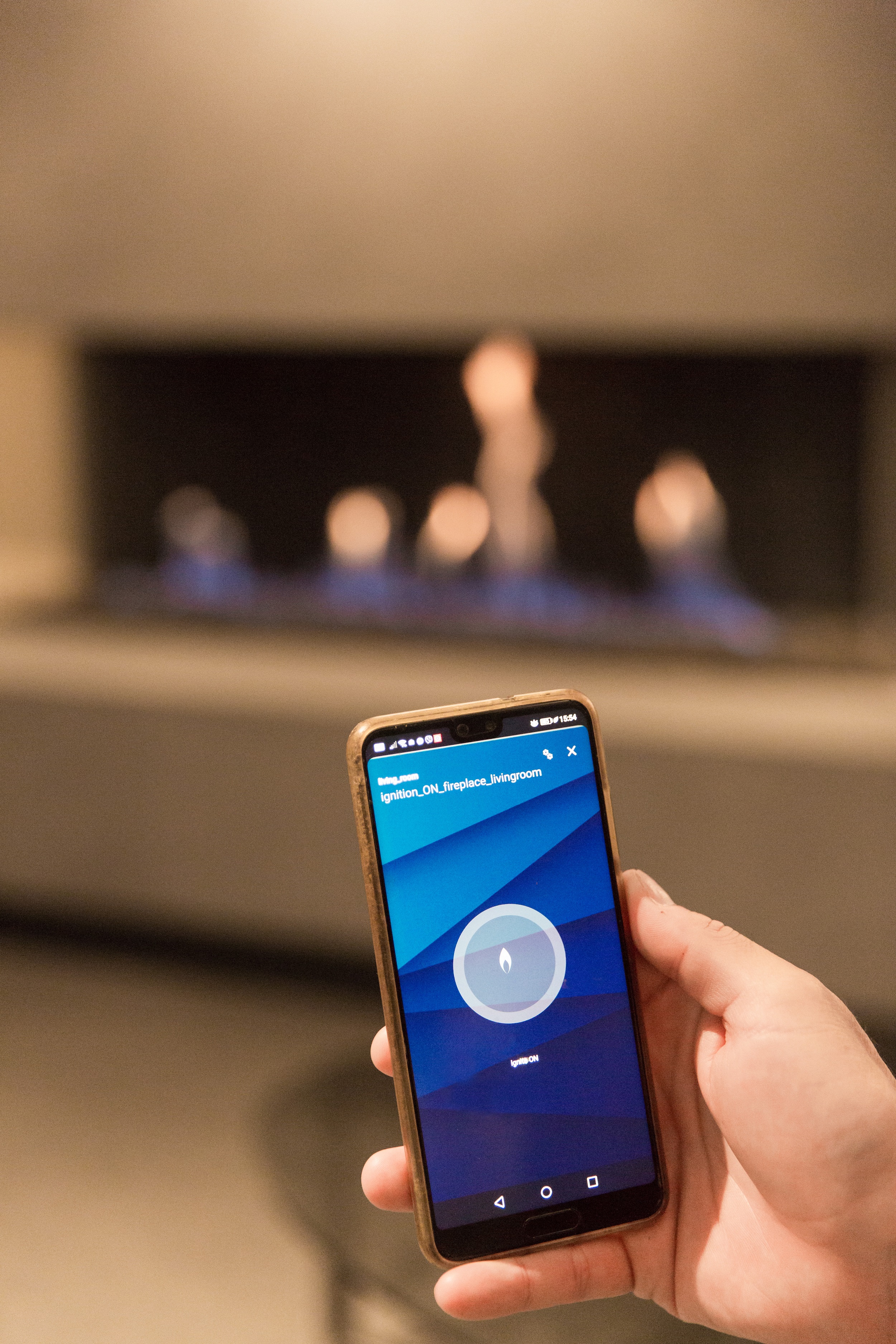

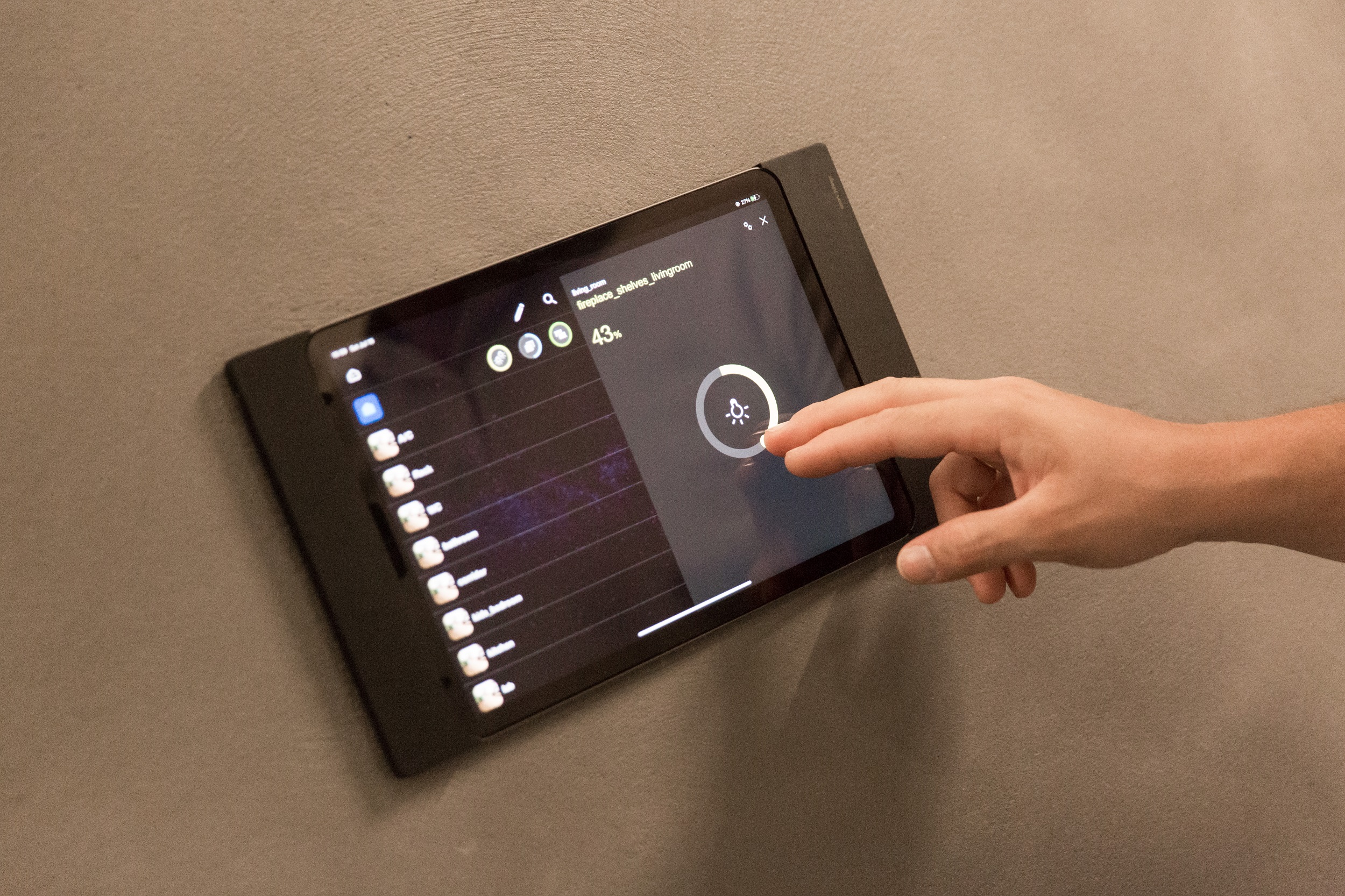

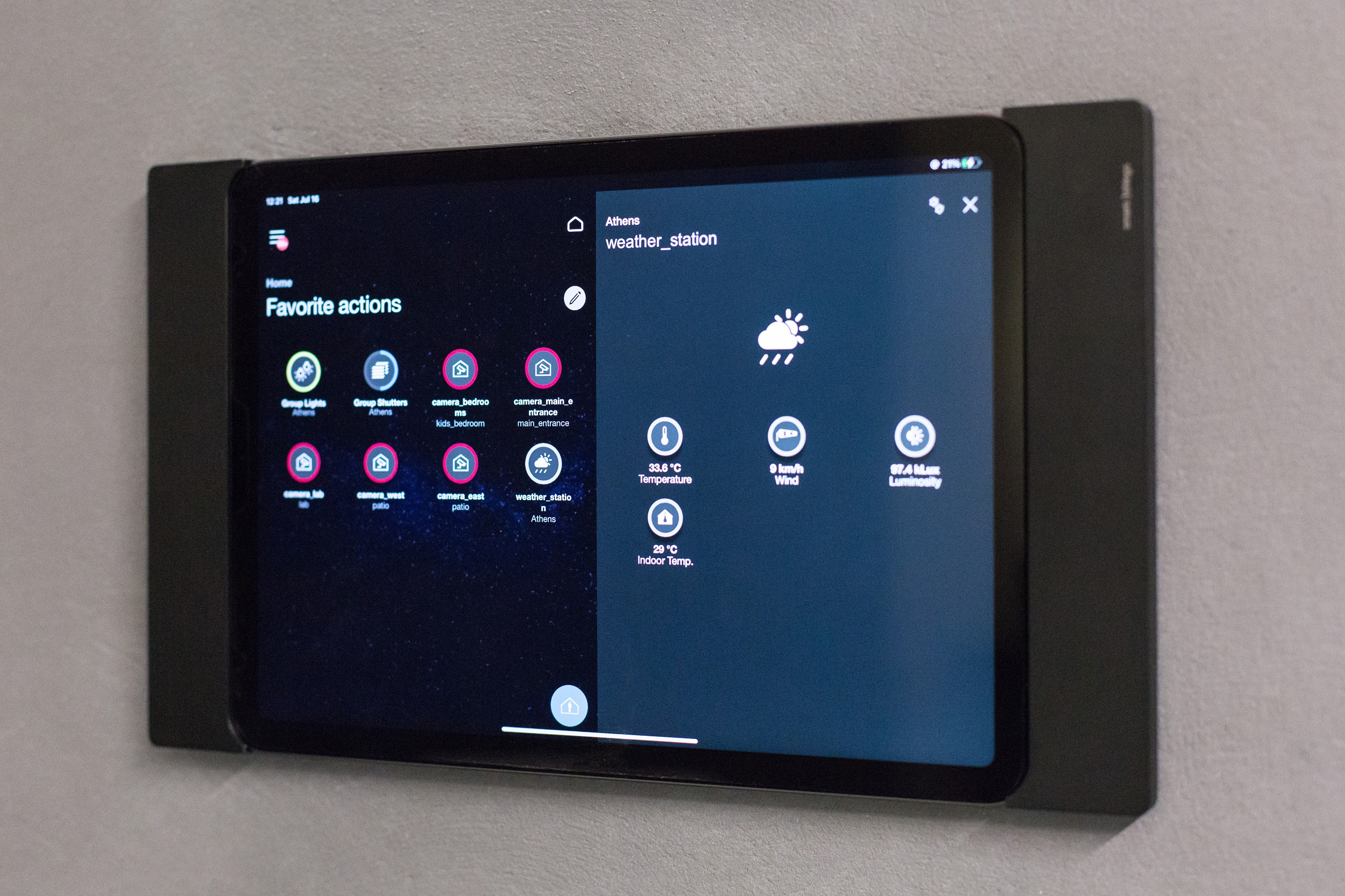

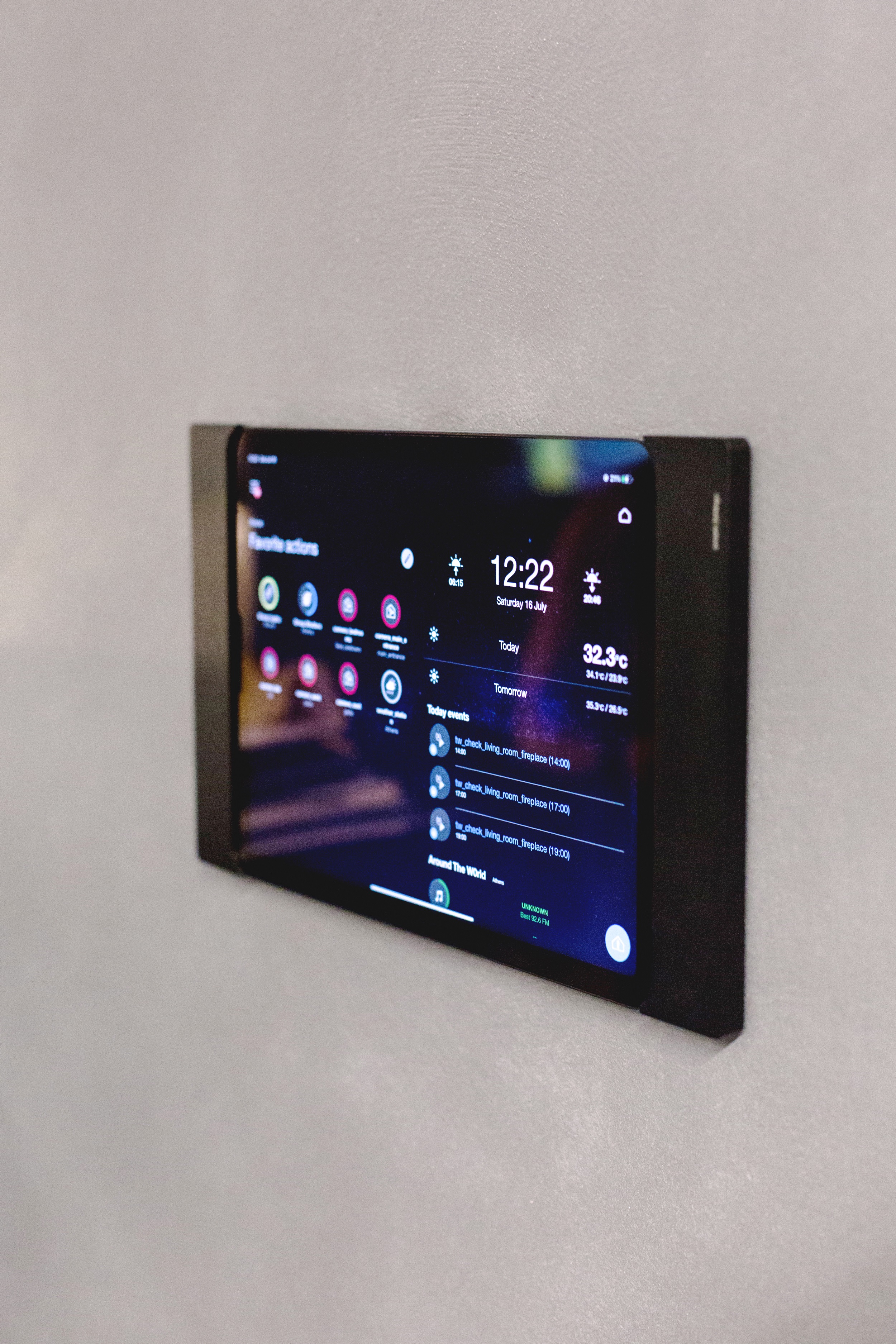

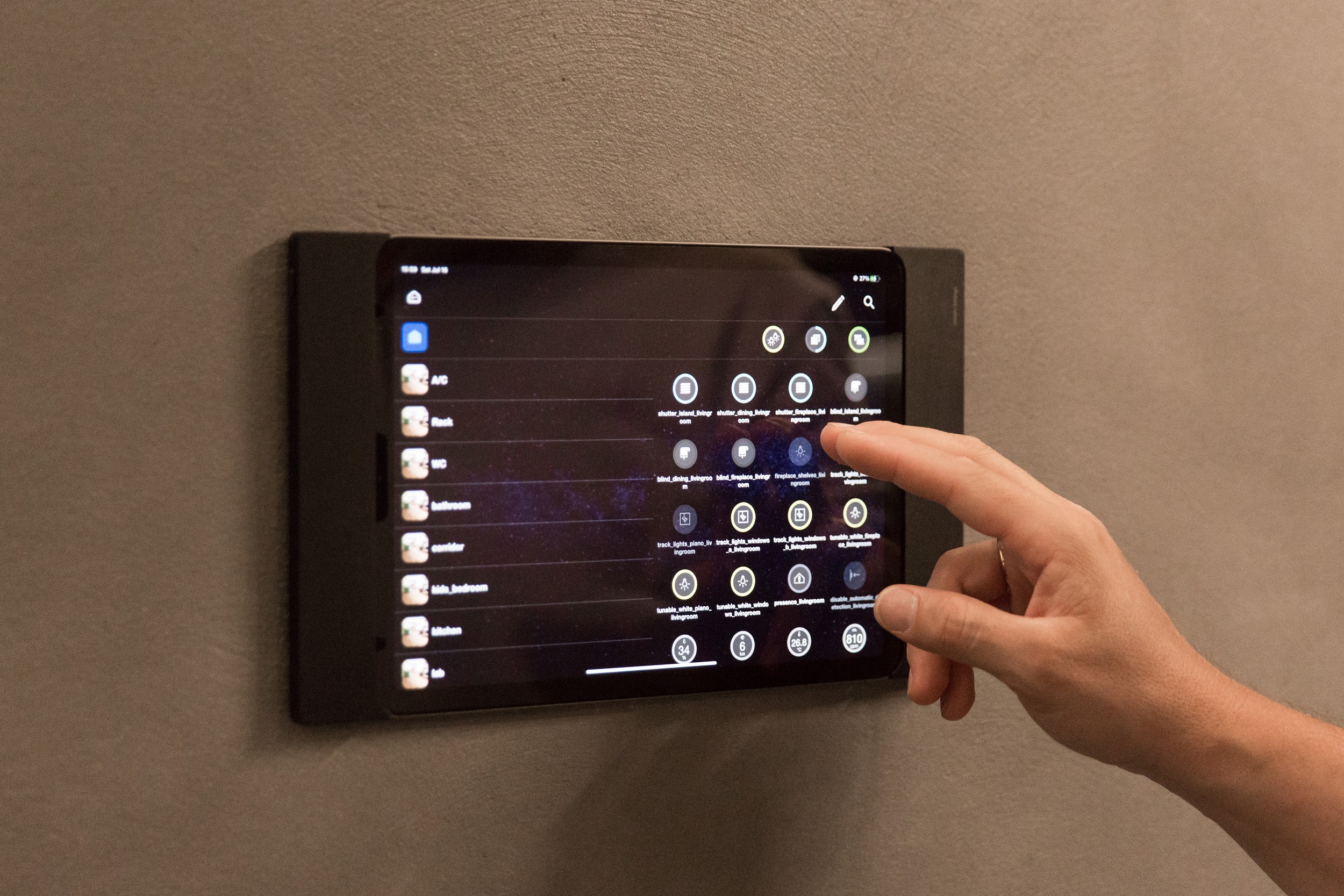

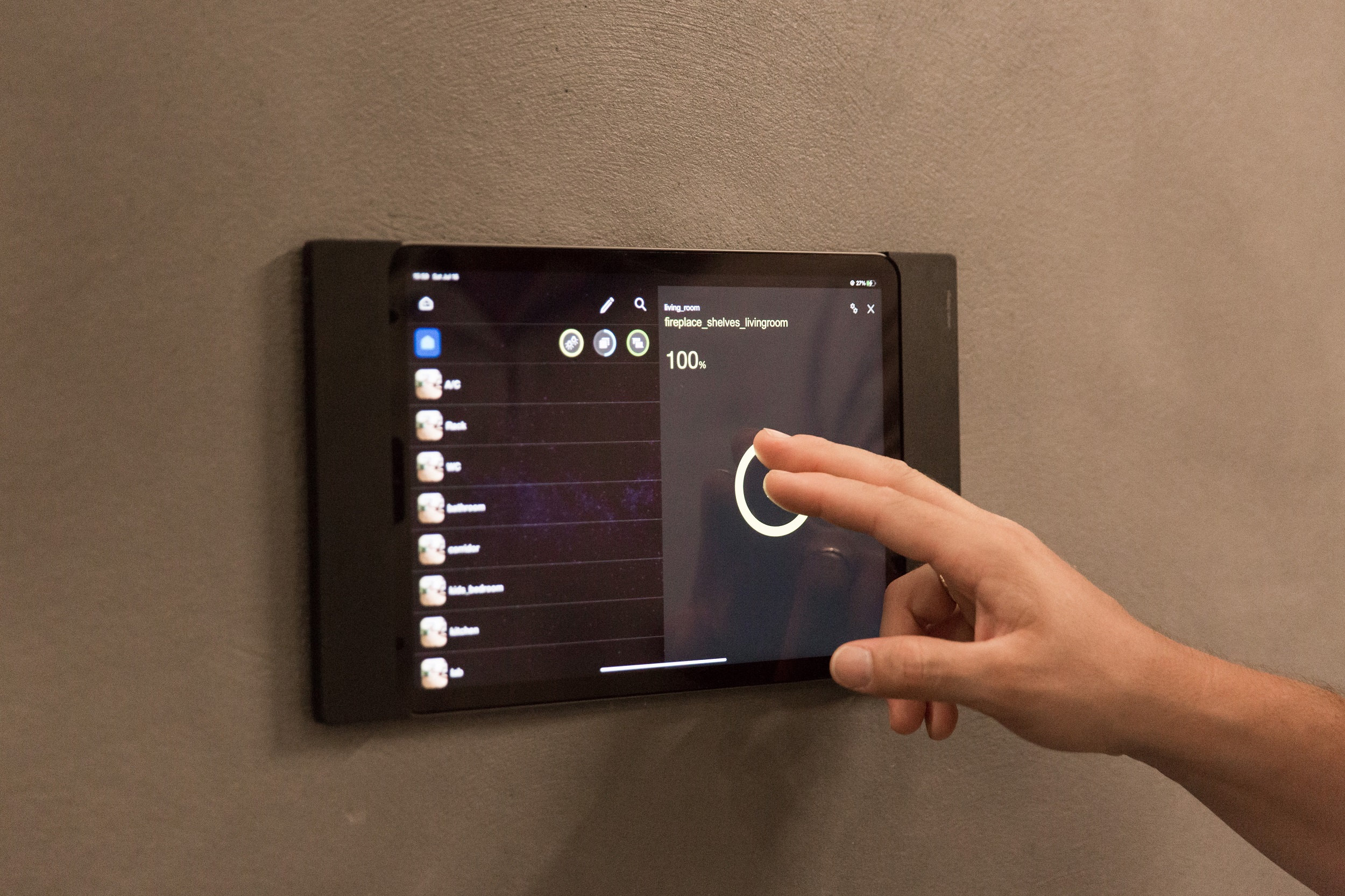

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Fuel or Water tank level control, Peak Demand Monitoring, Load Shedding
- Other - Intercom, Audio Control, Home Appliances Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)

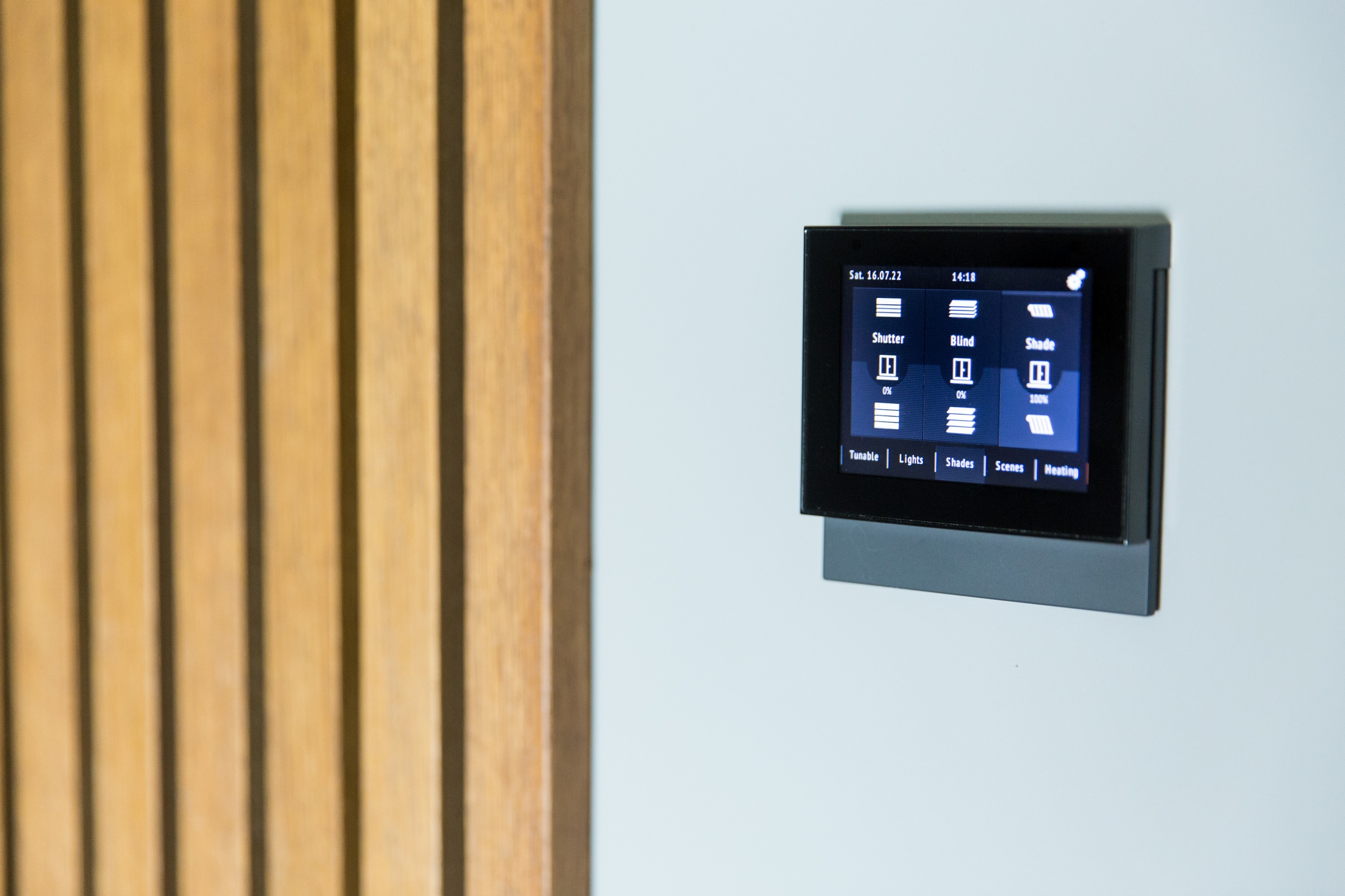

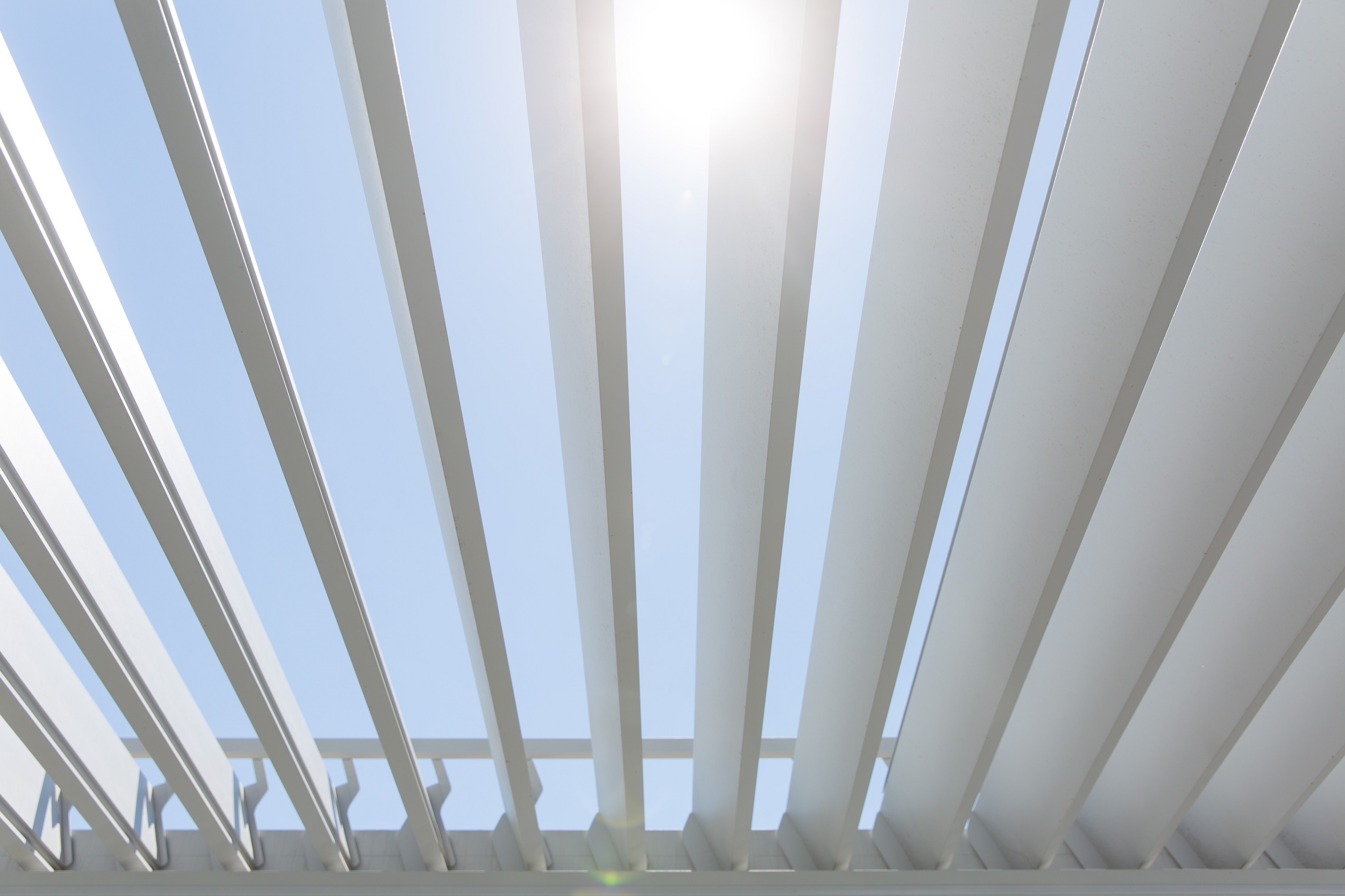

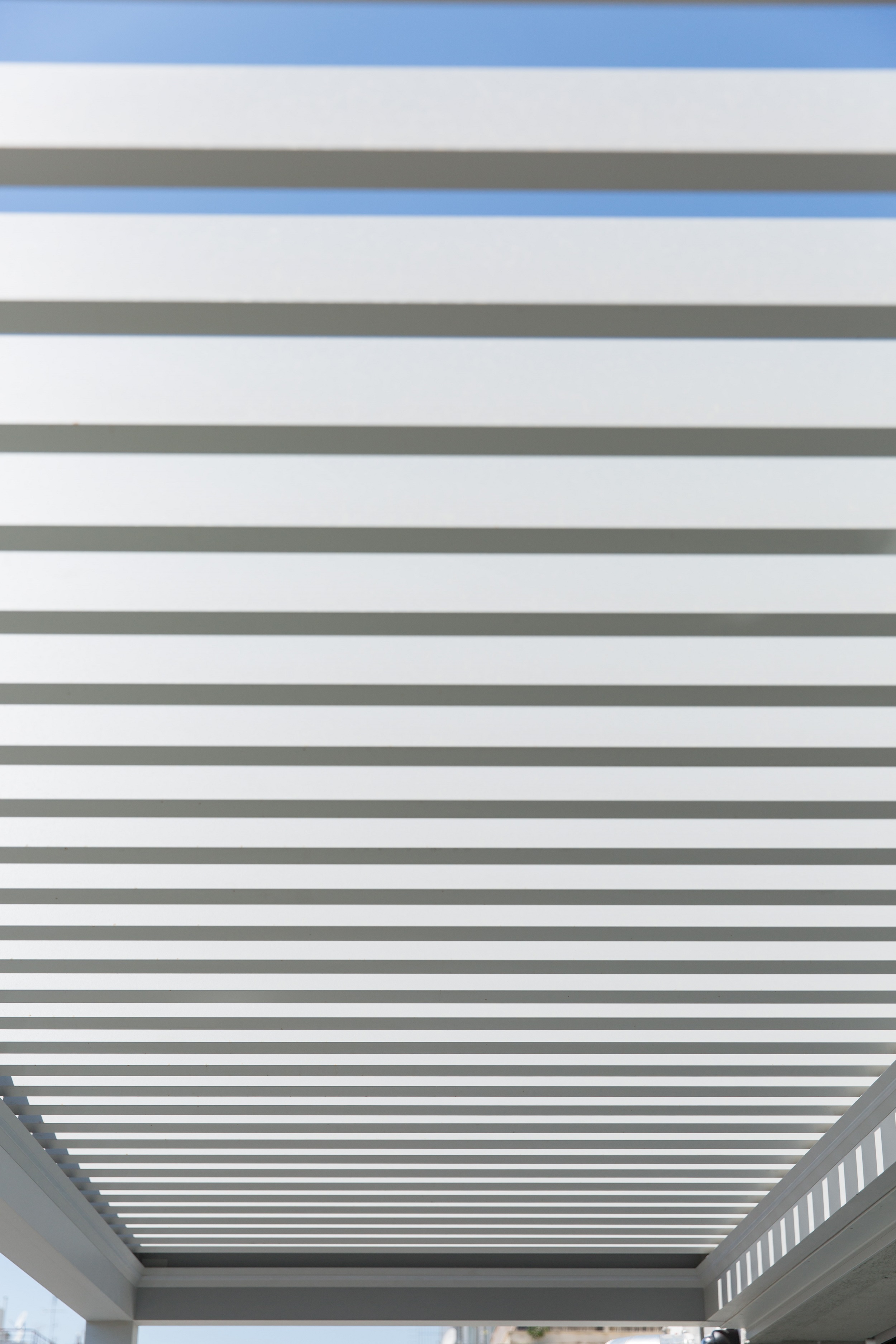

- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description

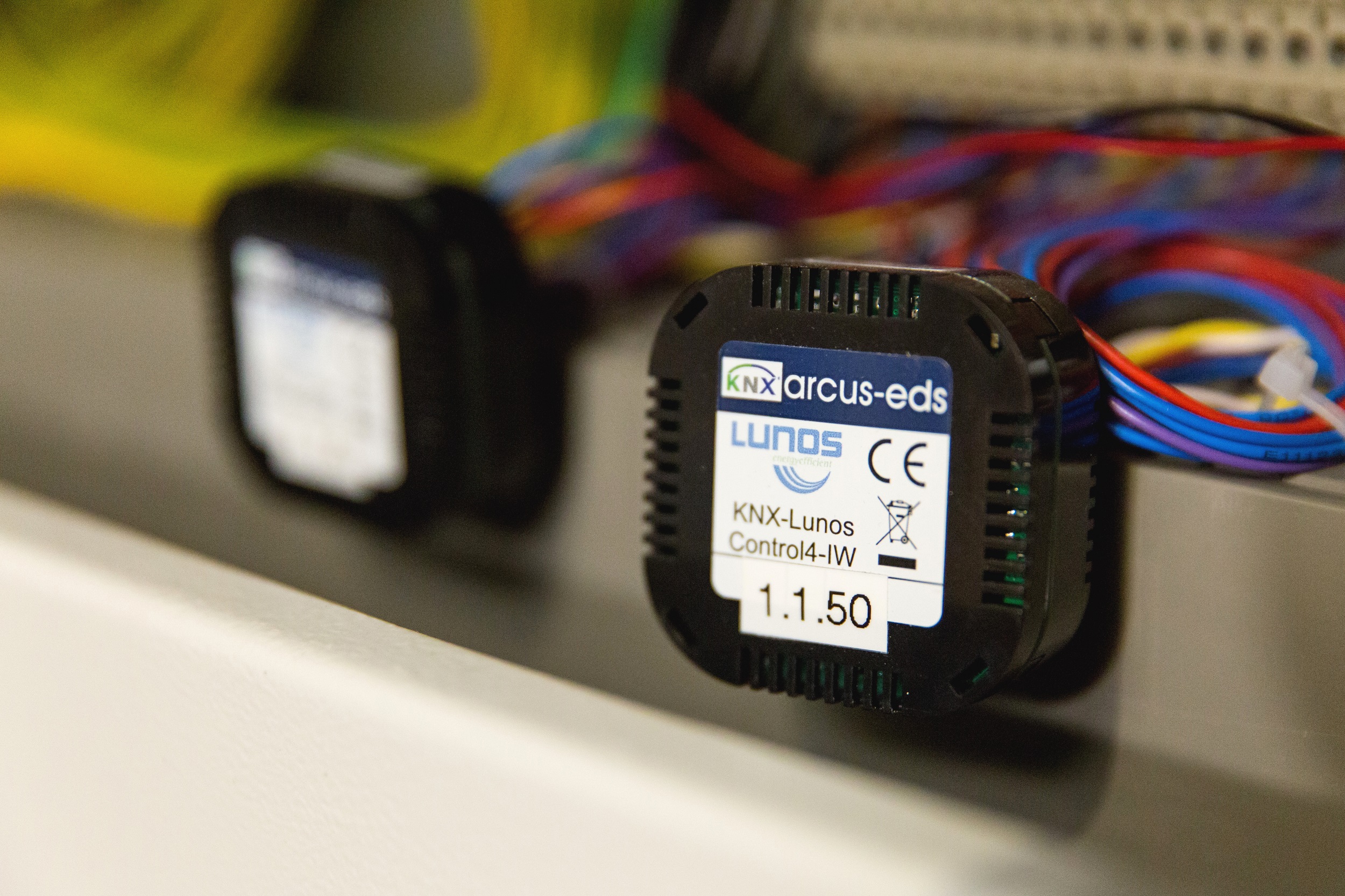

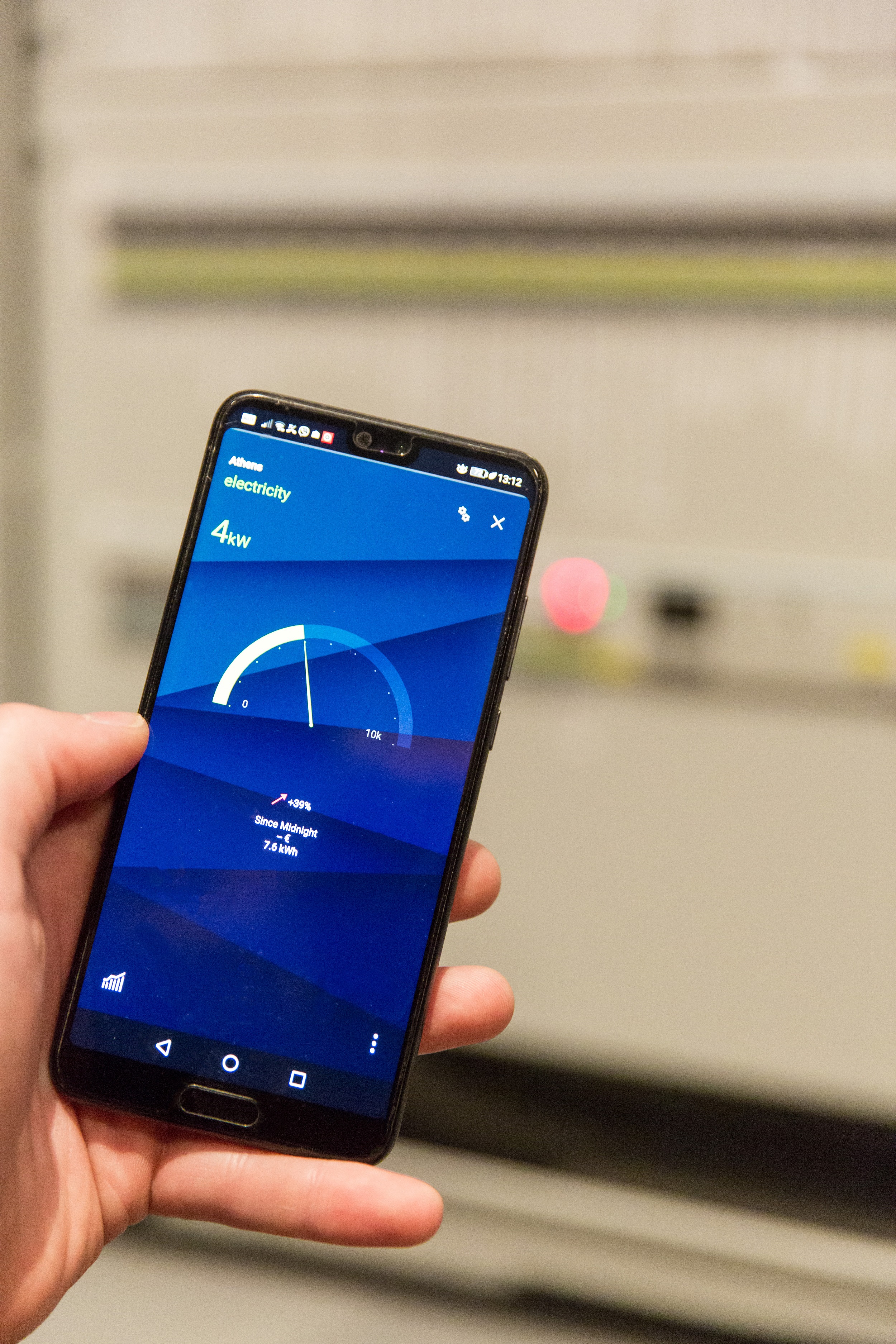

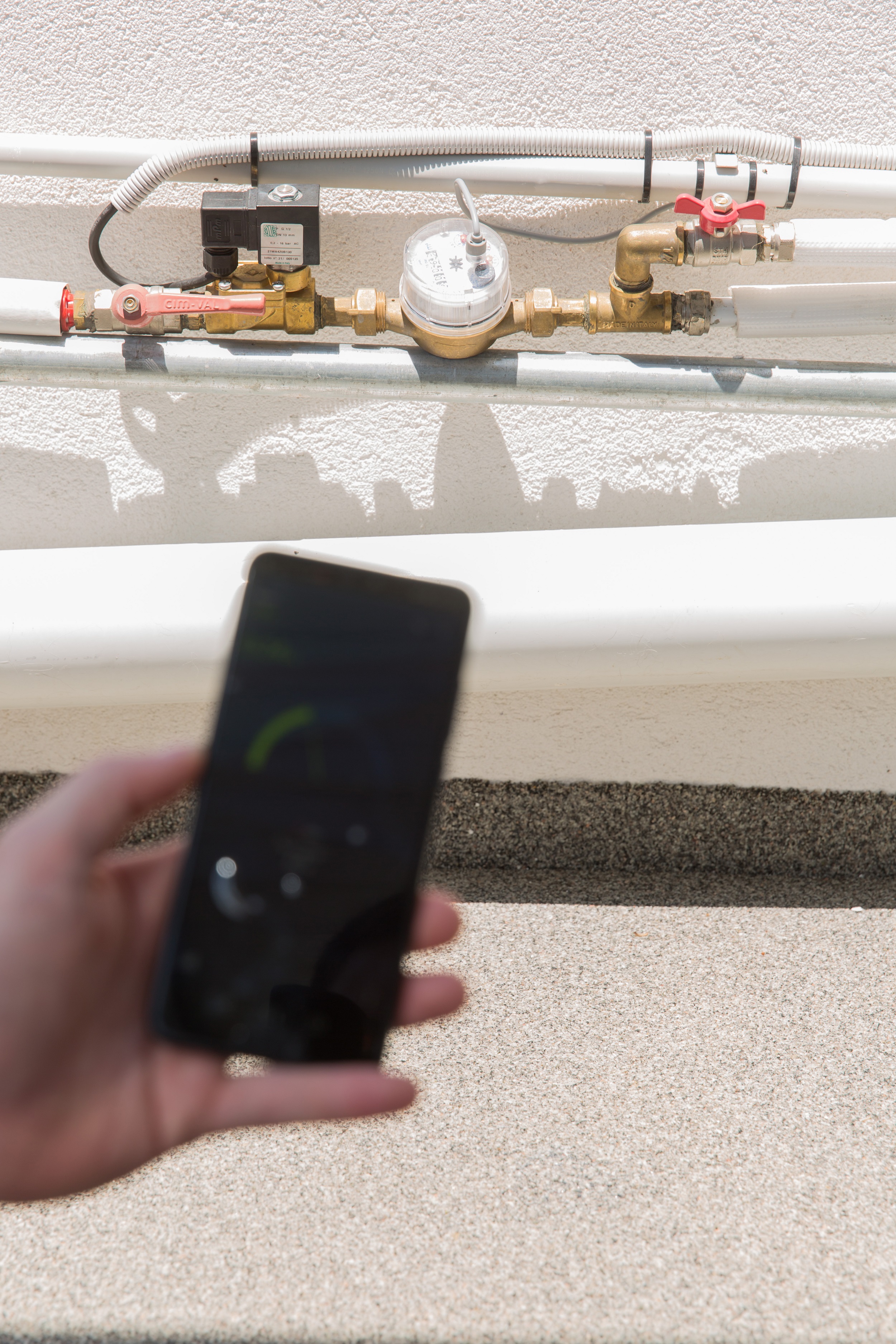

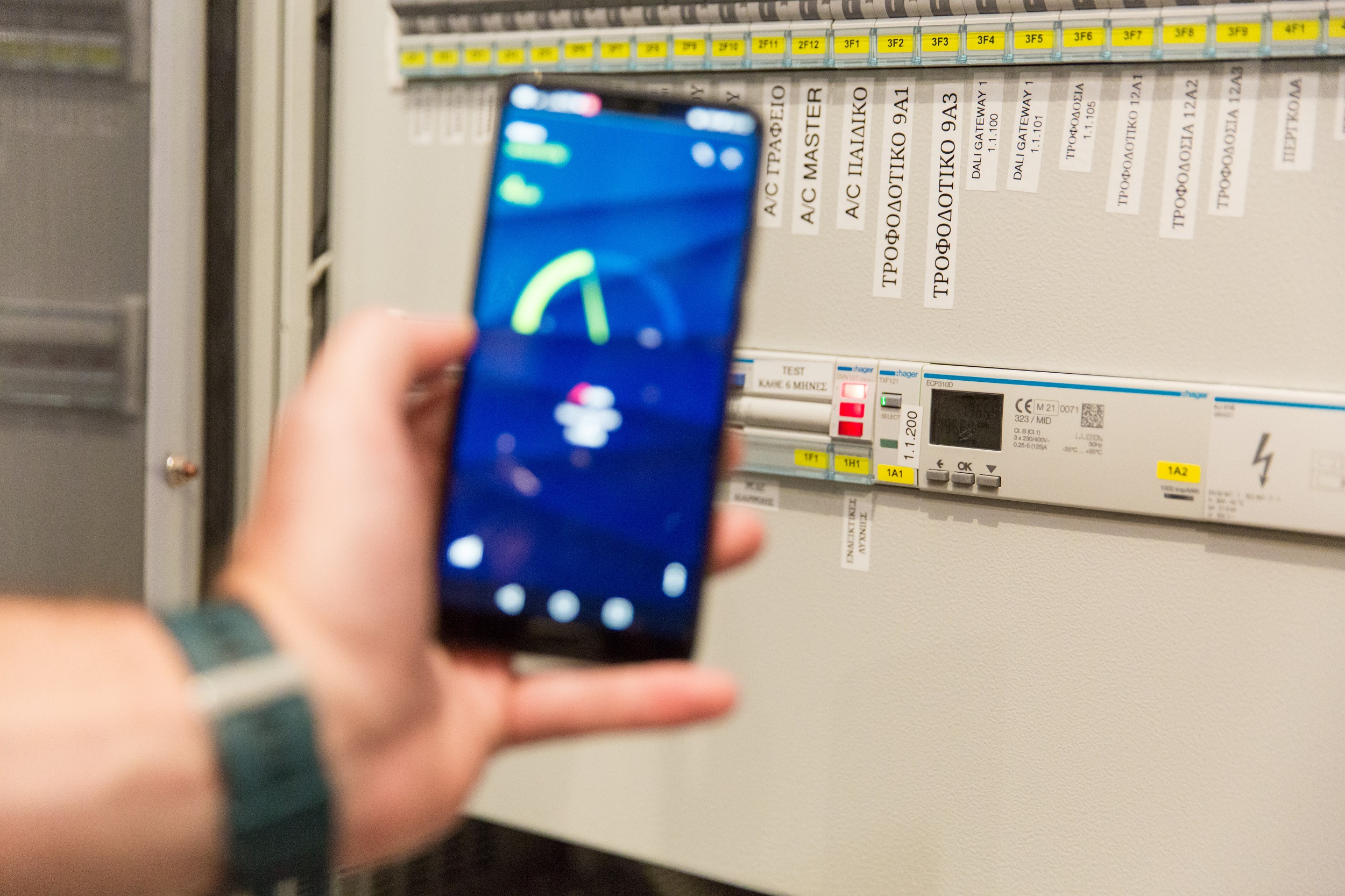

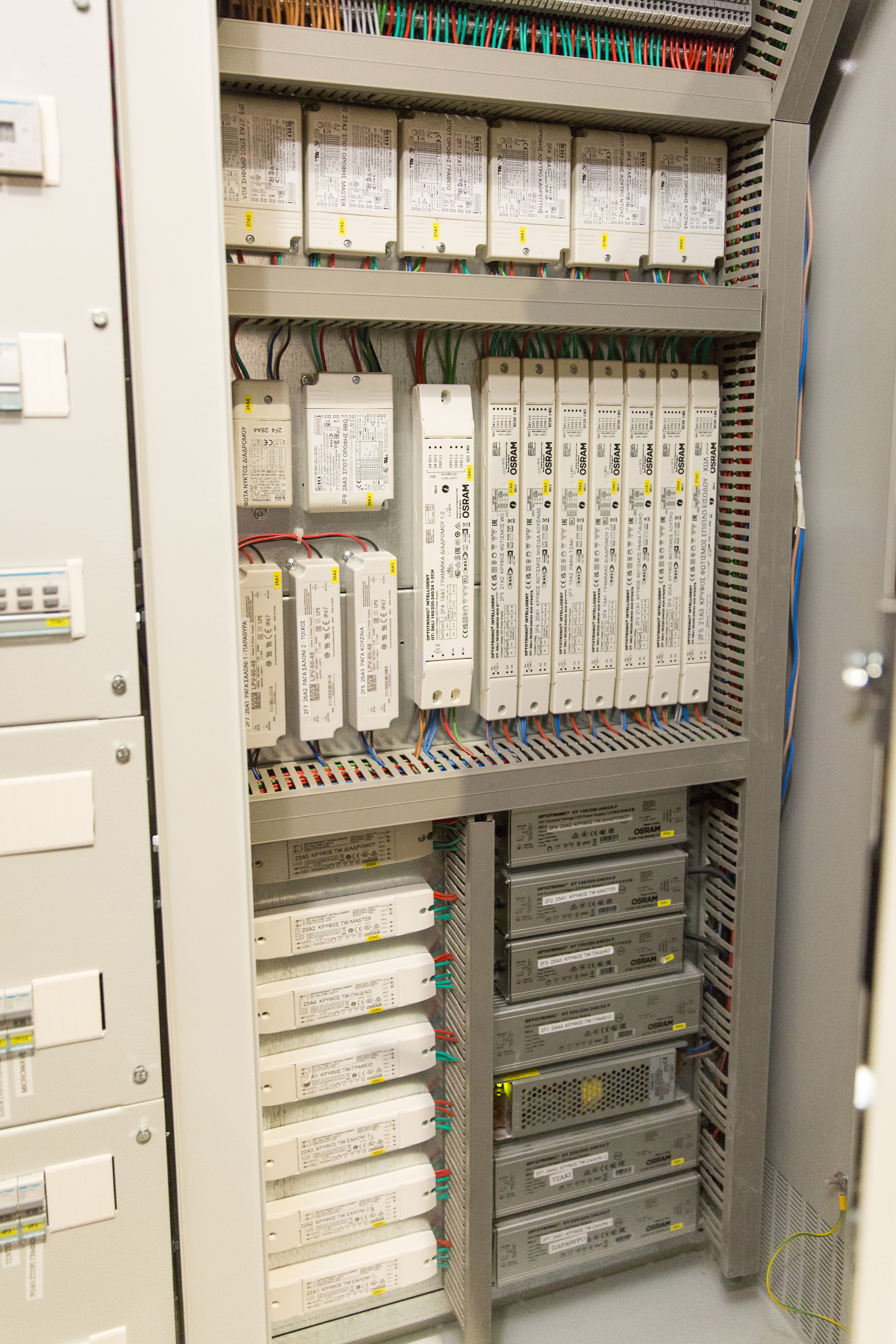

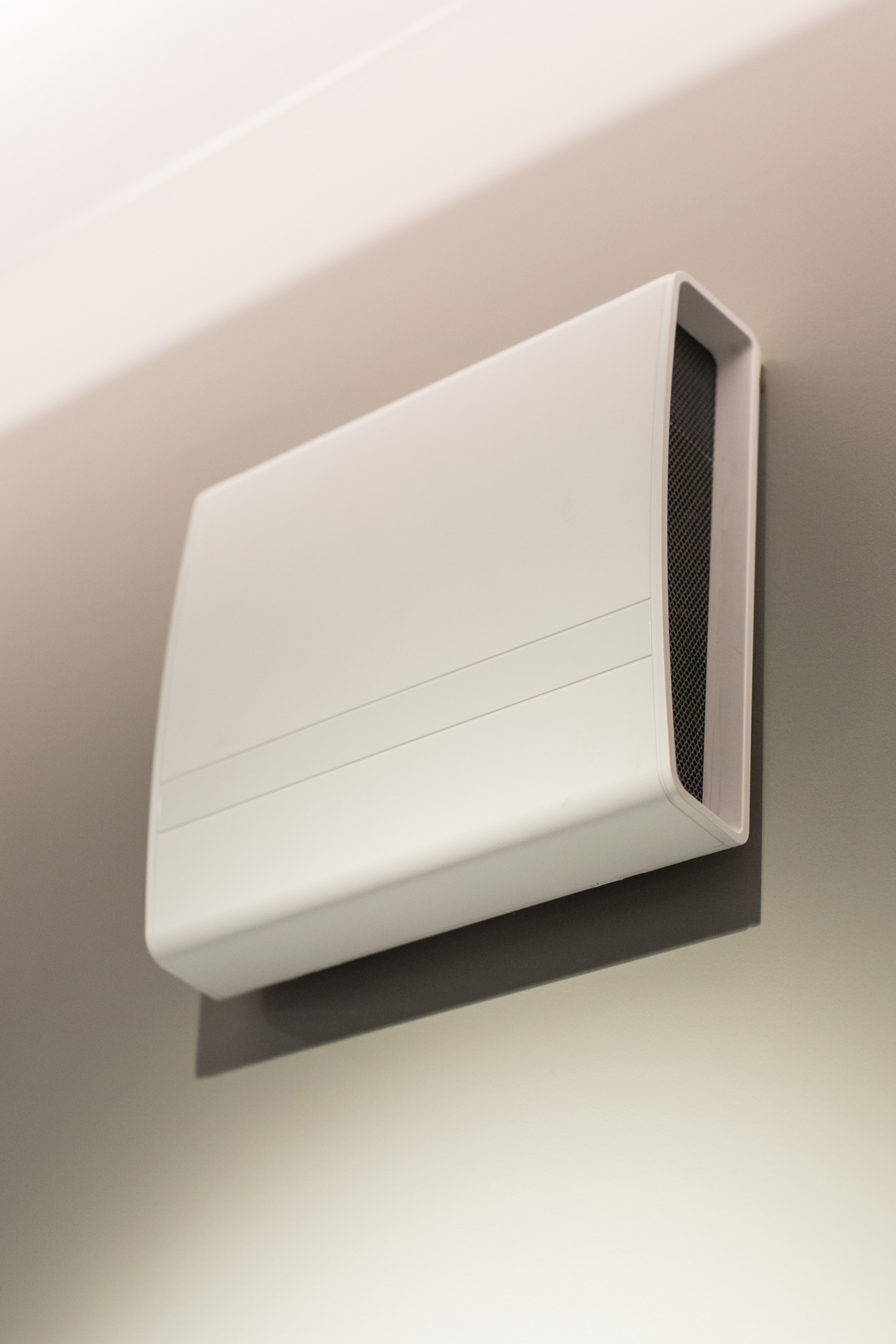

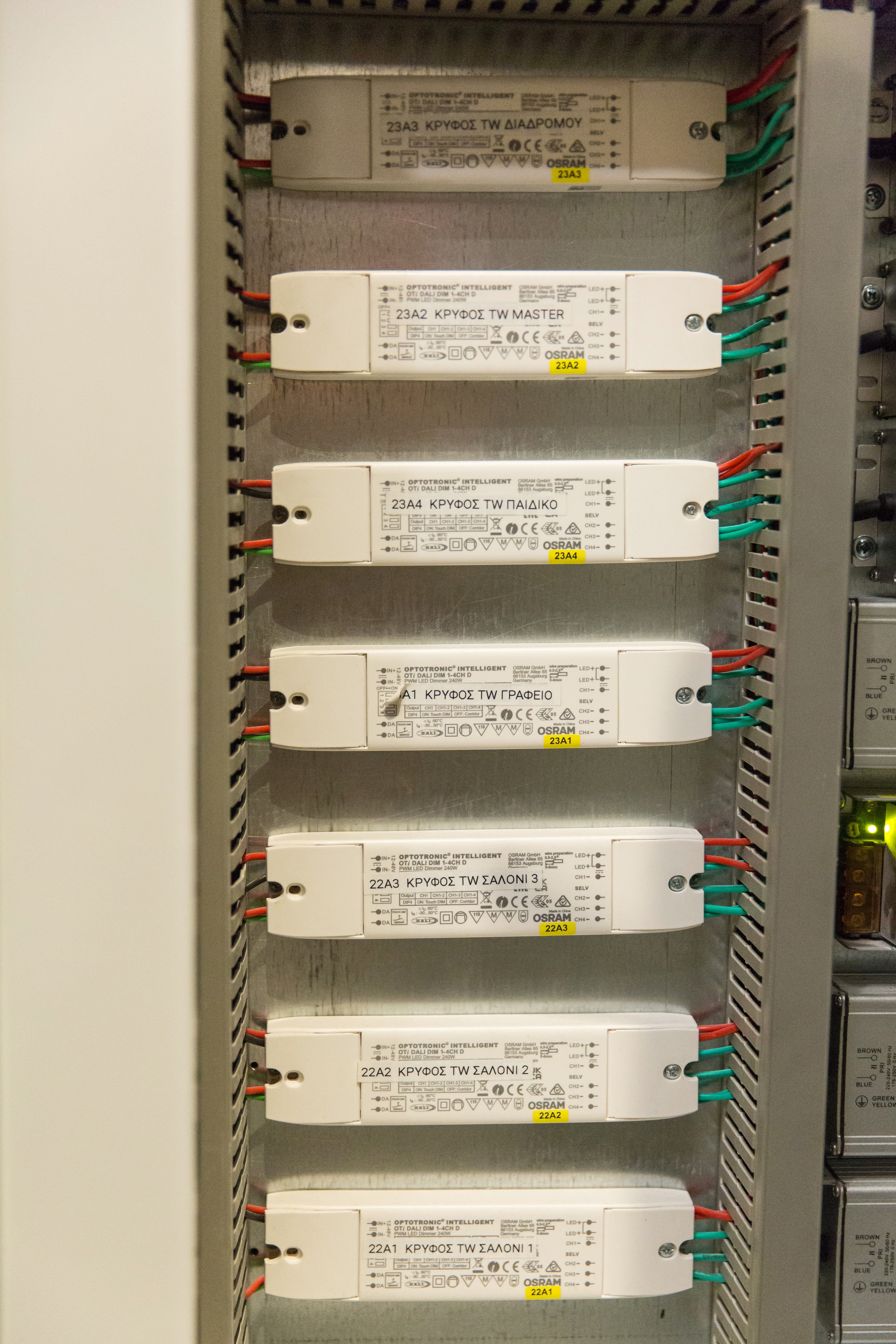

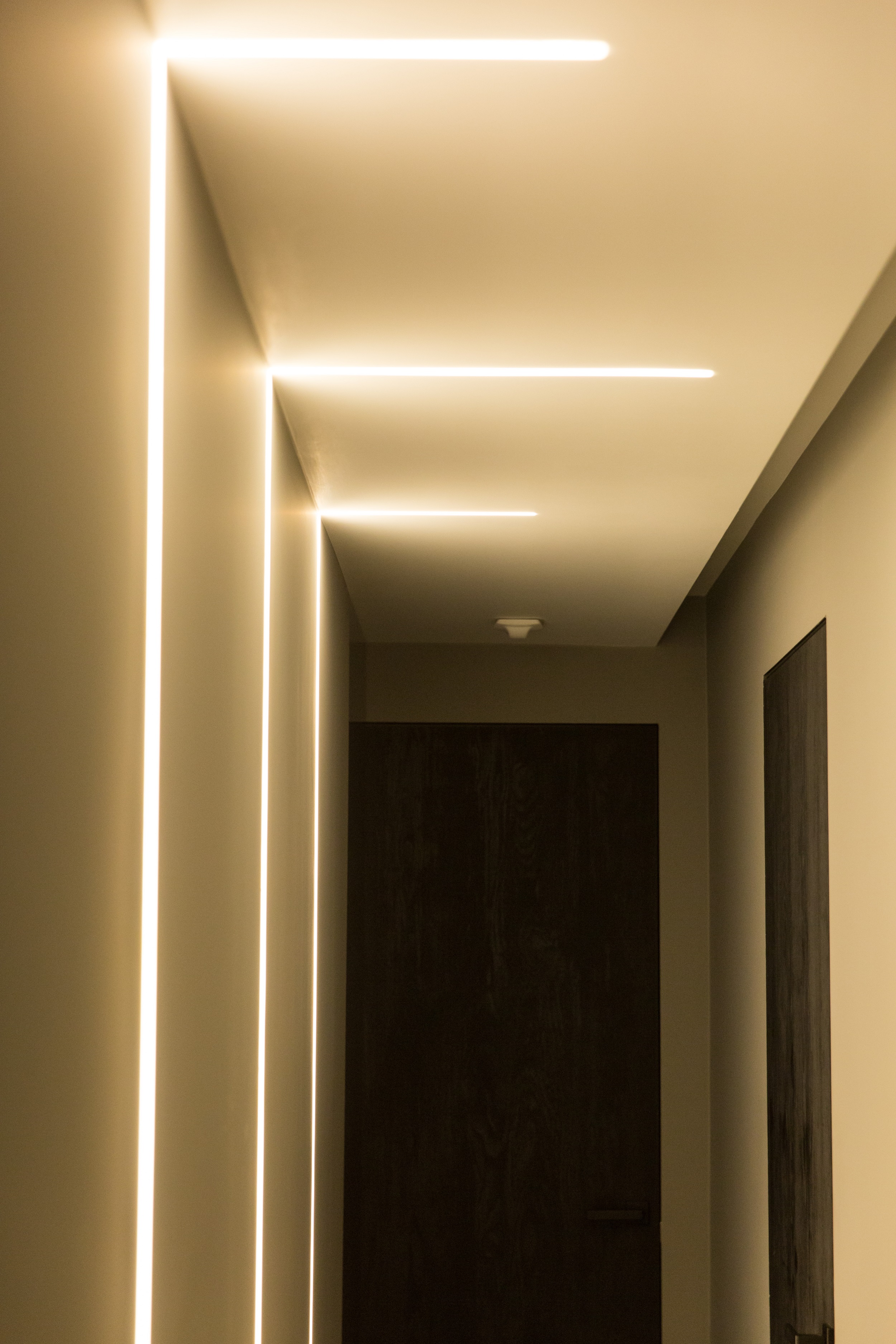

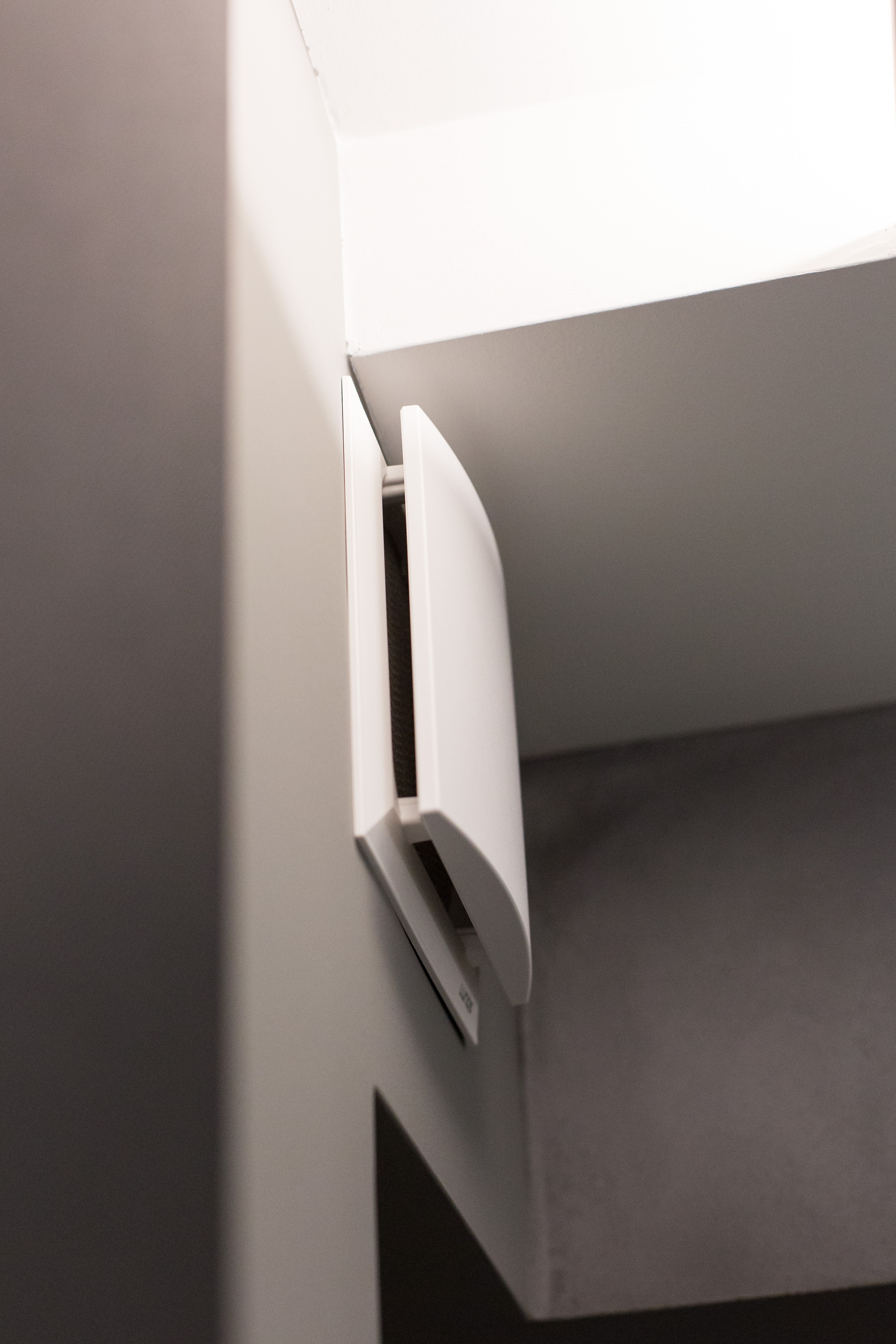

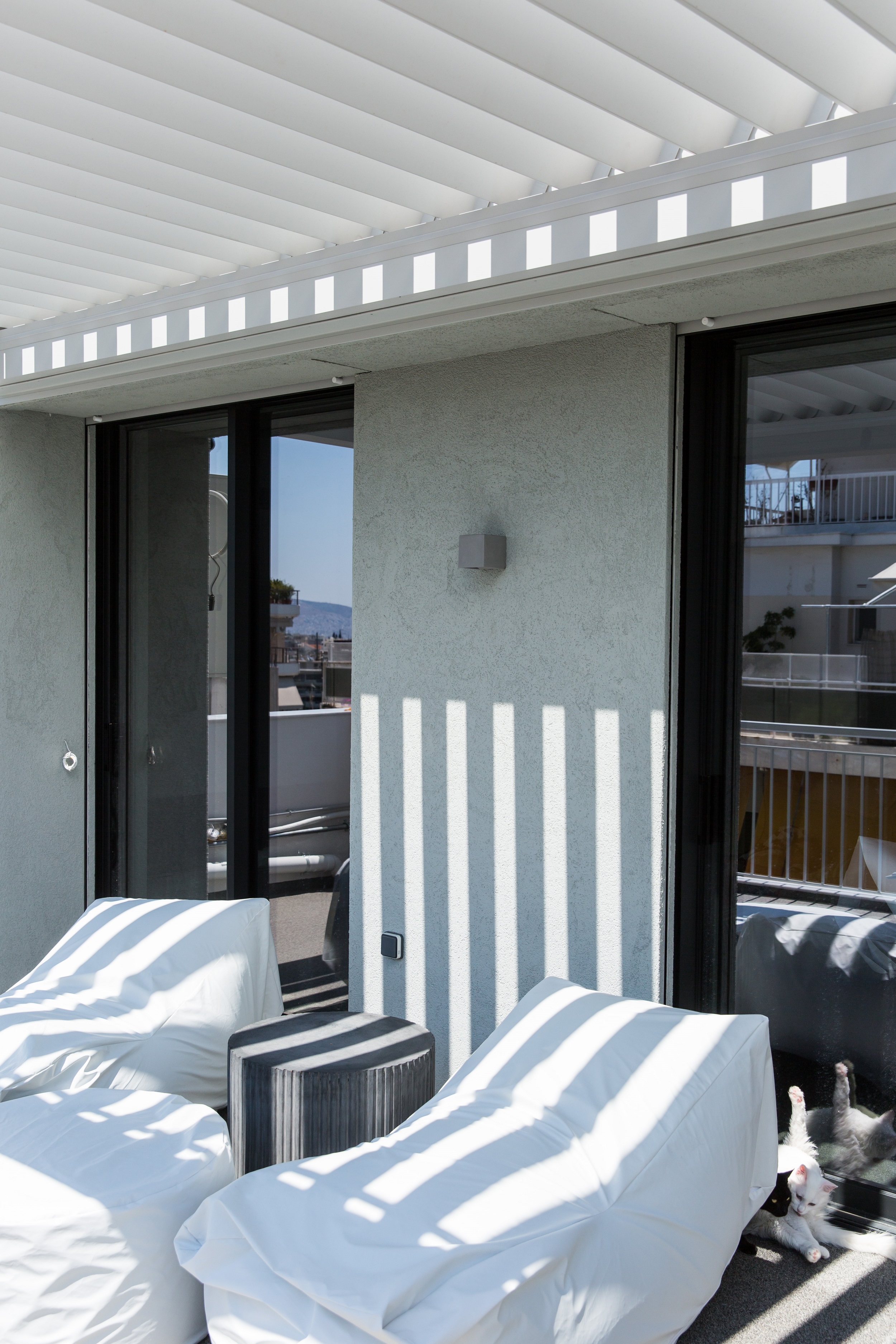

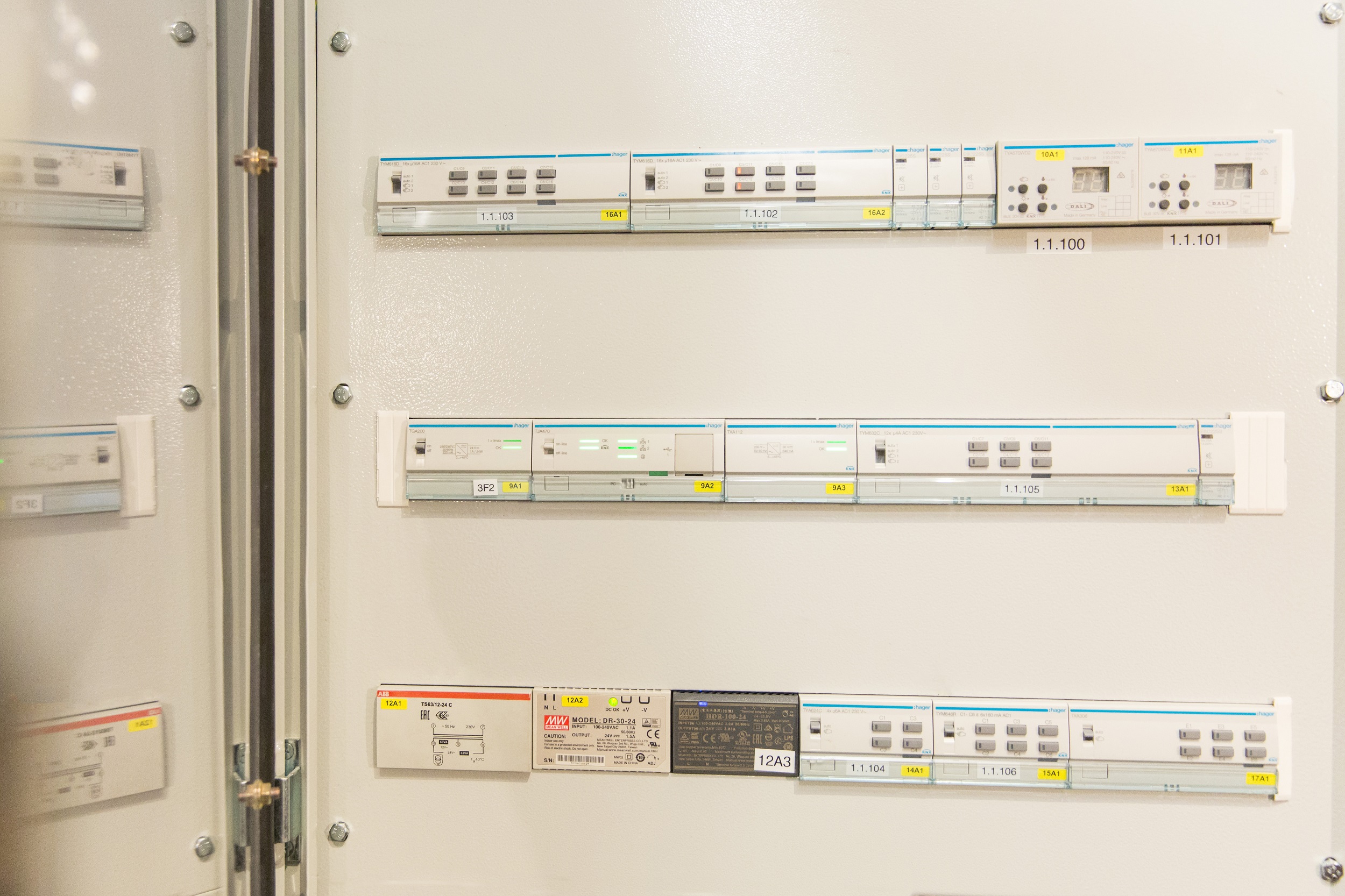

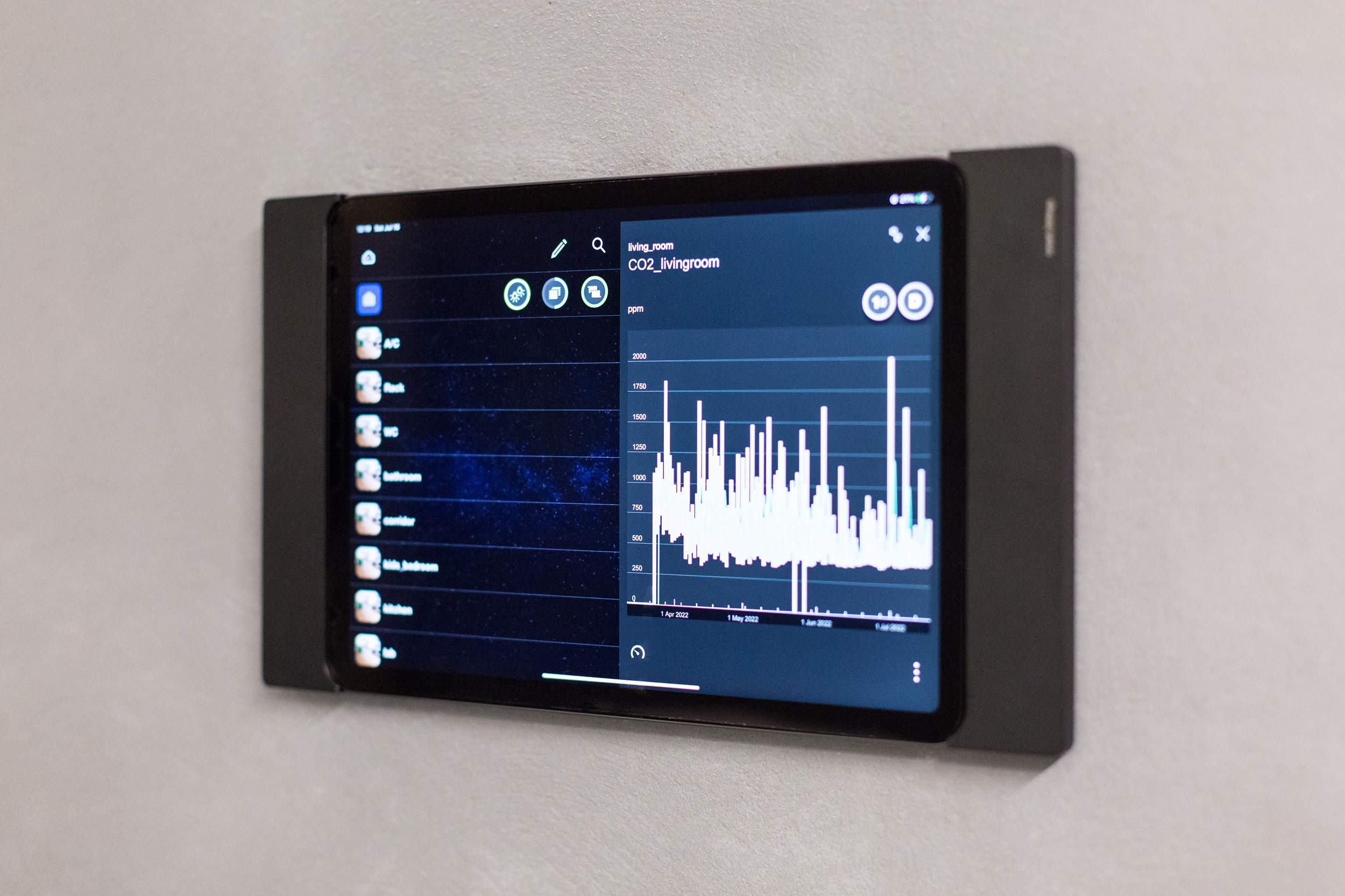

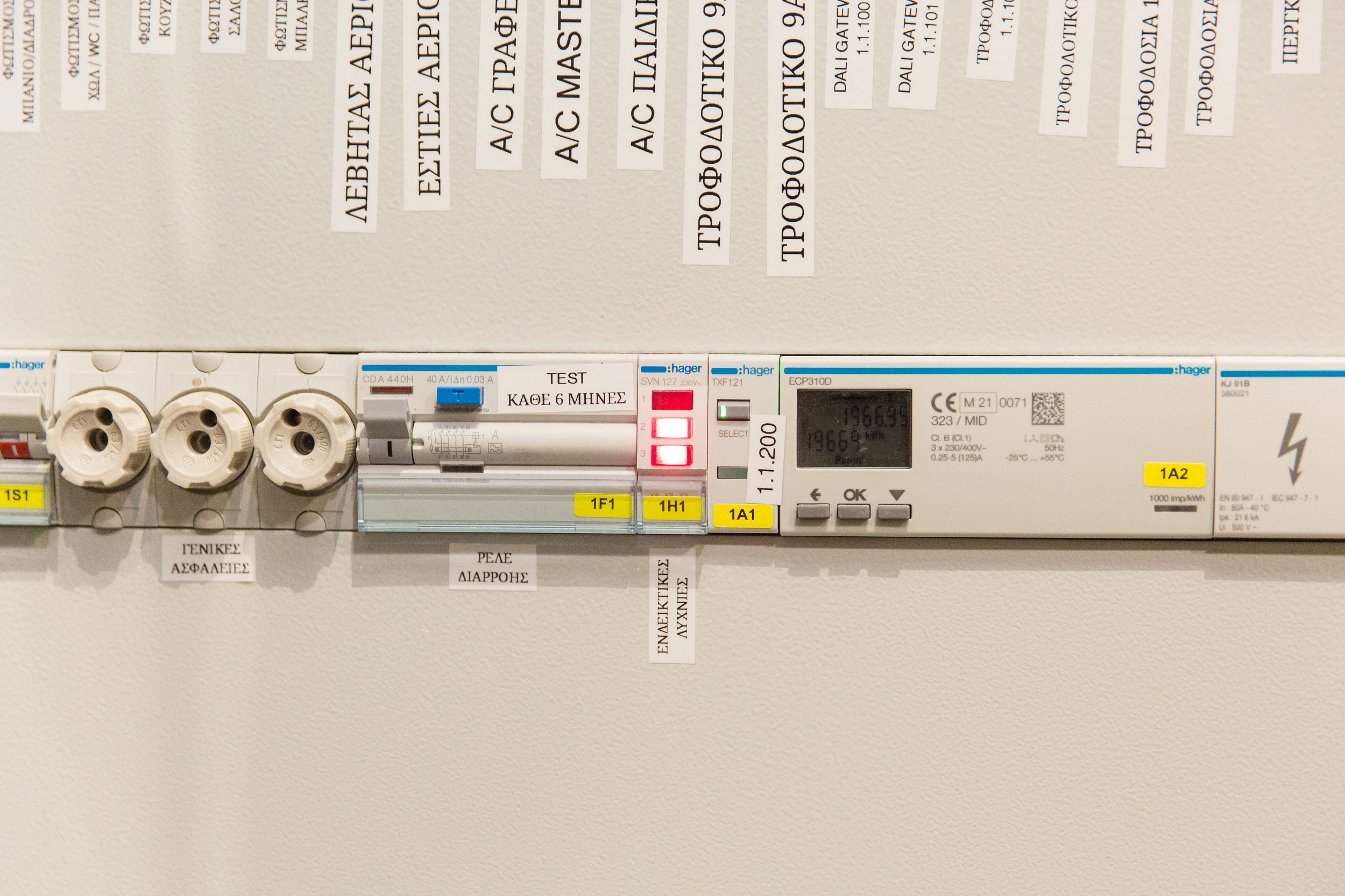

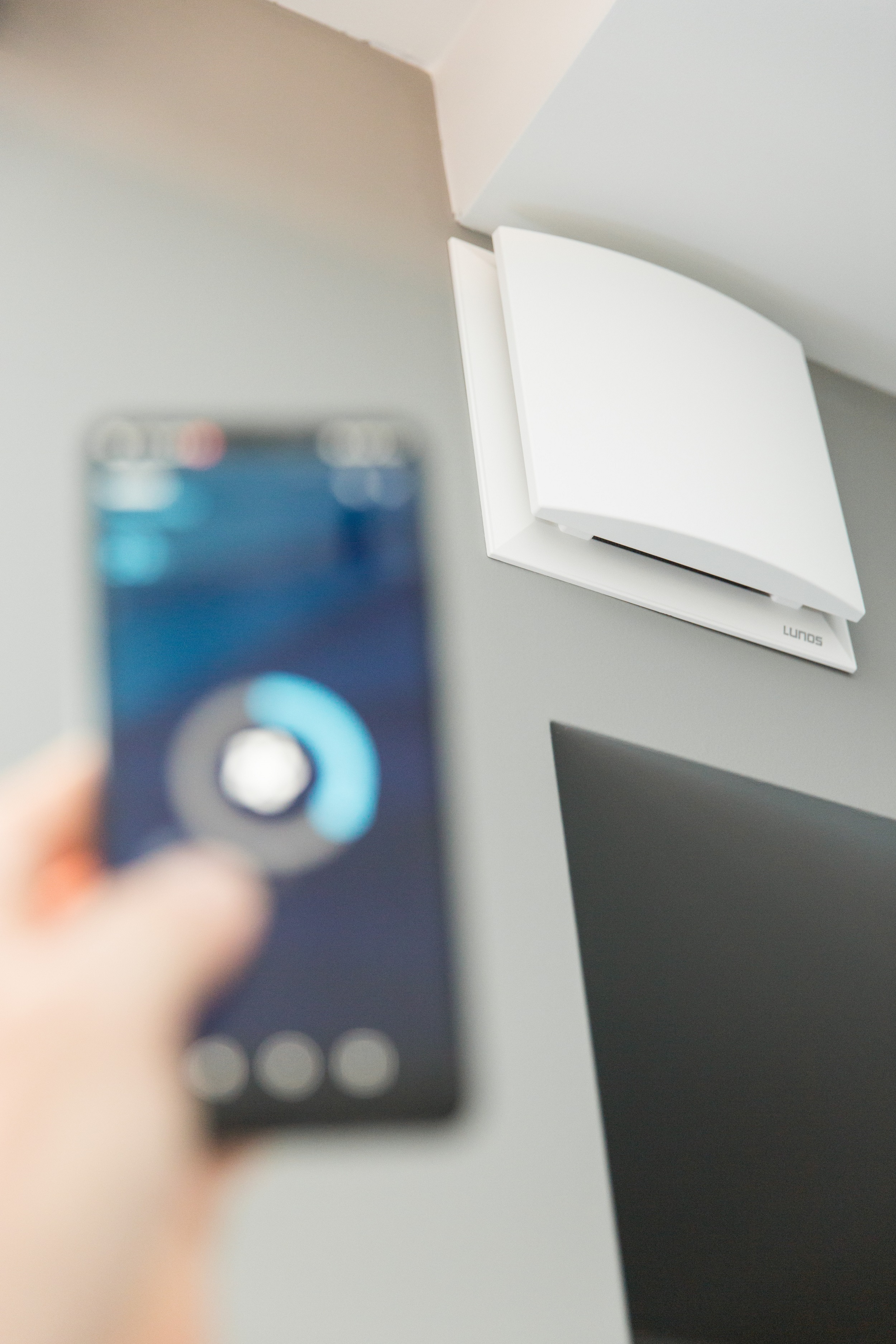

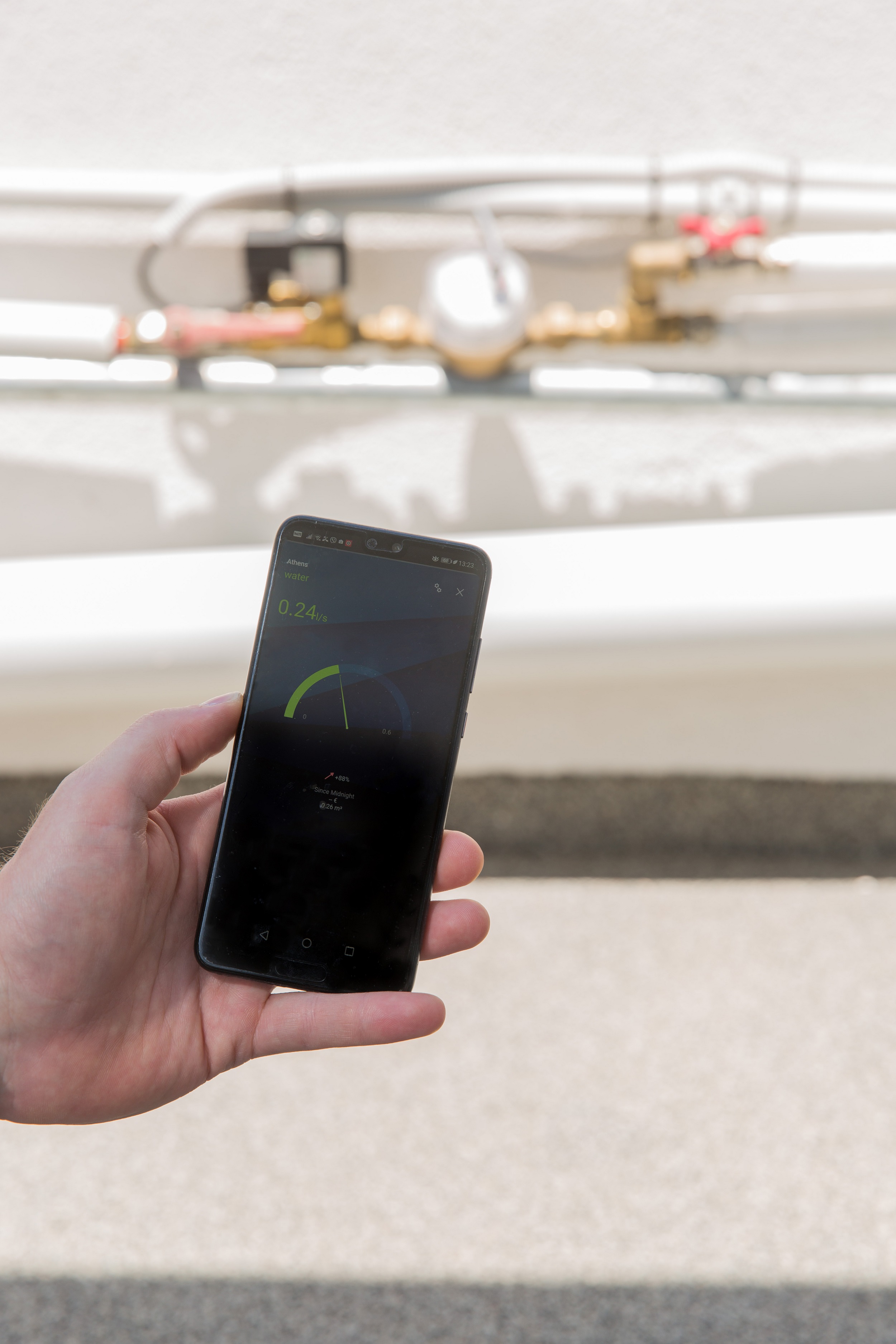

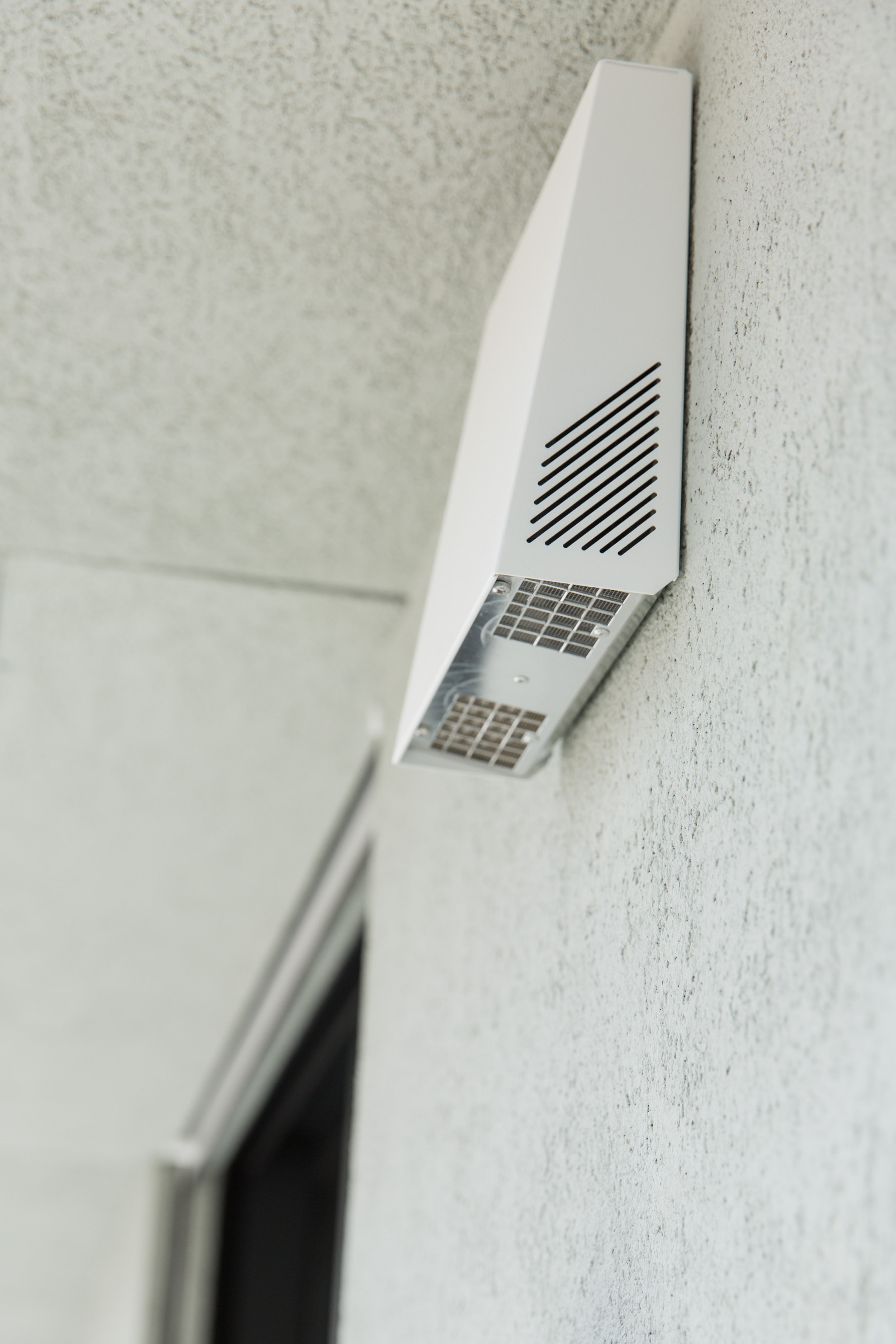

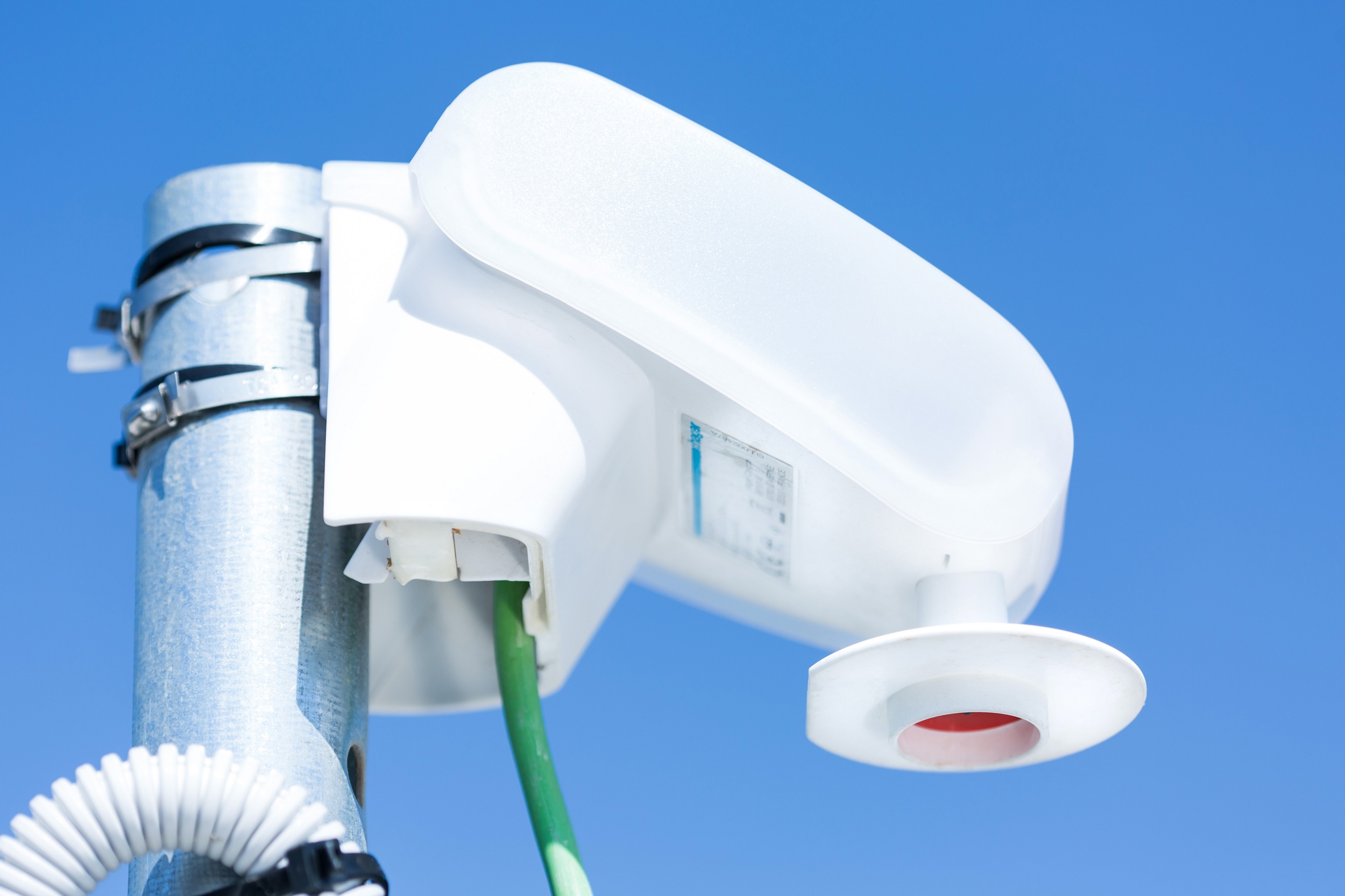

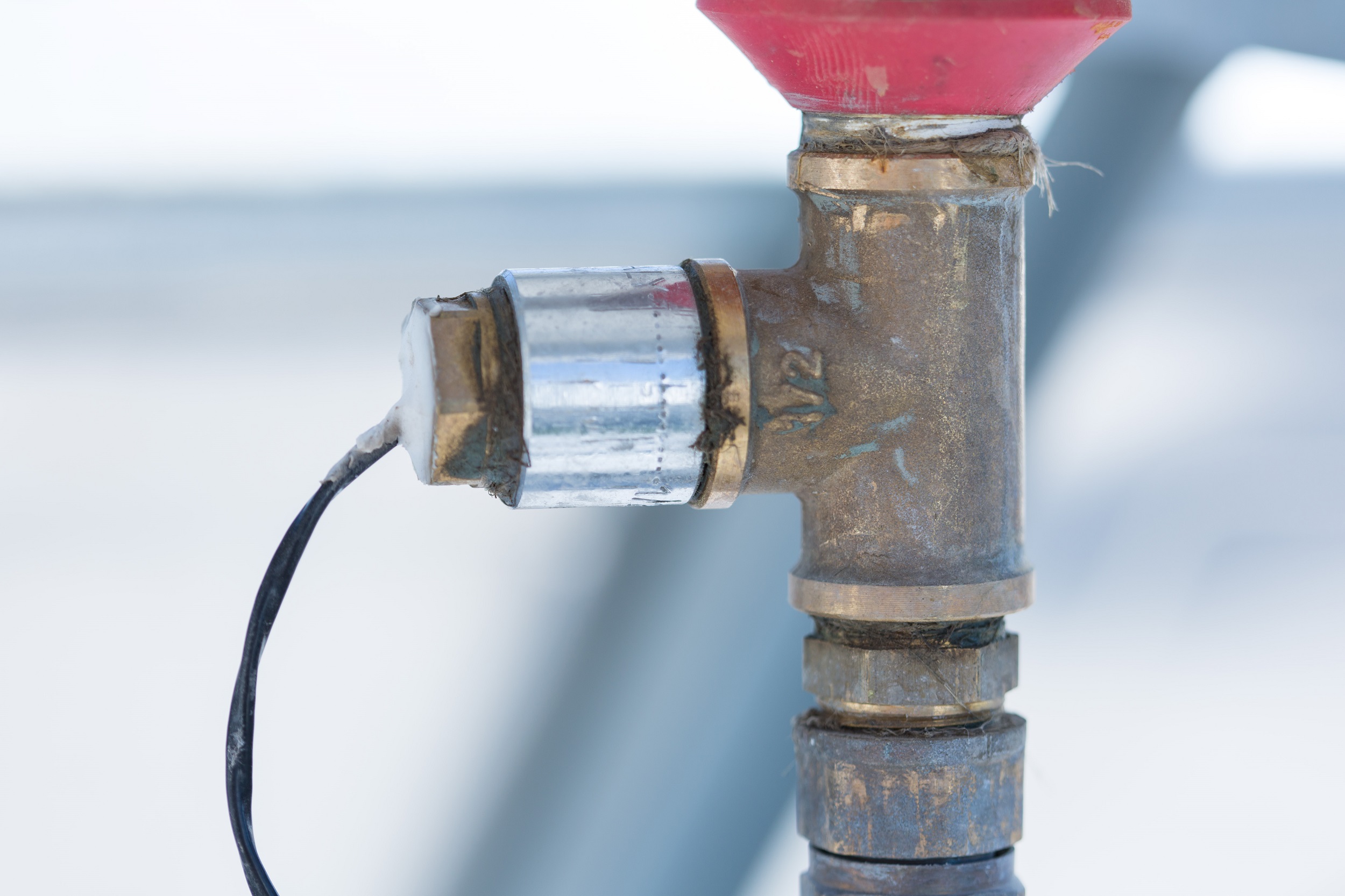

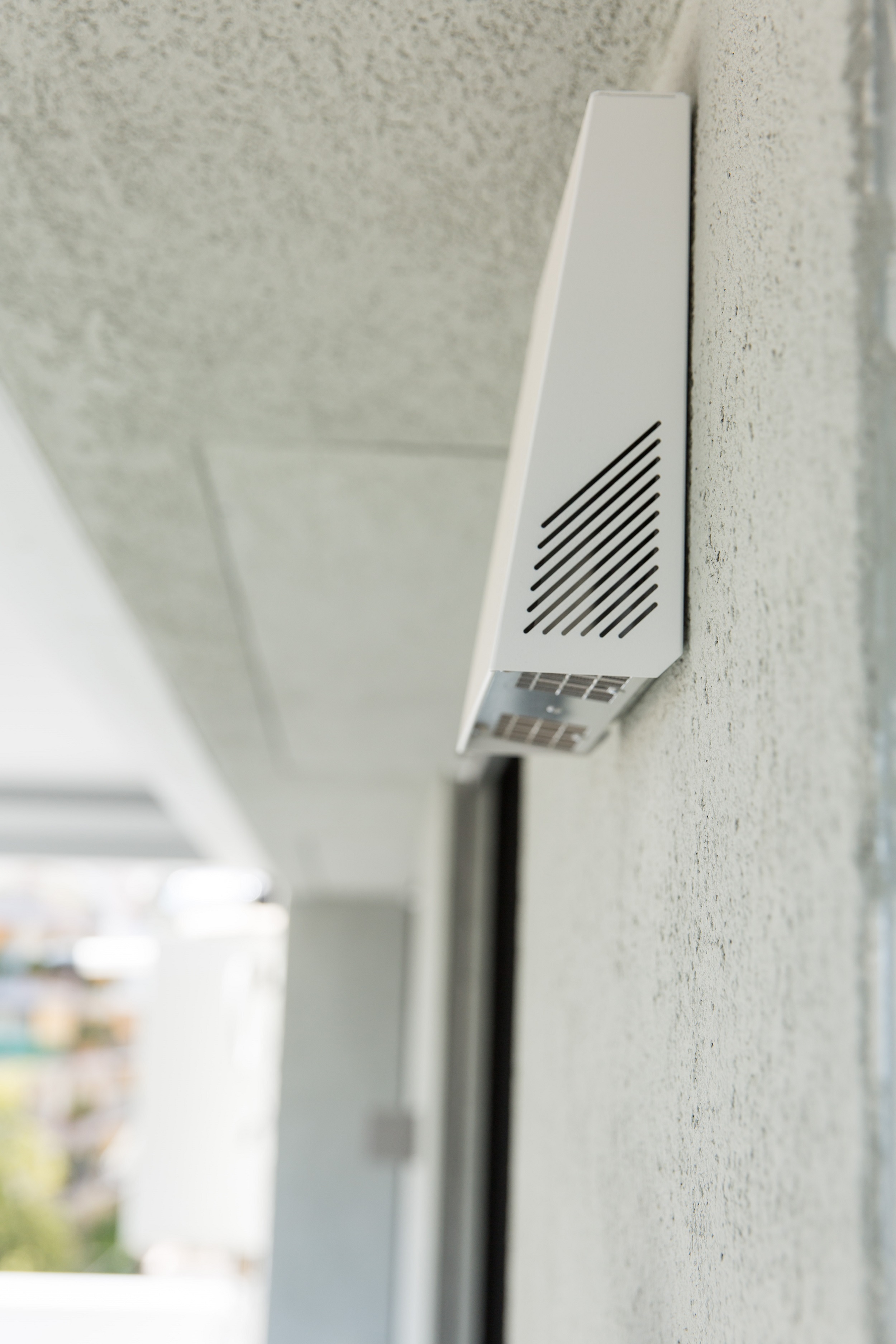

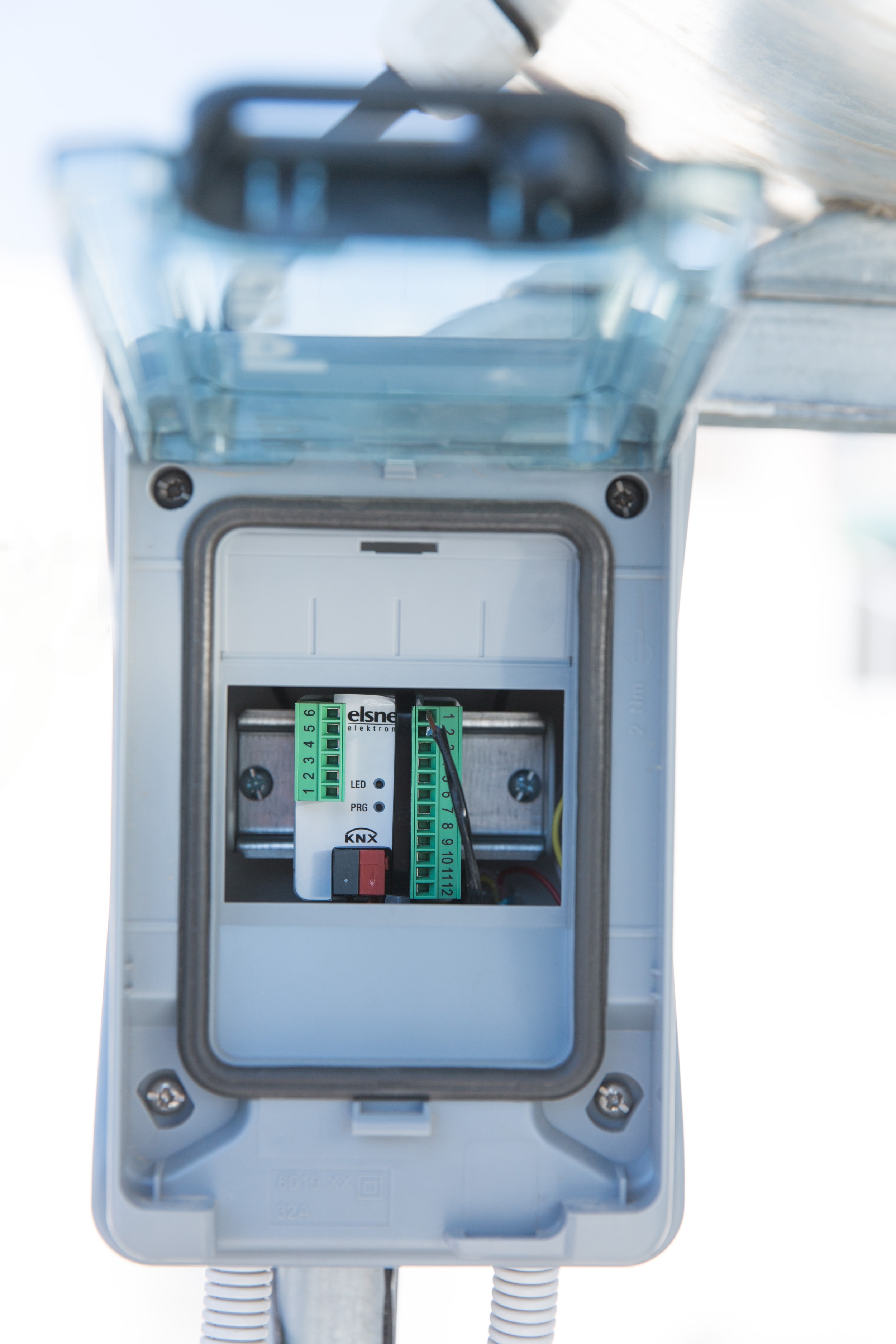

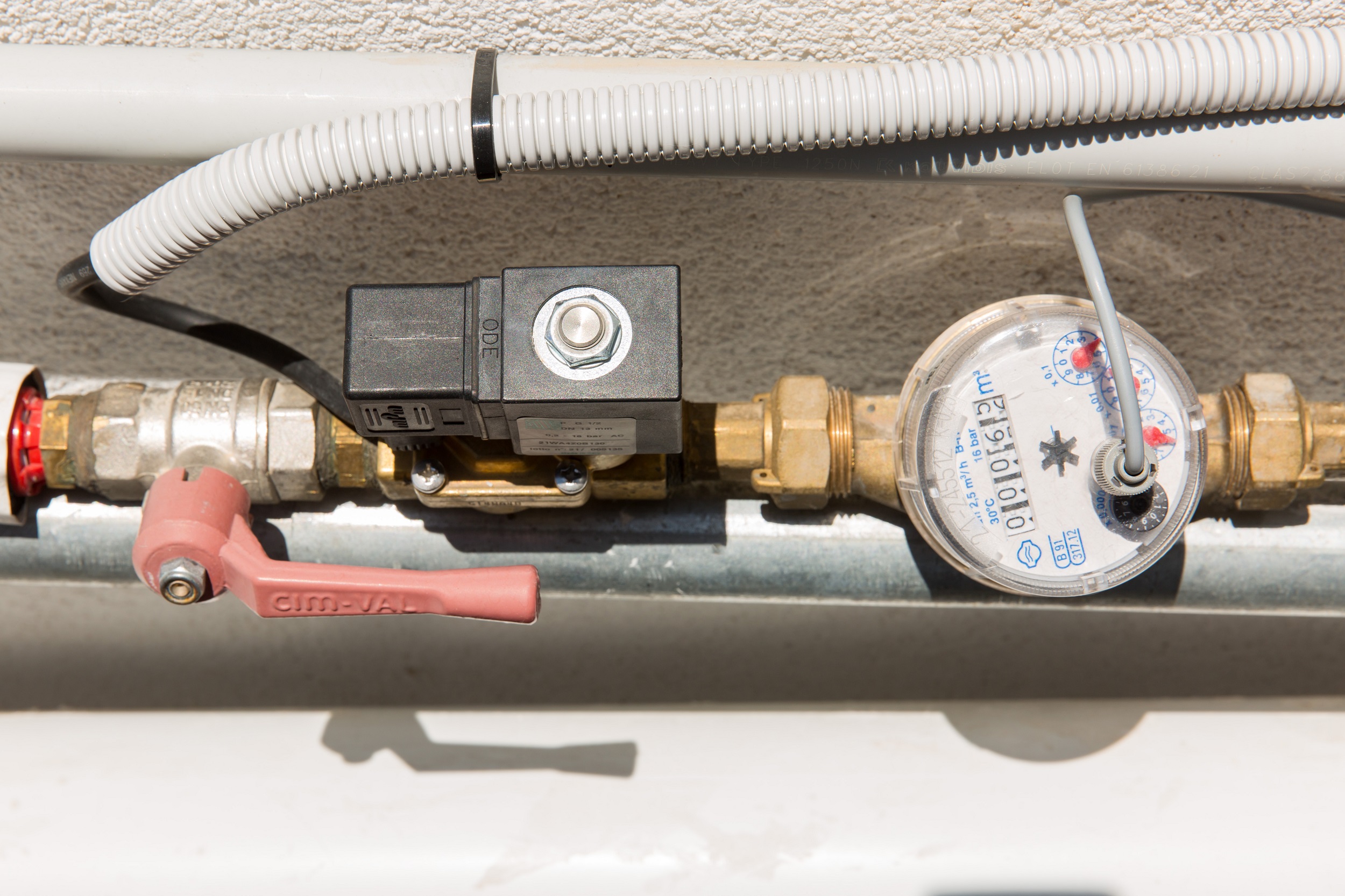

A highly sophisticated KNX infrastructure capable of controlling literally everything in this apartment. DALI lighting with circadian features, shutters, blinds, shades and slats with sun trace control via the weather station, Heating, Cooling via A/C units, True presence through STEINEL high frequency detectors, measuring temp, hum, co2, VOC, and air pressure feeding lunos units with the correct data in order to boost their operation. Metering the electricity values with 8 basic characteristics such as power factor, voltage, ampere, frequency, reactive power, type of reactive power, power and apparent. Metering the water consumption and flux. Flood avoidance via water probes and digital inputs that cut off the water supply via electromagnetic valves. Security system and cameras integration with line crossing triggers.
Contact Information
| Company Name | cognitive |
| Company Email | info@cognitive.gr |
| Company Website | https://cognitive.gr |
| Contact Name | ATHANASIOS ILIADIS |
| Contact Function | System Integrator |
