Corridor Lighting Automation in Konya, Turkey
Educational in Konya
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Educational |
| Project Type | Commercial |
| Year of Completion | 2019 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety
- Operation and Visualisation
- Energy Management/Smart Metering
- Other
- Automation and Remote Access
- Blind and Shutter Control
Customers Description

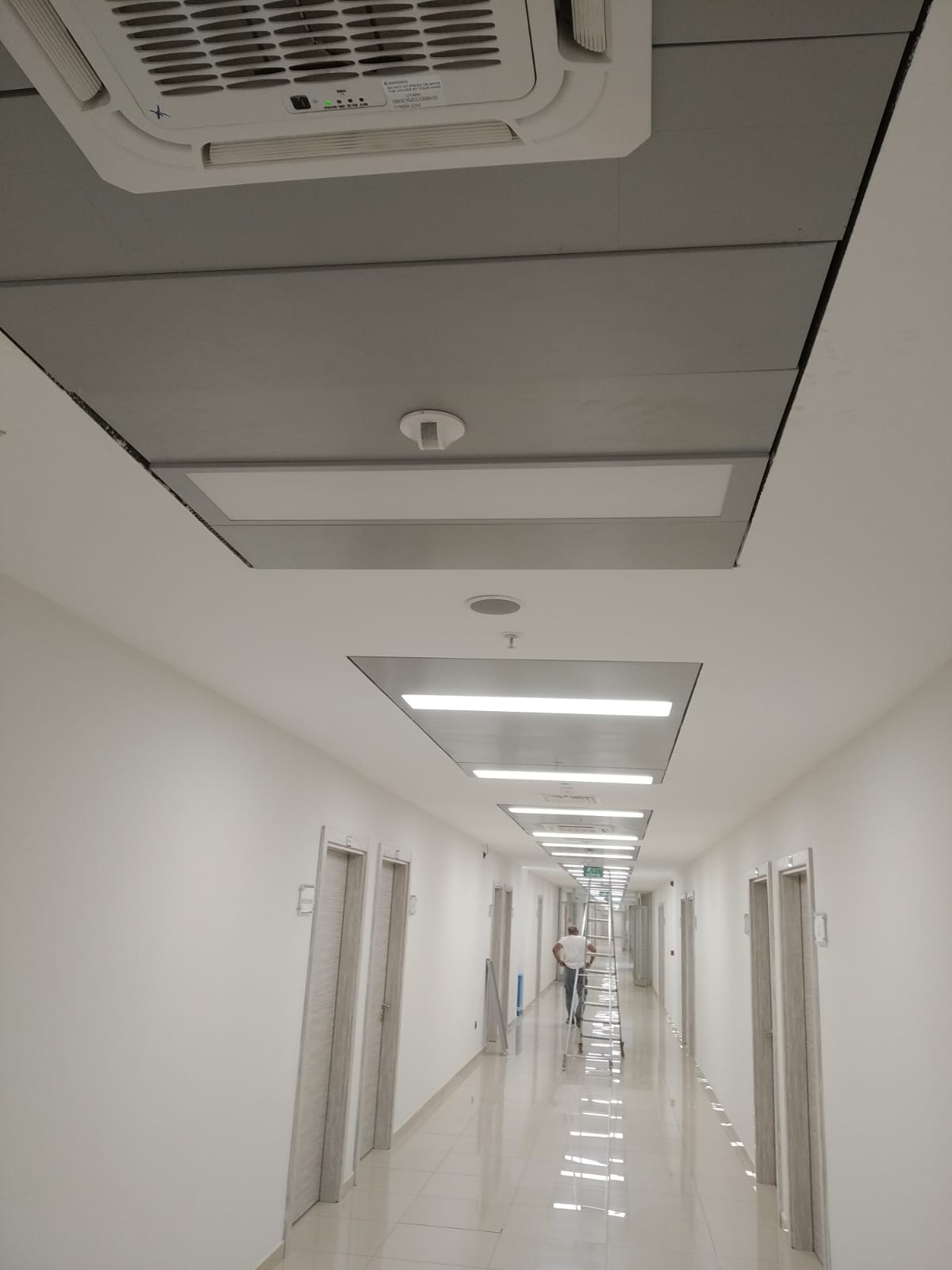

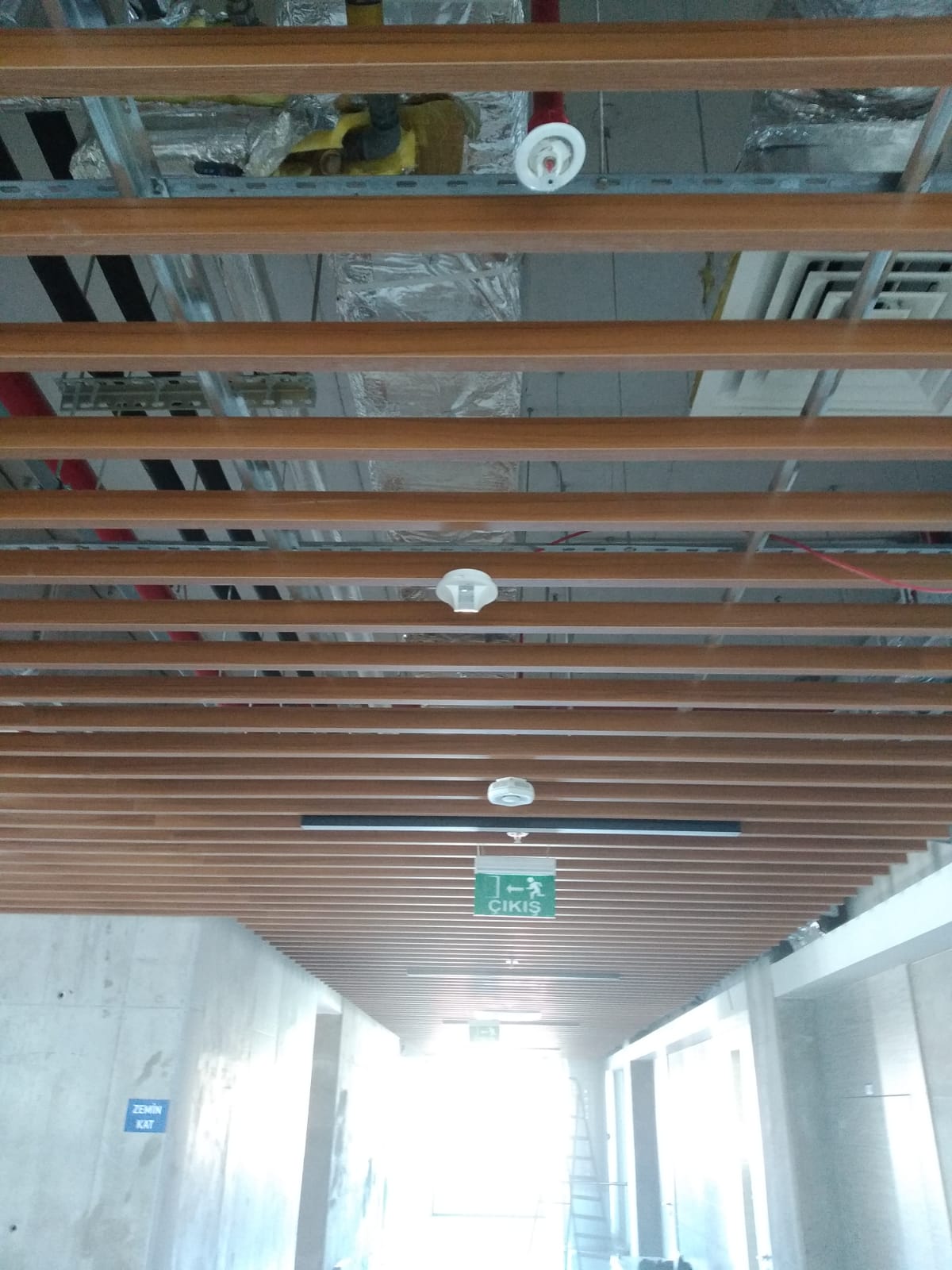

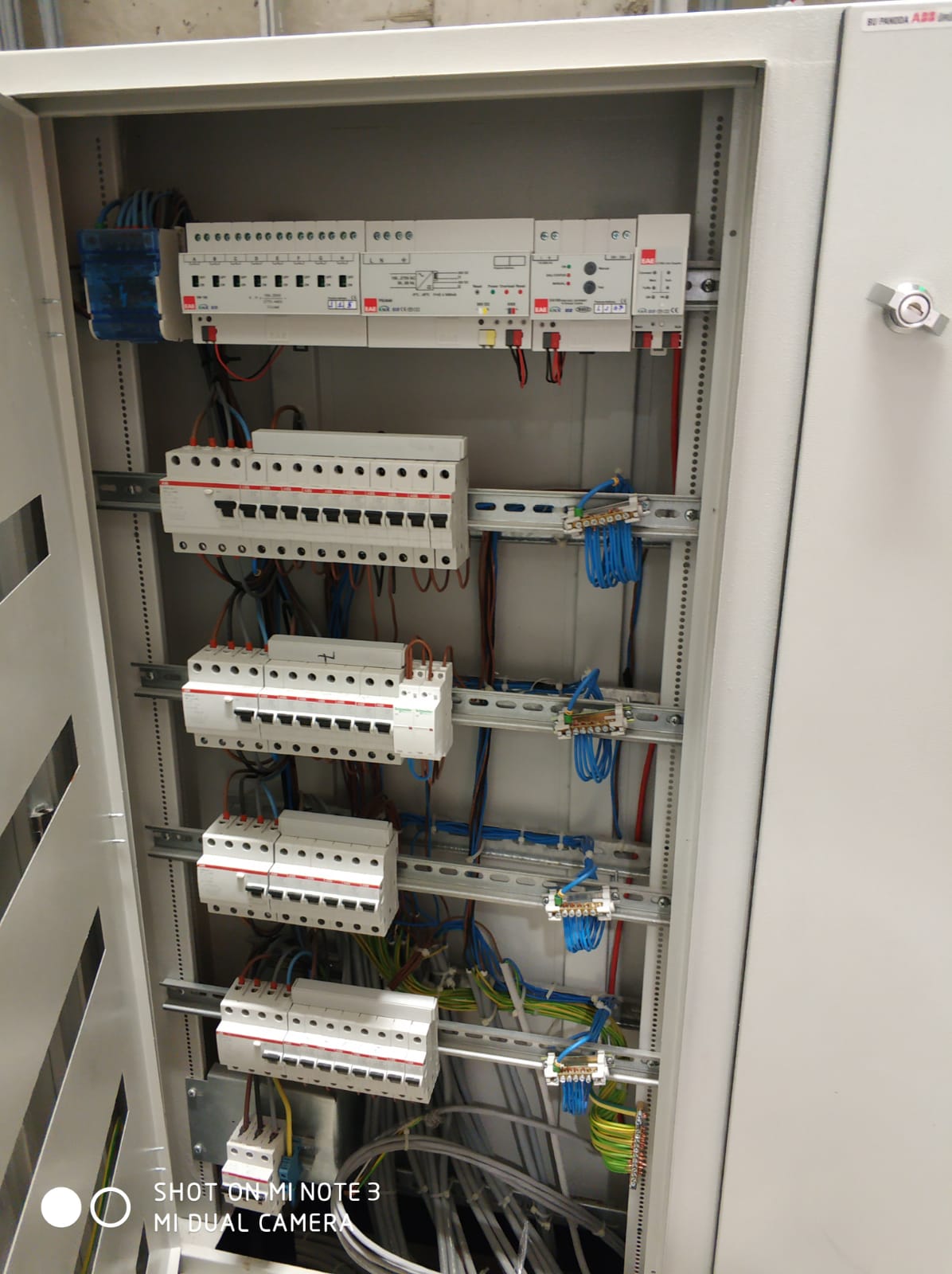

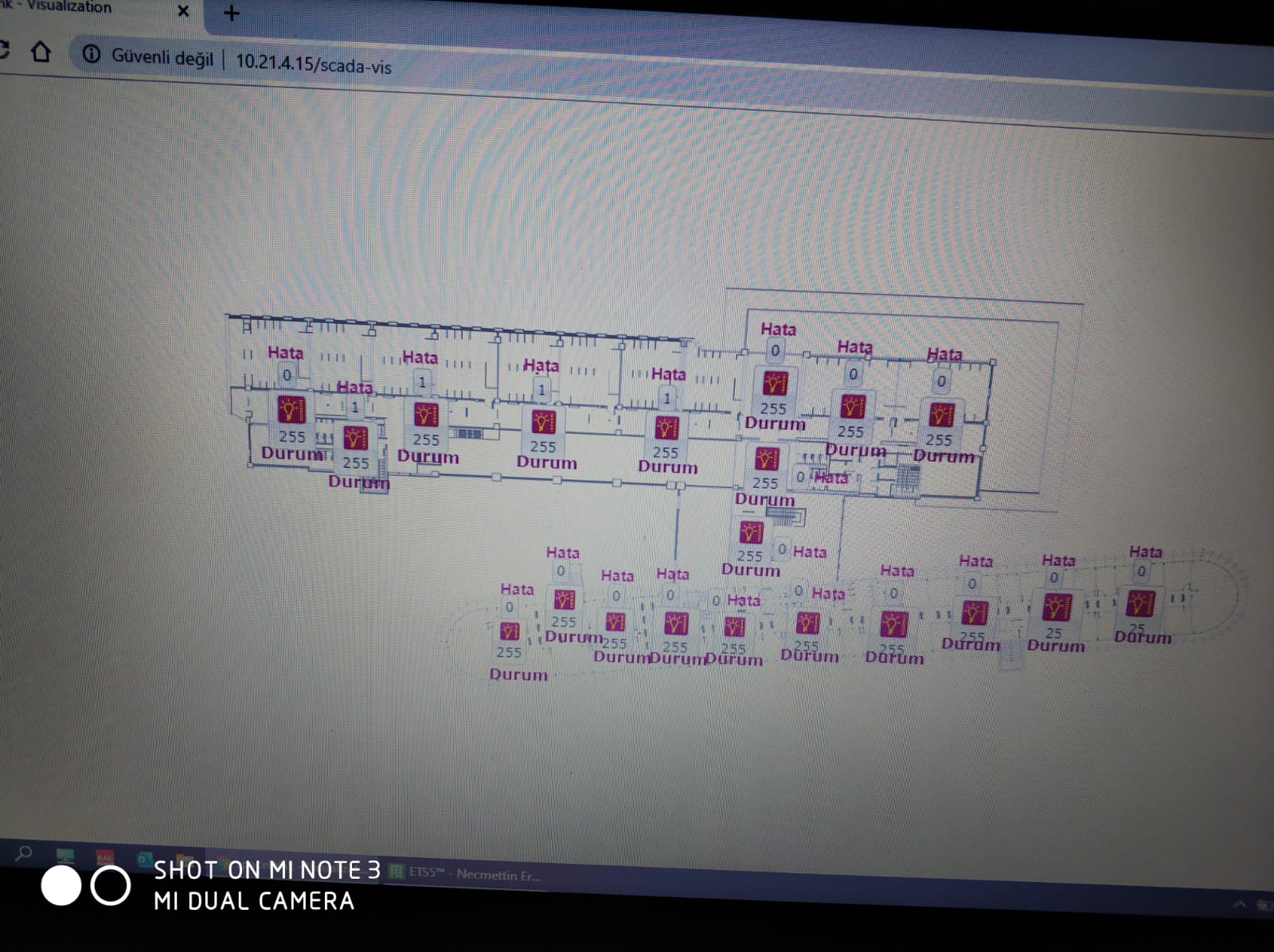

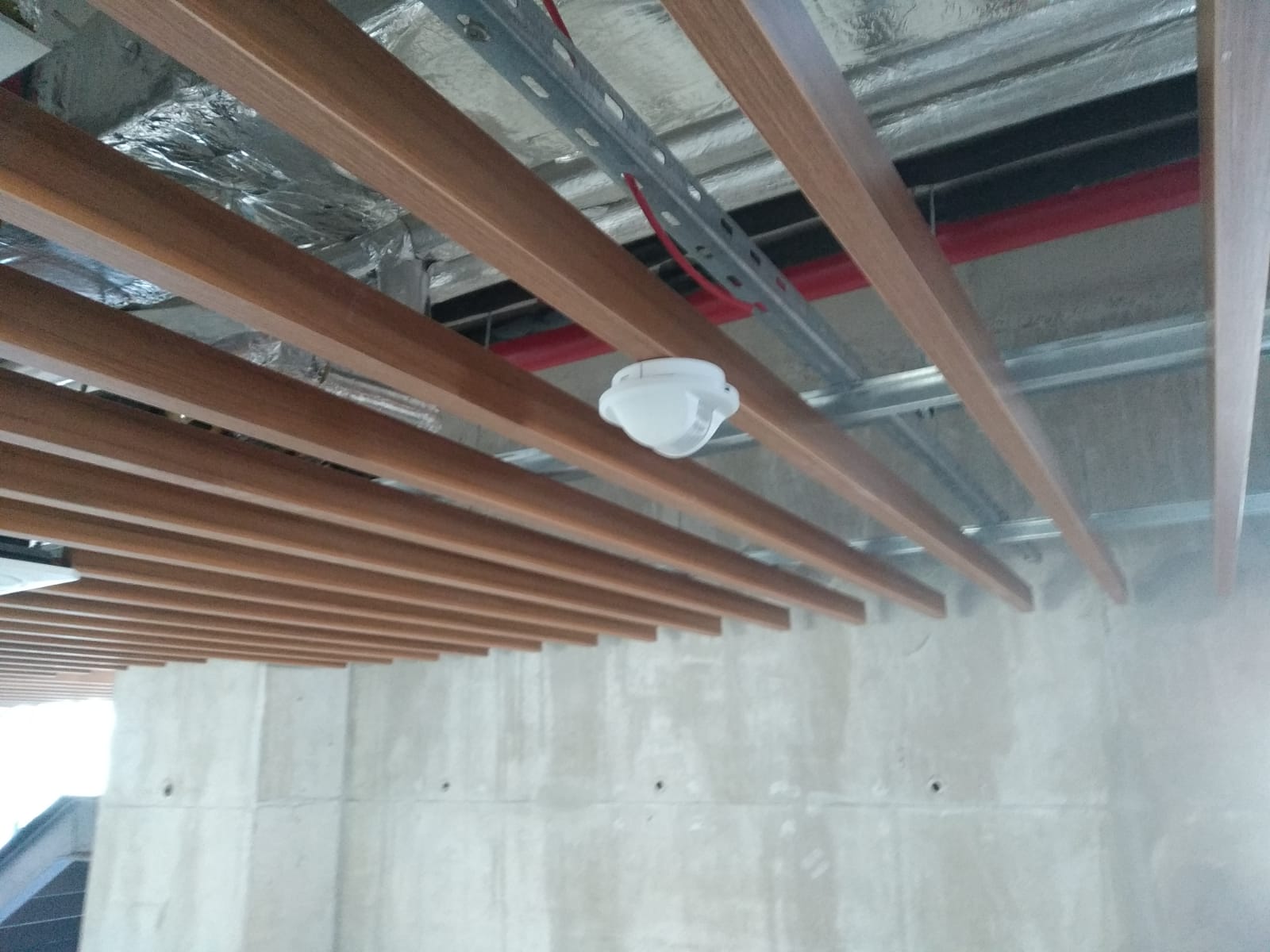

We made lighting automation system for the corridors. All luminaires used at corridors were DALI dimmable. We used KNX based corridor sensors and switches. At conventional system all luminaires were turned on at 8 am and turned off at 6 pm. We added KNX based occupancy and day light sensors to corridors, DALI gateways, KNX based switch actuators to the electrical distribution pannels, line couplers and a gateway for remote monitoring and scene adjustment. After installation between 8:00 am and 00:00 pm the luminaires are dimmed to 10% when there is no occupancy. If there is occupancy they increase to 100% in three seconds. After 00:00 pm to 8:00 am the luminaires are turned off when there is no occupancy. If there is occupancy they increase to 100% at three seconds.
