CDE Corporate com KNX

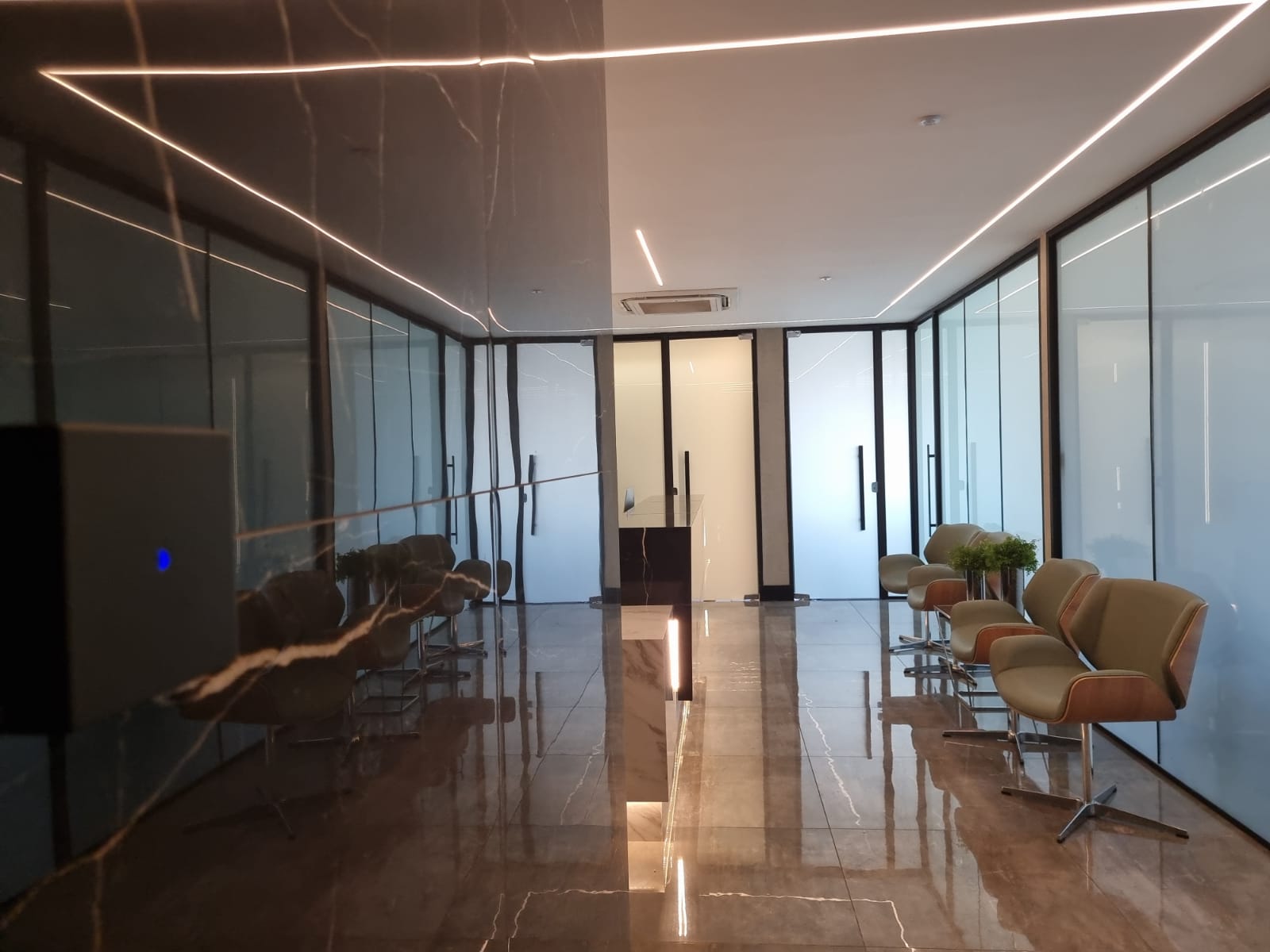

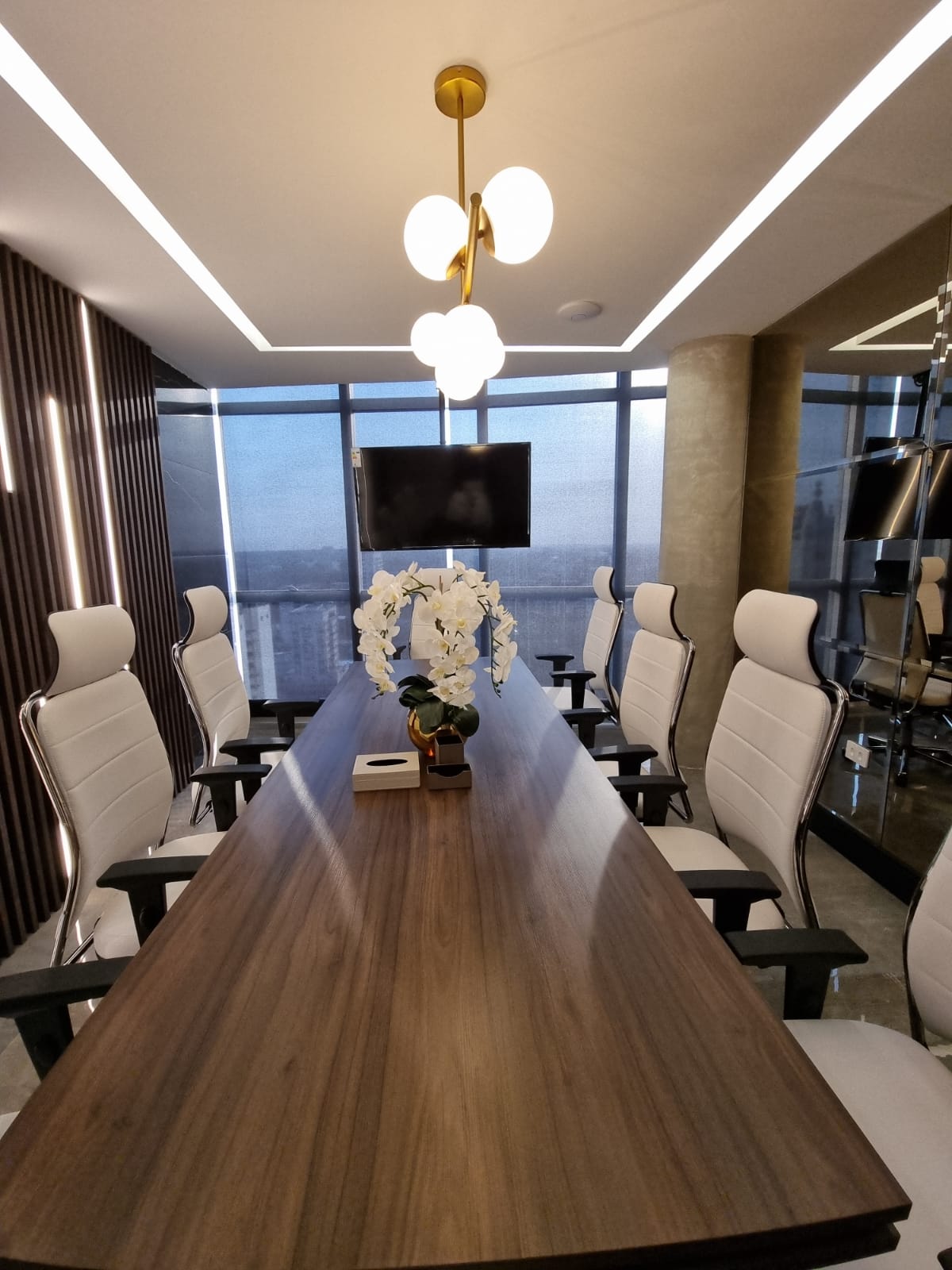

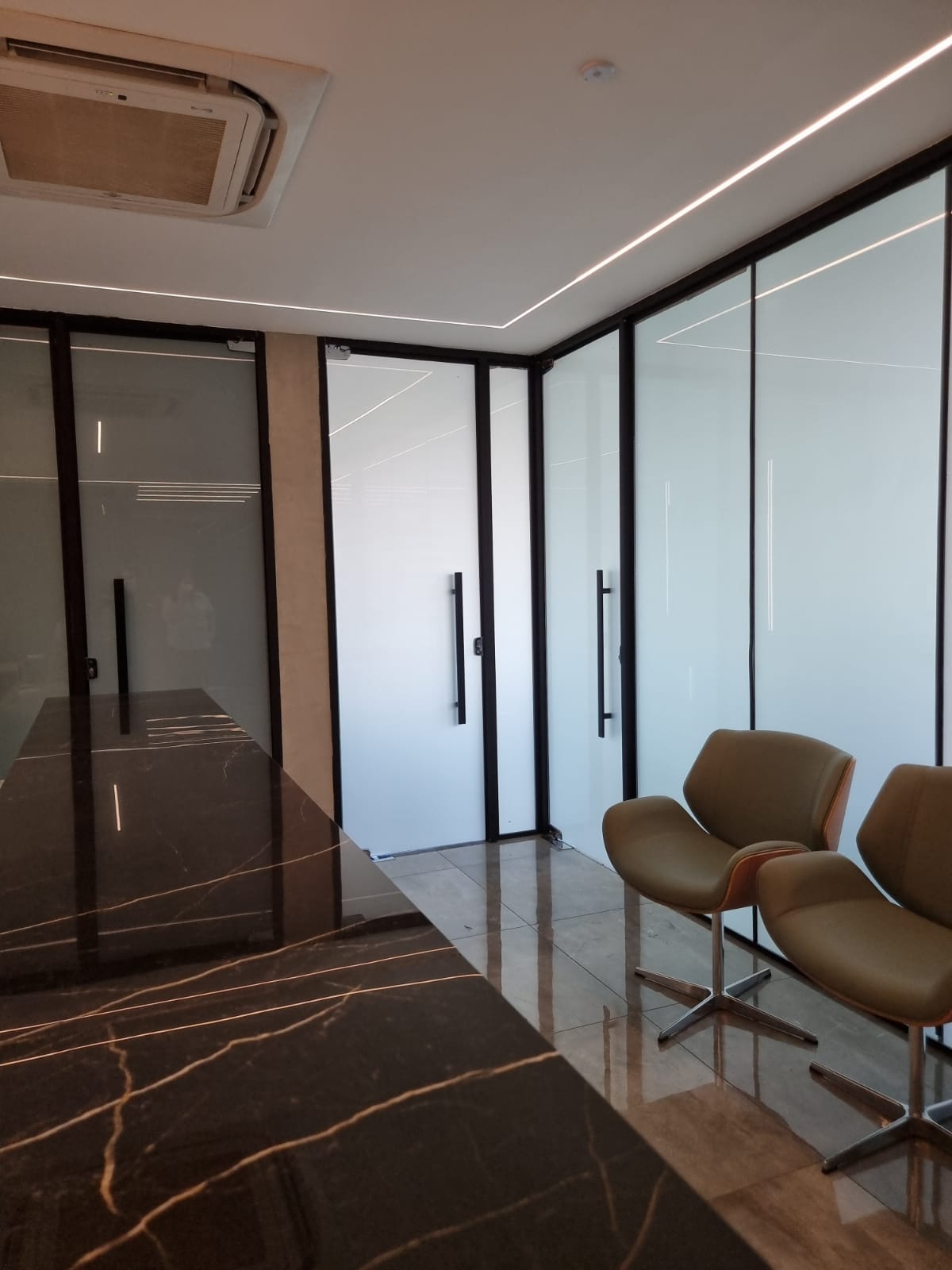

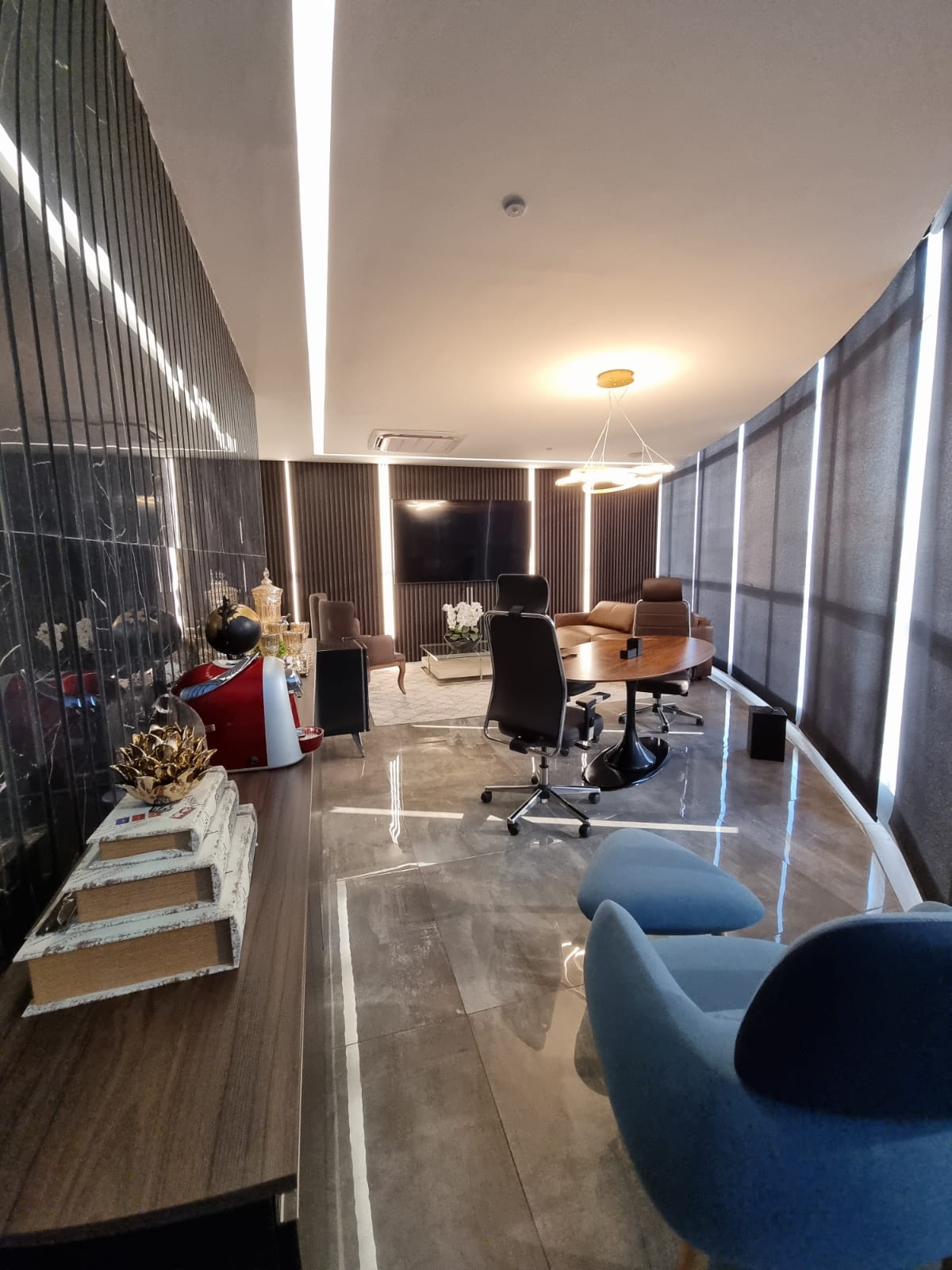

Office building in CIUDAD DEL ESTE
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2021 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1 – 100 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Automatic Occupancy Detection, Individual Room Control / Zone Control
- Security and Safety - Smoke/Fire Detection, Access Control, Presence Simulation, Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Visualisation, Current Detection
- Other - Audio Control, Video Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs
Customers Description

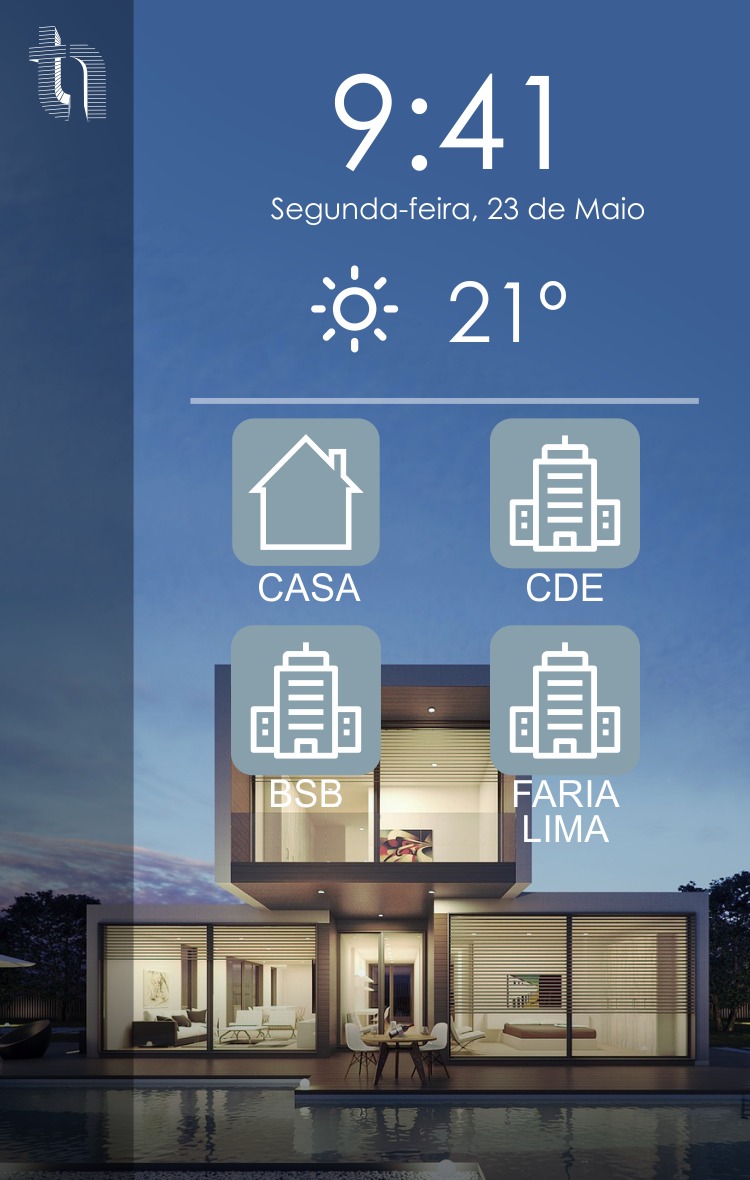

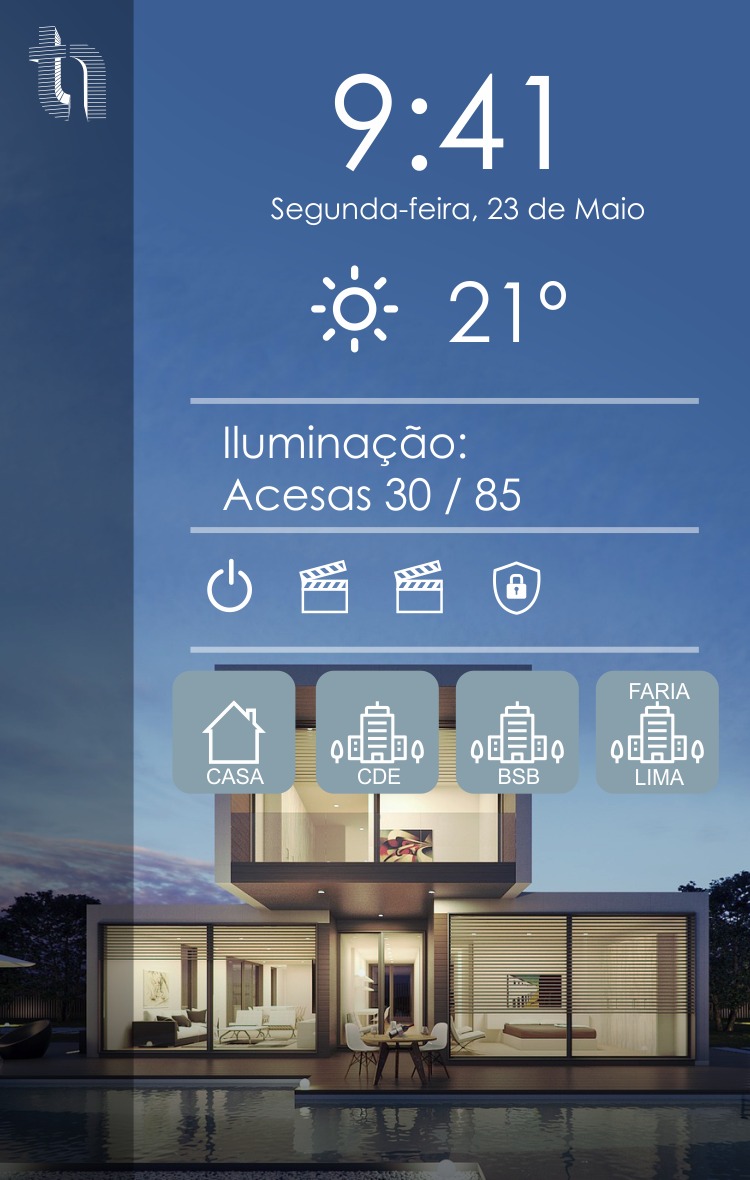

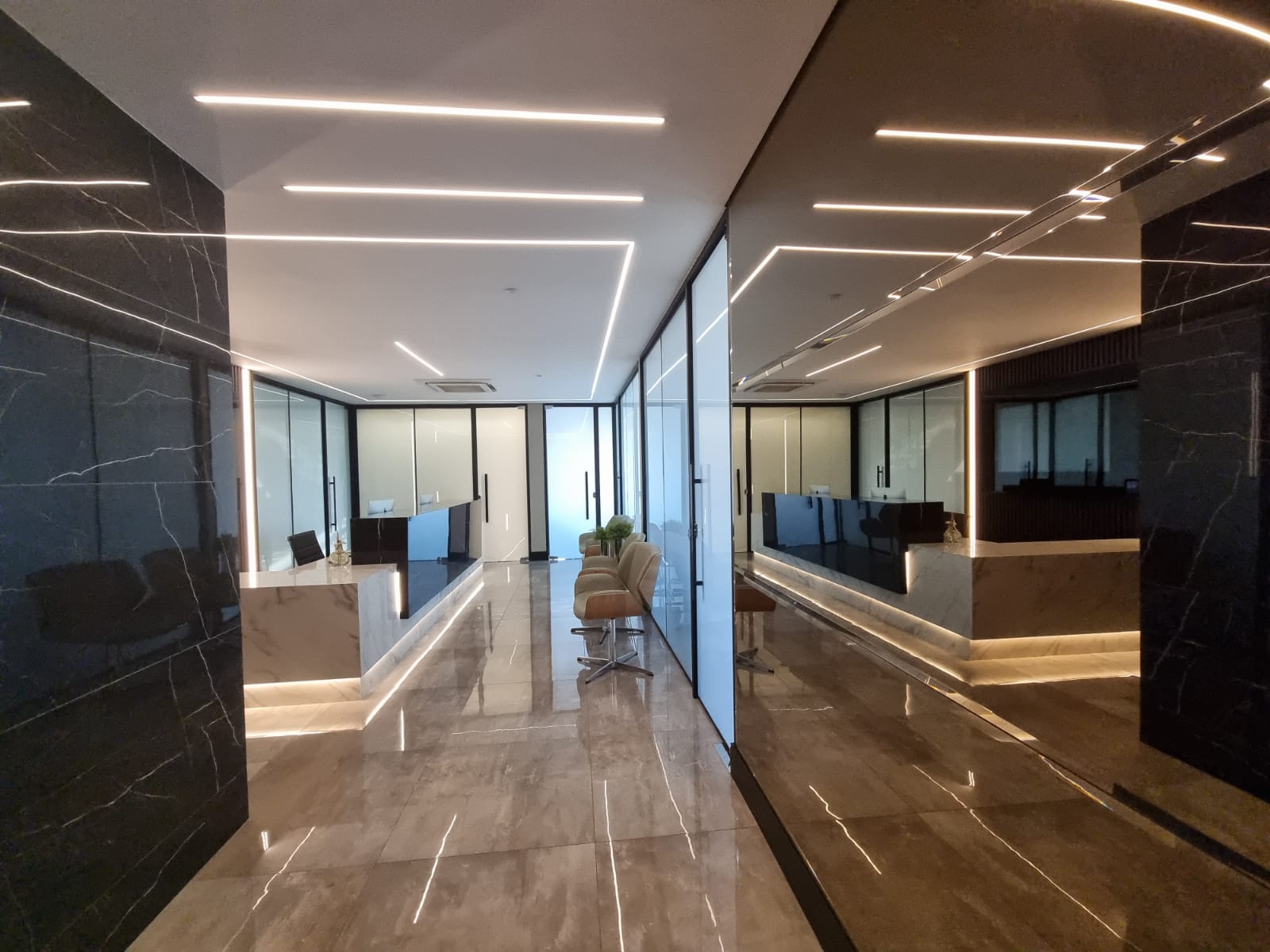

The present corporate located in downtown Ciudad del Este Paraguay, brought to our office the challenge suggested by the client who has numerous headquarters of his company located in various capitals, and needed the control of all offices through dashboard on his mobile device. We were able to make the proposed challenge a reality.
From this premise we sought through KNX, its ease of operation, flexibility to use multiple brands left the customer confident in his choice, since it aims to standardize for other offices.

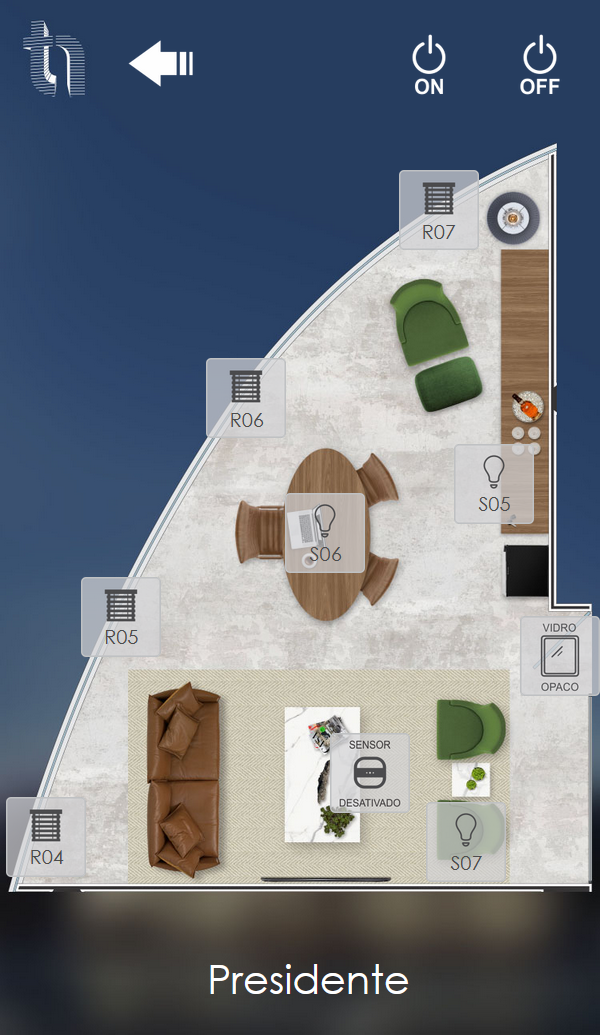

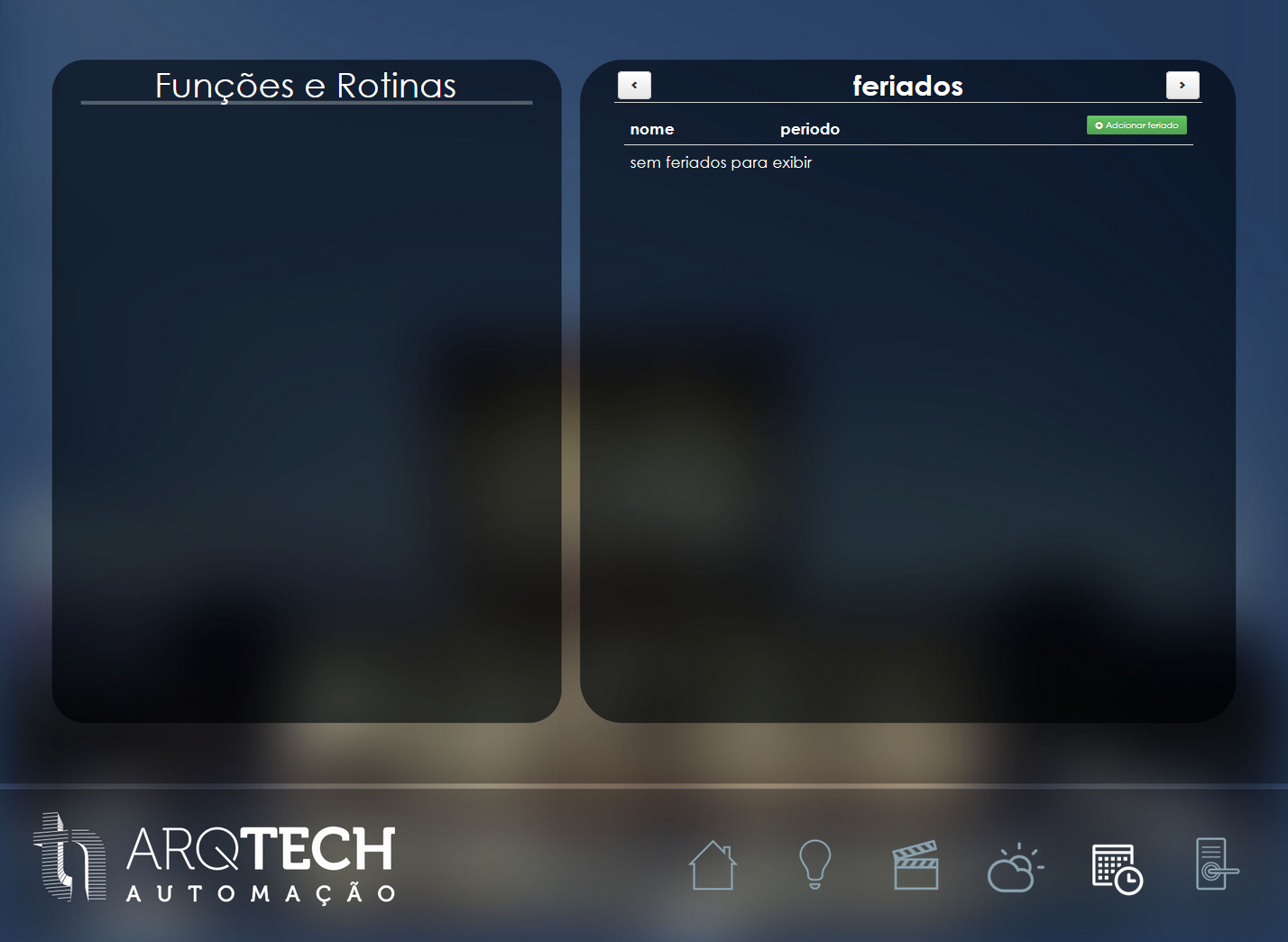

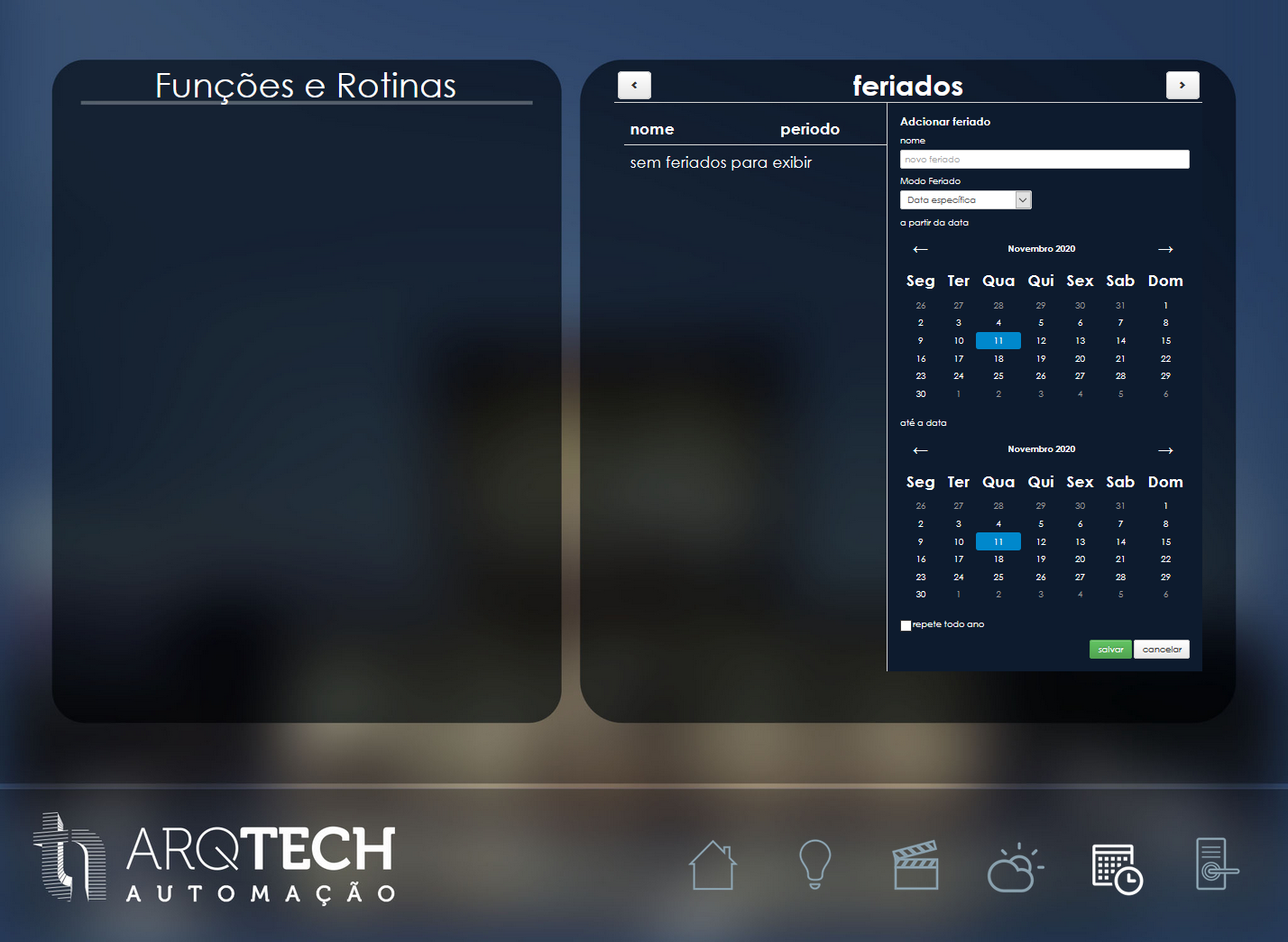

With its personalized and intuitive interface, it made possible the solution the customer was looking for. The biggest challenge of this project was to work on the retrofit and transform an ordinary office into a new Intelligent Office with KNX technology. The second biggest challenge was to work during the Pandemic, where the only access to Paraguay through the Friendship Bridge, which borders Brazil, was with its borders closed for almost a whole year.
Contact Information
| Company Name | Arqtech Automacao |
| Company Email | contato@arqtech.arq.br |
| Company Website | https://arqtechautomacao.com.br |
| Contact Name | THAIS D GIORDANI |
| Contact Function | System Integrator |
