ANAFRA Headquarters & Data Centre
Office building in Rožnov pod Radhoštěm
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2023 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1.001 – 2.000 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Use of Renewable Energies
- Other - Intercom
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description

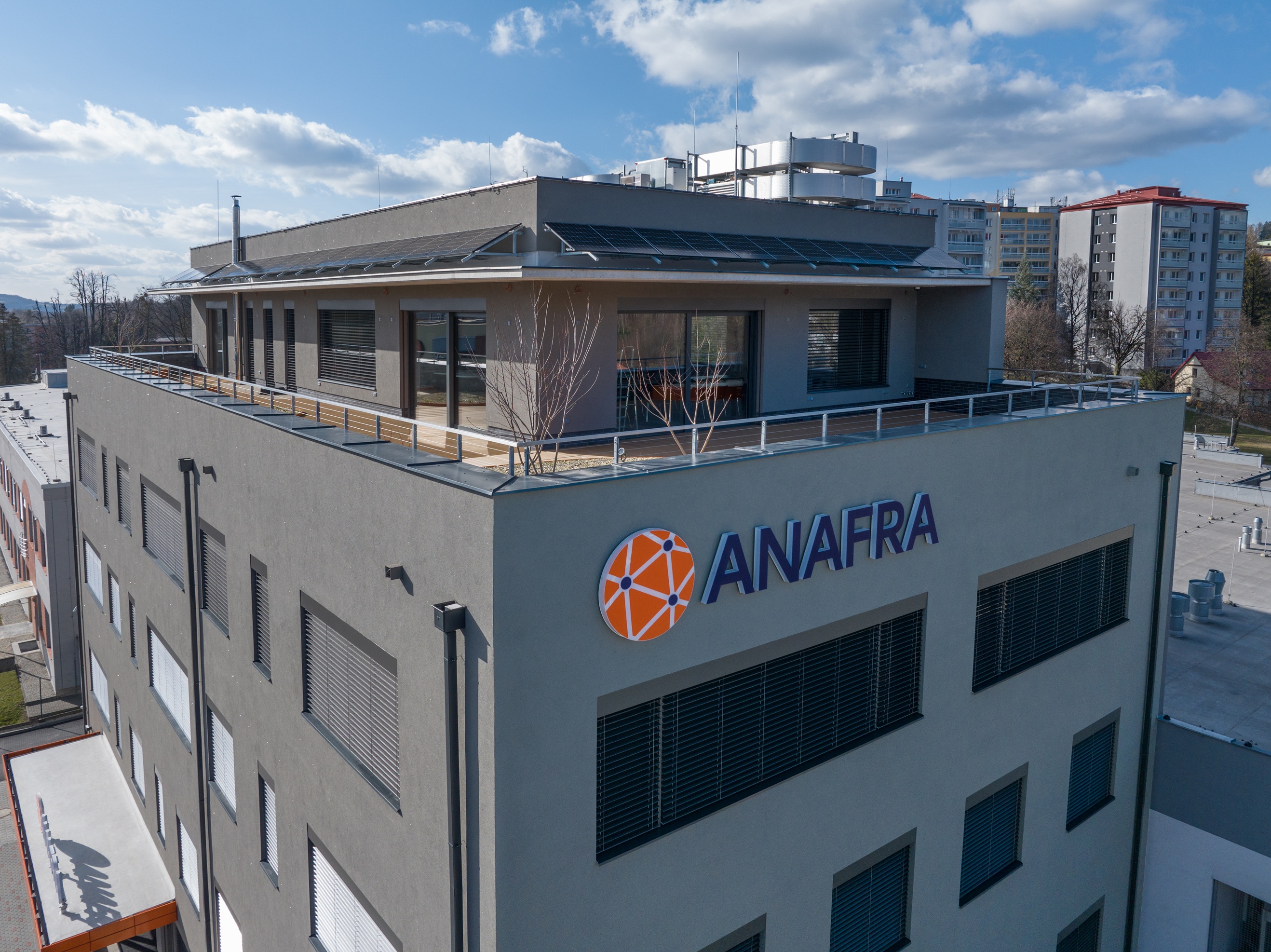

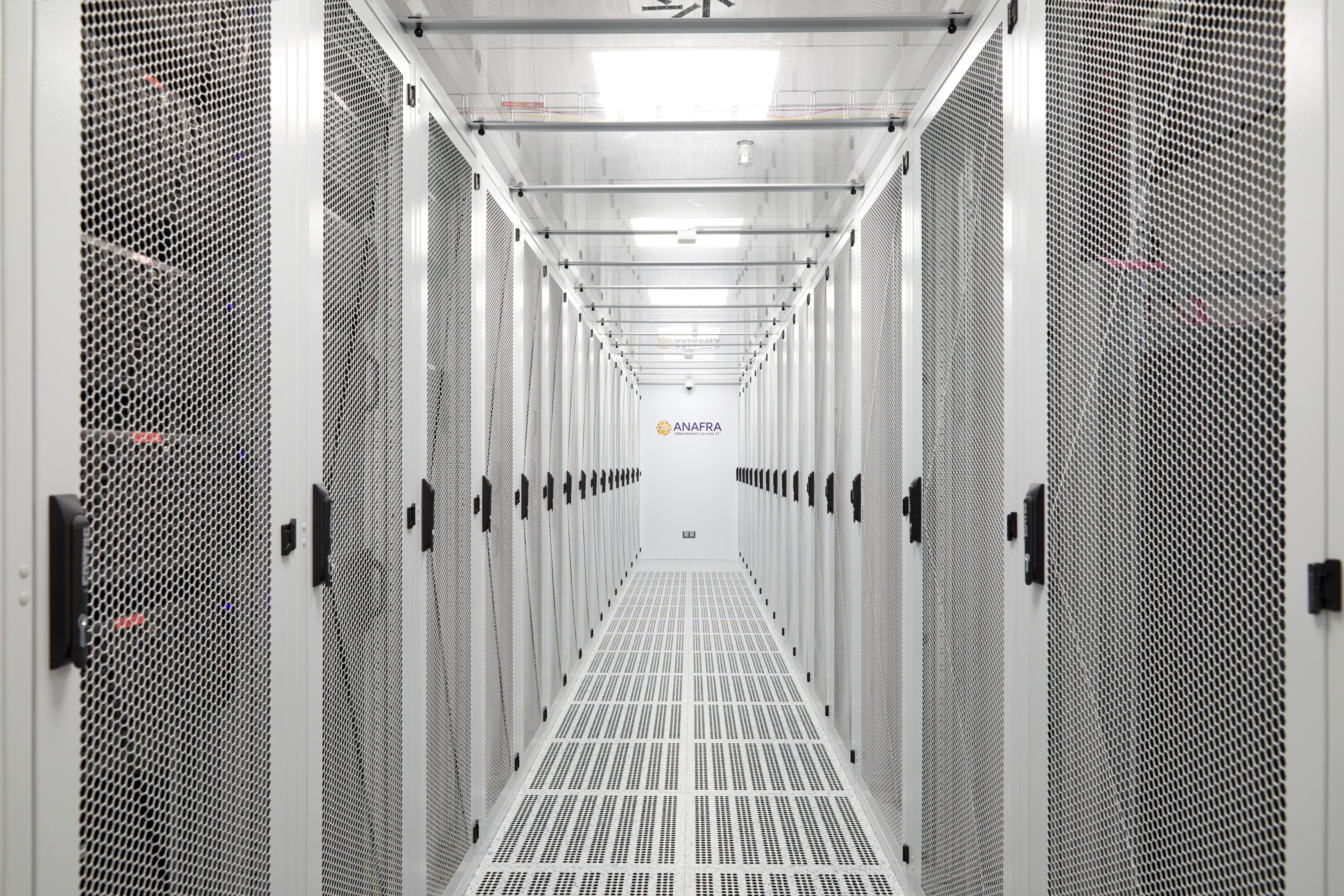

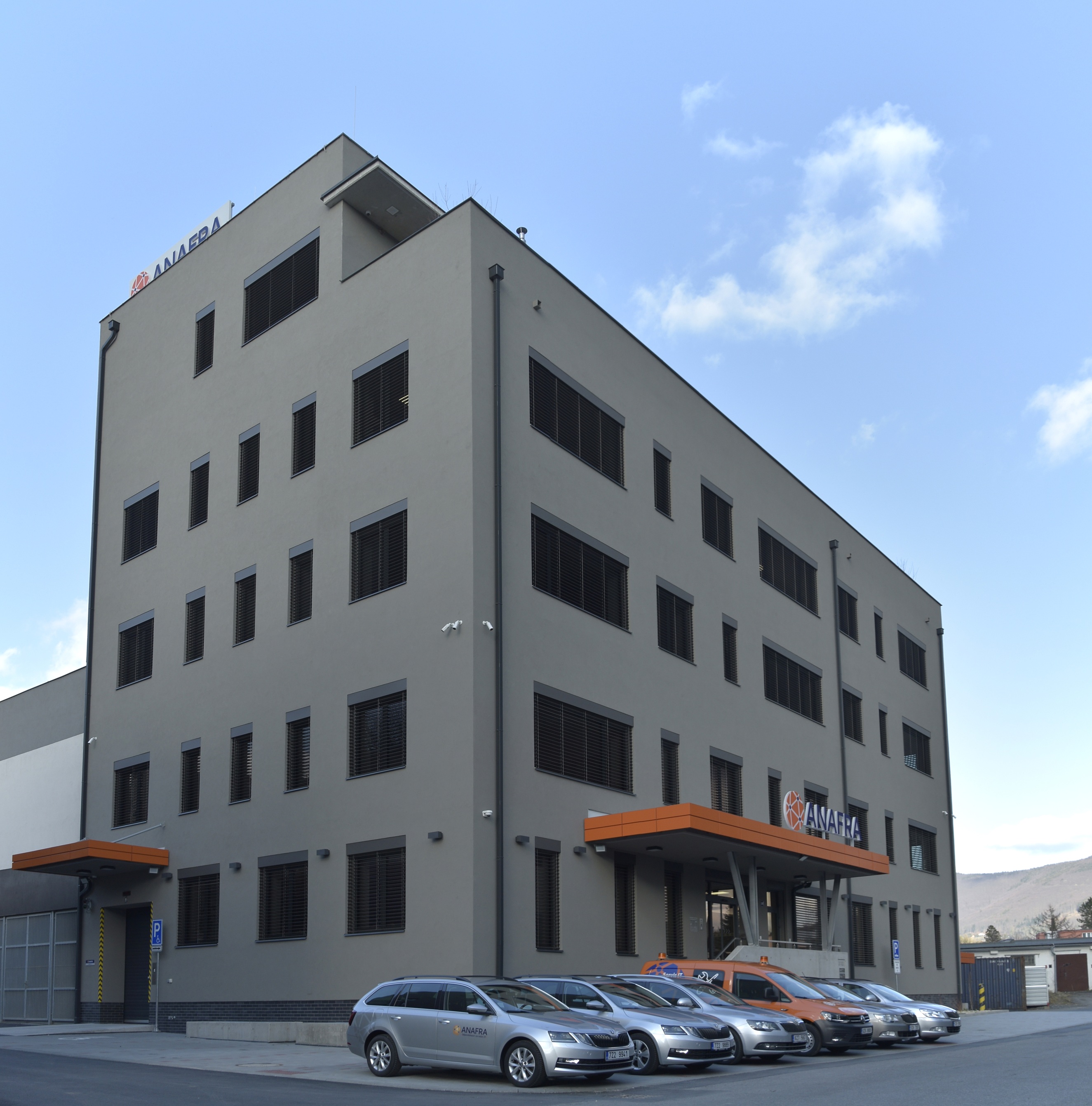

ANAFRA s.r.o. is a leading Czech IT company specializing in server technologies and cloud services. Their headquarters in Rožnov pod Radhoštěm combines a 5-floor office with a highly secure data centre on two underground levels, covering 4,000 m².
The KNX installation is the hardware control layer, working with Loxone Miniserver Gen2 for building automation. KNX handles switching, DALI dimming, shading, heating actuation, presence detection and room temperature monitoring across all floors and outdoor areas. The system spans 9 KNX lines with redundant bus power supplies, using MDT Technologies components, B.E.G. presence detectors and an MDT weather station on the roof.
The building features photovoltaic panels, a motor generator for backup power for up to 1,500 servers, and redundant cooling with waste heat recovery for building heating — all integrated into one intelligent automation solution.
KNX partner: IQ Budovy s.r.o.
Contact Information
| Company Name | IQ Budovy s.r.o. |
| Company Email | radim.krupala@iqbudovy.cz |
| Company Website | https://www.iqbudovy.cz/ |
| Contact Name | Radim Křůpala |
| Contact Function | System Integrator |
