Ammaria Farm
Villa in Riyadh
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Villa |
| Project Type | Residential |
| Year of Completion | 2022 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Weather Dependent Control, Individual Room Control / Zone Control, CO2 / Humidity Measuring
- Security and Safety - Access Control, Presence Simulation, Supervision (e.g. Cameras), Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering
- Other - Audio Control, Video Control, Home Appliances Control, Irrigation Control
- Automation and Remote Access - Timed Functions, Logical Functions, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description

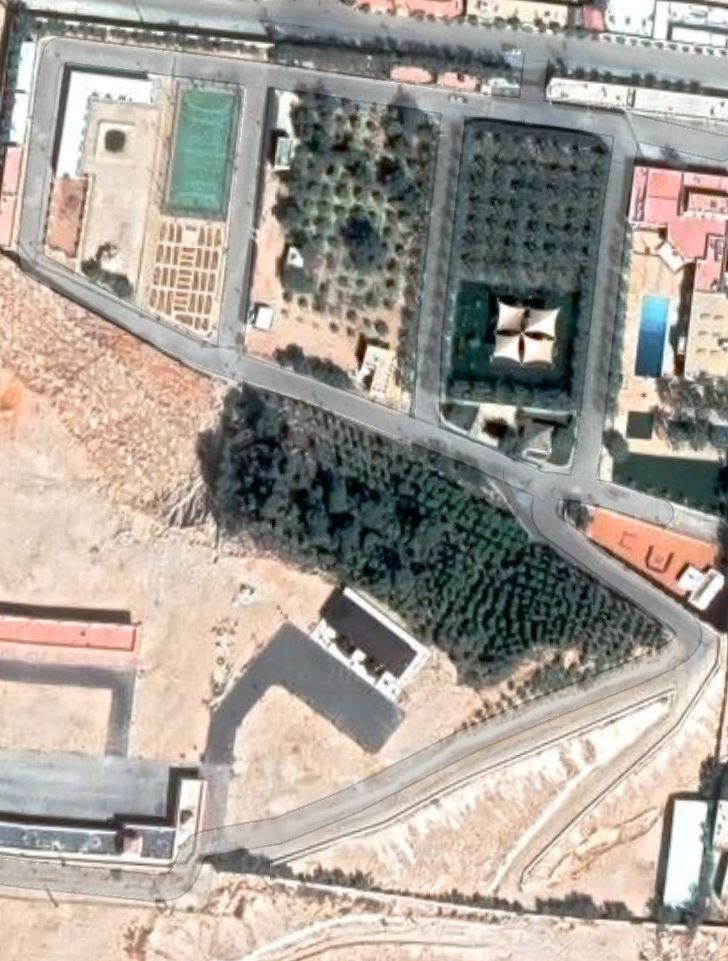

Property comprises of Main Villa, Hill Top & outdoor garden, sports area including parking. In indoor swimming pool extreme humidity were monitored and controlled to safeguard electronic appliances (viz Large screen televisons) and interiors. KNX weather station installed with sensors for brightness, wind (speed, direction), precipitation, temperature, humidity, air pressure. Time reception (sun position). KNX IP Secure is used and parameterised to only transmit encrypted data. Elsner KNX SO250 are used for measurement of the fill level of liquids in tanks, for both tanks of water & diesel (for generator). Elsner CasaConnect KNX Central Unit is installed for graphic touch screen & integrated automatic functions.
Different makes of air conditioners have been controlled using Intesis & Cala Touch KNX T 3.0 Room Controller with Temperature Sensor.
Fabro KNX Touch Panel IP 66 protection used near outdoor pool for controlling entire landscape lighting, sound system and scenes.
Contact Information
| Company Name | Advance Professionals Company Ltd |
| Company Email | hassan@advancepro.com.sa |
| Company Website | https://advancepro.com.sa/en/home/ |
| Contact Name | Fazalul Hassan |
| Contact Function | System Integrator |
