Alta Badia – Südtirol - Energiemanagement
New project in Corvara in Badia
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | New project |
| Project Type | Other |
| Year of Completion | 2026 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 26 – 50 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control
- Security and Safety
- Operation and Visualisation - PC Visualisation
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Peak Demand Monitoring
- Other
- Automation and Remote Access - Timed Functions, System Supervision, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control
Customers Description

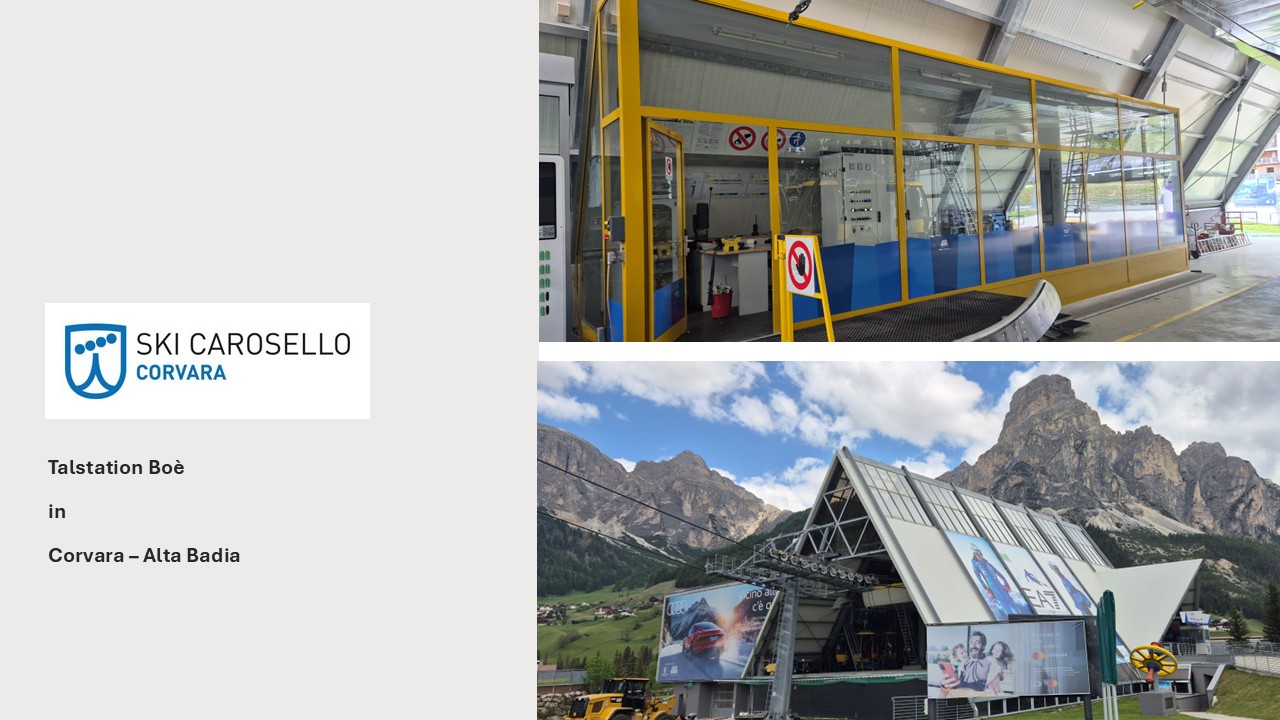

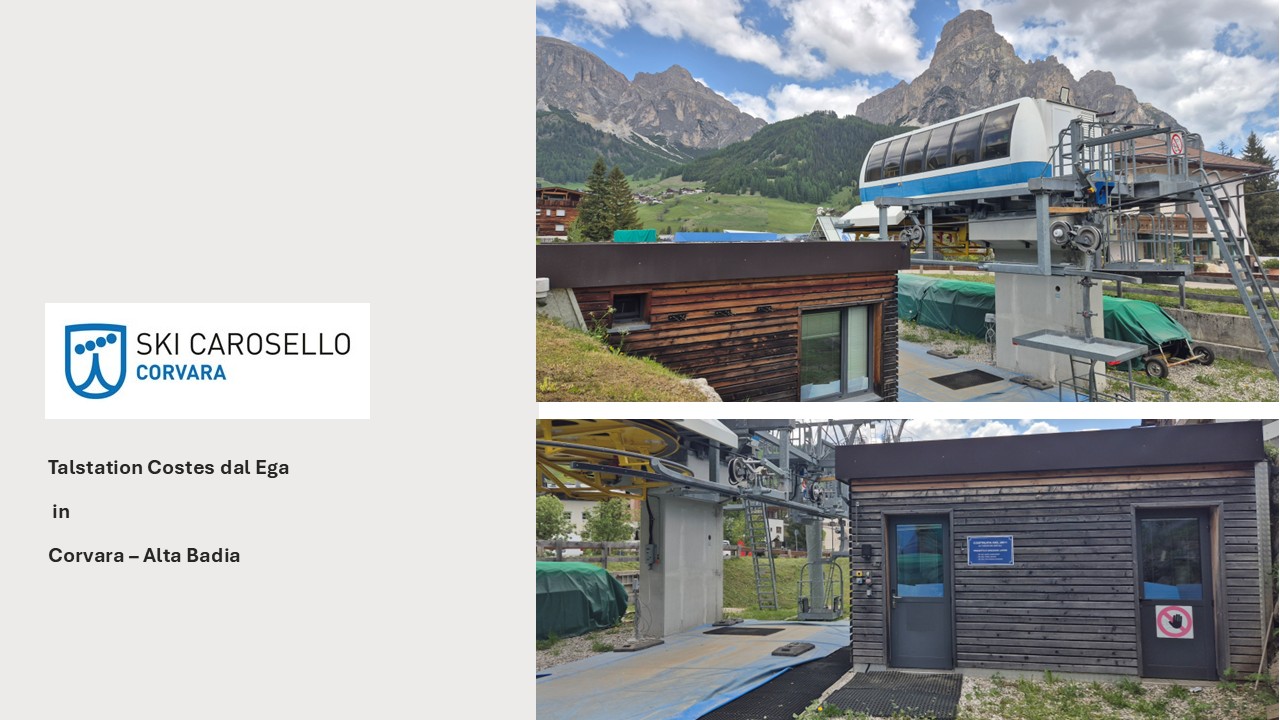

Dieses Projekt im Skigebiet Alta Badia (Südtirol-Italien), realisiert ein umfassendes Energiemanagement von 53 Lift- und Pumpstationen über ein Glasfasernetzwerk.

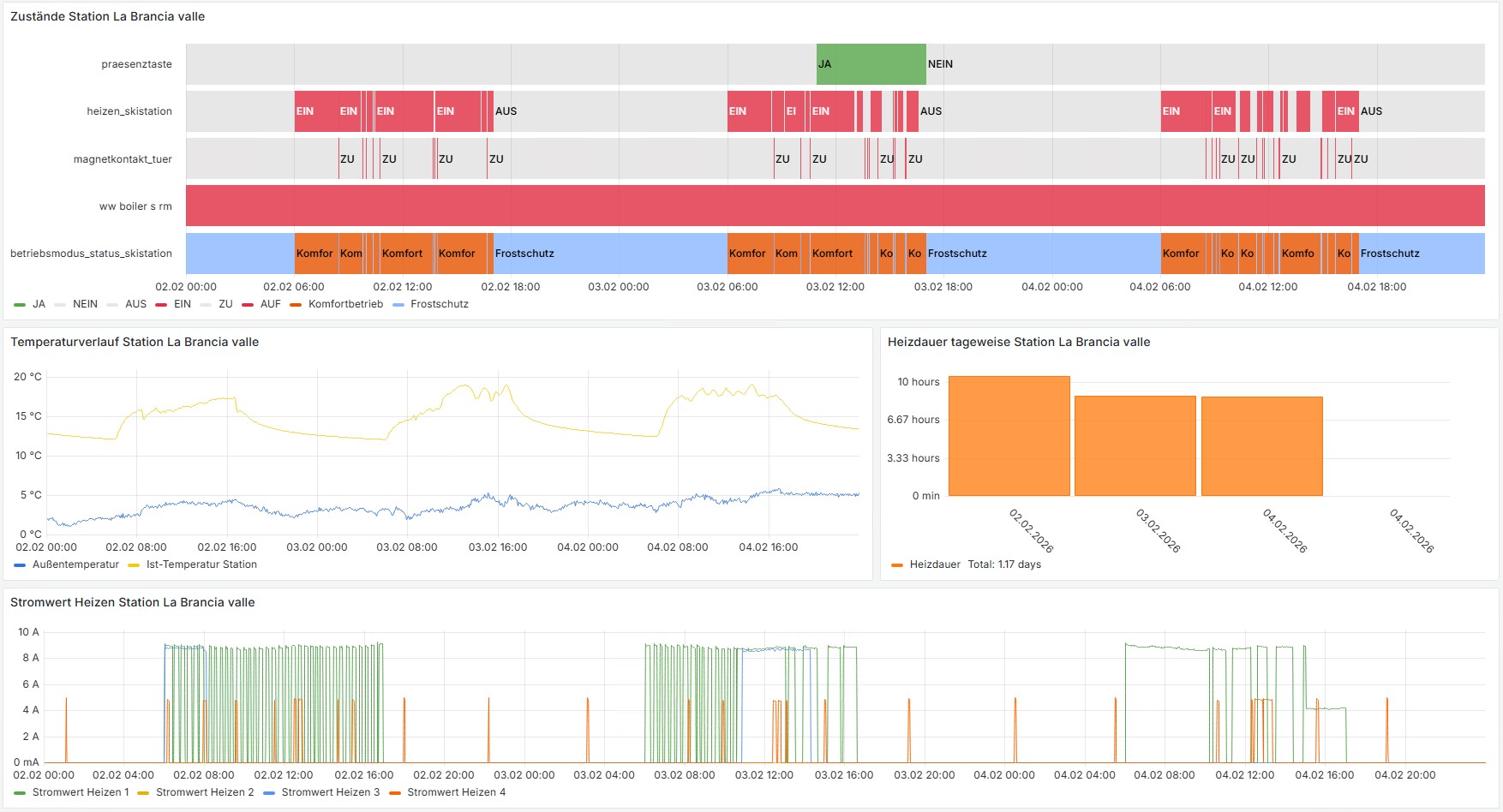

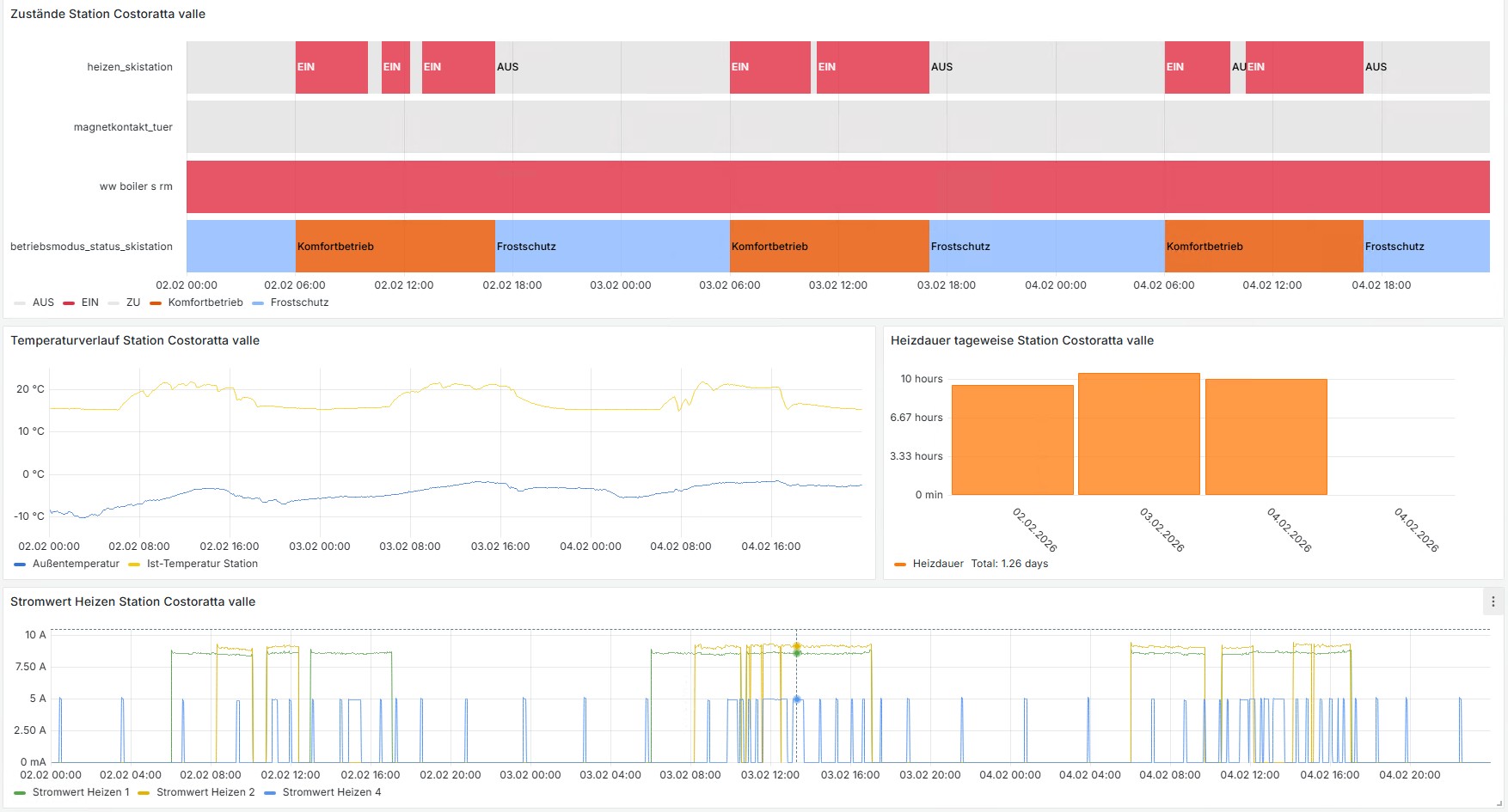

Jede Anlage verfügt über eine eigene KNX-Installation die folgende Werte erfasst und archiviert:
Innentemperatur und Außentemperatur
Heizzeiten. Komfort Standby und Frostschutz.

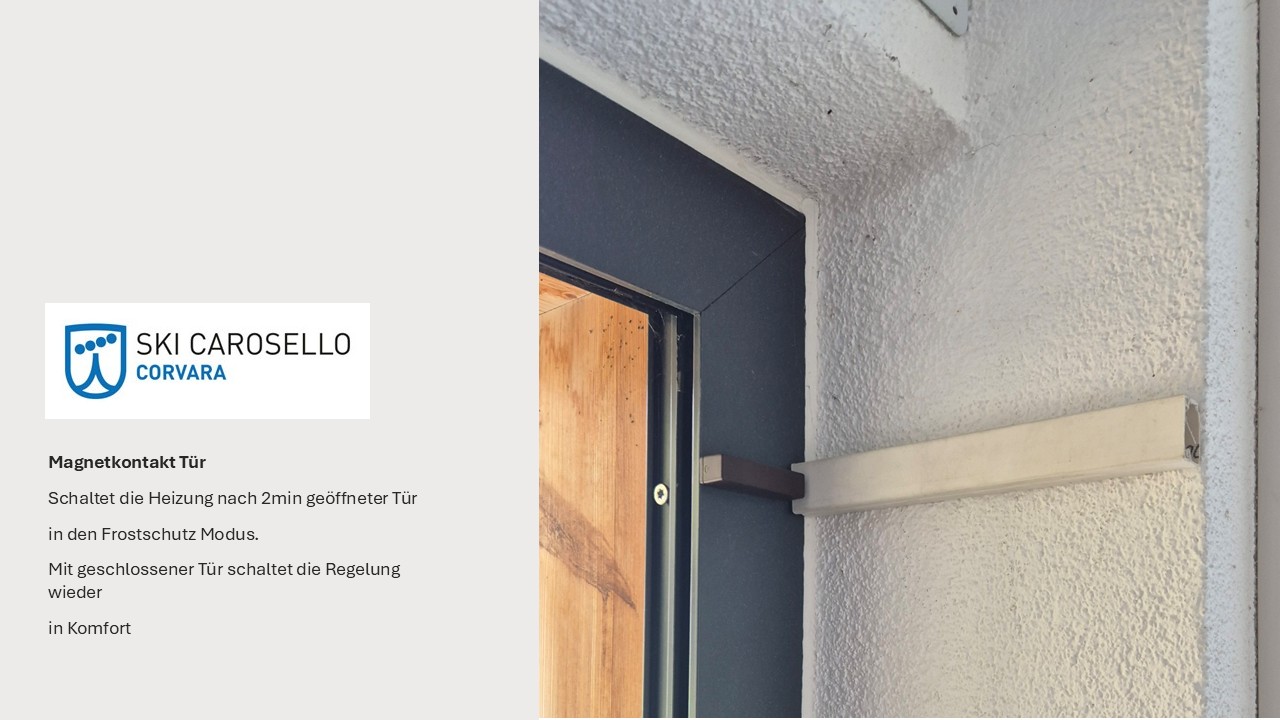

Status Tür offen/geschlossen (bei offener Tür wird nach 1m die Station in Frostschutz geschaltet)
Präsenztaste, um die Heizung von Frostschutz auf Standby zu schalten.
Grenzwertüberschreitungen von Energieverbrauch

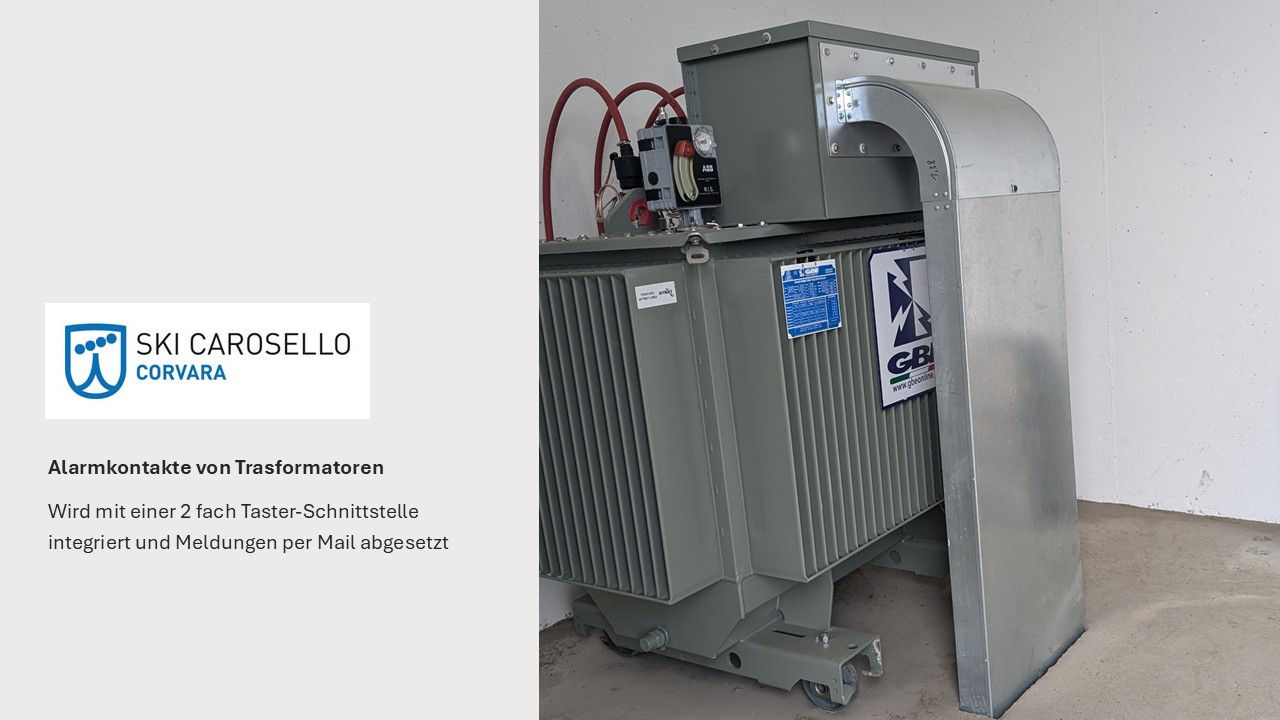

Fehlermeldungen von Störungen der Trafostationen

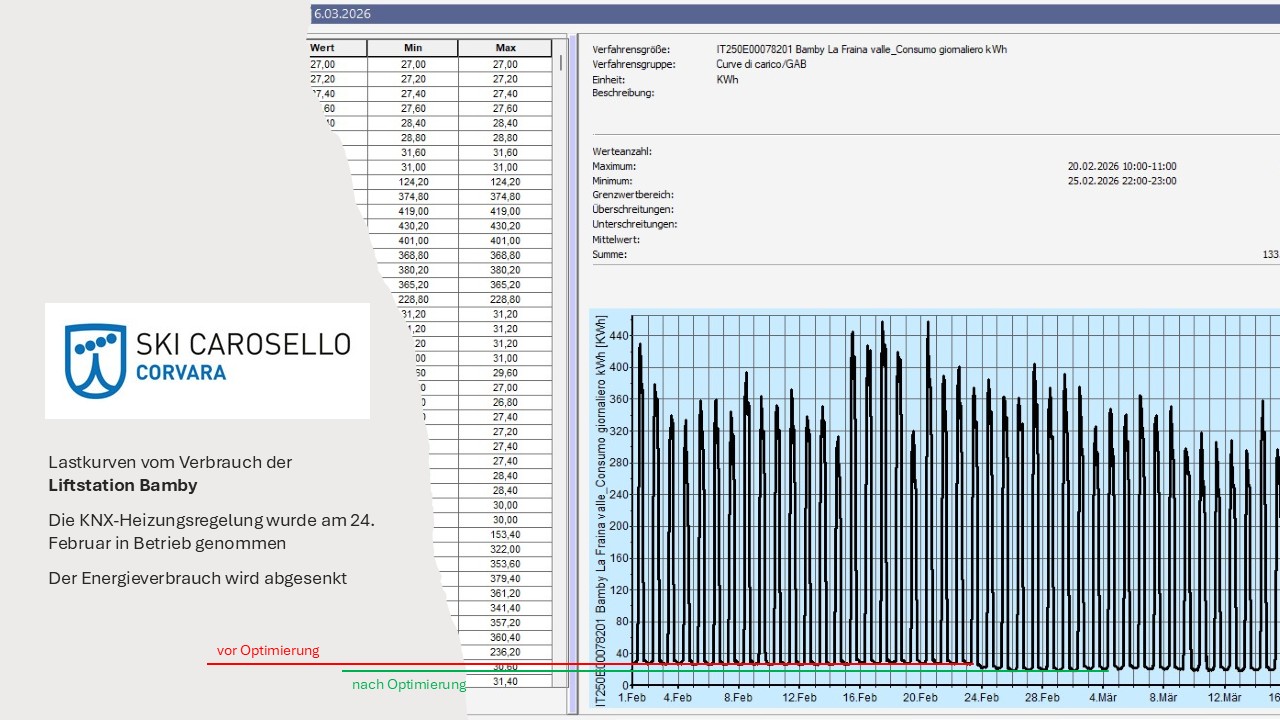

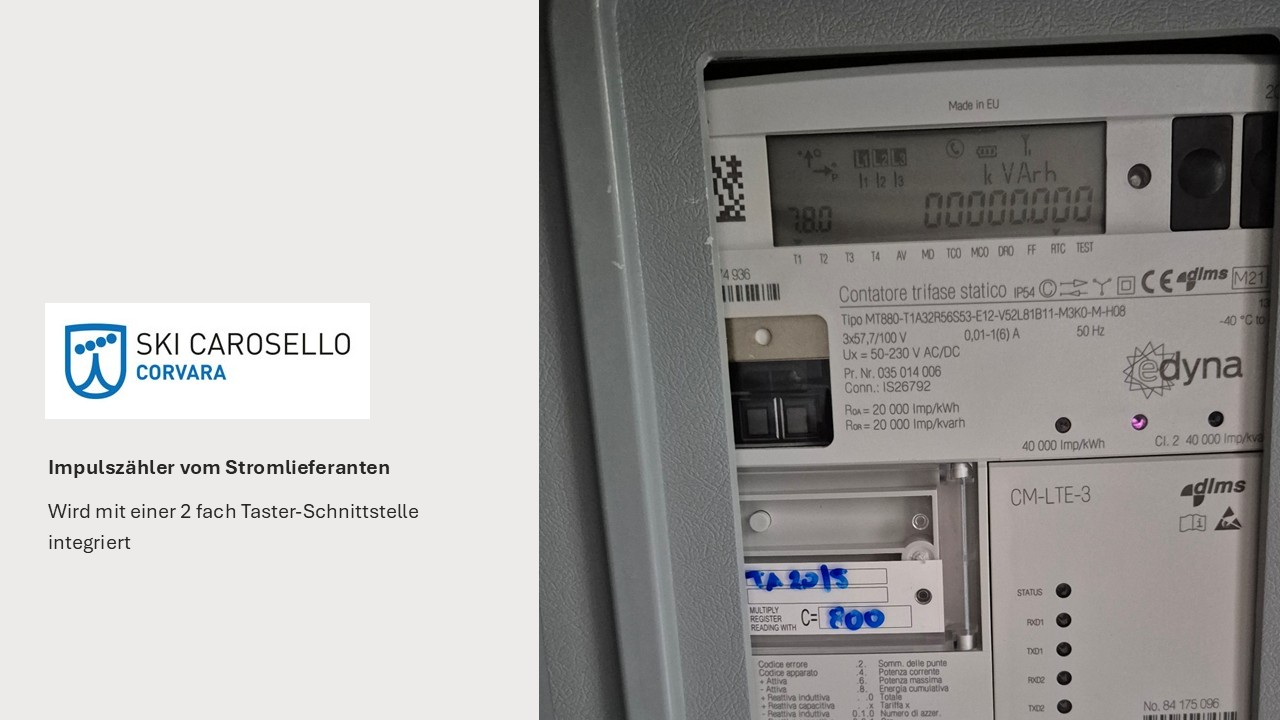

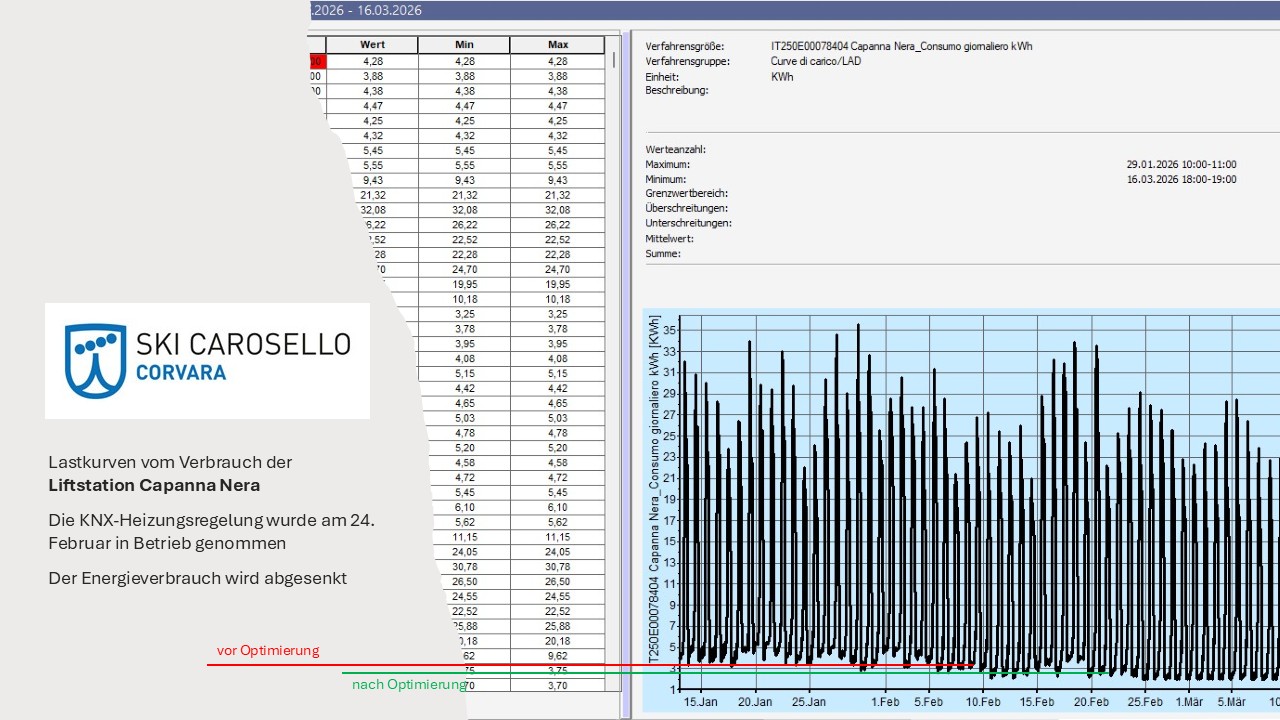

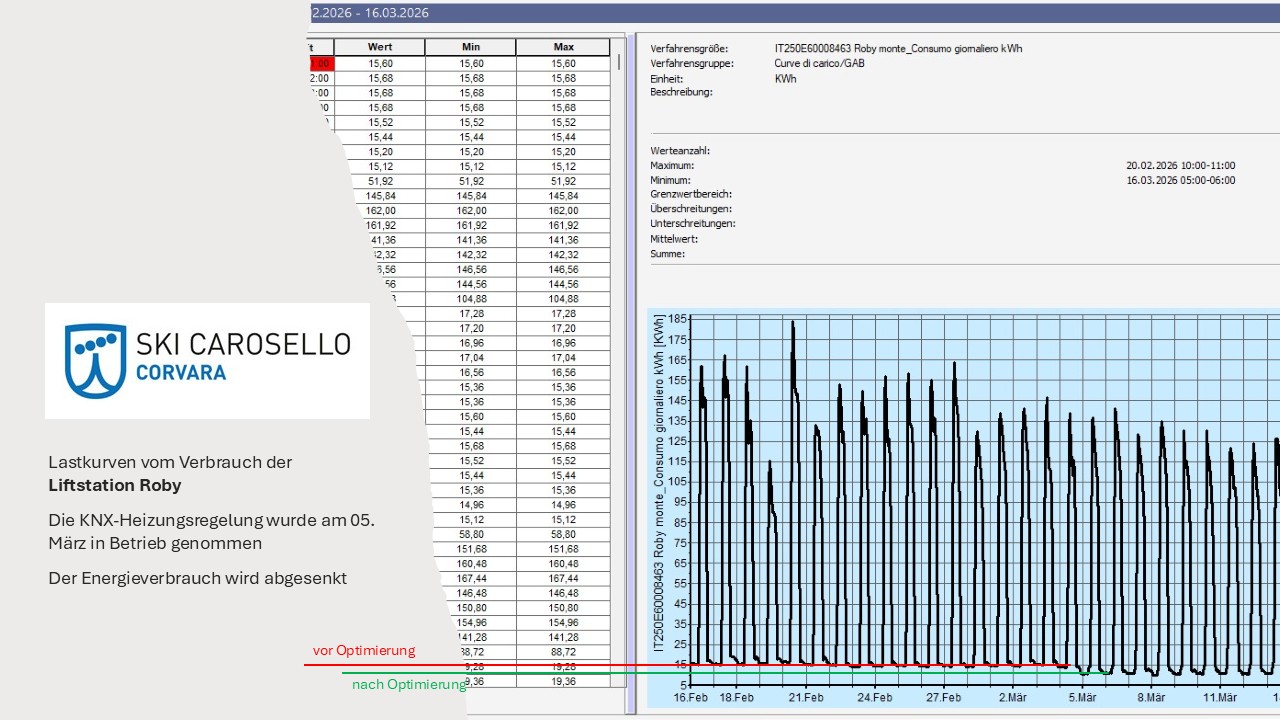

Aufzeichnung der SO-Impulse der Stromzähler und Übermittlung an die Energiemanagement Software zur Reduzierung der Lastspitzen
Jede Station verfügt über eine eigene Jahreszeitschaltuhr.
Das ETS Projekt ist in jeder Station identisch und wird 1:1 kopiert, die Gruppenadressen werden anhand der IP-Interface einzigartig gemacht
