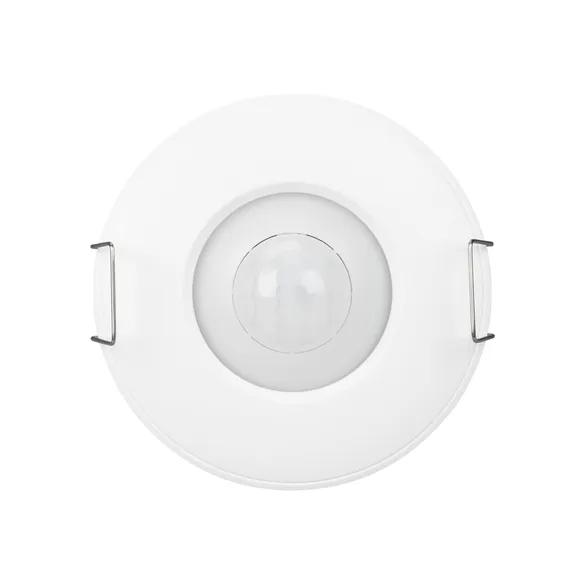

KNX PIR motion, temperature, humidity sensor

Infrared motion and light detector capable of detecting motion, evaluating the ambient light level, and transmitting information to other system devices such as dimmers, relays, etc. via the common KNX bus. Built-in sensors allow measurement of temperature and humidity in the room. The detector is intended for ceiling mounting at a height of up to 6 meters, with a motion detection diameter of up to 10 meters. The built-in thermostat (2-point and PID control) enables management of heating and/or cooling systems. Up to 4 groups of lighting control algorithms with a wide range of actions in each, including Master-Slave mode, allowing multiple detectors to be combined into a single group. A wide range of logical functions. KNX Secure support. Supports the standard KNX protocol and is compatible with certified KNX equipment from major global manufacturers. Overall dimensions: Ø70×51.5 mm (flush-mounting part: Ø48.5×37 mm).
