KNX-724-SW10-DIN
025664

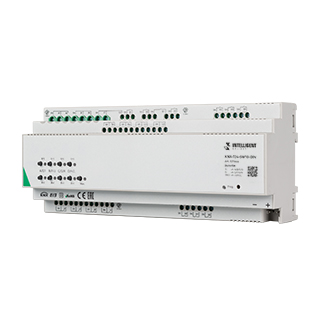

This 24-channel relay module is designed for KNX systems and mounts on a DIN rail. It offers flexible functionality – it can operate as a standard relay module or as a controller for blinds/shutters. Manual control is also supported. The module is powered via the KNX bus with a DC 21–30V supply. Each channel can handle a maximum switching current of 10A, and the device is suitable for loads in networks rated up to 230V. This model supersedes the 049900.
| Category | Value |
|---|---|
| Catalog Item Name | KNX-724-SW10-DIN |
| Application Program Name | KNX Switch actuator 24ch |
| Order Number | 025664 |
| Rail Mounted | Yes |
| Manufacturer Website | Arlight |
