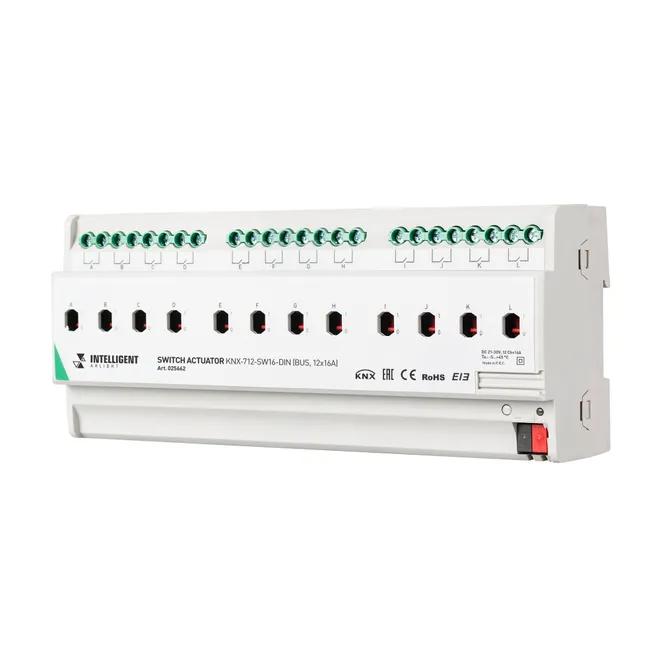

KNX-712-SW16-DIN
025662
12-channel KNX relay module for DIN-rail mounting. Manual control capability. Power supply: DC 21–30V from the data bus. Maximum switching current: 16A per channel. For switching electrical loads in networks with a rated voltage of up to 230V.
| Category | Value |
|---|---|
| Catalog Item Name | KNX-712-SW16-DIN |
| Application Program Name | KNX Switch actuator 12ch |
| Order Number | 025662 |
| Rail Mounted | Yes |
| Manufacturer Website | Arlight |
