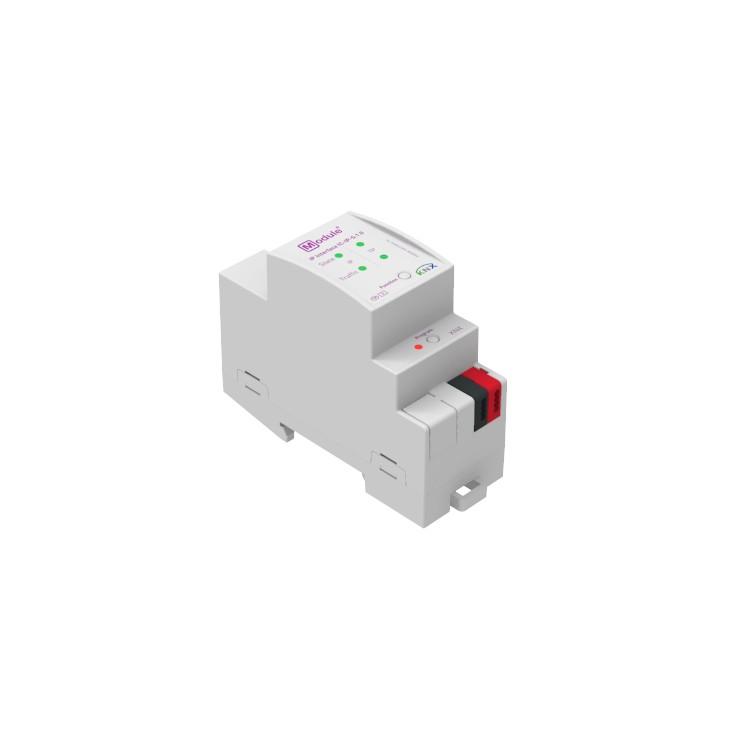

IC-IP-S.1.0
IC-IP-S.1.0The KNX IP interface provides access to the KNX bus from the Ethernet network using the KNXnet/IP protocol. Using to configure, monitor, visualize and manage devices on the KNX network.
• Protocol KNXnet/IP
• Up to 4 connections simultaneously
• Ethernet 10/100 BaseT IP
• LED status indication
• Long telegrams with up to 240 bytes APDU length are supported
• WEB interface for monitoring status and device settings
• Remote firmware update
• Power supply via KNX bus
• DIN rail 35mm mounting
| Category | Value |
|---|---|
| Catalog Item Name | IC-IP-S.1.0 |
| Application Program Name | IP-Interface |
| Order Number | IC-IP-S.1.0 |
| Rail Mounted | Yes |
| Manufacturer Website | Module Electronic |
