EK-FI1-TP

ORDERING CODE

EK-FI1-TP

DESCRIPTION

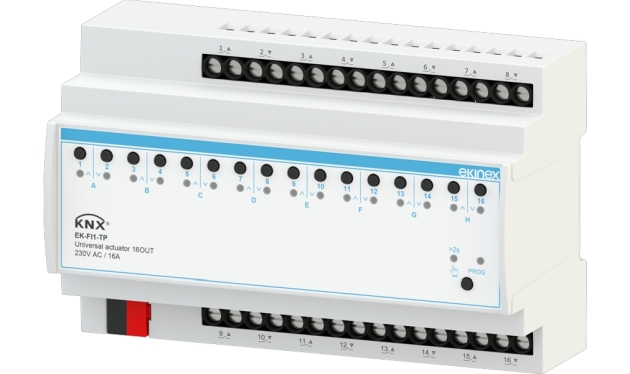

ÆVO built to last - Unbeatable reliability and resistance for a carefree tomorrow. The EK-FI1-TP universal actuator from the ÆVO series allows you to control up to 16 groups of electrical users, such as lights and valves, or to control up to 8 motorized drives, such as Venetian blinds and 3-way valves, independently and in any combination; for this purpose, the device has outputs equipped with potential-free relay contacts. The bistable relays of the device ensure that the set command status is maintained even in the event of a bus voltage failure.
The device is equipped with buttons for manual control and LEDs for status indication; a button allows you to switch between automatic and manual operation. The device has an integrated KNX bus communication module and is designed for mounting on a 35 mm profile rail. Power is supplied via the KNX bus and no auxiliary power supply is required.

FUNCTIONS / CHARACTERISTICS

- Switching lights on and off

- Control of motorized drives

- Manual control via buttons on the front

- Status indication of outputs via LEDs

- Configuration as a normally open or normally closed switch

- Outputs and channels can be set via ETS as independent or with copy function from another output or channel

- Control of ON/OFF valves and three-way valves

- Up to 8 logic functions (AND, OR, XOR, etc.), object comparison and arithmetic

- Block and forcing function for each channel

- Timing: delay in switching on and off, stair light function with warning signal

- Integration into scenarios

- Energy and operating hours counter configurable via bus

TECHNICAL DATA

Supply

- Power supply 21-30 Vdc via KNX bus

- Bus current draw at start-up: 54 mA @30 Vdc, 49 mA @21 Vdc

- Bus current draw in stand-by: 10 mA @30 Vdc, 13 mA @21 Vdc

- Bus current draw during relay movement: 32 mA @21-30 Vdc

Outputs

- Number: 8 independent outputs, 4 combined in channels (depending on use)

- Bistable relays with tungsten pre-contact

- Rated current (In) per output: AC 16(6) A @250 Vac (4000 VA); DC 7 A @30 Vdc (210 W)

- Maximum load per output: resistive 4000 W, inductive 1500 VA, LED lamps 90-230 Vac max. 400 W

- Maximum inrush current: 800 A / 200 μs, 165 A / 20 ms

- Maximum capacitive load: 200 μF

- Possibility of connecting different phases in adjacent outputs

- Total maximum current in device: 96 A

- Short-circuit protection: not present

- Overload protection: not present

- Connection method: screw terminal block (0.5 Nm torque max.)

- Cable cross-section: 4 mm² / 2 x 2,5 mm² (0,5 mm² min.)

- Outputs per common: 1

Environmental conditions

- Operating temperature: - 5 ... + 45°C

- Storage temperature: - 25 ... + 55°C

- Transport temperature: - 25 ... + 70°C

- Relative humidity: 95% not condensing)

Other characteristics

- Housing in plastic material

- Mounting on 35 mm rail (according to EN 60715)

- Protection degree IP20 (installed device)

- Overvoltage class III (according to EN 60664-1)

- Classification climatic 3K5 and mechanical 3M2 (according to EN 50491-2)

- Pollution degree 2 (according to IEC 60664-1)

- Mechanical lifetime (min. cycles): 3 000 000

- Electrical lifetime (min. cycles): 100000 @8A / 25000 @16 A (Vac)

- Dimensions (LxHxP): 143 x 90 x 63 mm

- Weight: 505 g

CONFIGURATION AND COMMISSIONING

A detailed description of the parameters can be found in the device's application manual. ETS5 or later versions are required for configuration and commissioning.
Application program for ETS: APEKFI1TP##.knxprod (## = version).
