The Din rail mount HDL 48CH dry contact module was designed with 48 dry contact input or output channels, it enables both mechanical and electronic switches to control lightings, curtains, scenes, percentage etc. The module supports up to 64 scenes, with each scene up to 10 output targets. What’s more, it has the ability to drive the LED indicators as output, making the control intuitive and effortless.
In this list you can find new KNX products that have been brought to the market.
EmCom KNX Presence Detectors bring energy saving and automatic lighting control to KNX Building and Home Control System with ease and comfort. Wide Range Presence Detector covers a 360° detection range up to diameter 24 meters; High Bay Presence Detector well meets the requirement of 15 meter installation height; and Corridor Presence Detector takes care of a 40×5 meter aisle detection range. The whole product lineup is available for intelligent lighting management, offering superior energy efficiency and living comfort.

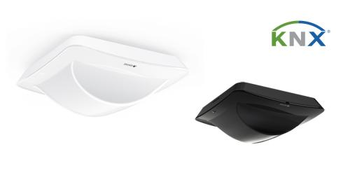

The range of presence sensors suitable for ceiling mounting consists of four versions: three suitable for mounting up to 4 m height and a version called “HIGH BAY” for installation up to 17 m height. The STANDARD, MULTI and HIGH BAY versions include a brightness sensor for environmental lighting control. The MULTI version also includes humidity and temperature sensors with the relative control algorithms and a sound sensor that can be used in rooms with parts that are less visible for the infrared sensor. All versions have a rear connector with three digital inputs that can be connected to buttons or switches and used for ON / OFF commands, dimming, shutters or blinds / scenarios, sequences, step commands, etc.
The Ekinex EK-BG1-TP DALI Gateway is a KNX-certified panel mount modular device capable of connecting a DALI network to a KNX network in order to exchange information between networks. Using the KNX system, up to 64 lamps,16 groups can be controlled and up to 16 complex scenarios can be implemented. Any DALI ballast for fluorescent, high intensity and even LED lamps can be controlled to achieve the best performance regardless of whether it is for office, open space, residential or commercial lighting.The KNX bus configuration of the device is performed with a special ETS database while the DALI bus configuration is performed with a dedicated Windows application interfaced through the Ethernet port.
Intelligent interfaces to the KNX smart home as easy to install as a light switch? This is possible with the Cala KNX series from Elsner Elektronik. The room controllers, sensors and push buttons are installed in the switch series of the building. The components are available for 55 mm systems used in Germany and for the Swiss 60 mm system and can be easily combined. The simple and elegant glass surface in jet black or pure white connects all Cala devices, from touch displays with room climate control to switches with integrated temperature sensors.
The Suntracer KNX pro weather station provides all data relevant for building control, including brightness, precipitation, wind speed and direction, temperature, air humidity and pressure, dew point, time and position of the sun. The ultrasonic wind measurement has a short reaction time and also records the direction. In this way, facades exposed to wind can be protected, while automatic shading and ventilation is continued on the sides facing away from the wind. In the application, the data is used to control 12 facades. Among other things, the position of the sun, visual protection, time functions, set positions and priorities are taken into account.
Instant smart home with the reliability of KNX TP1 and CAN FT. Optimised for integration with products freely available in your closest shop. LM Spyder connects two worlds – DIY and professional smart home based on KNX and other systems. Easy to create, easy to expand, step-by-step smart home. Built-in temperature, humidity, pressure, air quality and CO2 sensors measure and control the environment around you.
EmCom KNX presence detectors bring energy savings and automatic lighting control to KNX home and building control system with ease and comfort. The wide range presence detector covers a 360° detection range up to diameter of 24 m; the high bay presence detector meets the requirement of 15 m installation height; and the corridor presence detector takes care of a 40 × 5 m aisle detection range. The whole product line-up is available for intelligent lighting management, offering superior energy efficiency and living comfort.
The new Enertex ENA² gives you an easy-to-use remote access to your KNX bus and network devices without a Cloud service. Everything is configured directly on the device. Control user remote access with KNX telegrams. Enertex provides a forwarding service (“DNS”) to allow remote access independently of the type of service (IPv4, IPv6, DS-Lite) and without changing the local network configuration. The data transferred can only be decrypted by the user himself. Our ENA² can also manage a secure IP network for your building infrastructure. Unlike other KNX remote access devices, the ENA² can prevent LAN/IoT devices with Cloud connection from accessing and interfering with your building infrastructure.
EXOR International JSmart HMI products, with powerful dual-core or quad-core ARM CPU, are the ideal interfaces suitable for residential and industrial installations for energy efficiency and automation applications in connection with KNX/IP. JSmart devices are ready for Internet of Things (IoT) applications thanks to their advanced communication capabilities and EXOR Corvina Cloud service. With the use of EXOR JMobile and Corvina Cloud, JSmart devices, available with displays from 5" to 21.5" and suitable for installation without a cabinet, seamlessly connect KNX networks to the cloud using the OPC UA and MQTT services. Connection to other systems make these devices an integration tool of simple use and great efficiency.
1Home is launching a state of the art device, based on an established KNX/IP interface that will bring your customers closer than ever with remote management. The 1Home bridge cuts down on your customer visits and lets you work more efficiently. Offer your clients the latest smart home technology such as voice control with any popular voice assistant (Amazon Alexa, Google Home and Apple Siri), with some of them offering offline and local device control. It is Apple HomeKit and KNX-certified. The bridge’s local connection allows for the fastest device execution time on the market. It can be connected in the electrical cabinet directly or with PoE.
The new ABB i-bus® KNX combi switch actuators combine flexibility with compact design and offer switching and shading functionality in a device half the size. Ideally suited to dynamic requirements found in residential projects. These components allow future software extension for a smarter tomorrow.
The new ABB EQmatic energy analyser is a compact solution for monitoring, logging, visualising and analysing energy and consumption data from electricity, gas, water or heat meters via KNX, M-Bus or Modbus RTU. The web-based user interface is individually configurable to the respective requirements and makes it possible to identify energy thieves and optimise energy costs sustainably.
At Light & Building 2020, Apricum appears as an independent brand for the first time. Various KNX Secure products are shown. One presented highlight is the new 4-fold binary input TIO4-Sec with KNX Data Secure support. Activation of “Secure commissioning” in ETS enables encrypted downloads to TIO4-Sec and runtime communication can be protected. In this way, manipulation and unwanted access are made impossible. To drive loads like status LED, channels can also be operated as outputs. LED brightness and night/day operation can be parameterised. Suitable for sensing potential-free contacts, TIO4-Sec provides the standard input functions for connecting push buttons, conventional switches and contact sensors to KNX. This product is available as OEM.
The new OS-508i-KNX comes integrated with motion and light sensors. It is designed with 360° and Ø 12 m detection coverage and supplies not one, not two but four outputs for lighting and HVAC automation control applications. All the control parameters of the detector including lux, time, detection range and standby light levels can be configured via its specifically designed IR-11KNX remote control. On top of that; a special function enables the learning of the ambient lux value for greater flexibility when it comes to the settings. Additionally, the installer can use the IR-11KNX remote to program the detector conveniently without the need to open its housing for easy and quick installation.
Aidoo KNX Controller integrates the Inverter/VRF system into KNX with the simplest communication gateway and maintains all Inverter/VRF features intact. ETS configurable Aidoo KNX is plug&play and needs no adaptors/external power supply. It easily connects to the unit in a few minutes. Thanks to the full 2-way communication of Aidoo, you can control the unit with confirmed behavior, actions and status via as many communication options as you want in your KNX system with ultimate flexibility. Aidoo KNX has customizable schedules and maintains the original thermostat´s best functions and features, maximizing comfort and efficiency by communicating with the manufacturers´ specific protocols.
**SmartTC** is a remote body temperature detection and monitoring system for the purpose of preventing and limiting any epidemics, controlling and highlighting people with high temperature values. The system, easy and quick to install, it can be installed stand-alone or connected and interfaced with the most commonly available BUS systems KNX. By freely setting a predefined threshold value, SmartTC allows to collect all the detected data , to send alarms to multiple addresses and, through the installation of automatic doors, also to allow or deny access based on temperature body detected.
JUNG upgrades its KNX system devices: By combining power supply (320mA) and IP in-terface, JUNG unites two crucial system devices in one single component, allowing pro-fessional installers to implement KNX installations more cost-effectively. The power supply with IP interface is equipped with a wide rage input (110 – 230V AC), an outlet to supply KNX products and a status display as well as a reset button. In addition, the device has an application-oriented logic to detect the presence of people in the room by means of a hotel-card switch, respectively a motion detector. This facilitates the choice of components from the planning phase on. Naturally, the new power supply with IP inter-face is secure thanks to KNX Data Secure and KNX IP-Secure.
The innovative occupancy detector PD11-KNX FLAT-DX from B.E.G. for ceiling installation is almost invisible: Despite its only 0.85 mm building height, the detector has an impressive detection area of 9 m (diameter) at a mounting height of 2.5 m. The detector offers almost all functions of the B.E.G. KNX Generation 6 (DX), e. g. the short presence with shortened follow-up time after short occupancy of the room or the offset function for up to three lighting zones for creating a uniform lighting level throughout the room. A logic module is also supplied.
Qubik and Qubik Glass are the new capacitive keyboards in KNX technology designed by Blumotix. The innovation of Qubik Collection is represented by the option to activate the device both at the touch and in delayed mode, making it inactive at the touch and sensitive to the sliding action. The rockers can be configured with ETS. The devices are on white or black base, in square or rectangular version, equipped with eight capacitive buttons and four RGB LED that can light up with seven different colours. The collection is equipped with a temperature sensor and is customisable.
The MCU-04X-Box has four blind channels and eight binary inputs for standard blind push buttons. All connections are pluggable – that makes installation a breeze – with a size of only 145 x 190 x 30 mm. The shading products are protected from damage by wind and frost at any time via safety objects and priority management. The automatic runtime measurement and the preconfigured product libraries ensure precise positioning for sun tracking. All operating and diagnostic functions are available via Bluetooth inside of the service app. The end-user controls from the WLAN via the Smart Home app. The end-user conveniently controls via the Smart Home App.
With a new generation of KNX combi switch actuators for use in residential buildings and functional buildings, Busch-Jaeger offers the installer more flexibility in equipping control cabinets. The devices for the Busch Installation Bus® KNX provide up to 24 channels on 12 TE for switching and shading functions – for maximum flexibility in the distribution cabinet. Due to their compact design, the combi actuators are also recommended for subsequent function extensions, for example as a reaction to structural changes.
In order to meet the needs of the market, BES launches a push button for hotel room doors: Cubik-VH. It has two signalling icons for MUR and DND modes, as well as a door bell, which is only available in MUR mode. Besides the room number, it is possible to customise icons, labels, colours, hotel logo and background image / plain colour. In addition, an extra version called CUBIK-VHD is available, and it includes a colour TFT display. Room number and messages (14 bytes), such as welcome or check out info, can be shown on the screen. It is also possible to modify colours on it. An elegant solution that fit to every type of hotel solution thanks, greatly, to its availability of customisation.
Smart Home OS as easy-to-use visualisation. Room-related icons of the functions can be determined directly on the touch screen and / or on the app. This makes usage very easy and reduces the number of operating steps. For example, the lighting context for the selectable individual lamps or as a symbol for self-created lighting scenes can be reached directly with one touch. The same applies to room comfort, security and entertainment functions. Smart Home OS runs on a local controller which is connected to the KNX bus via IP using the Control4 KNX/IP router
The tabletop device of the CONTROLtronic glass touch series Living Emotions® offers innovative technology and superior design. The unique freestanding KNX Glass Touch Sensor Console allows a very fast and direct operation of any KNX building function without having to search for a distant wall-mounted switch by simply placing the device on the desk, conference table or bedside table. The support of KNX Data Secure makes it possible to set up a secure and protected KNX installation.
The latest generation of the HomeCockpit Touch Panels has been completely redesigned and rebuilt – with the only 13 mm deep housing, they fit in all GIRA Control 9 Client and Control 19 Client flush-mounted device boxes. And that, without sacrificing the usual power features, such as the Intel Core i5-7200U processor, up to 32 GB of RAM and up to 480 GB SSD hard drive. This means that not only KNX-Applications, but also the multi-compatible HC-Navigation for third-party software integration, the HC-CamViewer for seamless camera monitoring and the SIP-compatible VideoPhone module for door communication run smoothly in parallel. And if you want more, watch a film on the HC-TV module.
Dinuy S.A. presents four actuators within its KNX portfolio: RE KNT LE3: 1-channel RLC+LED dimmer in a compact housing, RE KNT 008: 8-channel RLC+LED modular dimmer, IT KNT 008: 8-channel switching or 4-channel blind control actuator 16A with 12 inputs, IT KNT 016: 16-channel switching or 8-channel blind control actuator 16A with 24 inputs. Due to the countless years manufacturing dimmers with the highest quality components and software, an incomparable functionality and reliability is ensured. The full range is optimised for perfect control of any dimmable LED lamp. Their design features a front control panel which allows manual control via buttons, even if KNX bus is not connected.
PIKO is the ultimate mini-server for small and medium KNX installations. Powerful inside and small outside, with its integrated KNX, RS485, USB and LAN, in just two DIN-rail modules. Configuration is made easy by a rich set of templates and tools, with high customisation of widgets and pages. The supervision can be built in minutes starting from KNX Group Addresses, giving the final user the opportunity to customise scenes, schedules, notifications, and more. An integrated multiprotocol, LUA-based logic module with graphical editor, completes the toolkit for system integrators. PIKO is natively integrated with Alexa and Google Assistant, so you can control it with voice, app for IOS /Android, or web browsers.
FS Cables 2 pair KNX-certified cable is increasingly being used in both commercial and high-end residential applications for complete building control. This distinctive 2 pair 0.8 mm KNX green LSHF (Low Smoke Halogen Free) cable has been independently tested in the UK to BS EN 50575 for CPR compliance and is now classified to Class Cca, s1a, d1, a1. It is also tested and certified by KNX Association for guaranteed compatibility with KNX devices and equipment. A 1 pair version is also offered, as well as a 2 pair KNX white cable for internal installations. An external duct grade and SWA (Steel Wire Armour) versions are stocked for outdoor installations. All are KNX-certified and CPR-compliant to Class Eca.
With the energy management solutions by GEWISS, including the KNX energy meter, the KNX P-Comfort and the KNX 3-channel actuator with energy measurement, it's even easier to keep electricity consumption in the home under control. Even remotely, thanks to the Smart Gateway app. The KNX energy meter measures and displays the total consumption in the house. The KNX 3-channel actuator manages up to three channels and measures the consumption of each of them. Finally, the P-Comfort KNX manages up to three channels and measures the consumption of each of them.
SEAWIN SC-TP400-4G8F, with 4 inch, full-colour touch panel and 8-fold push buttons, can be used for switching, dimming, shutter control, value sending, air quality display, HVAC, background music, floor heating, ventilation, events, logic, etc. Each button has an LED background light for status signal and human-sensing night light. With a customisable user interface designation and shell colour, it is the ideal choice for your integration and decoration. 1/2/4/6/8-fold push button types are available.
As the latest KNX device presented by GVS on its 20th anniversary, the KNX Smart Touch V50 is equipped with a 5" IPS display which offers true colours and high definition. It has integrated all the basic KNX functions of lighting, shutter control, HVAC control, RGBW control etc. It also contains a built-in sensor to help adjust the temperature automatically. The weekly timing and logic functions also allow users to set more complicated and specific scenarios. Meanwhile, the installation design which has considered all standards, permits installation in any wall box worldwide, vertically or horizontally.
Granite Display is a multifunctional touch-control panel with a 4-inch high-resolution display. You can quickly access the most frequently used functionality or scenes by the shortcut buttons on the home screen. As you explore more on the user interface, you may find it different but comfortable controlling your home devices on Granite Display, including lights, curtains, modes, HVAC, music, primary air system, etc. Instead of installing a row of switches on the wall, you can just use one Granite Display to control all the electric devices and maintain a minimal look at the same time.
With the KNX buzzer AS 10.00 KNX, Hugo Müller expands his KNX product range with a buzzer for the KNX bus. You can set three different sound levels and with the adjustable tone sequence, it’s possible to generate a continuous tone or a specific tone sequence. The buzzer can be used in private areas e. g. as a confirmation sound on leaving the house or as a warning buzzer if the windows are opened. Due to the compact housing, the AS 10.00 KNX can be easily mounted on the wall or with the help of a mounting angle also outside. The buzzer is set up via ETS.
Intesis presents its new Modbus RTU to KNX for the integration of Modbus RTU Slaves, like energy meters, to KNX systems. This new product extends the already wide range of Intesis KNX protocol translators. The gateway has direct connection to KNX TP from one side and to Modbus RTU (RS485) from the other side, offering bi-directional control and monitoring of the integrated data. Its reduced dimensions help its installation anywhere required. Moreover, it is easily programmed through ETS thanks to its specific database.
The new Verso indoor unit is the latest addition to the Iddero Verso family of 4.3" capacitive touch panels. This model retains the elegant design, attractive visualisation, and advanced functionality from the Iddero Verso series (including support for remote control from smartphones and tablets through the Iddero Mobile app), and also doubles as an indoor monitor for SIP-based door phone systems. Compatible with SIP door stations from main door phone manufacturers. The device features an integrated loudspeaker and microphone, and can handle real-time true colour video and full-duplex audio with acoustic echo cancellation.
ILEVIA EVE X1 server is the hardware platform of the EVE system, a multi-protocol gateway equipped with KNX, RS485 and LAN ports, which guarantees interoperability between devices with different communication protocols. The gateway allows the supervision of the system and all the automation functions connected in an extremely simple and intuitive way, both locally and remotely, with the free EVE client app for mobile and desktop. The well-designed user interface automatically adapts to any device. EVE X1 server also acts as a gateway for Google and Amazon voice control systems. The EVE software allows you to design the interface, scenes, timers and much more depending on the version installed.
The I-Luxus 0 – 10 V module with eight analogue outputs can be used for 0 – 10 V LED drivers for dimming operations or 0 – 10 V operational valves for HVAC operations. It has four analogue inputs, PT1000, NI1000 sensors and 0 – 10 V voltage. 0 – 20 mA current via 500 Ohm shunt connections are supported. Four digital inputs are included can be connected as dry contact. Eight analogue output channels DC010V. Four analogue input channels four digital input channels Dimming operations HVAC operations. KNX certified product and therefore configurable via ETS.
TA-Slider from IMI Hydronic Engineering is a digitally configurable proportional actuator with KNX communication; available with or without 24 V relay. TA-Slider 160 KNX and KNX R24 are suitable for valves requiring up to 160N adjusting force, making them ideal for HVAC applications that call for advanced hydronic control. Thanks to numerous setting parameters configurable through ETS, TA-Slider allows for optimal on-site adaptability. For accurate diagnostics, 5 different errors (low power, signal out of range, valve clogging, stroke detection failure, cyclic timeout) can be reported on the KNX bus. It features IP54 ingress protection in all installation orientations.
Recorder is a very powerful tool suite for KNX telegram recording. With the independent recording module, KNX telegrams can be recorded and stored unattended, reliably and permanently, tailored to the task. The files created by the recording module or other sources (e. g. ETS) can be further processed with the recorder in a variety of ways. The recorder user interface can evaluate recorded telegrams and analyse them with powerful filter functions.
Interra proudly presents newly developed KNX-DALI Gateway. The device has 1 x 64 Ch and 2 x 64 Ch versions. Each channel controls 64 devices, 16 groups and 16 scenarios. Each DALI device can controlled individually, group and broadcast additionally emergency and tunable white (Type 8). There is field addressing and control over ETS without extra software. Installation, control and monitoring of DALI line via KNX and Ethernet provide flexibility. Visualisation and control of the DALI devices via web server and defective ballasts monitored by notifications. Manual operations and control of the DALI line can be changed with the manual button. Remote update feature will keep your device always up-to-date.
With the ISE SMART CONNECT KNX PANASONIC, the integration of up to four Panasonic TV sets into KNX is possible. The functionality of displaying IP camera pictures on screen is an innovative feature. Looking at your TV and find out whether guests are already at the door. Your smart washer has finished? Movement in the garden? Display self-defined message texts on your TV. Controllable functions are: on / off (standby), volume, programme and source selection. The system can be completely configured via ETS and is extendable via firmware updates.
The Lime KNX Universal Dimmer is a compact 230 V dimmer with one dimming output and two binary inputs. The dimming actuator can be used for dimmable electric lights supplied with 230 V mains. To cover a wide range of usable electric lights, the universal dimmer 7625530 can operate with trailing or leading edge dimming. Besides controlling the light by switching, relative dimming and dimming value, several optional functions are integrated including scenes, automatic slumber function, staircase lighting and sequencer.
The room temperature controller has an active colour display and is equipped with a temperature and humidity sensor. The setpoint shift is set with the upper two keys +/-. The lower two keys are used either for the Comfort / Stand-by / Eco / Antifreeze operating mode, the integrated ventilation function or for any two switching functions. The room temperature controller also has four binary inputs for connecting window contacts or conventional push buttons. The brightness of the colour display can be adjusted via a brightness or day/night object.
Innovative group control, the new multi-tip function, RGBW status LED and integrated temperature sensor. With these new functions / features, the push button presents itself on the market and fits seamlessly into the 55 mm range. The extensive application enables functions such as switching / dimming lighting, blinds, value and scene control. The push buttons can be set as a pair of push buttons or as individual push buttons. The integrated temperature sensor is used for room temperature measurement and, together with the heating actuator, enables efficient room temperature control.
PWM-60/120KN series is a 60 W / 120 W AC / DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the colour temperature and the brightness homogeneity when driving all kinds of LED strips and the KNX interface to avoid using a complicated KNX-DALI gateway. PWM-60/120KN offers 12 V and 24 V output models. Thanks to the high efficiency up to 90 %, with the fanless design, the entire series is able to operate for -40°C ~ +90°C case temperature under free air convection. The minimal dimming level is 0.5 % and the output frequency is changeable between 200~4000 Hz using ETS settings, providing great flexibility for LED lighting applications.
The NETx BMS platform now includes a sophisticated reporting module. The generated reports include chart and table elements that show trending and historical KNX values as well as data from other BMS functions. Typical examples are trending reports, alarm reports and KNX / DALI test reports. Reports can be generated manually or automatically (daily, monthly, weekly, yearly reports). The report files can be stored as PDF, MS Excel and many other formats. The reporting module also includes an enhanced reporting designer. Using this web-based designer, the user can create their own report designs and templates.
Quickstart your next KNX project with the new family of Arduino shield compatible evaluation boards from ON Semiconductor (NCN51xxASGEVB). The Arduino Uno V3 connectors ensure compatibility with a wide variety of development boards, enabling rapid prototyping with your microcontroller of choice. All external components necessary for operating the transceivers are included on the shield. The ON Semiconductor NCN51xx series of KNX transceivers handle the low-level communication necessary to comply with the KNX standard. The high level of integration, like the multiple DCDC convertors and LDO, allows for an industry-leading small design footprint.
The slim Controlmicro celebrates its premiere at Light + Building 2020 (Hall 9.0, Stand D80). With its 8-inch screen, it is ideally suited for room control and can be installed flexibly in portrait or landscape format on a standard switch box. The Controlmicro can be operated with the PEAKnx YOUVI software or other common visualisation programs for room and home control – the Windows 10 based system makes it possible. Despite its compact design, the Controlmicro is equipped with high-quality features. Depending on the used software it has the same application options as the larger PEAKnx touch panels Controlpro and Controlmini.
Voice control without the Cloud in the switch box. The computer for the evaluation of spoken data, as well as microphones and loudspeakers: Everything integrated in a device that fits seamlessly with all switch ranges (55 x 55 or all JUNG series). As inconspicuous as it is, the functionality is so powerful. After plugging in via the PoE line, the configured devices and room names are read from the popular visualisation servers like ProKNX (realKNX Air, realKNX O-two) or JUNG (Smart Visu Server) and trained via AI. Immediately thereafter, the system is ready to work, a real plug and talk! ARAGON is compatible with the previously supplied servers without any update required.
Thinknx Viavai is a fully integrated access control system that permits you to enhance the level of automation and security where it is applied. It has many benefits in terms of flexibility and integration as it is natively compatible with KNX systems. Viavai communicates directly with KNX through ThinKnx servers and takes advantage of the KNX bus enabling the use of standard KNX keypads, RFID or biometric readers as components of the system. Viavai offers a convenient solution in many practical cases: it can be adapted to fields where codes with long-term expiration are required as in service or industry fields, but also to hospitality where credentials are usually short-term and remote management is required.
KNX-BSA12L and KNX-BSA12H are two-channel blind actuators designed to work with devices supplied, respectively, with 24 V DC and 230 V AC (current up to 6 A). They offer a very high control resolution (in the order of milliseconds) even for very small loads (KNX-BSA12L: 30 mA, KNX-BSA12H: 160 mA). They have mechanisms for the automatic recognition of endpoints and current position of the window covering. They allow you to control the movement of the shutters/blinds (horizontal and vertical blinds, roller shutters or awnings) and windows with electric drive. They perform functions: central, intermediate position, scenes, security, and weather alarms.
The new SpaceLogic KNX IP router DIN rail MTN6500-0103 from Schneider Electric is certified KNX IP and Data Secure. It belongs to a KNX Secure family containing an IP and USB interface and a coupler. The 18 mm width housing saves space and the device does not need power over Ethernet or an auxiliary power, thereby saving money and energy. 10 / 100 MHz makes IP switch selection easy. It can be used as an IP router or IP interface with up to eight tunnelling channels. There are two push buttons to transmit all groups or individual address telegrams for a test. Three LED show the device and communication status. QR codes enable a KNX Secure configuration with ETS and a quick product information access.
Buildings are increasingly intelligent. Ensuring that the rooms in buildings are perfect places to be, requires intelligent devices – like the new presence detectors WIDE, which combine five functions for a pleasant atmosphere and energy savings in the room. The new presence detectors with a wide detection range capture data on CO2, temperature, humidity and brightness and thus control not only the illumination systems but also ventilation and heating systems. This creates optimal ambient conditions in the space – for maximum comfort and the highest energy efficiency.
Apart from identifying true human presence, the True Presence® multisensor KNX from STEINEL also detects brightness, room temperature, humidity, air pressure, the concentration of volatile organic compounds (VOC) as well as the level of CO2 actually measured in a room. This means that besides saving energy, the focus is also on providing a good indoor climate. And, as a 360-degree multisensor, it can watch over up to 177 m² with absolute precision. Extending the range of KNX applications, True Presence® supports over 170 Group Objects. Combined and grouped together, they are already capable of delivering the information for digitalising the automation of tomorrow's intelligent building today.
At Light + Building 2020, TAPKO will highlight an exceptional product innovation – the combined system device MECps640. It combines the functionalities of two different KNX system devices. As a combination of a TP line coupler and 640 mA bus power supply, MECps640 connects TP lines and simultaneously powers the line on its secondary side. MECps640 requires only two units space on the DIN-rail. Using the ultra-slim device instead of two separate larger ones leads to a remarkable advantage. Installations become more compact and projects become more cost-efficient. All filtering and special functions of TAPKO’s highly appreciated line coupler MECtp are present. This product is available as OEM.
Tense expands its product range with the Intensity Integrated: an architectural switch solution for every situation. The Intensity Integrated of Tense is a capacitive touch switch which can be made fully integrated in the wall finish of your choosing. Tense provides the electronics which can easily be placed behind a stone, wooden or Corian wall. The Integrated has four touch zones with integrated colour LED which provide tactile and functional feedback. As all other functions and behaviour of the Intensity, the LED’s individual behaviour and colour can be set via ETS. The Intensity switch supports switching, dimming, setting scenes. It also has a scene module, timer, programmable logic ports.
Theben AG is expanding its range of KNX RF products with new KNX RF flush-mounted actuators and media couplers. Encryption through KNX Data Secure ensures communication is optimally protected against tapping and manipulation. KNX RF flush-mounted actuators support secure communication and therefore effectively prevent interpretation of the transmitted data. This guarantees maximum data security for the customer and effective protection against tapping and manipulation. The portfolio comprises a universal dimmer (DU 1 RF KNX), a blind actuator (JU 1 RF KNX) and a switch actuator (SU 1 RF KNX). All actuators have two external inputs for connecting buttons, a signal contact or a temperature sensor.
E10W is a 10 inch touch panel with KNX connectivity. It provides IP54 protection and was developed for cost-sensitive applications in building technology and energy management. Thanks to the Android operating system and the HTML5 browser, it is compatible with all common web applications and can be used universally. The widescreen display with capacitive multitouch (PCT) offers a native resolution of 1024 x 600 pixels. It can be operated intuitively, just as the user is used to doing from his smartphone or tablet. Without rotating parts and fans, the panels are particularly robust and durable.
The KNX SMI actuators by WAREMA as DIN rail-mounted devices each control 16 SMI or SMI LoVo motors (depending on the actuator) independently in up to 16 groups. At only 3 TE wide, the highest flexibility is given for the installation of the actuators. Access to the emergency / manual control is easy either by means of a switching mat on the actuator, ETS or smartphone app (Bluetooth LE). Just as easy: commissioning by SMI Key ID via ETS or motor search/allocation by app. The smart SMI motors provide feedback on the position of the sun shading system and send any error messages.
Two-in-one in the Match-55 series: KNX RF / ENO push button 440 secure wireless push button for EnOcean and KNX RF in one device. Without configuration, the push button works in EnOcean or EnOcean Secure mode. Through configuration with ETS®, the push button switches to KNX RF mode with optional support of KNX Security. The push button is suitable for numerous switch ranges available on the market with an internal dimension of 55 mm. With a soft and quiet keystroke, it is available as a single and double rocker. The sister model KNX TP push button 420 secure offers a solution with integrated bus coupling unit for the KNX bus.
NV Embedded® sets the stage for the future of indoor climate control. With focus on IoT, BMS adaptability and flexible fieldbus communication, the solution presents new, unmatched features that will alleviate the obstacles that previously prevented building professionals from opting for automated natural ventilation. The system fits all building types, as the solution doesn’t require a specific fieldbus technology. It can use all open standards including KNX depending on the preferred level of BMS integration. As a result, the new NV Embedded® is both flexible and scalable. Furthermore, NV Embedded® benefits from an app and cloud solution allowing building administrators to access building data.
Universal dimming actuator (RLC, LED, CFL) for DIN rail (4.5u) with four channels for up to 210W@230VAC (160W@110VAC). It allows double-channel connection, up to 400W@230VAC (300W@110VAC) and quad-channel connection to control up to 750W@230VAC (600W@110VAC). Autoload type detection (RLC). Configurable dimming curves for LED and CFL. It allows manual control of its outputs thanks to the push buttons on the cover. It includes 10 independent logical functions. Error detection: short-circuit, voltage surge, overheating, anomalous frequency, supply voltage failure, parameterisation error.
ZF Friedrichshafen, TAPKO Technologies and Voltus are cooperating to offer a KNX RF S-Mode training kit as a perfect basis for KNX training centres to start with KNX RF. The partners have composed a basic kit (Voltus part number: 1692969), which consists of a KNX RF switch with programming adapter from ZF, compatible design parts and a KNX RF media coupler. A supporting extension kit (Voltus part number: 1692970) is offered which contains in addition to a KNX RF USB stick, also a KNX RF socket to enable the training of additional functions. Both sets are directly available from Voltus.
KNX Secure offers effective protection according to banking standards in smart homes or smart buildings. KNX devices are connected with a computer, central visualisation or other data processing devices via IP using the JUNG KNX IP interface. The KNX IP router can also be used as an area or line coupler. IP Secure encrypts the data communication in the IP network. Thus, communication to visualisation is safe. KNX Data Secure ensures that KNX telegrams selected independently of the medium are authenticated and encrypted. Thus, the communication between the sensor and actuator can neither be interpreted nor manipulated. In Switzerland, the JUNG IP interface and IP router are available exclusively from ZidaTech.
The complete list of new products can be found in the latest KNX Journal
