KNX eTR 101 is a room temperature controller for KNX that automatically ensures the desired room temperature and enables individual readjustment via "plus" and "minus" touch surfaces. The simple, intuitive user interface allows use in both private and commercial areas. The real glass surface is both elegant and durable.KNX eTR 101 measures the temperature on site and controls heating and, if necessary, cooling. Single-stage and two-stage systems can be controlled. All settings such as connected systems and target temperatures for the operating modes Comfort, Standby, Eco and Building Protection (KNX-HVAC standard) are made in the KNX application of the room temperature controller.
Vous trouverez dans cette liste les nouveaux produits KNX récemment lancés.
LED dimmer (UD/S18.104.22.168) optimised for dimming retrofit LED lamps (LE-Di). Also suitable for dimming incandescent lamps, low-voltage halogen lights, 230V halogen lamps and dimmable energy-saving halogen lamps. Automatic load detection (can be deactivated). Separate N-connection per channel. Parallel connection of the outputs possible to increase output power. Programming of the device also possible without applied 230V supply voltage. Extensive test and diagnosis via i-Bus tool. Fast parameterisation in ETS with channel templates. Native ETS application.
Technology from AGFEO, one of the leading manufacturers of communication systems, enables the evaluation of KNX events and, where necessary, dialling of any required telephone numbers via a communication stack function. Creating a real call is a more direct solution than an email or push alert, which are also possible. A clear, targeted explanatory recorded message can be played when the call is taken. An optional acknowledgement function ensures that the information reaches the correct recipients. The KNX dialler function is installed in all AGFEO ES Series telephone systems as standard and can be used at no extra cost.
Apricum´s 4-fold KNX push button interface TAI4 now supports KNX Data Secure. Commissioning is protected and unwanted manipulation of the secured runtime communication is impossible. For every CO, Data Secure can be activated separately. The I/O module is suitable for sensing binary signals of potential-free contacts like push buttons, conventional switches and contact sensors. Its KNX input functions of dimming, shutter, switch, scene, counter and send value can be used as usual. To supply loads like status LEDs, TAI4-secure is also able to operate its channels as outputs. Even dimming of the LEDs is possible. Due to its small housing, TAI4-secure finds enough space in a flush-mounted box behind the switch.
The ATEN Control System is a standard Ethernet-based management system that connects all the hardware devices in a room or large facility to provide centralised control directly and effortlessly via a mobile device or tablet. The ATEN Control System supports native KNX/IP technology for building management systems. Users can take the control of KNX devices by simply connecting an IP to TP KNX Interface with the same pro AV device management control. By following the ATEN Control System's intuitive operations, user can fully customise the control and UI settings of KNX and the pro AV devices by importing the ETS file.
terminal – perfect configuration of smart homes: The planning tool for the perfect KNX installation – for beginners and electrical specialists. Using terminal as planning software, electricians can con-duct electrical planning of both homes and commercial buildings, flexibly con-vert standard installations into KNX, guarantee a 100% functional installation and save a great deal of time with the automatic ETS export, for example. Use the terminal app or start directly for free at www.terminal-konfigurator.de!
Hackers stop at nothing! To effectively protect the digital infrastructure in buildings against attacks, facility planners should already rely on KNX IP Secure during installation. It encrypts data communication in the network and ensures secure transmission of all KNX telegrams. Up to eight tunneling connections can be used for encryption. Using the JUNG KNX IP Interface (IPS 300 SREG), the rooms (for example in hotels or office buildings) are connected to the central visualisation system via a fast IP backbone. The KNX IP Interface has an OLED display to show important device parameters. Additionally the device is powered directly from the KNX bus.

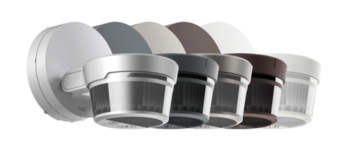

The outdoor motion detector has undergone a facelift and is full of new functions. The anti-creep cover conceals a downlight that can be used, for example, to illuminate the house number or for ambient lighting of the building in the appropriate corporate colour. The RGB colour of the LED can be freely selected via the B.E.G. app. The integrated temperature sensor feeds the outdoor temperature into the KNX system and enables a frost alarm, for example, via the logic module. The detector is equipped with digital motion sensors that monitor a temperature-stable range of 20m. The intelligent follow-up time is made possible by the detection of the direction of movement.
CUBEVISION 2 now includes scenes, clocks and logic functions. It offers a unique building visualisation and is very easy to set up and operate. The well conceived user interface automatically scales to almost any display device. Smartphone, tablet etc. become the control centre for your intelligent home in no time at all. CUBEVISION 2 is easy to configure: set up building structures, background images and functions. The complete visualisation is then created automatically. Smart Function Creator: With CUBEVISION 2 you create your own scenes and smart home functions by dragging and dropping within the user interface.
Basalte presents its new KNX visualisation called Basalte Home. Through the beautiful user interface, home owners can easily control lights, shades, music, HVAC, door phones, cameras & more. Basalte Home is powered by the Basalte Core server, which also provides a logical engine, custom notifications and third party integrations with e.g. Amazon Alexa and Philips Hue. Basalte Studio is the configuration software of Basalte Core: a powerful yet very easy-to-use tool for KNX integrators. Basalte Home will be available for iOS and Android. Basalte’s Ellie touch panel will integrate seamlessly with Basalte Home and other Basalte controls, thanks to its elegant, high-quality finish.
Doory is an intelligent numeric keypad that can receive a new access code from a remote smartphone, to facilitate the check-in without a receptionist. The code can be programmed using a dedicated app to be installed on a smartphone (iOS or Android). Doory is a 12-key capacitive touch glass solution, with backlighting activated thanks to the integrated proximity sensor. The memory can contain up to 100 slots to be able to store the codes of every single room.
Simple, fast, faultless - this is how configuration and commissioning work with the STX Service-Tool. The SunControl object replaces the complex linking of single group addresses and the STX Service-Tool supports the setting of the parameters. Once a channel is completed, individual parameters or entire parameter sets can be copied to other channels just at the push of a button. For commissioning of SMI systems, each drive can be controlled individually via ETS. The channel assignment can be changed directly and the adaptation of the Group Addresses and multiple programming of the application is not necessary anymore.
BSMART KNX touch panels – Luxurious, intelligent living has never been so close and affordable. - Ultra powerful, controls almost all types of smart devices with KNX.- Ultra slim, easy installation with a mounting bracket, time and cost savings.- Luxury design, tempered glass front plate with high touch sensitivity.- Customisable label for any functions configured to the keys.- Competitive price for new product.
The ABB-tacteo® KNX sensor is an individually configurable control element for the intelligent control of public buildings, exclusive residential buildings and luxury hotels. Due to its glass construction and its production according to individual customer wishes, ABB-tacteo® is unique. The number of functions is variable and can be determined according to requirements and demands. With the capacitive operating surface, all building automation functions such as heating, blinds, lighting or comfort scenes can be controlled.
BES continues to expand its range of climate integrations with the new gateway between KNX and the Mitsubishi Electric® protocol, MBAC-K. This new device is connected to the Mitsubishi indoor unit through a direct cable connection, supplied together with the gateway. This allows an indoor unit to be controlled with each gateway. The new reference, GW631100, allows you to indi-vidually control the setpoint temperature, current temperature, operating modes (cold, heat, ventilation, dehumidification or automatic) and fan speed (low, medium, high). A special feature is the swing control by movement or position. In addition, it includes energy saving mode, scenes, arithmetic/logic unit and timers/counters.
ComfortClick has launched a new version of its Jigsaw KNX server for controlling KNX-based smart buildings. In addition to KNX, Jig-saw now supports Google Assistant, Amazon Alexa, IKEA, Samsung Smart TV, LG Smart TV, Satel and Paradox alarms. All the previously supported sys-tems are also still there, to name a few: Sonos, Philips Hue, IP cameras, Kodi, Global Caché, IRTrans and TCP/IP devices. ComfortClick's bOS software enables the design of custom user interface, logical operations, scenes, and schedules. Control and monitor your smart building with free bOS Cli-ent apps for iOS, Android and Windows or Alexa and Google Assistant.
This important component is used to connect the Control4 EA controllers to the KNX bus. The previously available universal KNX network driver is now a completely newly developed version that supports the ETS import function into the Control4-Composer Software when using additional Control4-KNX devices.
Built on the latest technology, the KNX power supply 640mA with high efficiency and small size of four modules is the perfect base component for each KNX installation. Due to the complete development and production in Germany with the highest quality components, an incomparable reliability is guaranteed. Nevertheless, the cost efficiency required for a frequently used KNX basic component is ensured. An auxiliary voltage connection, diagnostic LEDs and a button for the automatic BUS reset are available.
Top performance meets top flexibility – The fifth generation of the intelligent high-end touch panel PC with the latest Windows 10 IoT Enterprise 2019 operating system and freely configurable additional modules is a real performance wonder: Thanks to the mega-strong Intel Core i5-7200U processor, 8 to 32 GB RAM and 120 to 480 GB SSD hard disk size, all KNX applications / visualisations run even faster and more optimised. And so that the new HomeCockpit Excelsior can be easily and harmoniously integrated into any smart home, it is available as a surface-mounted or flush-mounted version for all common installation boxes. Get in touch with the future!
DINUY introduces its new and powerful 8-channel universal dimming actuator. Suitable for RLC+LED loads: LED lamps, incandescent and halogen lamps. Capable of loads of up to 250W on each of the eight channels. Incorporates two dimming technologies: leading and trailing edge. Both technologies can be selected via the parameterisation with the ETS. Each channel can be controlled manually via the push buttons on the front. This allows the lamps to be checked without needing the ETS bus. Modular housing for DIN-rail mounting (8-fold). Different LEDs indicate the status of each channel as well as error messages. Built-in protection against overload, short-circuit and overtemperature. The con-figuration of the device is performed via ETS5.
The LAÜKADot switch range consists of 2-, 4-, 6- and 8-channel touch-sensitive buttons. Designed to provide full control to the user over the lighting, the blinds and, in turn, the ability to memorise scenes to generate the desired ambience. Two different designs available depending on the colour of the front glass and the colour of the edge: black glass and copper edge or white glass and chrome edge. Formed by 2, 4, 6 or 8 touch areas where direct functions can be assigned to control lighting, move the blinds or create personalised scenes. RGB colour LED illumination. The devices are also equipped with a proximity sensor through which the keyboard is activated.
Due to the complete development and production in Germany with the highest quality components, an incomparable reliability is guaranteed. Nevertheless, the cost efficiency required for a frequently used KNX basic component is ensured.
DM02A02KNX is a universal KNX 2-channel dimmer featuring automatic identification of load type and adjustable parameters to optimise the control of different lamps types (LEDs, incandescent, halogen, dimmable compact fluorescent lamps -CFL-, low voltage lamps with electronic or ferromagnetic transformer). The 2 channels can be used independently or combined to drive higher power loads; the DimmerLoadTester software is available to define the maximum load and, in particular, the maximum number of lamps that can be connected. Configuration of output channel in trailing [RC] or leading edge [L].
Black & Gold is the new colour combination that Ekinex offers for its KNX push buttons of FF and 71 series. The combination of the two most contemporary colours create a push button suitable for the most sophisticated and elegant settings. Brass finish frame and black metal rockers will be at ease in the living rooms of the coolest houses. The 4-fold KNX push buttons are powered via the bus and allow max. 8 independent bus functions. Depending on the version, they may have integrated room temperature controllers and LEDs. Bus terminal block, screws and mounting support are included in the delivery.
The KNX cable works on the standardised OSI network communications protocol, succeeding EHS, BATIBUS and EIB. With its excellent electrical and shielded transmission performance, KNX cables can be used for data transmission and to connect building technology systems, allowing the operation and control of lighting and climate control. They can be deployed both in private houses and public places (where a Flame-Retardant, Non-Corrosive Low Smoke Zero Halogen (FRNC-LSZH) sheath is recommended). The KNX protocol runs perfectly on ELAN twisted cables because of its incredibly low capacitance.
The integration of alarm systems in a KNX installation offers many advantages. For example, it is possible to control the lights using the motion detectors for staircase lighting or automatically recall KNX scenarios when the alarm system is armed or disabled and much more. The KNX gateway for the GE Interlogix NetworX alarm systems (Caddx) enables bidirectional communication with the alarm system. Real-time status of up to 96 zones, control of up to four areas (arm / partial / disarm) and nine statuses per area are available (intrusion, entry, exit, fire, etc.). Recall of KNX scenes for each status is possible. Gateways for other alarm systems are also available (Jablotron, Paradox EVO, etc.
KNX eTR 101 is a room temperature controller for KNX that automatically ensures the desired room temperature and enables individual readjustment via "plus" and "minus" touch surfaces. The simple, intuitive user interface allows use in both private and commercial areas. The real glass surface is both elegant and durable. KNX eTR 101 measures the temperature on site and controls heating and, if necessary, cooling. Single-stage and two-stage systems can be controlled. All settings such as connected systems and target temperatures for the operating modes Comfort, Standby, Eco and Building Protection (KNX-HVAC standard) are made in the KNX application of the room temperature controller.
The name says it all with the new "compact" actuators: The housing design is optimised for socket installation. There is one version of each function variant that communicates via Twisted Pair and one for KNX RF. The multifunctional KNX S1R-B4 compact and KNX RF S1R-B2 compact devices control one drive (up, down) or two consumer loads (2x on/off). The KNX application includes locks, priority settings and a comprehensive automatic shading system. The models KNX R1-B4 compact and KNX RF R1-B2 compact switch a load with up to 16 ampere at the potential-free output. All "compact" actuators have binary inputs, e.g. for zero position sensors or push buttons.
LogicMachine NB-IoT offers a unique approach for the IoT Edge market with a prepaid data plan for 10 years. No monthly fees, the ownership cost of the device is close to 0. All of Europe, Russia, China, USA is covered. The device has built-in KNXnet/IP, LoRa 433 and many other protocols and technologies. This solution offers its own cloud service and supports any external cloud services like MS Azure, Amazon Cloud and others. LogicMachine NB-IoT has a built-in application engine for developers.
MeTa® KNX is a KNX touch sensor and room controller with electronic labels and mechanical rockers. Each rocker can be used for four or eight (left / right) KNX functions. Room thermostat, temperature measurement, humidity measurement, an external binary input for potential-free contacts, feedback and operating symbols are integrated. The device has eight character sets that can be changed at runtime e.g. such as Cyrillic, Arabic, Persian, Hebrew. Pure luxury: in addition to a complete aluminum chassis (natural, alu black anodised, aluminum RAL9010 powder-coated), a real gold-plated version with a high-quality brass body is now available.
ESYLUX presents new designs of its FLAT presence and motion detectors, which at 104 mm offer a greater surface diameter than the standard variants. This makes the designer detectors suitable for applications such as installation in larger cavity wall boxes or flush-mounted boxes and it also means that they offer a neat appearance when surface-mounted: the covers ensure an optimum, flush fit on ESYLUX AP-C surface-mounted boxes. The KNX version offers an extensive range of 47 communication objects and, if required, a nightlight feature with integrated LEDs in different colours. All FLAT LARGE detectors have a range that is eight metres in diameter and a field of detection of 360°.
EXOR International eXware707 and eXware707Q, with powerful dual-core or quad-core ARM CPU, are the ideal control and communication devices for energy efficiency and automation applications in connection with KNX IP/TP. eXware controllers are ready for Internet of Things (IoT) applications thanks to their advanced communication capabilities and EXOR Corvina Cloud service. With the use of EXOR JMobile and Corvina Cloud, eXware707/eXware707Q devices become a powerful gateway that seamlessly connect KNX networks to the cloud using the OPC UA or other mainstream protocols. Connection to other systems makes these devices an integration tool that is simple to use and extremely efficient.
With the EVOknx heating actuator PRO, you are able to easily create complex regulations of underfloor heating systems. Up to 10 adaptive controllers per heating/cooling circuit are available. They make commissioning fast and uncomplicated. By using motorised actuators, the control system works precisely and at the same time it saves energy. Two temperature inputs for measuring the flow and return temperature are using 1-wire sensors and support the hydraulic balancing. Furthermore there are binary inputs for humidity and leak detection. All data can be recorded via the integrated data logging and can be used for analysis purposes.
Type 19.6K actuator implements 40 series relays with AgSnO2 contacts, allowing up to 2000 W loads. These bistable relays are ENEC approved, they can get a maximum peak current up to 120 A. This DIN-rail KNX actuator with six outputs is just 72 mm wide. ETS should be used to configure the relay parameterisation (NC/NO), external keyboard enabling, telegram priority and scenarios. Moreover, the type 19.6K provides many built-in logic and timing functions. Its versatility and reliability can be appreciated in every type of installation.
FS Cables 2-pair KNX-certified cable is increasingly being used in both commercial and high-end residential applications for total building control. It has been independently tested in the UK to BS EN 50575 for CPR-compliance and is now classified to Class Eca. It has also been tested and certified by KNX Association for guaranteed compatibility with KNX devices and equipment.This cable features a LSHF (Low Smoke Halogen Free) green or white jacket and is available in other variations for more demanding applications. The external duct grade version features a tough, waterproof and UV resistant PE (Polyethylene) jacket. For the ultimate protection, the SWA (Steel Wire Armoured) version is offered.
Sonos speakers can be easily controlled using the Gira X1 server – and with the smart Gira X1 app, it's child's play. The music control can also be integrated into the wall-mounted Gira KNX touch sensors for quick access to the play function. The current Gira X1 release 2.2 contains new functions. Firstly, the Gira X1 app has been renamed and is now called: Gira Smart Home app. Up to eight Sonos speakers can be controlled via the app, in addition to the user entering the Sonos speaker's IP address. The Gira X1 device website has also been revised so that the order of the playlists for the Sonos feature can be defined.
The combined 6/12-channel KNX actuator has 12 independent 8 AX relays, each with 1 NO output contact, for controlling 12 loads in switching mode or six roller shutters/venetian blinds with 230V AC motors. Each pair of channels can be separately configured: this means that combinations of output channel types (configured for switching or roller shutter commands) can be freely created. The device has 12 push buttons for directly activating the switching relays or the contacts for motor ascent and descent. Loads can be managed using the local push buttons, even in the absence of the bus voltage; in this case, the device must be provided with a 230V AC power supply.
The 3.5/5.0/10.1 inch touch panel plus is used to display the status and control various KNX devices, and performs preset functions through the graphical buttons on the touch screen. For example, sending switch light messages, scene messages, curtain and air conditioning control messages, etc. to the bus system to control other devices on the bus. Compared with an ordinary push button panel, the smart touch panel can display pictures and sound prompts through the liquid crystal display, and can be easily and clearly operated through the human-computer interaction interface. The touch panel is mainly applied in the home and building control system, and can be mounted on a conventional 86 box.
Due to the global needs of energy saving and energy management, we recommend the ME22.214.171.124 which provides detailed data of energy consumption. With status value feedback function, each channel can individually detect current / voltage / active power / power factor / energy consumption etc. You can set the logical policy control through this energy actuator. Depending on the settings, the real-time data produced can give an alarm to the bus if the monitoring data exceeds or falls below the set threshold. We have 4 or 8 channels with independent control of lights / loads and manual operation. It is also a standard KNX acuator which you can use daily.
This touch screen has a 10.1' IPS widescreen display and a high definition of 1920x1280 pixels. With an aluminum housing, it is as thin as 7 mm. It is equipped with a built-in web server and mobile app as well as a built-in camera (CCTV). The home automation connectivity via KNX, together with its intercom function via SIP based on Android OS, make it a very powerful tool for home automation.
I-Luxus ® Ephesus is a KNX touch sensor and room controller with four or eight mechanical rockers. A capacitive touch screen can be used for switching/shutter blind operations. HVAC functionality, cooling/heating or fan coil control are supported. It has an embedded temperature/humidity sensor displayed on the LCD screen. Additionally, an ambient sensor and light sensor can be added. The high-quality housing is available in anthracite, white, gold, shiny gold, matt gold, brushed gold, bronze, brushed steel, copper and ruthenium versions. All parameters can be changed by ETS and send periodically to KNX Bus.
The Iddero Mobile app lets users control their VERSO+IP touch panels from smartphones and tablets (iOS and Android). Setup of the app is straightforward: Users simply need to scan a QR code displayed by the VERSO+IP; the device is then linked to the user's idderocloud account. Both direct (LAN) connection and cloud-based operation are supported automatically, with no additional configuration. The app closely mimics the user interface of the VERSO+IP, so no additional learning is required. Push notifications allow users to get notified immediately if an alarm is triggered, even if they are not actively using the app. Communications are fully encrypted and 100% secure.
IMI Hydronic Engineering introduces TA-Slider, a new digitally configurable linear actuator with KNX communication protocol; available with or without an additional 24V relay. TA-Slider 160 KNX and KNX R24 are suitable for valves requiring 160N adjusting force, making them ideal for smaller HVAC applications that call for advanced hydronic control. It has over 100 setting parameters, allowing for optimal on-site adaptability, and IP54 protection in all installation orientations. Its connectivity features allow for configuration and communication directly via the BMS, enabling easy fault detection as it tracks operation statistics and load errors.

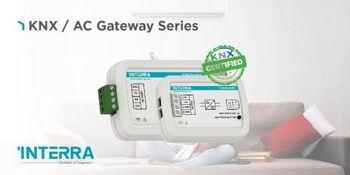

Intesis launched, at the end of 2016, the universal air conditioning gateway IS-IR-KNX-1, compatible with more than 40 different air conditioning brands. The configuration of the gateway is carried out via ETS using a simple plug-in. Sometimes it takes time to find the exact reference of the remote controller in the list offered on the plug-in. Therefore, to make this configuration faster and easier, the “Auto-Discover" function has been implemented. Just enter into “Auto-Discover” mode, press the On/Off button of the infrared remote controller pointing to the gateway and get the result displayed in the plug-in! If the remote controller is not available in the database, a warning will also be displayed, and it is only necessary to ship the remote to get it integrated.
Until now, the Elvis Viewer direct enabled the visualisation of KNX systems without server hardware. In addition to the KNX protocol, this app now also implements the MQTT protocol, thus opening the gateway to the Internet of Things. This robust IoT protocol considerably increases the number of supported devices and enables cross-protocol linking of data points/Group Addresses of KNX and MQTT devices. This extension is currently available for Android tablets and smartphones (iOS is planned). Optionally, an MQTT broker can be activated in parallel to the MQTT client.
The new hardware interfaces – RS485, 1-Wire, CAN – allow you to configure your own iRidium server UMC, a controller for automation systems, including KNX and IoT devices. It is possible to add other equipment to your KNX installation if needed. If you require HDL Buspro and/or Modbus RTU, you can add one or two RS485 modules to your iRidium server UMC. You can also add 1-wire and CAN, if required. As a result, in addition to numerous software functions, including support of BACnet, MQTT, Helvar, iNELS, Lutron, scenes, schedules, logics 24/7, push notifications, BYOD (for hotels), remote cloud control etc., there is a server that is extremely convenient to work with both on the software and hardware levels.
With the KNX RF/USB stick, you can conveniently and wirelessly access your KNX installation by PC or laptop. The device serves as an interface to KNX installations via radio, using the KNX RF standard. The stick enables commissioning and troubleshooting via ETS5 Long telegrams (extended frames) and commissioning are supported by KNX RF Secure devices. For the installation no additional USB driver is needed.
The simple and essential design that makes a unique feature of high-end metal KNX push buttons. Designed for small budget projects without giving up high-quality standards. With a labelling cover that can be customised with laser engraving. The labelling cover area also comes with backlighting to make it easy to find in the dark. In addition, the Lime KNX keypad comes with all standard functions like switching and dimming.
Fits 55 mm boxes, 8-6-4-2 buttons, three colours: white, black, silver (colour buttons can be changed), operation with short/long button push and two objects, operation of blinds and shutters, two colour LED on the side of the push buttons for status, value sending, step type switch, RTC operation mode, multiple operation, can be engraved with a backlight or insert paper be-hind a transparent cover.
The new Glass Push Button II Lite is the ideal complement to the Glass Push Button II Smart and is equipped with a comprehensive application. In one- or two-button operation, the functions for switching, dimming, values and scenes are available. An additional channel can be switched via a touch function. The push button is equipped with 2 pairs of push buttons, 4 sensor surfaces and four RGB-W status LEDs. The brightness of the LEDs is adjustable via a day/night object. The integrated temperature sensor is used for room temperature measurement and enables together with the MDT heating actuator an efficient room temperature control. The new Glass Push Button II Lite is neutral in design, available with up/down or I/O symbol.
The KAA-4R4V dimming actuator is a 4 channel device with high-quality independent latching relay. A DC 0(1)-10V signal performs the dimming on the connected driver at each channel. The dimming curve can be adjusted to linear or logarithmic mode which is suitable for all kinds of luminaires. The product specification indicates the maximum number of LED drivers per channel which is easy for building planning. KNX system integrators can easily program it via ETS, and it can be operated manually via a push button. The compact design with 4 SU(72mm) wide modules makes it suitable for quick and simple installation with one green LED on each channel for indicating the switching status.
Website: KNX dimming actuator
Inexpensive KNX project creation with ETS Lite and Nautibus ETS app Ei-Import The ETS app Ei-Import now has new possibilities. In addition to CVS Excel files, the Visu.XML files can now also be imported from EiPlan-outside. Preconfigured devices from EiPlan can now also be used or created from the ETS online catalogue. Since EiPlan-outside can split large ETS projects into individual areas, ETS Lite and EI-Import are usually enough for commissioning. They are easy to use and thus enable the floorplan-based creation of even larger KNX projects.
RealKNX O-two is the new all-in-one, ceiling-mounted speaker/microphone version of RealKNX Air. It is based on “ai” voice recognition with Snips. This completely offline working assistant is simply configured in the ETS product database of the KNX-proServ gateway. Privacy is guaranteed. Commands and queries for lighting, shutters, HVAC and media systems may be intuitively spoken in hundreds of different ways. The speaker/microphone is connected through Ethernet/WiFi. Hence only the power supply needs to be present in the ceiling. Once installed, the system runs “embedded” for years without an internet ac-count or automatic updates, just as we expect it from a KNX installation."
Thinknx K2, the elegant smart controller from Thinknx, due to the high number of connection capabilities and features, is the ideal solution in many installation cases. Thanks to the native KNX TP port, it can be used as a room controller or as a complete standalone simplified supervision system for the entire apartment/house. The Ethernet port permits the full remote control with dedicated app available on all the platforms. In addition to its brother Thinknx K, it acts as gateway towards voice control systems (Google Home, Amazon Alexa and Homekit supported), IFTTT and can be enhanced with additional integrations from Thinknx system.
KNX-BIN24 is a universal binary input module. It has eight physical (0-30 VAC/DC), eight virtual, four logic and four timer channels. The inputs can be polarised as NO/NC, and their type can be configured as monostable or bistable. It enables binary signals from outside the KNX bus to be converted into the KNX standard, and standard telegrams to be received from the KNX bus. It has 20 function blocks each of which performs one of the available functions: switch/setpoint adjuster, edge response, dimmer, shutter controller, switching sequence, counter, scene controller. One input, as well as signals from function blocks, can be repeatedly used in other/different blocks.
SCHNEIDER ELECTRIC launches new members for the motion sensor´s family, optimized for use in commercial building with high bay installations, long distance corridors and minimalist design spaces, with constant light control, ac-of the programming mode by remote control, test function, IQ self-learning staircase time based on user behavior and more new features. Including a surfaced mounted version with IP54 for especial installations and protection cage to protect the devices in open installations. The intuitive database is designed to cover most of the use cases with several ready outputs to control the light, the HVAC or to inform about presence, absence or intent of sabotage.
The SR-KN9551NK8 is a newly launched 8-fold KNX push button with ultra powerful functionalities which can be programmed to control almost all sorts of smart devices with KNX. It is designed with an ultra slim size and sleek glossy appearance. The material and finishing colour can be customised. It is suitable for apartments, villas, hotels etc. The labelling cover can be customised with laser engraving, to better indicate which functions are configured to the push buttons. The labelling area comes with a backlit design, easy to find even on a dark night. The new push button module has an operating LED and a status LED for each button, in RGB colours. As a result they can be set individually in red, green or blue, entirely as desired. The operating LED can also provide light for orientation. The new push button is designed with a mounting bracket for easy and fast installation.
The product portfolio of GAMMA instabus has been expanded to include new switching/dimming, solar protection and switching actuators with load current detection. The new products provide comprehensive control, override and diagnostic functions that can be activated via ETS. The devices support optimal control and automation of building functions and increase the comfort in the building, e.g. optimal lighting conditions in the room. The unified design of the new devices features a front control panel and maintenance-free terminals for effective commissioning and reduced installation time.
Among the many popular protocols for building and industrial automation, Sierra Monitor Corporation offers a KNX to BACnet protocol gateway. This device has recently been upgraded to include more storage and faster processing, in the same classic style of the traditional FieldServer products. The easy-to-use protocol gateway uses an intuitive “EZ” setup and configuration tools to interwork any KNX product to BACnet and connect the gateway to the SMC Cloud for remote device management and interface KNX certified products to BACnet management systems.
Sinapsi IoMETER 2G is the user device able to read the new e-distribuzione Open Meter 2G counter. It’s the element that transforms the 2G smart meter into a truly open tool. The availability of data on energy flows exchanged by the building and real-time threshold crossing warnings will pave the way for new application solutions in the field of energy efficiency and consumption monitoring, as well as dynamic energy performance of the building. Thanks to the user device, data is transferred to technologies closer to the world of IoT and home and building automation. IoMETER 2G will offer, thanks to the purchase of the appropriate service, data in KNX from and to CLOUD to allow the analysis of consumption data.
The True Presence® KNX is the world’s first true presence detector. It reliably detects the presence of a person regardless of activity. Micro-movements of a person's vital functions, such as breathing, or slight movements of the shoulders are sufficient for precision detection. There is no need for any stay-ON time. The person's distance from the sensor and direction of movement are also registered. This means that True Presence® KNX provides key information for managing tomorrow's buildings and opens up new applications. The sensors of the True Presence® product family are easily controlled via apps and can be wirelessly interconnected via Bluetooth.
The new KNXPM Supply Management ETS app is so good that you won´t need to use Excel (or that old sketch pad) anymore to track your stock, budget expenses and distributors, and it´s free. The main advantage for a KNX Partner is ETS: one tool to set up and commission the project. Why leave the non-KNX components and equipment (cable, connectors, servers…) out from the project? Manage your whole catalogue and/or import catalogues from your favourite distributors, then manage your stock and budget. Export your list of materials in Word or Excel. Enjoy looking at the dashboard and having everything under control. Chinese language included.
SIMip opens a simple way to connect IP network devices directly to KNX. Arbitrary end devices having suitable TCP/IP connectivity can be converted to real KNX IP devices and be controlled via the bus system by remote, by voice, by smartphone or just conventional switches. SIMip provides all necessary functions and includes the KNX-certified communication system. No complex handling is needed to make KNX accessible to non-KNX applications. The original non-KNX application can remain unchanged. SIMip supports up to 1024 objects and provides a web front end to update the firmware remotely via IP/Ethernet. A generic ETS database entry for further adaptation can be downloaded from the TAPKO website.
Tense expands its motion detecting product line by adding a completely recessed motion detector. KNX Motivity Plus White, this elegant motion detector has a built-in brightness and temperature sensor, on top of its motion detecting capabilities. The Motivity Plus Black supports motion and temperature sensing. You can install it surface-mount or flush-mount. Thanks to an all-in-one and robust fixture, you can install the Motivity Plus 100% seamlessly in your interior and create a true designer look throughout your project. Top design meets great functionality. This subtle detector (ø 73 mm) has a great action radius up to 8m, a range up to 10m and a 360° detection area.
The new flush-mounted KNX actuators are available in three versions: The universal dimmer DU 1 KNX is optimised for dimmable LEDs and offers an adjustable dimming curve and automatic load detection. The blind actuator JU 1 KNX with its sun protection and ventilation function ensures an optimal indoor climate. High switching loads (16 A / 740 A peak) are reliably switched with the switch actuator SU 1 KNX. Each of the flush-mounted actuators has two binary inputs for button/switch or temperature sensor. The power supply is provided by the KNX bus voltage.
The new design Touch ambiento fascinates with its purist Bauhaus design. It combines timeless elegance with a modern display and processor hardware. The 16-inch full HD dis-play with its frameless genuine glass front seems to levitate in front of the wall. A bicolour LED can signal various states. The panels can optionally be equipped with a digital input and output, a KNX interface and a power supply via PoE. The consistent system design in industrial quality ensures long-life and maintenance-free systems.
Voxior Box brings voice control to every smart home owner. Present safety and comfort to your customers with a friendly plug-and-play setup and auto-connection. Increase their security as the connection to the home is made locally and the credentials are also stored locally. Upgrade existing clients to the latest standards of network security and empower them to command their home with all popular assistants (Google Home, Amazon Alexa and soon also Apple Siri).
The new KNX SMI actuators by Warema allow 16 SMI or SMI LoVo motors (depending on the actuator) to be controlled in up to 16 groups independently of each other. Standard commercial (venetian blind) push buttons can be connected by integrated binary inputs. Access by emergency/manual control is easy either by means of buttons on the actuator, ETS DCA or smartphone app (Bluetooth LE). Just as simple: commissioning by SMI Key ID via ETS or motor search/allocation by app. The smart SMI motors provide feedback on the position of the sun shading system and send any error messages.
Secure on IP: KNX IP Security enables secure connection for PCs or visualisations as well as secure routing over IP with full compatibility with existing KNX devices or installations. The new KNX IP Interface 732 secure and KNX IP Router 752 secure are the logical evolution of our successful KNX IP series. The devices have a compact design with a width of only 18mm and are powered by the KNX bus. KNX Security can be activated and deactivated as an option in ETS. The buttons and LEDs on the device allow a local diagnosis of the current operating status and possible communication errors.
KNX for HVAC applications: The KNX gate-way 886 enables easy integration of Modbus devices that support the RTU protocol via RS-485. The gateway can act both as a master and as a slave. The data of the application are mapped to Group Objects according to the KNX Datapoint types and vice versa. The assignment between KNX objects and RTU registers is flexible via parameters in ETS®. The device has a width of only 18 mm. Three coloured LEDs on the front of the device visualise the connection and operating status.
Capacitive touch panel with a backlit 3.5” display, humidity sensor and internal temperature probe. Up to 42 controls/indicators can be configured, distributed in up to 7 pages. It includes two independent thermostats and 4 inputs. A screensaver with date, time and/or temperature can be set, returning to the menu automatically when the user approaches thanks to its proximity sensor. It can display a full-screen picture. Its brightness can be regulated by the ambient luminosity sensor. It also measures the relative humidity and calculates the dewpoint. It is possible to set alarms for humidity and for the condensation on a surface. Available in white, anthracite, silver and gloss white.
The basic functionality of the device is coupling a KNX TP (Twisted Pair) main line with a KNX RF sub line. With the media coupler, it is possible to address every bus device in the bus system. It can be used as a receiver for ZF’s KNX RF push button module and other KNX RF devices. The media coupler can be configured via the ETS5 software tool using a product database which is already integrated in the ETS."
With the KNX rotary sensor, complex KNX functions can be easily controlled using intuitive conventional operation. You can operate all building functions by turning and pressing the control button: e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes and more. The rotary sensor also has three binary inputs for potential-free contacts. This means that conventional switches can also be connected to the bus. The KNX rotary sensor is available in all common Swiss push button designs and in the exclusive JUNG design - in various colours, for every taste.
