international development bank Iraq Headquarter
Office building in Baghdad
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2026 |
| Project Size | 501 – 1.000 |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 26 – 50 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation, Floor Heating Control, Boiler and burner Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Intrusion Detection / Alarm Systems, Emergency Lighting, Presence Simulation, Supervision (e.g. Cameras), Interaction with HVAC/Lighting

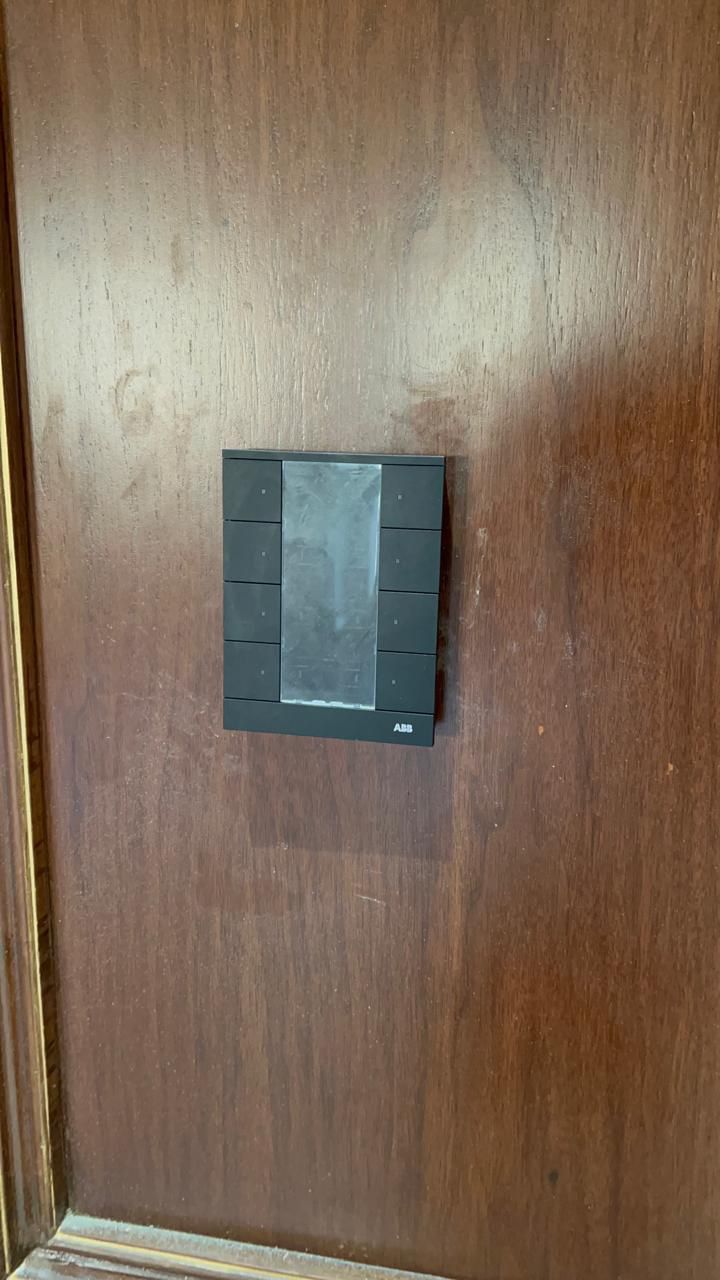

- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Fuel or Water tank level control, Peak Demand Monitoring, Load Shedding , Energy Harvesting (Avoiding use of batteries), Use of Renewable Energies, Battery Storage
- Other - Intercom, Audio Control, Video Control, Home Appliances Control, Irrigation Control, Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description

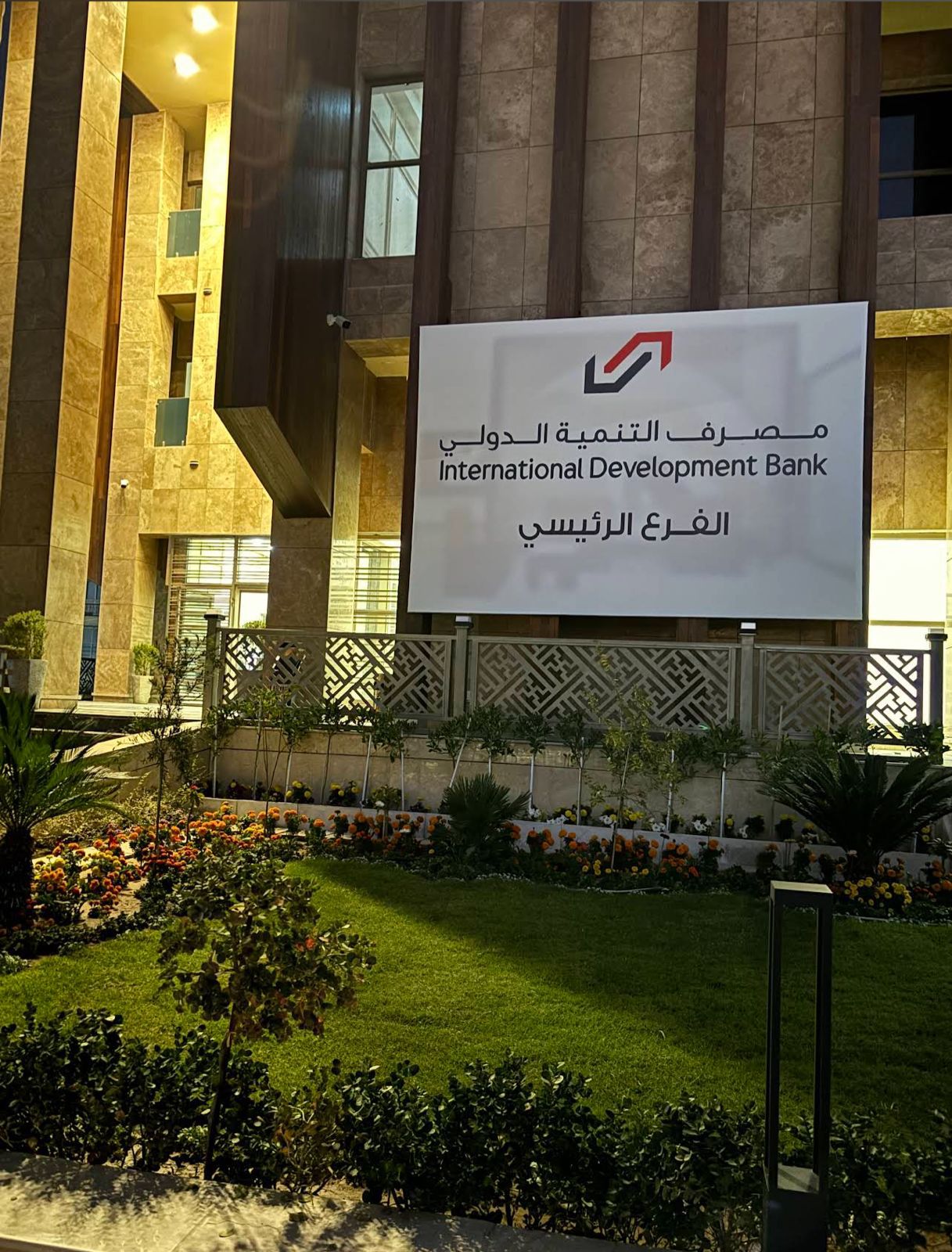

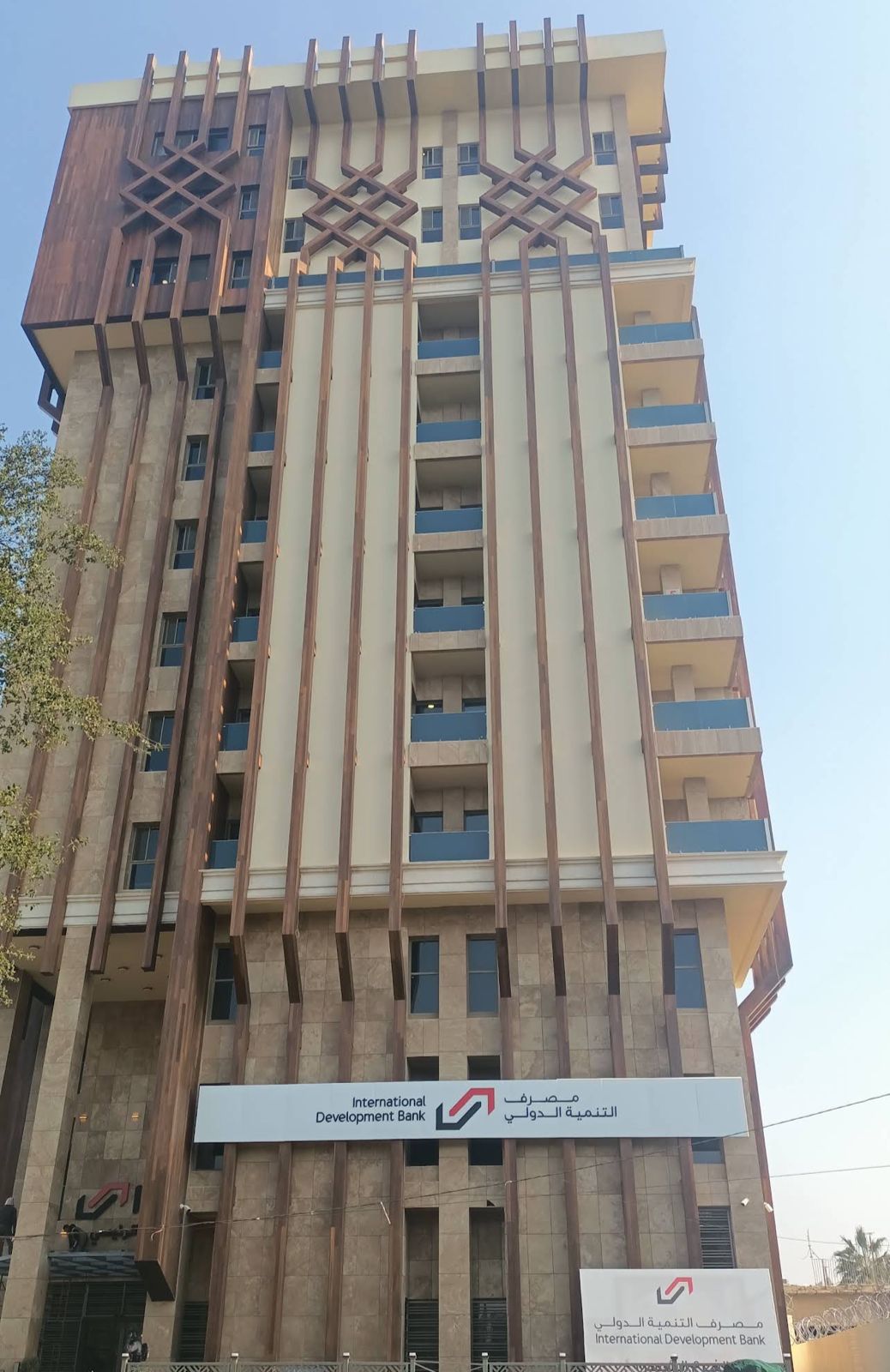

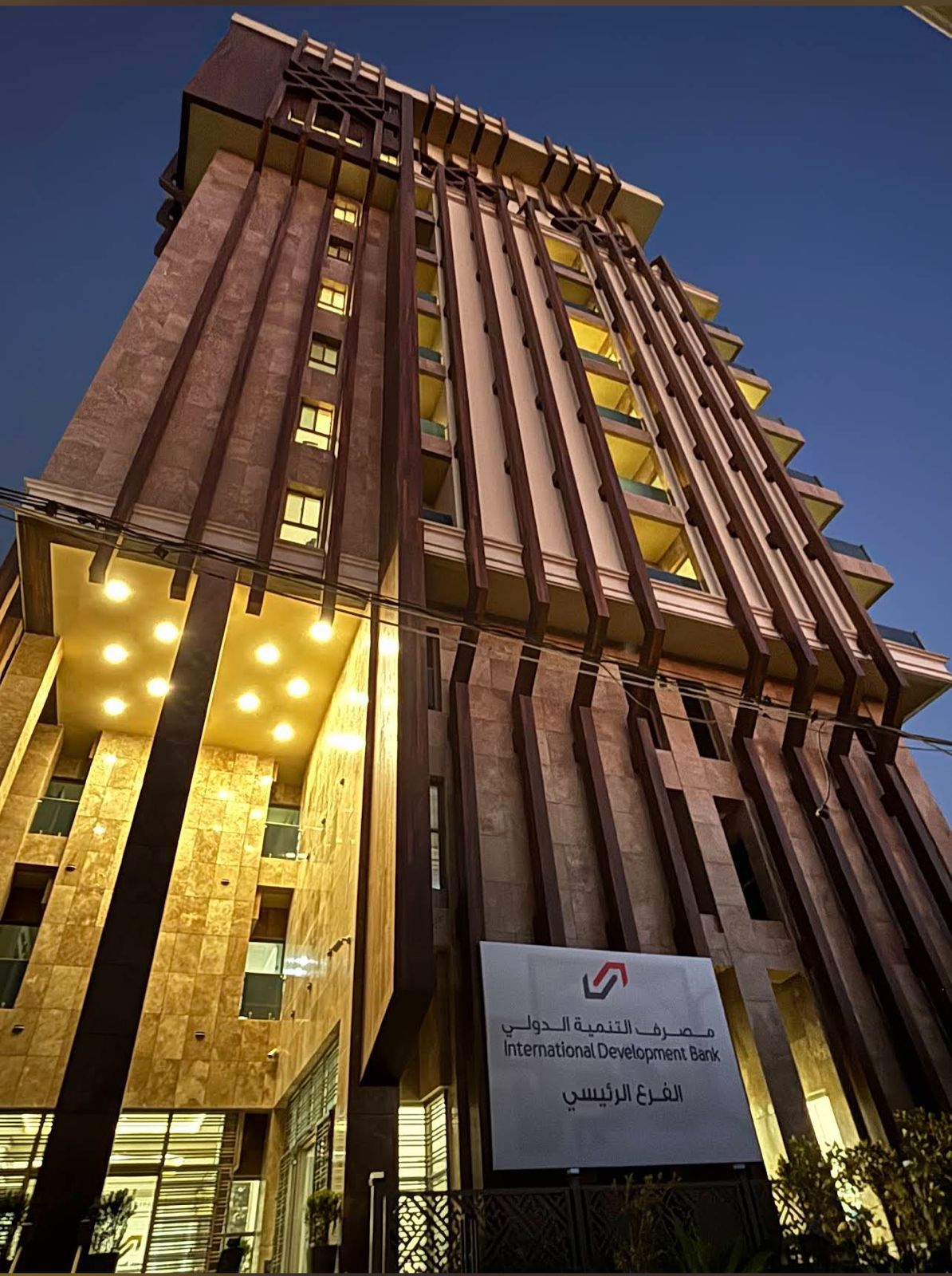

Project: International Development Bank — Iraq Headquarters

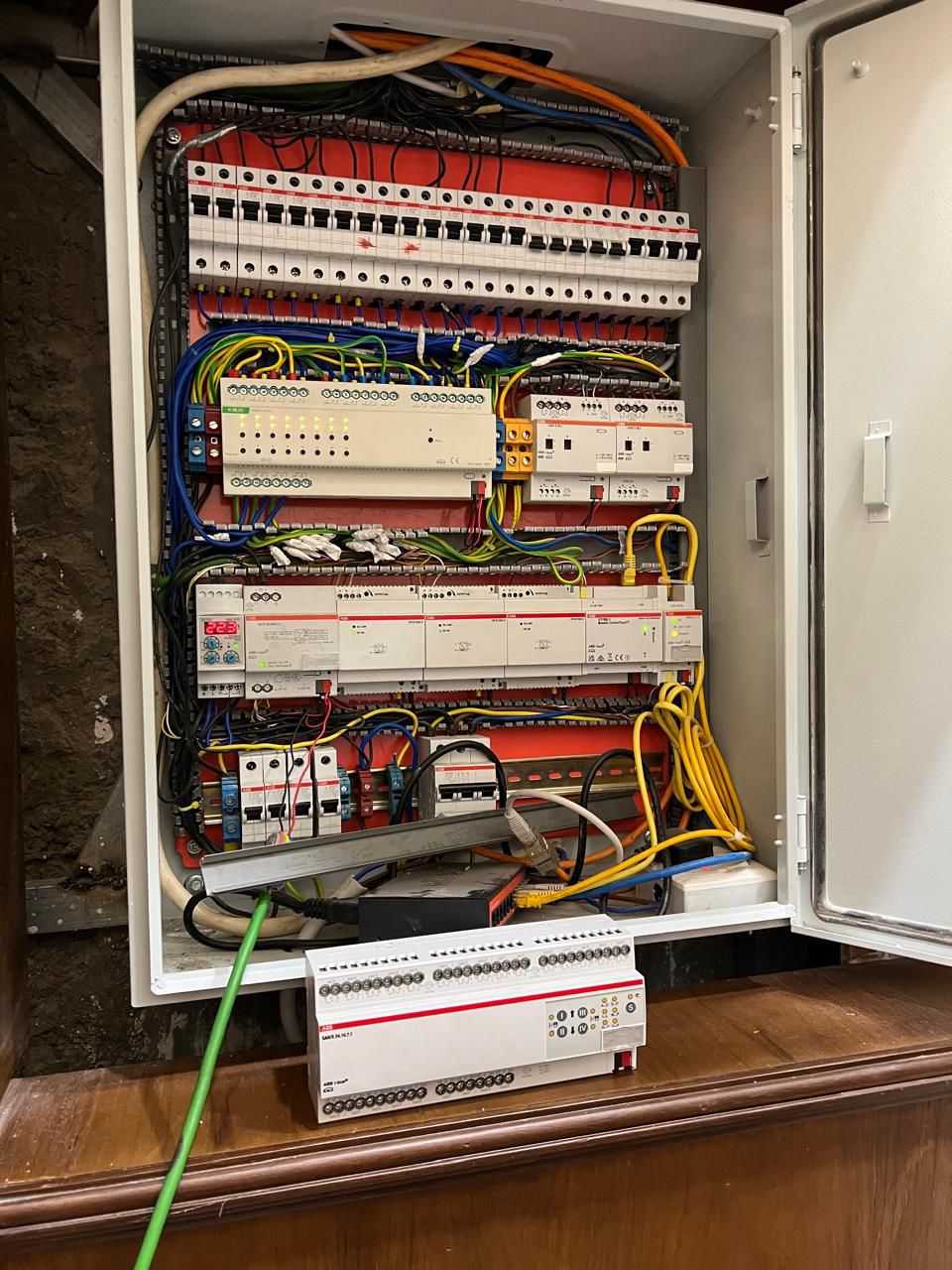

This KNX-based automation solution for the International Development Bank headquarters in Iraq delivers a secure, resilient, and energy‑efficient smart building for a mission‑critical commercial facility. KNX integrates lighting, HVAC, shading, access-control interfaces, and energy monitoring into a unified, vendor‑neutral bus, enabling coordinated scenes, occupancy-driven control, and real‑time power metering. The design emphasizes cybersecurity, redundant KNX topology, and remote diagnostics to ensure continuous operation and rapid recovery in a challenging environment. Multilingual touch panels and mobile interfaces provide intuitive control for international staff, while modular device selection allowed cost-effective procurement and long‑term scalability. Intelligent scheduling, predictive energy o
Contact Information
| Company Name | EL-NUKHBA ENGINEERING COMPANY |
| Company Email | info@elnukhba.com |
| Company Website | https://www.elnukhba.com |
| Contact Name | Ahmed Alhareeri |
| Contact Function | System Integrator |
