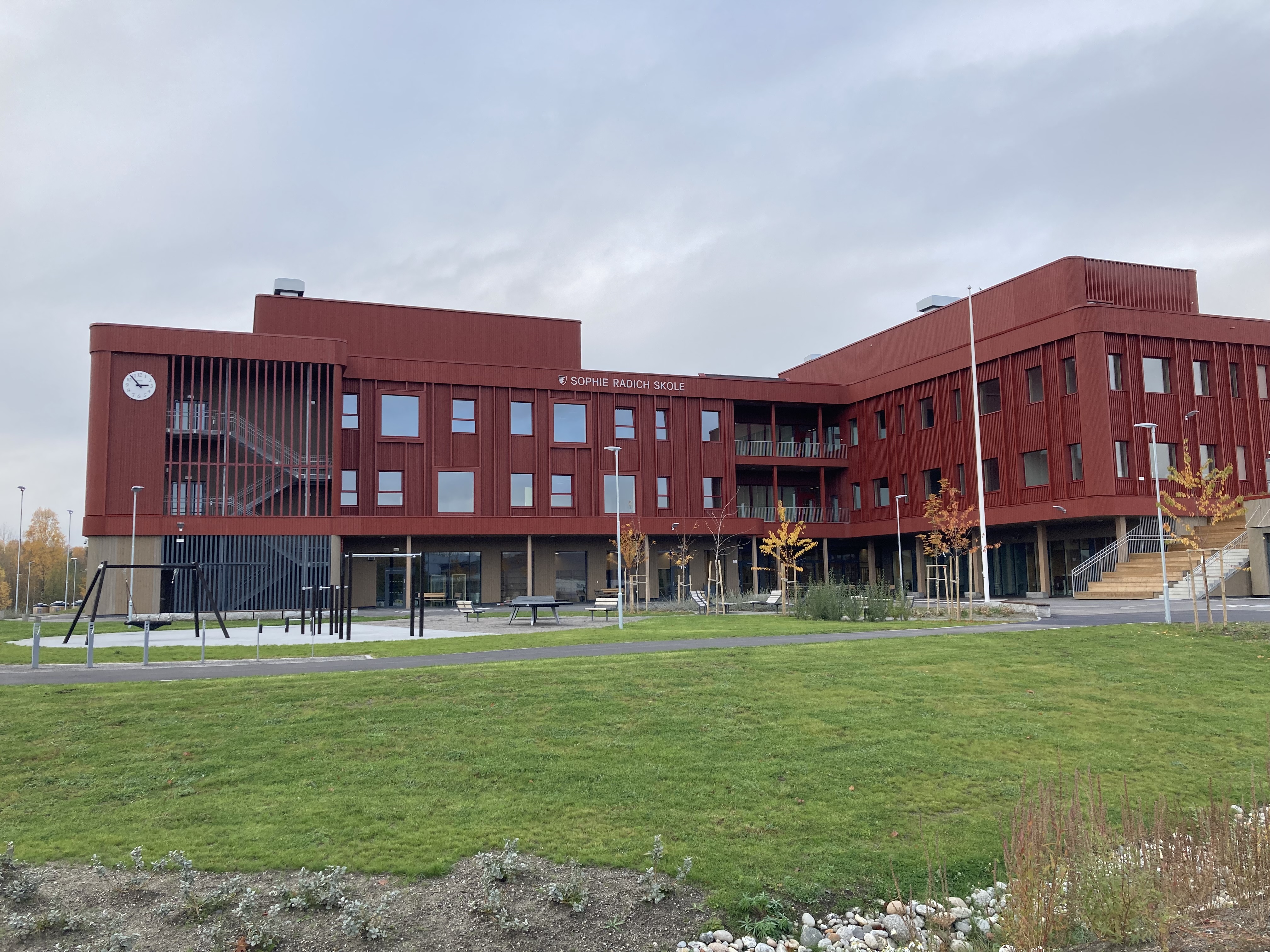

Sophie Radich Ungdomsskole, Lillestrøm
Educational in Lillestrøm
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Educational |
| Project Type | Commercial |
| Year of Completion | 2023 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation, Floor Heating Control
- Security and Safety - Interaction with HVAC/Lighting
- Operation and Visualisation - Web Servers
- Energy Management/Smart Metering - Visualisation, Current Detection
- Other
- Automation and Remote Access - Logical Functions, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Automatic Programs, Wind and Rain Protection
Customers Description
Sophie Radich Junior High School
One building of 13,800m2 distributed over 3 floors which will house up to 720 pupils.
Example of something programmed. Classrooms are managed by:
HCL (Human Centric Lightning) change of color temperature which is regulated by time of day with possibility of local override 2700K/6000K, warm/cold light. Constant light regulation. Motorized windows that open when cooling is applied, possibility of overriding. KNX clock. Heat management. Ventilation, VAV damper which is regulated by high temperature or CO2 value. Sun protection. (screens) Automatically controlled by weather sensor, can be overridden by local switch. A total of 1329 pcs. KNX components. A total of 1829 pieces. DALI luminaires. 5900 BACnet objects.
Contact Information
| Company Name | Ekom-Installatøren AS |
| Company Email | ronny@ekom-installatoren.no |
| Company Website | https://www.ekom-installatoren.no/ |
| Contact Name | Ronny Pettersson |
| Contact Function | System Integrator |
