Cube house
Family house in Voula
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Family house |
| Project Type | Residential |
| Year of Completion | 2022 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control

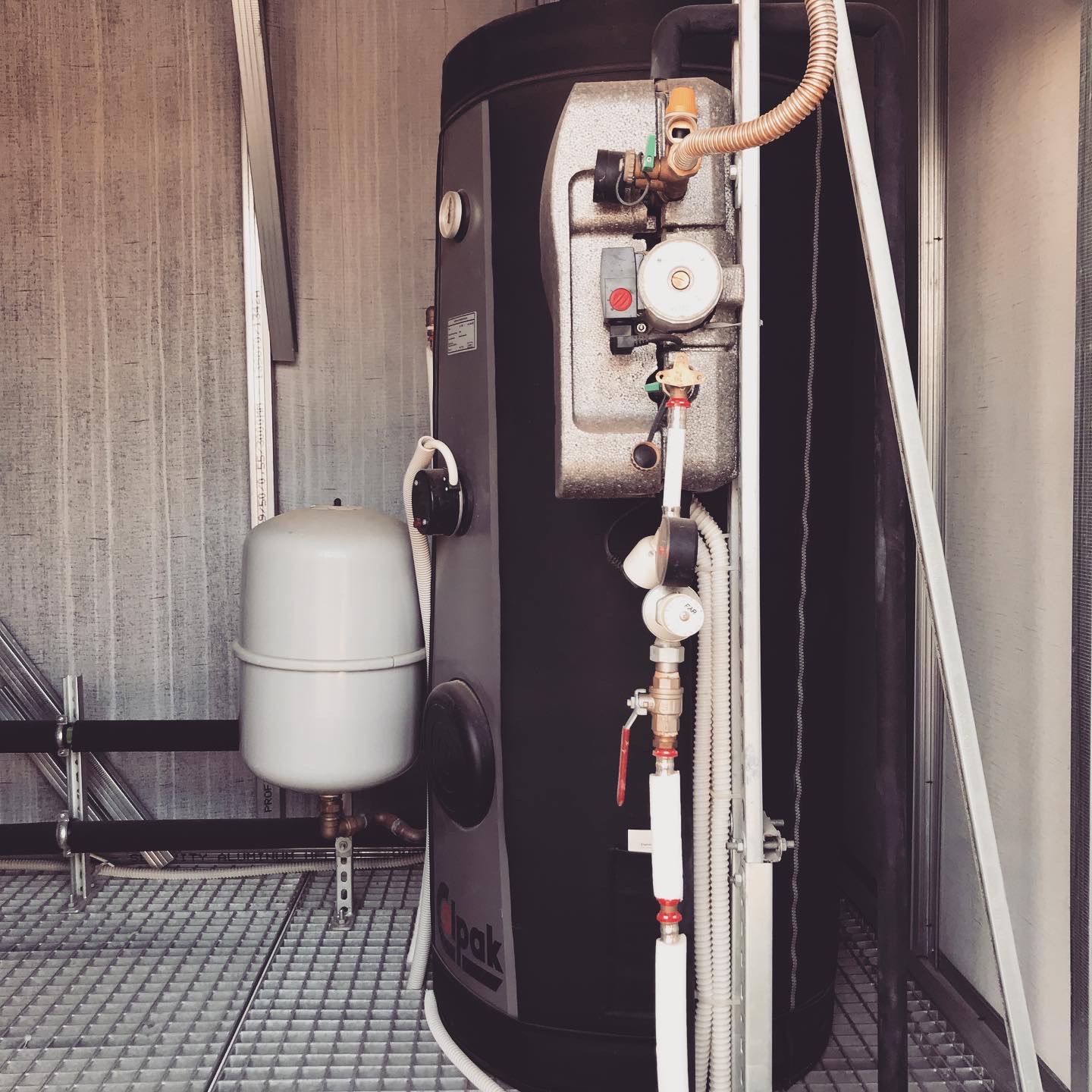

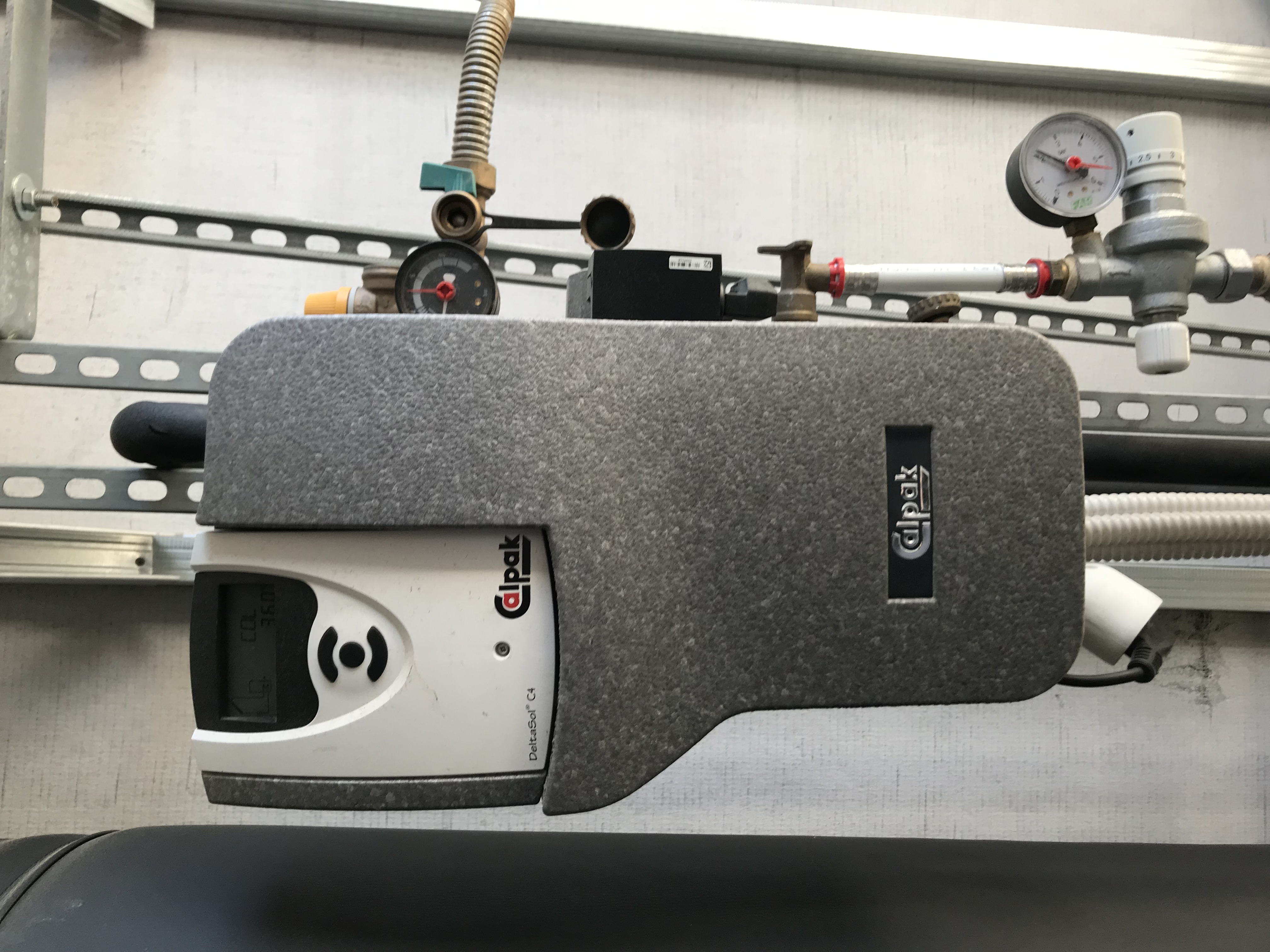

- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Floor Heating Control, Boiler and burner Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Intrusion Detection / Alarm Systems, Emergency Lighting, Presence Simulation, Supervision (e.g. Cameras), Interaction with HVAC/Lighting

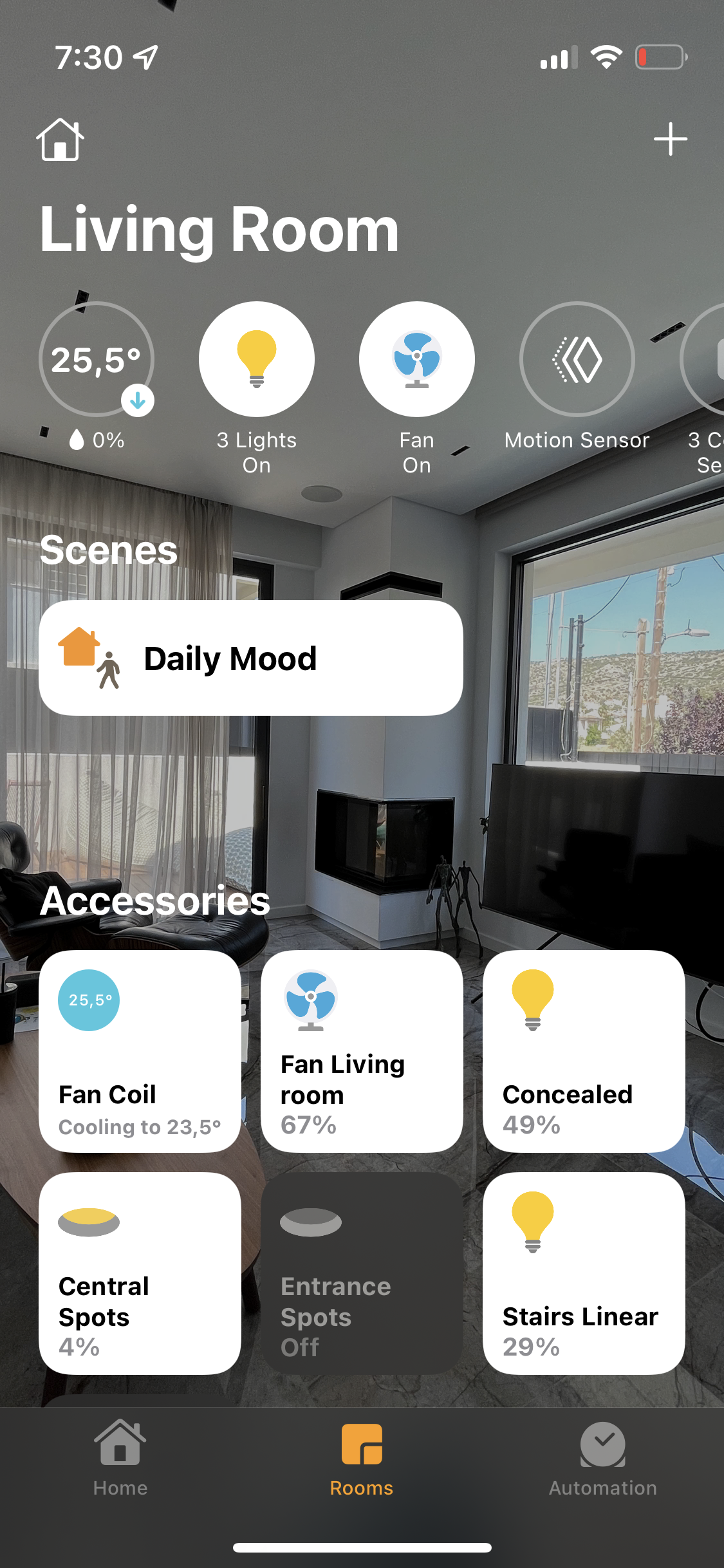

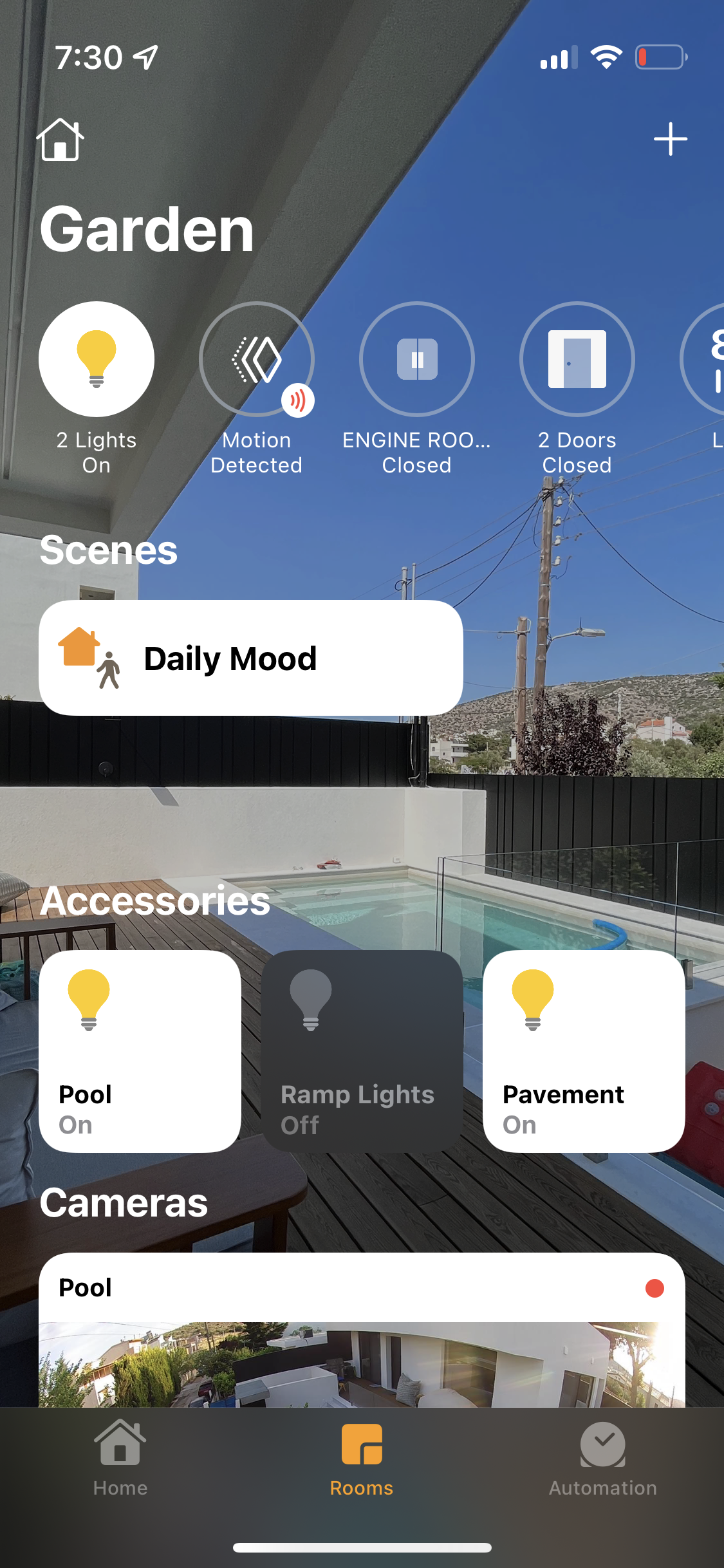

- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering
- Other - Intercom, Irrigation Control
- Automation and Remote Access
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs
Customers Description

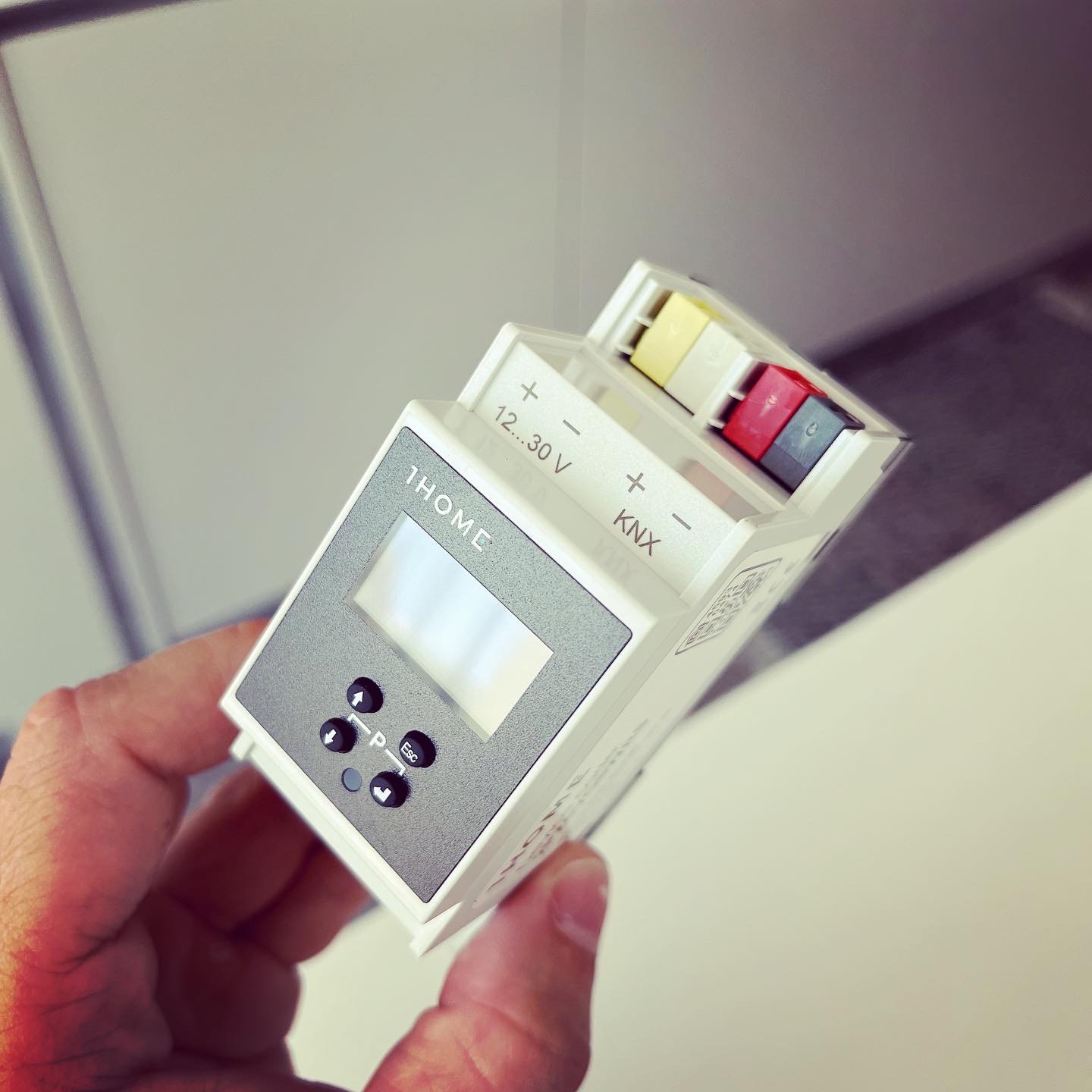

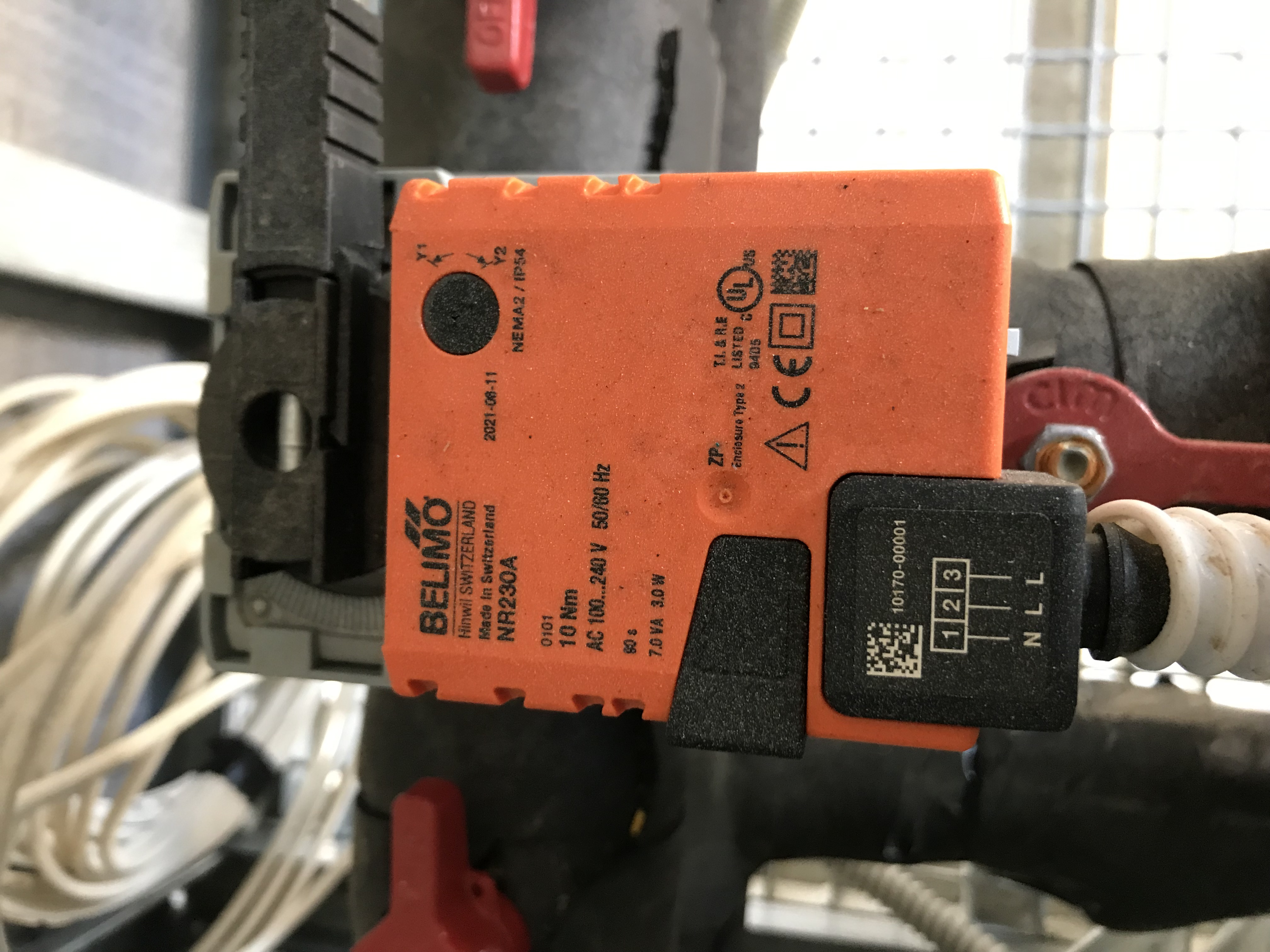

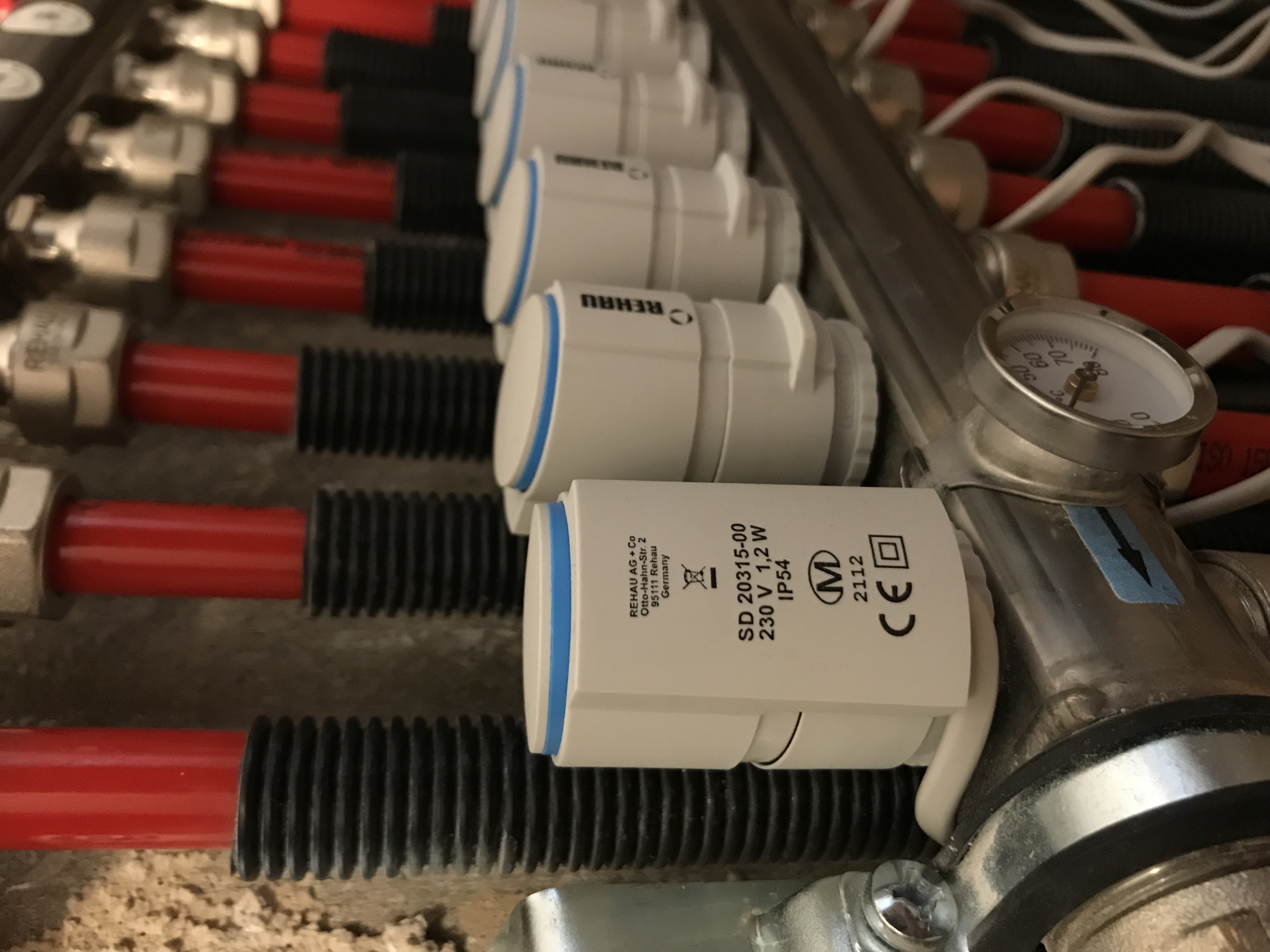

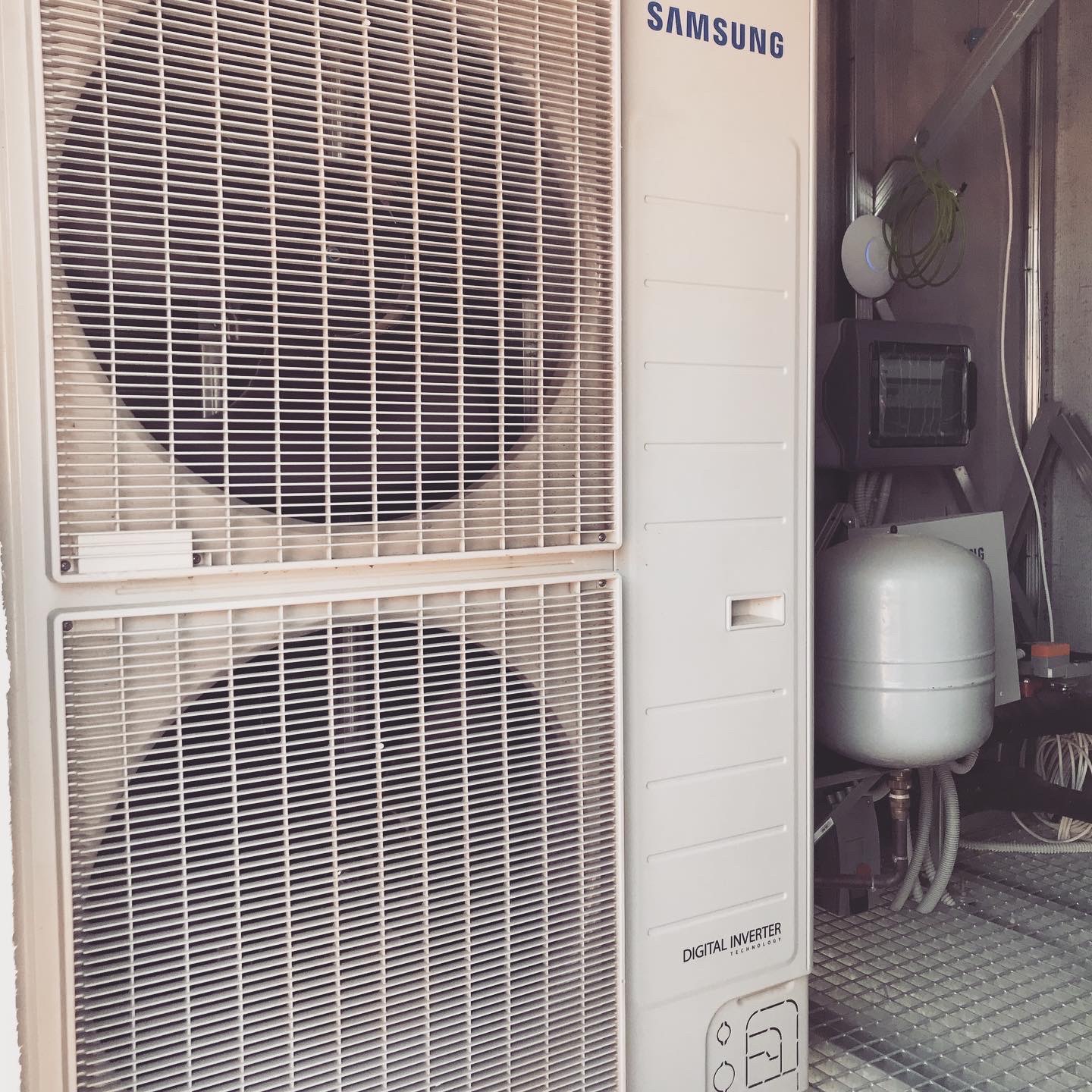

KNX controls the UFH via the excellent TYM646R heating actuator which is also a heating controller. The PI (control variable) along with the PWM of the triacs actuator provide a stable control of heating and also saves energy when driving the electrothermic ON/OFF heads of the UFH. The Fan coil actuators are used for cooling. The control variable is sent from the heating controller to the FCA and then based on the measured room temperature the FCU sets the appropriate fan speed based on the calculation of the PI and at the same time the heat requirement signal is sent to the Heat pump.
Contact Information
| Company Name | cognitive |
| Company Email | info@cognitive.gr |
| Company Website | https://cognitive.gr |
| Contact Name | ATHANASIOS ILIADIS |
| Contact Function | System Integrator |
