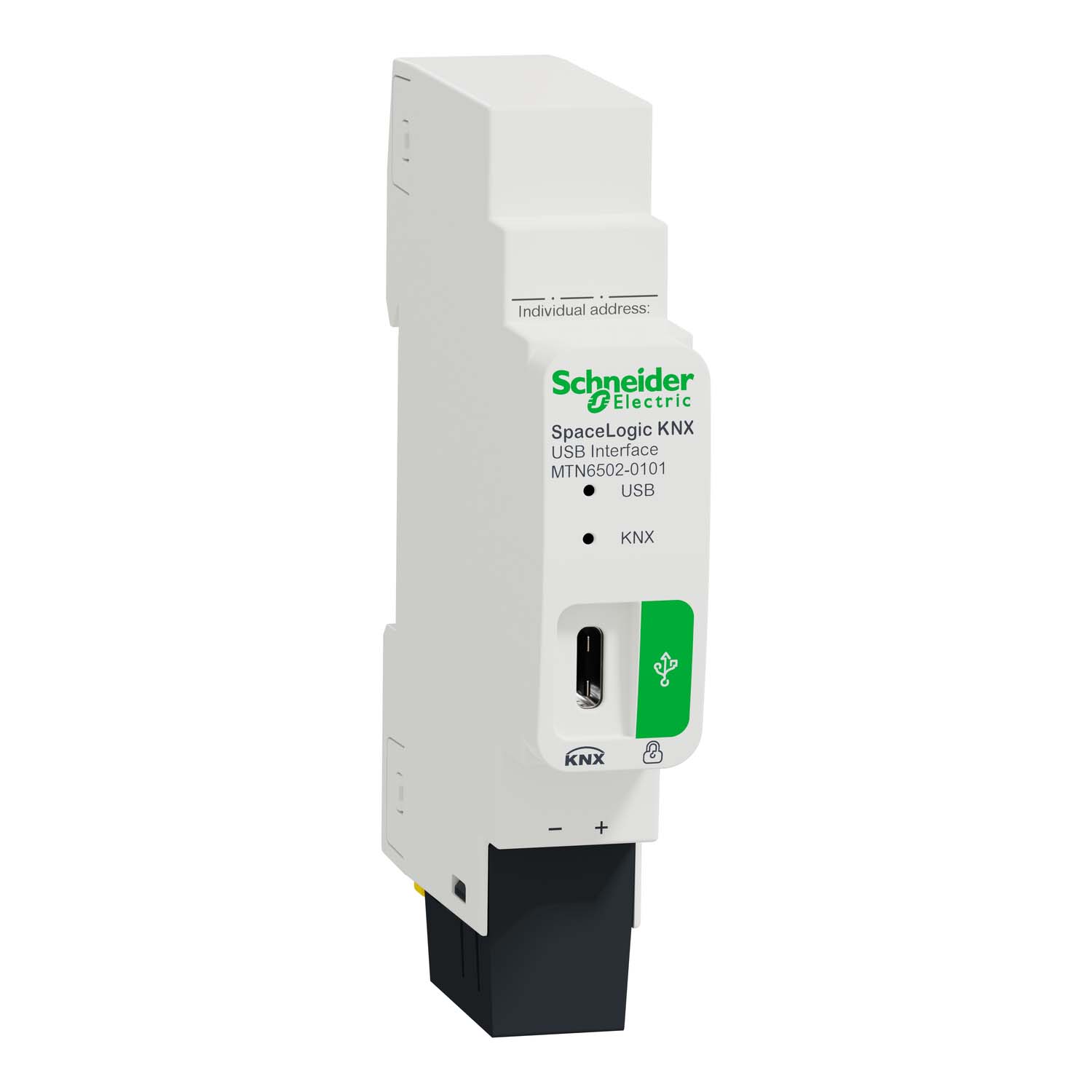

SpaceLogic KNX USB Interface DIN Rail

Spacelogic KNX USB Interface DIN Rail. For connecting a programming or diagnostics device with a USB 2.0 interface to the KNX. The USB connector (Type C) is galvanic isolated from the KNX bus. It can be used as a programming interface for ETS Software Version 4 (or higher). The device is programmed locally with the physical address and does not have a programming button and programming LED. With 2 status LEDs. The KNX USB interface supports KNX “longframe” communication and is compatible with KNX security telegrams/devices. This allows faster KNX downloads if supported by the target device (e.g. MTN6725-0001). For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. Device width - 1 module = approx. 18 mm. Contents - With bus connecting terminal and cable cover.
