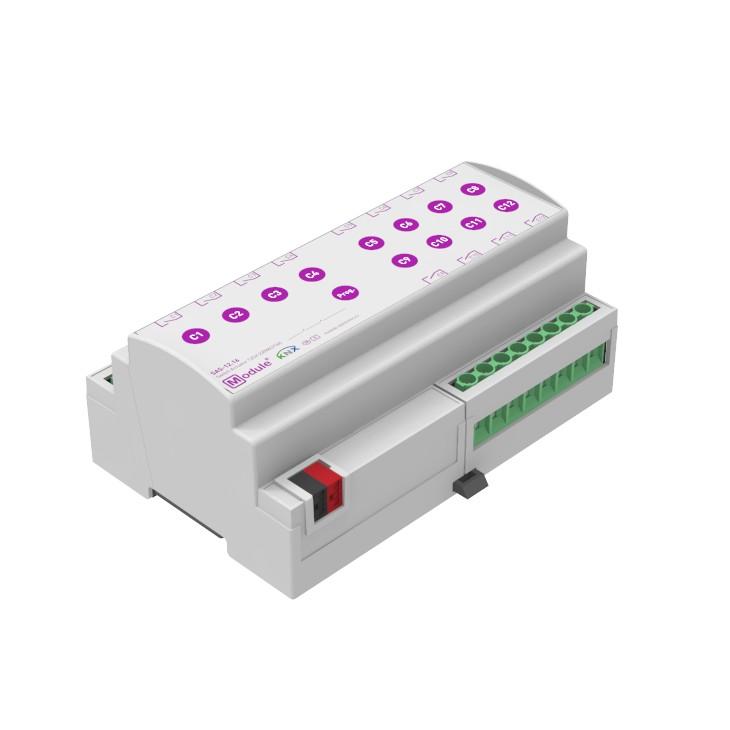

SAS-12.16

The switch actuator receives KNX telegrams and switches up to 12 independent loads. Each output has a bistable relay, which can be manually controlled.

• 12 independent channels for a maximum capacitive load of 140µF

• Ability to connect outputs to different phases

• Manual control of outputs using front panel buttons

• LED indication of output status

• Extendet logic and scenario functions for each output

• Ability to select output mode (NO or NC)

• Saving settings during a KNX power failure

• Power supply via KNX bus

• DIN rail 35mm mounting
