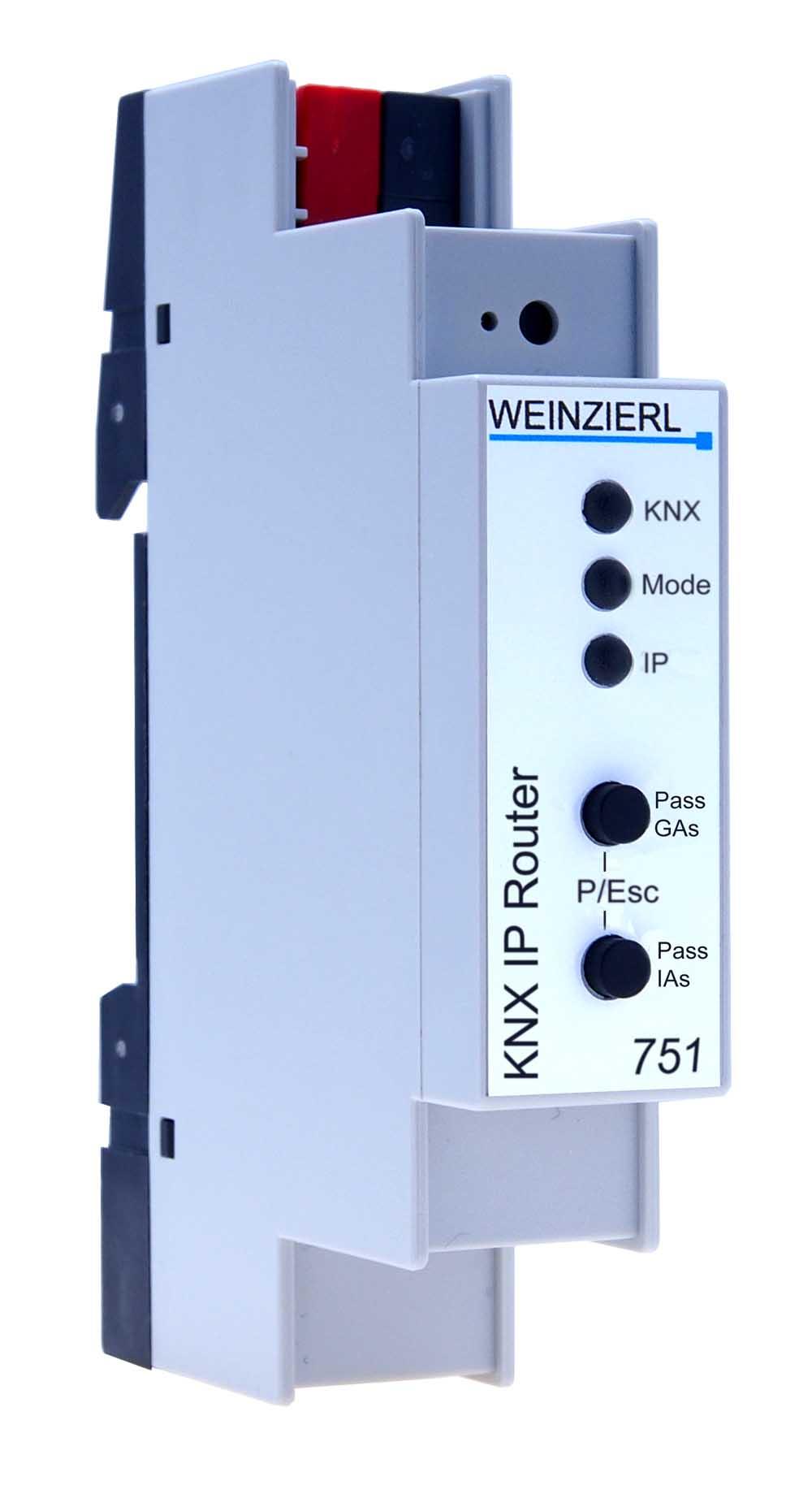

KNX IP Router 751
KNX IP Router 751The compact Weinzierl KNX IP Router 751 allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone. In addition this device is suited to connect a PC to the KNX network e.g. for ETS programming.
The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively. This device works according to the KNXnet/IP specification using the core, the device management, the tunneling and the routing part.
The KNX IP Router 751 has an extended filter table for main group 0..31 and is able to buffer up to 150 telegrams. Power is supplied via the KNX bus.
| Category | Value |
|---|---|
| Catalog Item Name | KNX IP Router 751 |
| Application Program Name | KNX IP Router 751 |
| Order Number | KNX IP Router 751 |
| Rail Mounted | Yes |
| Manufacturer Website | Weinzierl Engineering GmbH |
