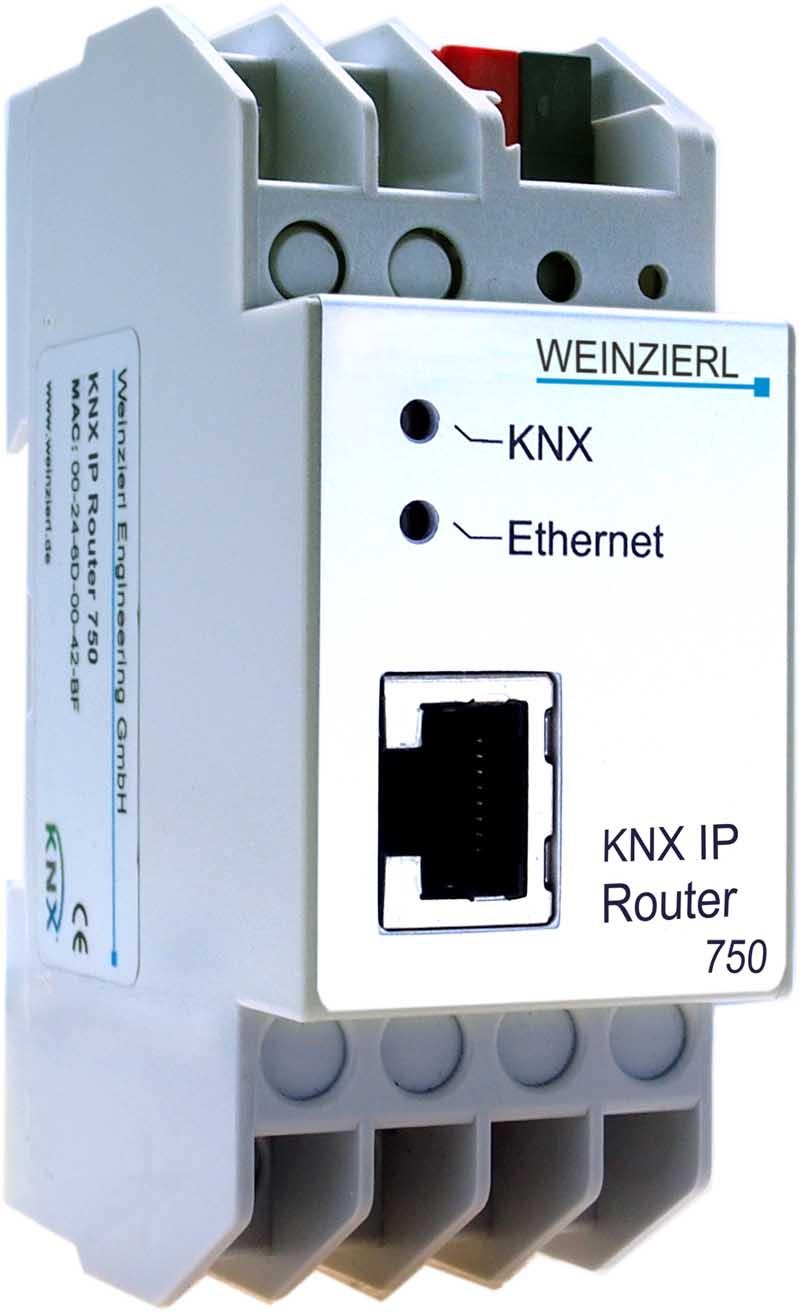

KNX IP Router 750

The Weinzierl KNX IP Router 750 allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone. In addition this device is suited to connect a PC to the KNX
network e.g. for ETS programming. The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.

This device works according to the KNXnet/IP specification using the core, the device management, the tunnelling and the routing part.

The KNX IP Router 750 has a filter table and is able to buffer up to 150 telegrams.
